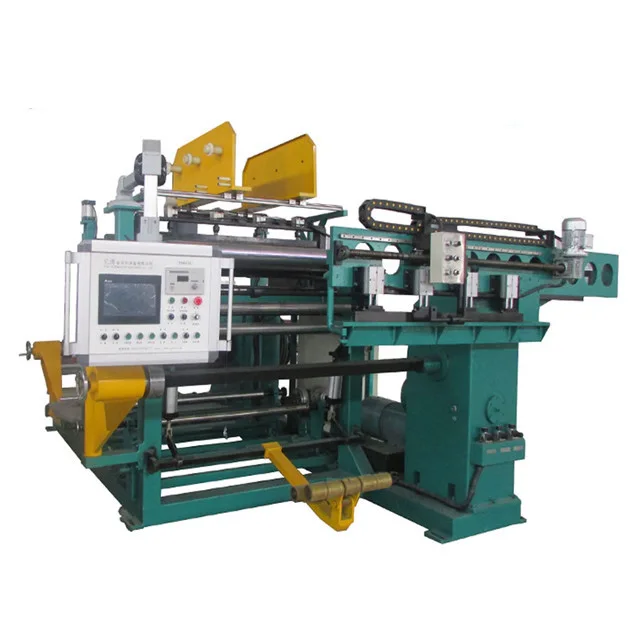

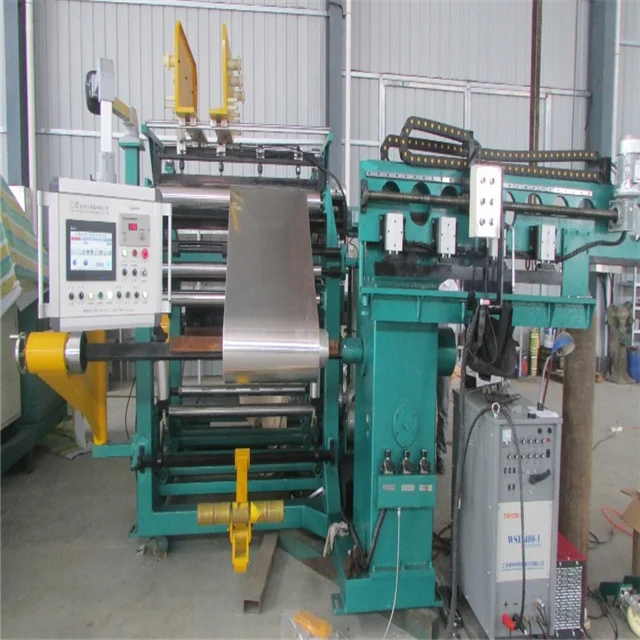

BRJ 1600 Double layer copper and aluminum foil winding machine for transformer
- Category: Foil Winding Machine >>>
- Supplier: Yibo Automation Equipment Co. Ltd.
Share on (60741326503):
Product Overview
Description
BRJ-1600 speed stepless digital transformer foil winding machine price
Product details
| Main technical parameters | |||
| Model | BRJ-1600 | BRJ-1400 | BRJ-1100 |
| Height of foil mm | 300-1600 | 300-1400 | 300-1100 |
| Thickness of foil mm | Copper foil 0.5-2.0 Aluminum foil 0.5-3 | Copper foil 0.5-2.0 Aluminum foil 0.5-3 | Copper foil 0.5-2.0 Aluminum foil 0.5-3 |
| Maximum diameter of coil mm | φ800 | φ800 | φ800 |
| Form of coil | Square Rectangular Round | Square Rectangular Round | Square Rectangular Round |
| Winding speed | 0-24r/min speed stepless | 0-24r/min speed stepless | 0-24r/min speed stepless |
| Shearing speed | 0-1.5r/min | 0-1.5r/min | 0-1.5r/min |
| Welding speed | 0-0.7r/min speed stepless | 0-0.7r/min speed stepless | 0-0.7r/min speed stepless |
| Maximum tension of foil tape(N) | 18000N stepless and adjustable | 12000N stepless and adjustable | 6000N stepless and adjustable |
| Winding power | 22KW | 22KW | 15KW |
| Activity scope of barrel mm | 460/520 | 460/520 | 460/520 |
| Welding method/speed(r/min) | TIG/0-0.7 | TIG/0-0.7 | TIG/0-0.7 |
| Rectification accuracy | ±0.5 | ±0.5 | ±0.5 |
| Dimensions mm | 6500*3800*2500 | 6500*3600*2500 | 6500*3200*2300 |
Main products
Company profile
Certifications
Packaging Shipping
FAQ
Q: What does “FOB”“CFR”and “CIF”Mean?
A: FOB=free on board with China loading port
CFR=CNF=cost and freight charge with destination port
CIF=CFR+Insurance with destination port
Q: What's consists of equipment for your APG whole production line?
A: APG Machine-APG Mold-Curing Oven-Air compressor-Mixing Material-Release Mould Agent-
Xylene germicides.
Q:What information do we need before quote?
A: Your product's diameter and photo or drawing.
Q: How about your installation & debugging and after-sale service?
A: Our engineer go to the oversea for the installation and debugging availably,and we
provide one-stop sevice and machines lifelong maintenance.On site test and inspection
available.
Q: How about your experience in this field?
A: We have 24 years experience in this field.Until now,we have 19 items patents.
Q: Is it one-stop service company in electric power equipment industry?
A: Yes,Oyr products cover APG Clamping Machine,APG Molds & Injection Toroidal Winding
Machine (CT & PT),Transformer Foil Winding Mach Molds,Marking Machine.
Q: What is your delivery time?
A: It takes around 50 working days.
Q:How's the packing way?
A:The machine with plastic film and others parts use wooden case for safety.
Q: What's the shipping port?
A: Shanghai,Shenzhen,Ningbo,Qingdao etc.
Q: What's the payment terms?
A: Telegraphic transfer(TT),Letter of credit.
Q: What is your factory location?
A: Our factory locates in Pingxiang City,Jiangxi province.Nearest air port:Changsha
airport.High speed railway station:West Zhuzhou station.All above take 1.5 hours
driving.
