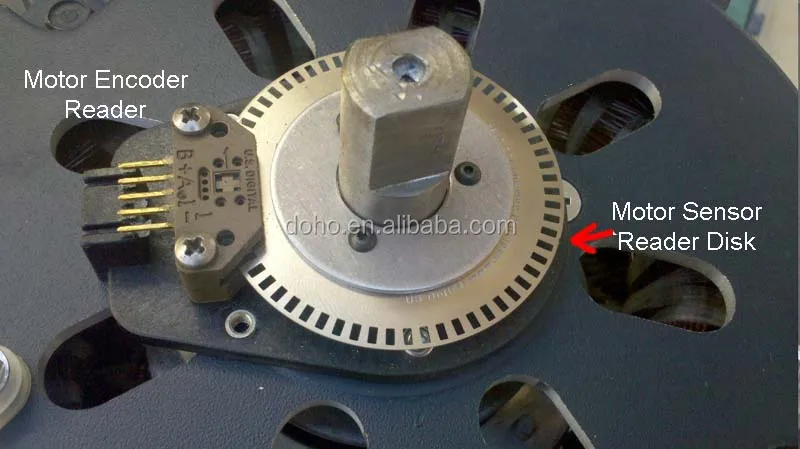

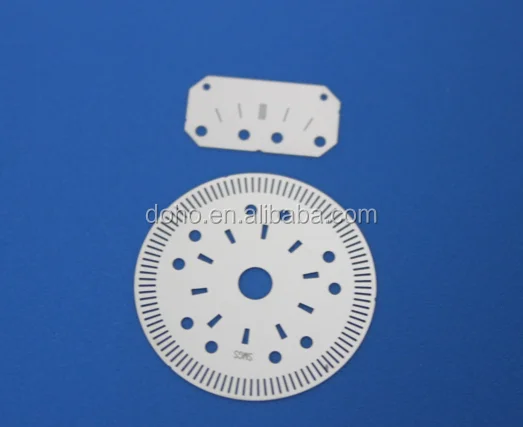

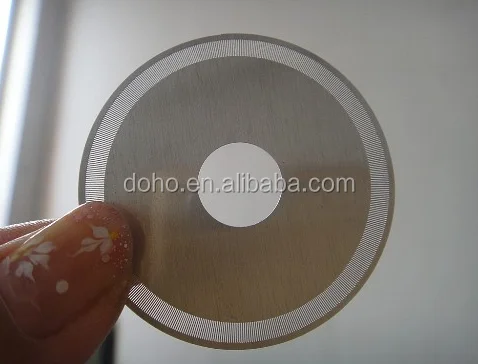

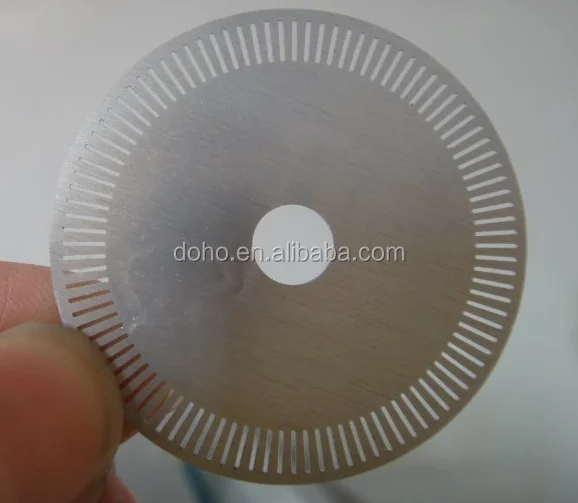

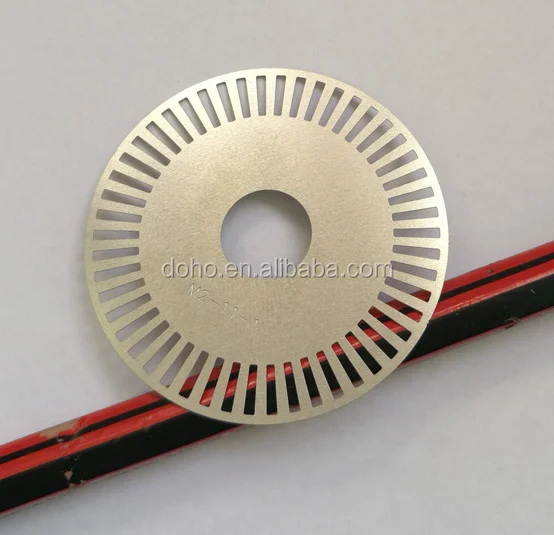

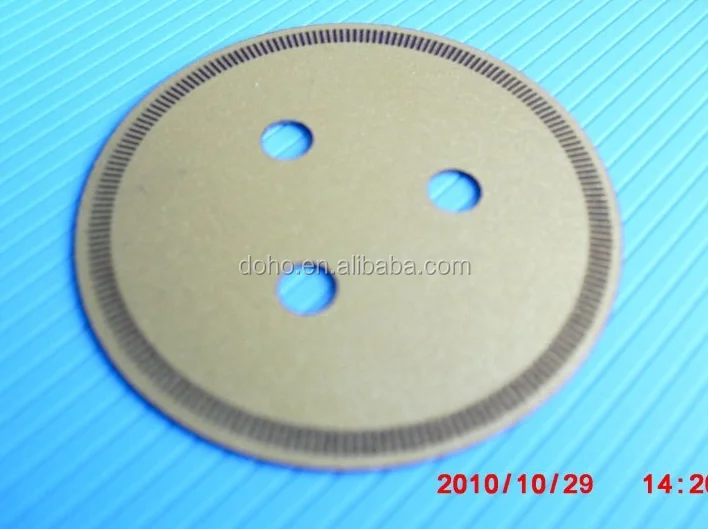

stainless steel 316 Optical Rotary Servo Motor encoder disk photo chemical etched maker

Product Overview

Description

stainless steel 316 Optical Rotary Servo Motor encoder disk photo chemical etched maker --DH 30018;



FREE SAMPLES can be sent on request. Call me, let's talk more!

Specifications

Material:Steel stainless(Sus304)
Thickness:0.05mm-0.5mm
Tolerance:+/-0.01---0.05mm
Mass production:100'000pcs/day



Process: chemical etching.

Material: any sheet material or belt materials such as Stainless steel, copper, gold etc.



Specifications:

Item	Description
Material	any sheet material or belt materials such as Stainless steel, copper, gold etc
Material thickness	0.02mm-1.0mm especially less than 0.5mm
Minimum tolarance	±0.01mm
Production quality assurance	ISO 9001:2008 and ISO14001:2004



Our advantages:

1.        Low cost for molding;

2.        To achive metal half-etching;

3.        High precision;

4.        Products with complexed shape;

5.        No burrs,and integrated;

6.        Used for different kinds of metal;

7.        All ODM is welcome.

Etching process:

Film(CAD output) →get the materials ready→Pre-treatment→DRY FILM(Lamination) →Exposure→Developing→Drying→Etching→Stripping → Checking,Packing,Delivery



Character: precision double etching, smooth surface on both edges, no embossment, no convex-concave, no burnisher burr , no warping, no ,   any complicated pattern or geometric figure is available. Compared to perforated metal, it does not need polishing, and moreover, it’s very easy to change design and takes shorter producing time. It can produce what perforated metal machine can not produce.





End use: metal mobile keyboard, precise filter, shaped wire mesh, nameplate, juice machine filter, razor sheet, precise elecronics parts, ani-insect net, meal crafts, metal grid, metal cover, metal plate for model, decorative metal plate, metal name plate, metal cards, etched ornament, etc.



Etching applications:electronics industry,communication industry,automotive,medical,precision engineering,areospace,military,ect.



Etching metal sheet can be made according to customers’ demands. And our products have been exported to U.K., Italy, Germany, France, Brazil, Canada, U.S.A., etc. And nearly all clients are satisfied with them.
