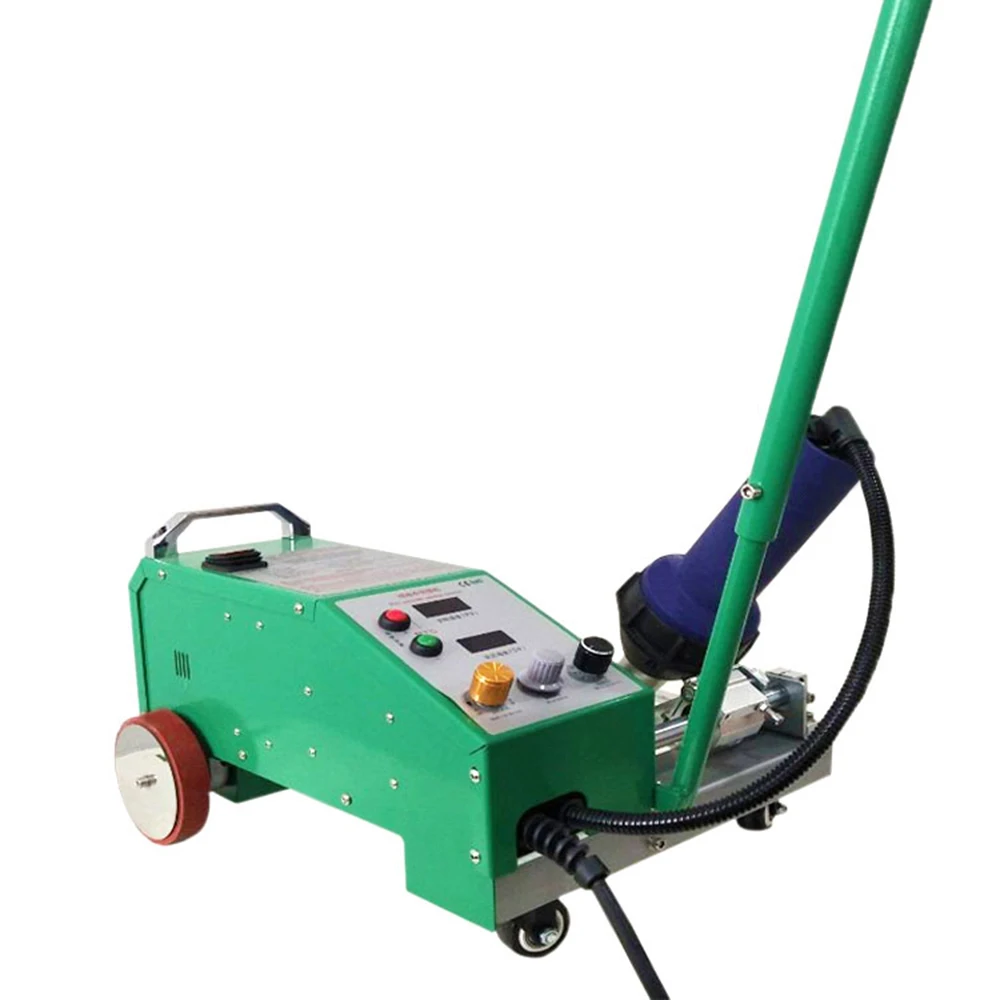

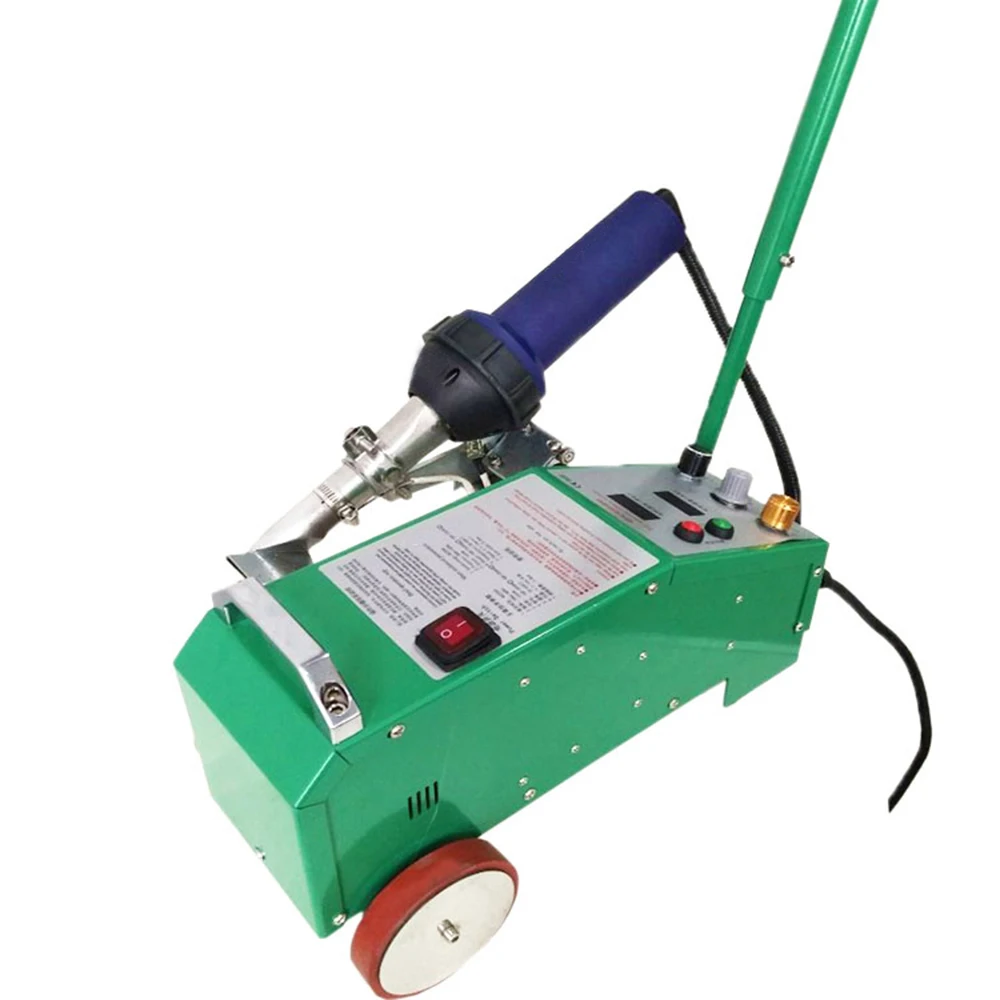

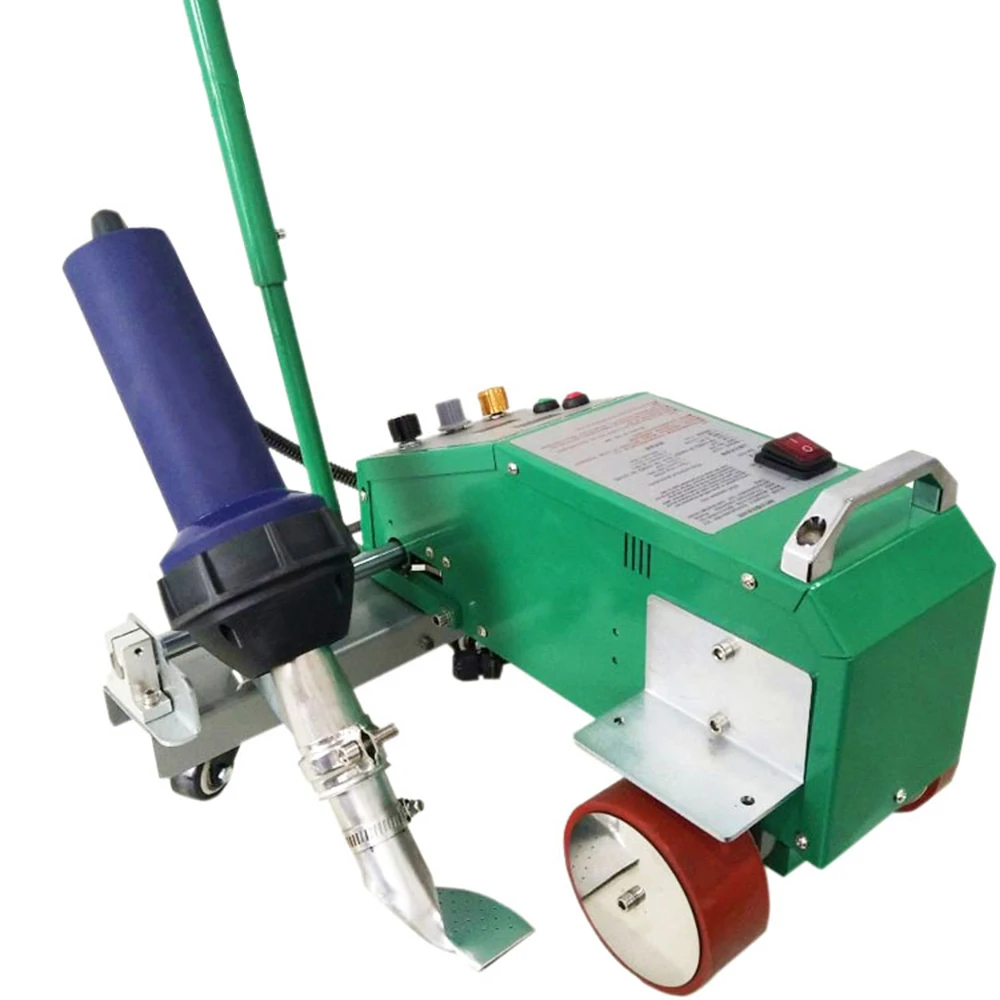

TOP2000C welding machine for plastic pvc tarpaulin fabric banner with CE

The automatic banner welding machine is designed to weld plastic materials. It can weld advertising inkjet fabric, inkjet cloth, light box cloth,PVC banner cloth,plastic cloth, tarpaulin and other PVC, PE, DHPE, LDPE, EVA, Pp plastic materials that can be hot melted. It is small, light and easy to operate. It is equipped with temperature feedback sensor. The sener can always monitoring the temperature of the outlet to keep a constant temperature.

It uses advanced PID control technology, and adjust the power to make the temperature more constant automatically,the fluctuation is within 1 degree. This function can make the welding result stronger. It also can avoid leakage. This machine is more suited to fast welding of large roof.

  Features

1. Fast speed , (according to materials thickness);
2. Control handle help change welding direction easily ;
3. Carbon brush replaceable , reduce maintenance cost;
4. Brand new interface design , easy to understand , microcomputer data memory;
5. Unique welding pressure balance gear make welding best ;
6. Strong and practical tool box .Digital temperature control,LCD screen,temperature control more accurate,temperature floating  ±1℃.

  Usage

·         welding PP/PE/PVC plates, vessels and chemical tanks;

·         connecting pipelines, making pipe bends;

·         making and fixing plastic tanks, welding plastic sheets;

·         making pipe fittings and bending products in different shapes;

·         In particular, our products are fit for outdoor onsite operation;

·         Suitable for waterproofing membrane local repair welding

  Operation

1.Connect power to AC220V, turn on power button.

2.Make the cloth for seaming flat and tight,. take joiner to accurate (about 2-4cm),Fix both ends by tape or glue on ground.

3.set the temperature and walking speed: Connect the power supply, set the temperature and walking speed according to the thickness of the cloth. Temperature and speed is adjustable.

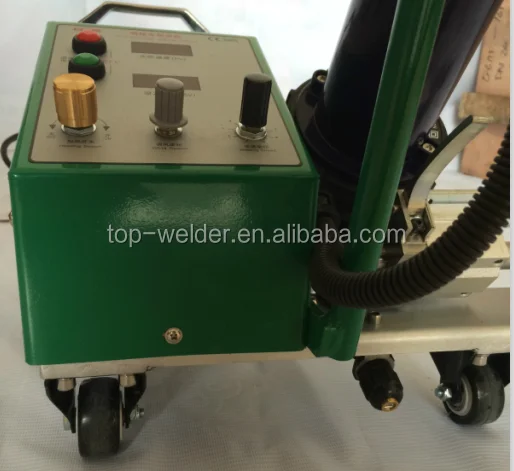

4.Turning the heating switch (yellow knob), the machine starts to heat up. Wait for 2 minutes,when actual temperature (PV)approach desire temperature(SV),we can start weld.

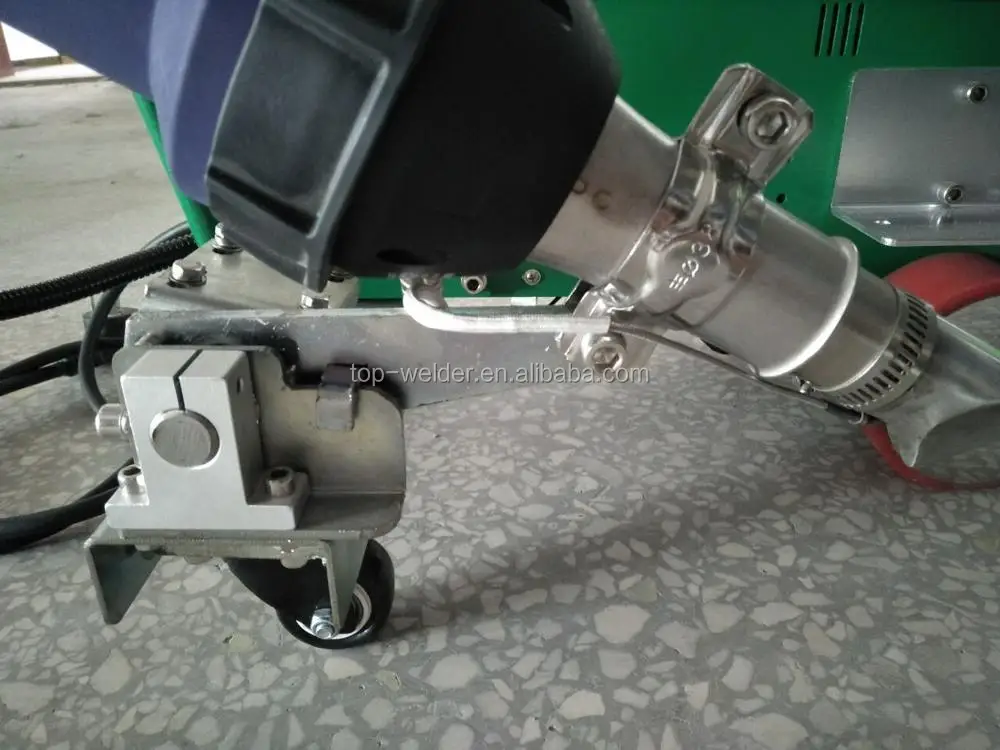

5.Start welding: pulling the heat gun to position handle and making the nozzle close to ground then move the nozzle to left so that it can be place a right position, at that time, the welding will work automatic.

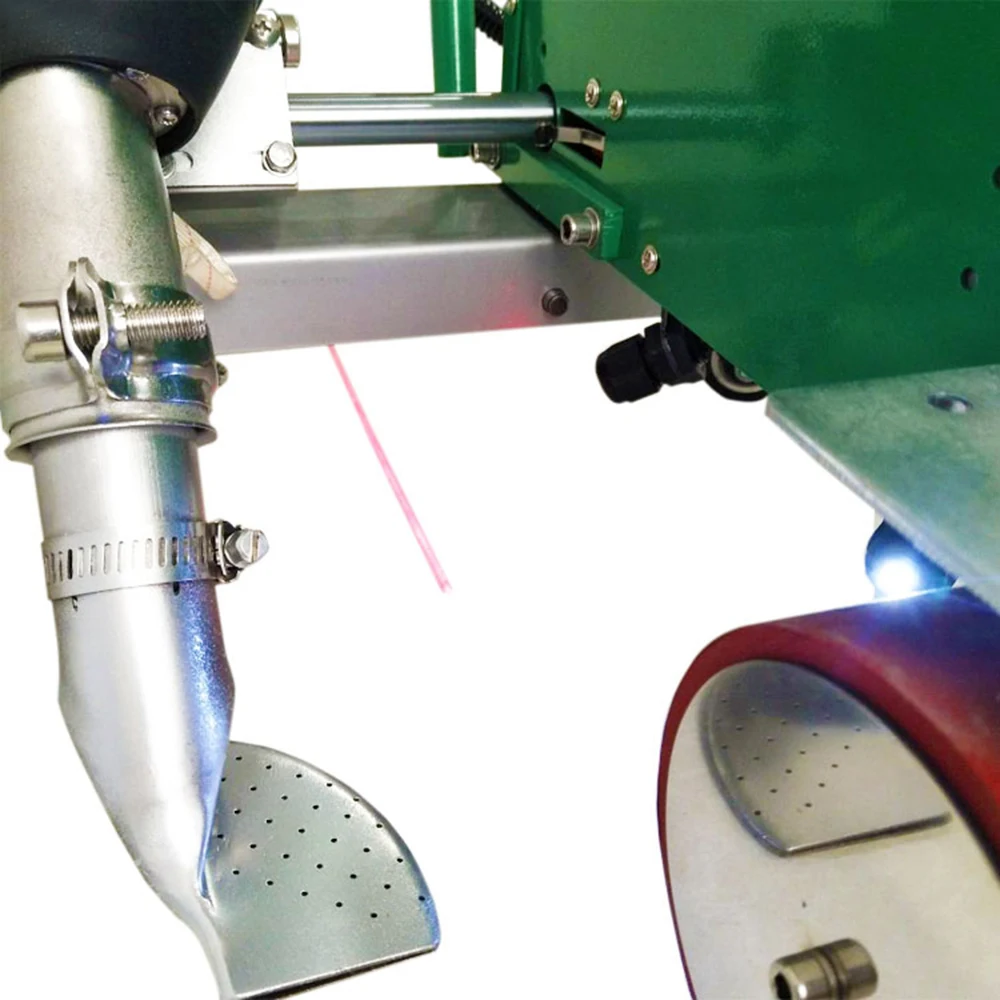

6.During welding,let hot air nozzle between two overlap pieces. And be make sure hot air nozzle and Rubber wheel walk in straight line .

Parameters & Details

• Standard with 40mm nozzle;
• Speed could reach 10m/min;
• Processing material thickness up to 2mm;
• Speed and temperature show in LED display separately;
• Easy to take with hand tool ;
• Easy to operate;
• CE ROHS certificate.
