FZC7732 CNC Wire Cutting Machine Multi Cut EDM Wire Cut for Sale

Product Overview

Description

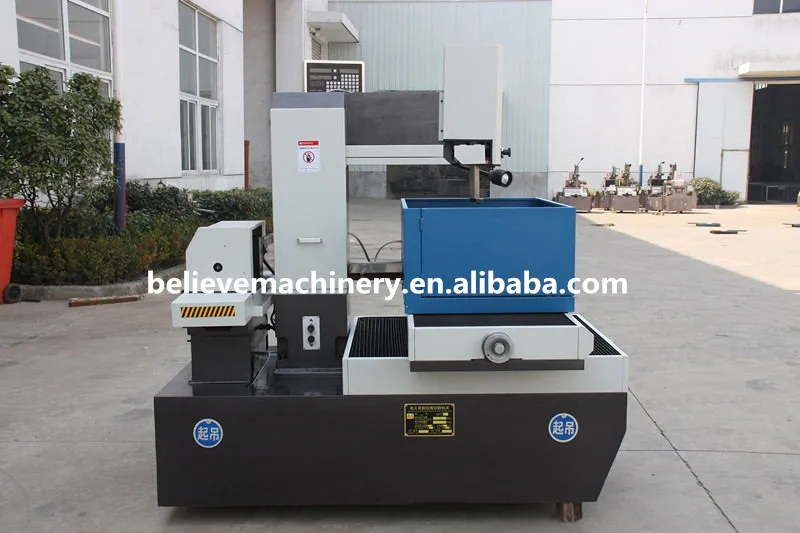

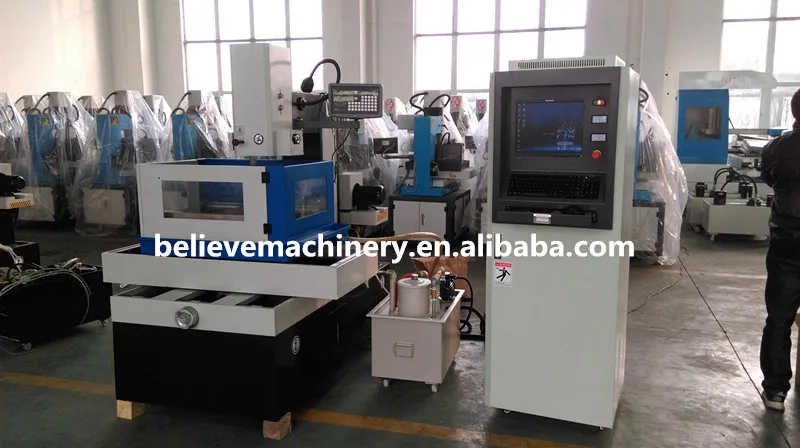

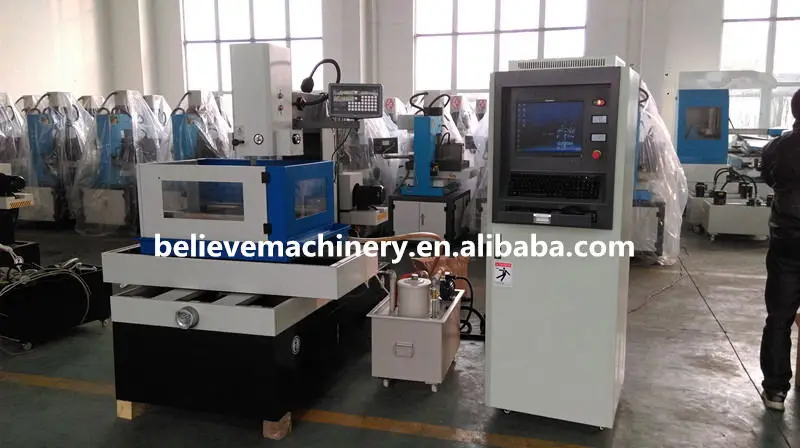

 FZC7732 CNC Wire Cutting Machine Multi-Cut EDM Wire Cut for Sale



wire edm machine cnc control -Features:



 1)  “C” structure column design, machine head is installed in vertical direction, there will be no wire

  swing during wire feeding.

 2)  “T” shape machine bed with 6 support points to make sure rigidity of whole machine, High Grade

 casting was processed by Annealing and ageing treatment .  Cross design X,Y axle carriage always    move within range of “T” machine.

 3)  All X, Y, U, V axles ,  and  Wire drum moving rail  are  HIWIN linear guide rail,

 4)  All are stepper motor,  Servo motor is optional.

 5)  With automatic wire tension mechanism, keep the wire moving more stable.

 6)  With Diamond nozzle for guiding the wire.

 7)  Adjustable guider to make sure the wire is perpendicular to the work piece by the motor for lifting

  and lowering.

 8)  With Readout indicator to see the position directly.

 9)  Fangzheng patended Control cabinet, with Double CPU, all parameter can be edited while

  machining.

 10)  The Discharge wave can showed on the screen, automatic tracing.

 11)  Real-time track the process, can machine 3D products.

 12)  Different control software;  HF, AUTOCUT.

 13)  Data I/O:  Keyboard, USB.

 14)  Equipped with high pressure coolant tank, with double filter for smooth surface cutting.

 15)  Accuracy: 0.0075mm,  Roughness: Ra0.8





Specifications:



Model	FZC7732
Working Table size  (mm)	440×620
Stroke(X/Y)(mm)	320×400
Max.cut thickness(mm)	300
Stroke(U/V)(mm)	(Normal):24×24 (Large taper):D-60×60 E-130×130 T-240×240
Electrode diameter(mm)	(Molydbenum wire) φ0.10~0.22
Electrode moving speed(mm/sec)	12,9,7,5,2
Max.cutting angle	(Max.multi-cut):±1.5°/50mm;
	(Max.one time-cut):±3° D-±10° E-±18° T-±30°/50mm
Positioning accuracy(mm)	(Multi-cut): 10×10×30(Squire)≤0.006(One time-cut)≤0.012 (Multi-cut)(Octagon)≤0.009 (Strightness)≤0.006/50mm
Process roughness(Ra.um)	(Multi-cut):Ra≤1.2(Micro-pulsepower Ra≤0.8) (One time-cut):Ra≤2.5
Driving motor	Stepping motor or* AC servo motor*(Optional)
Guide screw and track	Precision ball screw/Linear motion guides
Tension system	three grade(0/1/2)tension adjustable
Working fluid capacity	Complex or water-dissovle special coolant/65L
Power supply	AC3 φ -380v/2.5kva
Max.workpiece weight(kg)	450
Weight(kg)	1500
Dimension(mm)	1700×1300×1900
Remarks:  Be reduce 100mm,due to targe taper device fixed. *-(Option); Linear scale(lum)
Model 630/800 is not ristricted on the item,even others with large taper.



Optional:

1. Protection cover.
2. AC Servo system.
