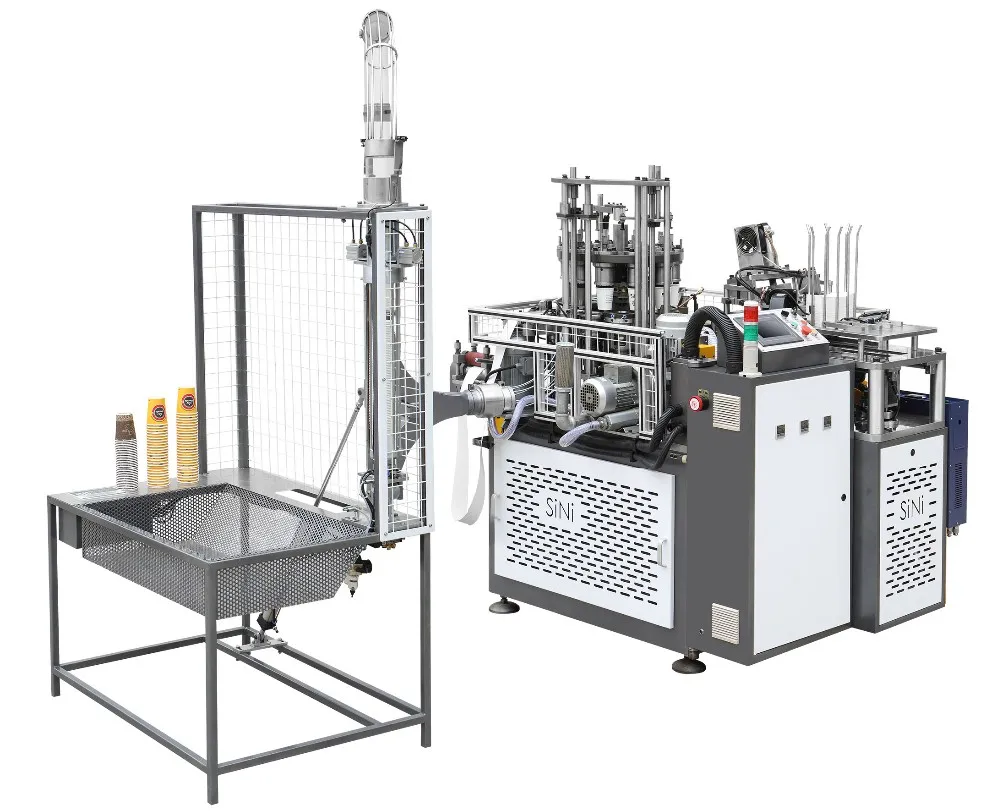

2022 Sini Middle Speed Paper Cup Making Forming Machine Price Automatic Paper Cup Machine
- Category: >>>
- Supplier: Zhejiang Sini Machinery Co. Ltd.
Share on (60741475676):
Product Overview
Description
Model | 22D |
Cup size | 6-22oz |
Raw material | 160-350g/m Two side PE coated paper and one side PE coated paper |
Top diameter | φ 60mm-90mm |
Bottom diameter | φ 40mm-70mm |
Height | 60mm- 180mm |
Bottom depth | 5mm-10mm |
Capacity | 60-90(pcs/min) |
Main motor power | 1.5kw |
Energy consumption | 6-6 5kwh |
Total power | 11.5kw |
Air source | 0.4m/min, 0.5-0.8Mpa |
Weight | 2200Kg |
Dimension(L xWxH) | 1750mm* 1350mm*1850mm |
Main Features
1. Adopt ultrasonic wave technology bonding, which ensures high bonding strength and handsome appearance.
2. Precise box type indexing am stucture he parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
3. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)
4. The heat seal barrel forming part is provided with non-cup-barrel detection, alarming and sopping functions, which enhance the automation degree of the machine(optional according to the demand of the customer)
5. The bottom-punching part is changed into mechanical probe type detection which ensures the detection precision and the pass rate of finished products.
6. The machine adopts high position stopping device so that the machine always stops at the highest point, the mold and the heating fumace are fundamentally separated and the paper cup is prevented from being burned.
7. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.
8. The company has improved the rolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting, being capable of producing thick paper which is more than 300g/m2, and is free of water seepage and water leakage.
2. Precise box type indexing am stucture he parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
3. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)
4. The heat seal barrel forming part is provided with non-cup-barrel detection, alarming and sopping functions, which enhance the automation degree of the machine(optional according to the demand of the customer)
5. The bottom-punching part is changed into mechanical probe type detection which ensures the detection precision and the pass rate of finished products.
6. The machine adopts high position stopping device so that the machine always stops at the highest point, the mold and the heating fumace are fundamentally separated and the paper cup is prevented from being burned.
7. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.
8. The company has improved the rolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting, being capable of producing thick paper which is more than 300g/m2, and is free of water seepage and water leakage.
1.What can your machine do?
Produce paper cup, paper bowl, ice cream paper cone, paper plate, and other paper containers with different machines.
2.What size of the cup/bowl you can make?
It depends on machine models, we can make the size of 2oz to 22oz cup, 20 to 50oz bowl and other different sizes to meet customer's requirements.
3.Are you a manufacturer?
Yes,we have been producing paper cup machine since 1998.
4.What about the payment term ?
We accept TT, LC and cash.
5.What information should I offer if I want to get a quotaion?
- Speed requirement
- Cup size(top diameter,bottom diameter,and height), better offer with cup sample
- Paper thickness
- Use plastic lid or not
6.What’s your advantages ?
- We have been producing paper cup machine since 1998, as a professional manufacturer for 20 years.
- We have customer all over the world.
- We have CE certification and ISO certification.
- We have professional after-sale team which can response immediately.
Produce paper cup, paper bowl, ice cream paper cone, paper plate, and other paper containers with different machines.
2.What size of the cup/bowl you can make?
It depends on machine models, we can make the size of 2oz to 22oz cup, 20 to 50oz bowl and other different sizes to meet customer's requirements.
3.Are you a manufacturer?
Yes,we have been producing paper cup machine since 1998.
4.What about the payment term ?
We accept TT, LC and cash.
5.What information should I offer if I want to get a quotaion?
- Speed requirement
- Cup size(top diameter,bottom diameter,and height), better offer with cup sample
- Paper thickness
- Use plastic lid or not
6.What’s your advantages ?
- We have been producing paper cup machine since 1998, as a professional manufacturer for 20 years.
- We have customer all over the world.
- We have CE certification and ISO certification.
- We have professional after-sale team which can response immediately.
