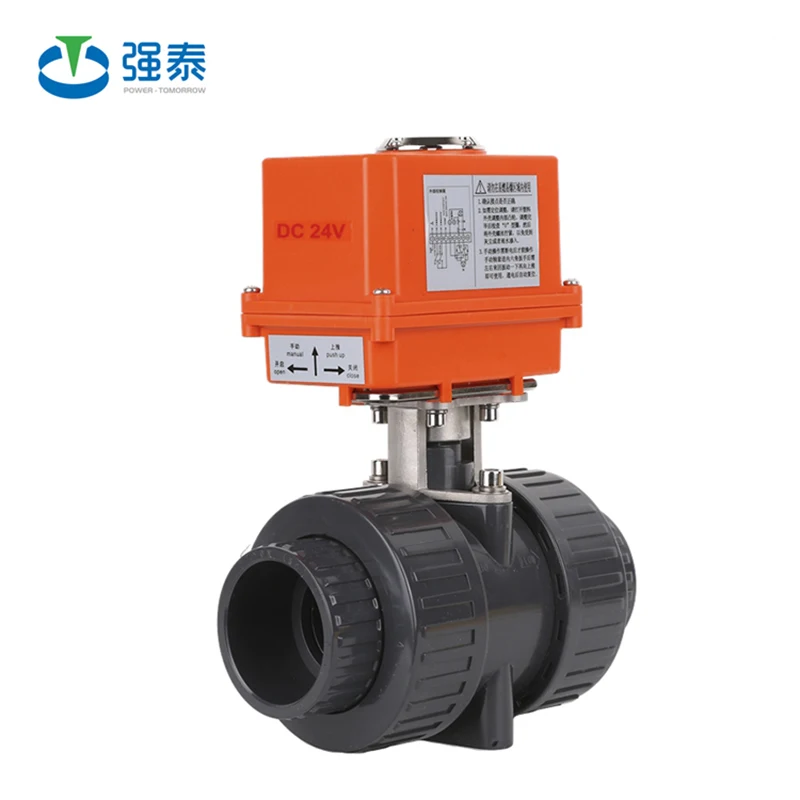

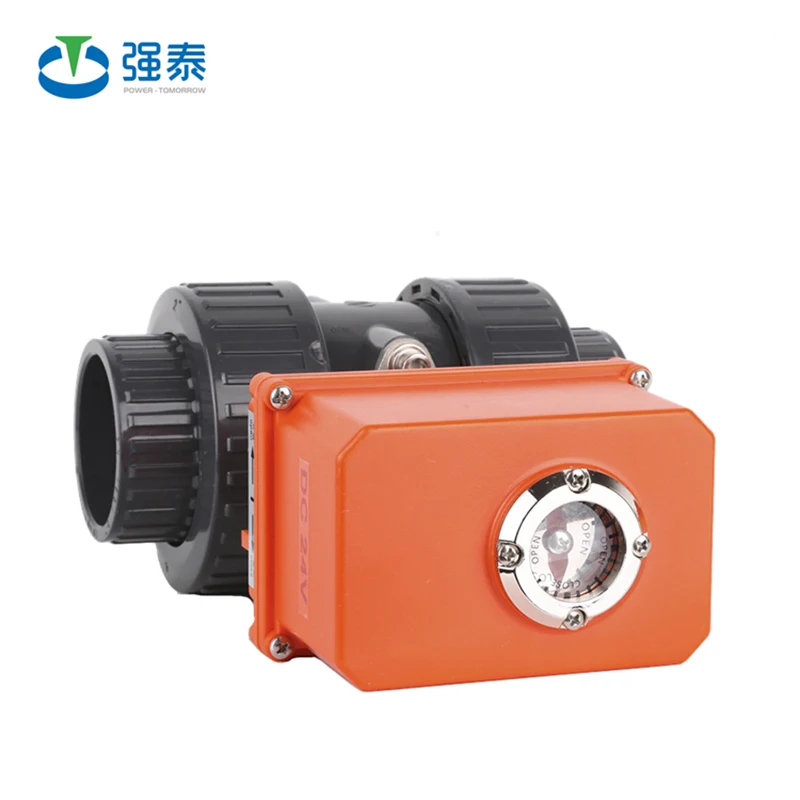

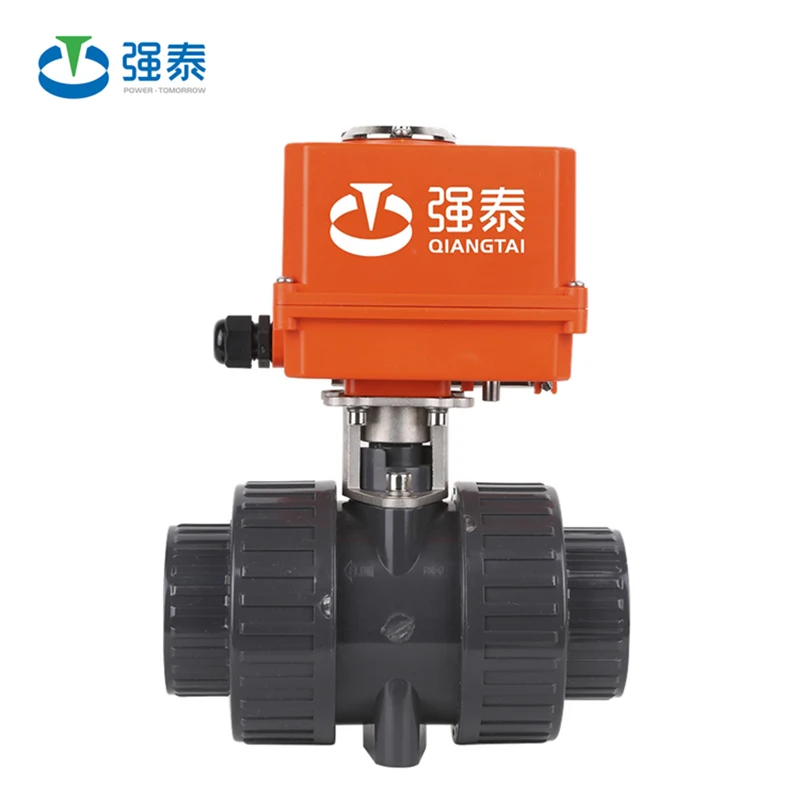

mini electric actuator pvc ball valve/pvc electric control valve
mini electric actuator pvc ball valve/pvc electric control valve
mini electric actuator pvc ball valve/pvc electric control valve
mini electric actuator pvc ball valve/pvc electric control valve
mini electric actuator pvc ball valve/pvc electric control valve
mini electric actuator pvc ball valve/pvc electric control valve
mini electric actuator pvc ball valve/pvc electric control valve

mini electric actuator pvc ball valve/pvc electric control valve

Share on (60741497441):


Price:RUB 3,344.72 - RUB 5,202.90

Quantity:


Product Overview

Description

 DATA SHEET FOR ELECTRIC ACTUATORS

General
Actuator Type
Motor Operated
Relative Humidity (Min/Max) %
20% - 80%
Service
On –Off / Modulation












 Electric valve actuator
Opening Time: Full Open
5s /10s /15s / 30s
Opening Time: Full Close
5s /10s /15s / 30s
Enclosure
IP67
Hand Wheel for Manual Operation Clockwise to
Close
Torque Output (Nm)
30N.m- 2000N.m
Rated Power (Kw)
50Hz /60Hz
Rated Current (A)
AC220V/ AC380 V/ DC12V /DC24V
Stroke
Angular 90
Control Signal
Impulsive
Limit Protection
Yes
Torque Protection
Yes
Motor Protection when valve jams
Yes
Thermostatic Protection
Yes
Overloading and short circuit of control
Yes
Surface Colour
Blue / orange / grey
Operation/ Maintenance Manual
Yes
Test report and Certificates
CE

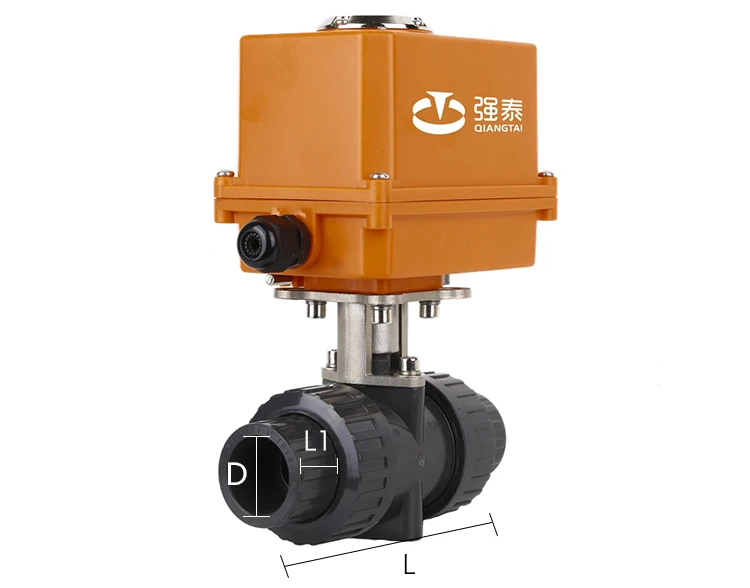

DN
Size:mm
D
L
L1
15(1/2'')
20
100
15
20(3/4'')
25
120
17
25(1'')
32
135
20
32(11/4)
40
150
23
40(11/2)
50
170
25
50(2'')
63
200
28
65(21/2)
75
215
32
80(3'')
90
265
35
100(4'')
110
360
45

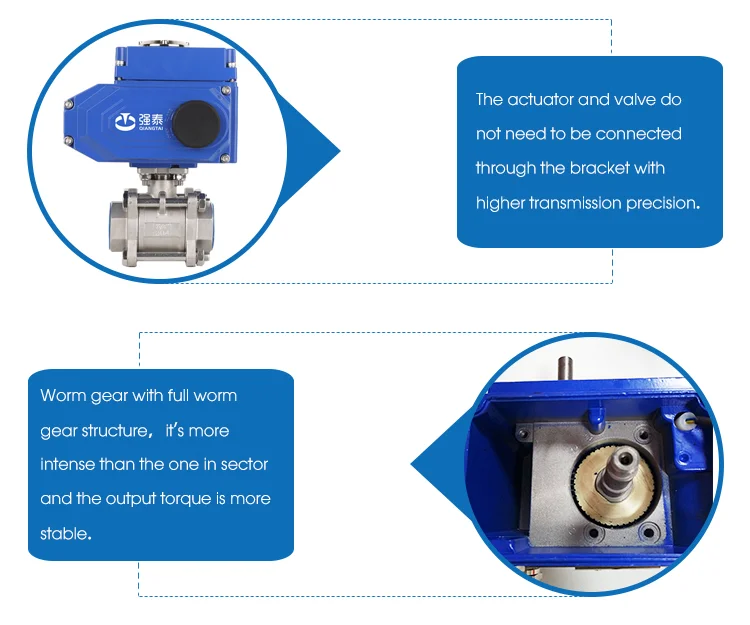

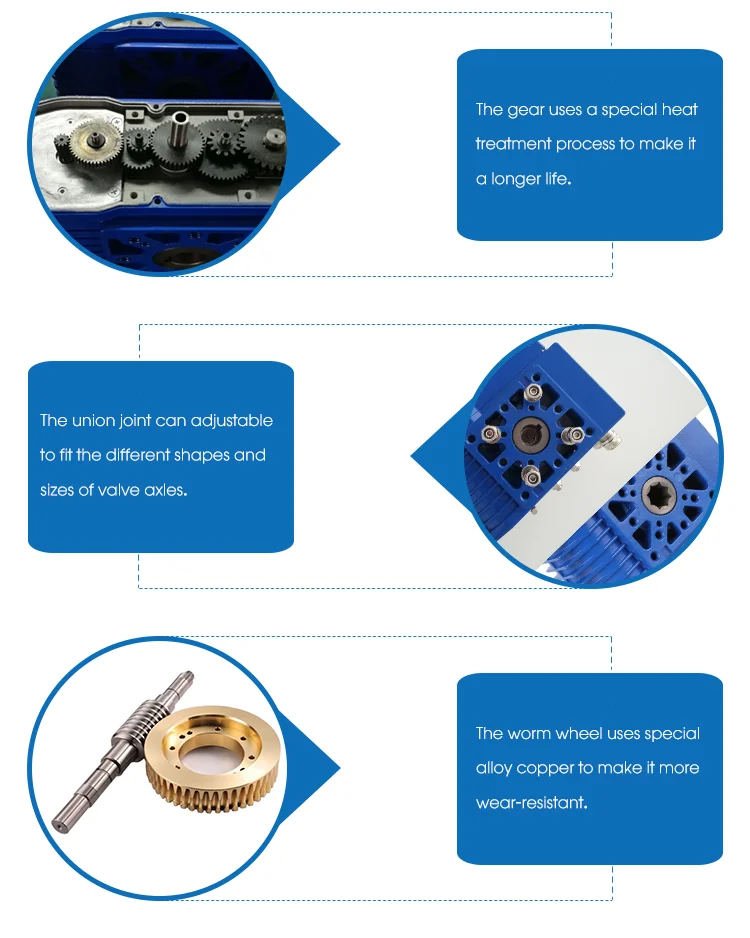

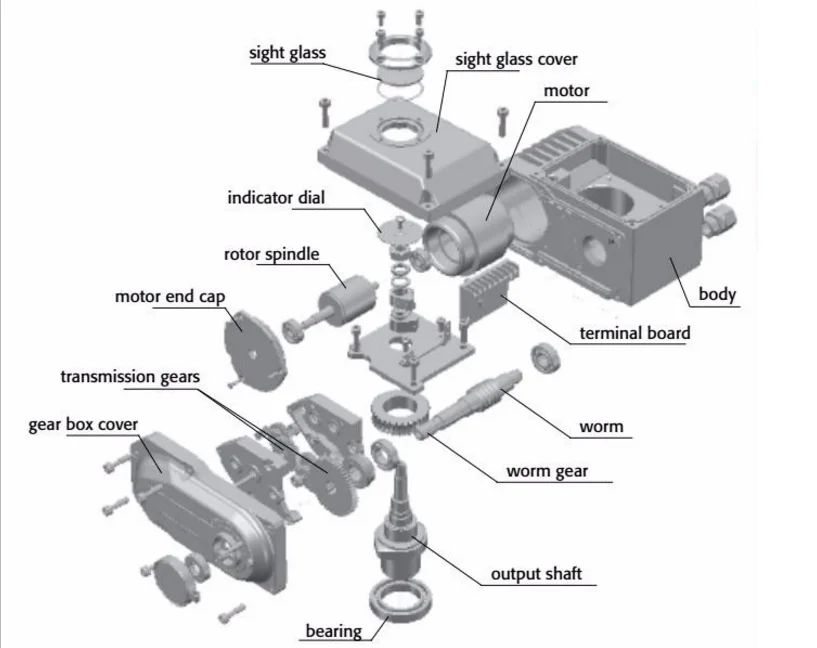

Details Images
FAQ
1)Q:What is the MOQ? Can we add our logo on the device?
A:1 piece for regular product. Yes, we offer OEM&ODM services but the MOQ of customization needs to be negotiated further.

2)Q:What is your lead time?
A: 3 days for regular products. 14 days for customized products (do not include the transportation time).

3)Q:How long is your product warranty?
A: 1 year. But we offer lifetime service.
