DPP 250 Chocolate Tablet Capsule Blister Packaging Machine

Product Overview

Description

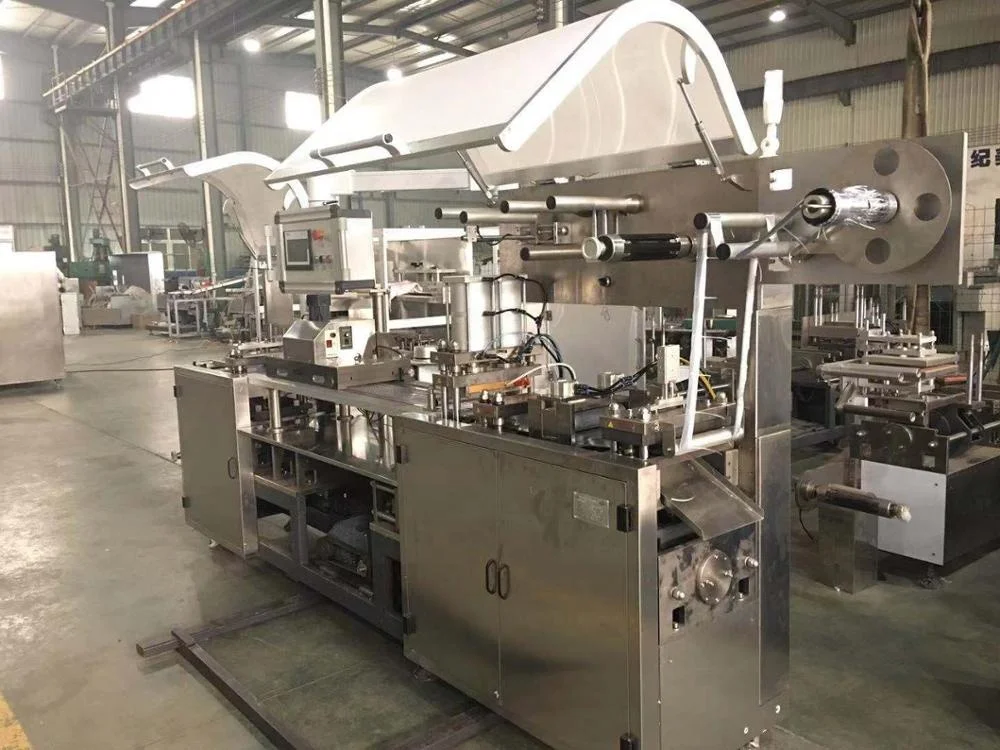

DPP-250 Capsule Blister Packaging Machine



I. Performance and Characteristics



The design structure of DPP-250XF series automatic blister packing machine is meeting to the standard requirements of GMP, cGMP AND THE DESIGN PRINCIPLE OF ERGONOMICS. It adopts advanced smart driver and control technology. Shanghai develop’ packing machine is very suitable for your market and meet your needs. It can help you solve complex problem and face the future competition. As to the packing technology, DEVELOP can provide you integrated and extensive technical tips, strong competitiveness and rich experience.

The structure is rational, And elements of electricity and gas are all from Siemens and SMC, making sure that the machine can run stably for a long time

Adopt humane design, combination of split, and can enter into lift and cleaning room.

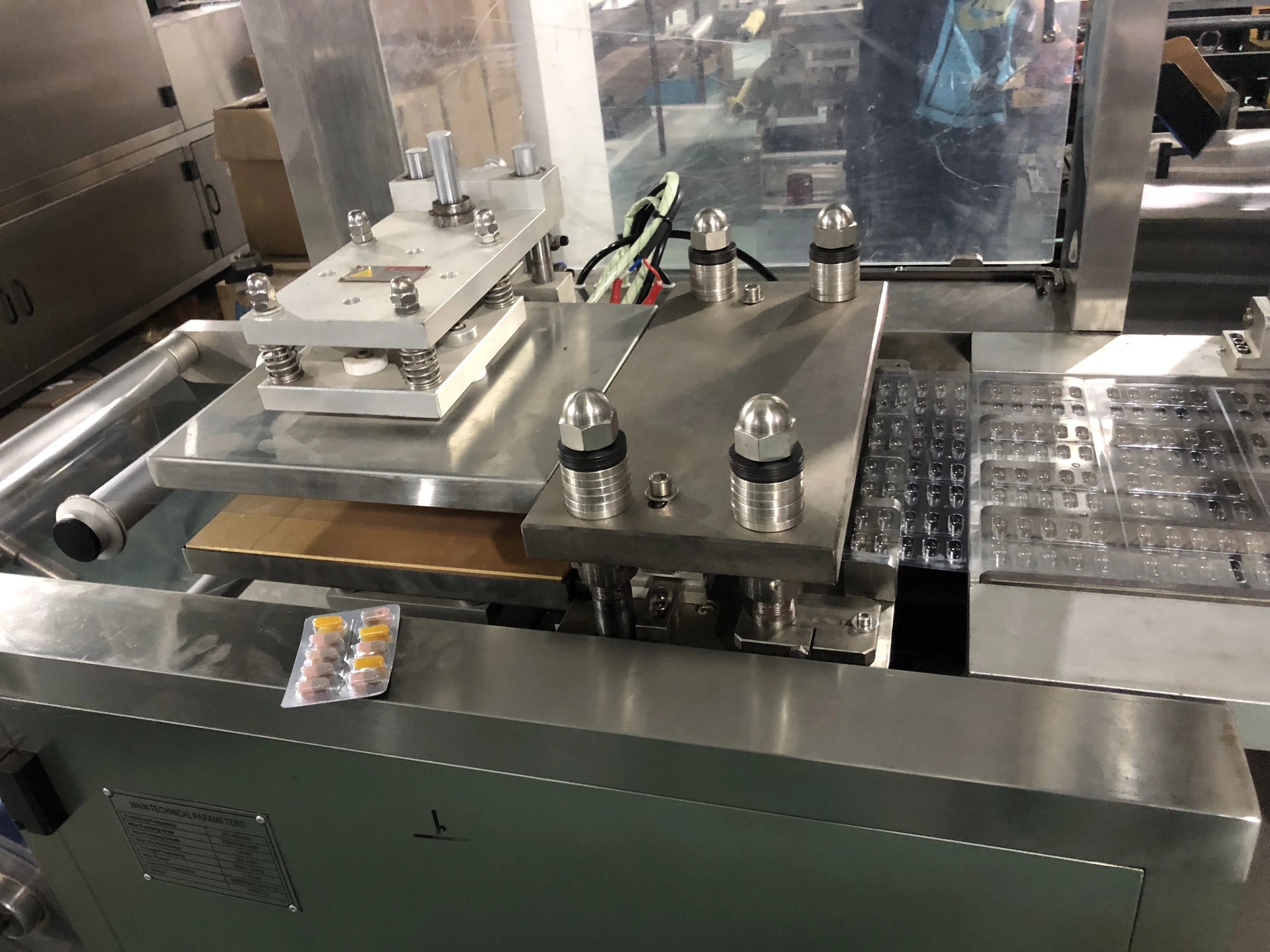

The installation of mold adopts fast-installing screw. Travel route adopts mathematical control. And it is convenient to change specification.

It has vision rejection function(option), ensuring the integrity of the product.

Reserve the position of forming material, meet the requirements of technological production.

Ensuring the safety of operation and each station have visible safety cover.

Ensuring the safety of operation and each station have visible safety cover.

It can be connected to other equipment, and work together.



II.Technical Parameters:



1)    Punch frequency: 20 - 60 times/min, stable speed is 50times/min
2) Max packing film width: 260mm
3) Max. forming area and depth: 250 x 120 mm, depth 15 mm

    Can update to depth 35m by extra charge
4) Air compressor: ≥0.3m3/min , 0.5-0.7 Mpa (self -prepared)
5) Power: 5.7kW, AC 380V/220v, 50/60hz, 3 PHASE
6) Dimensions: 3,800 * 800 *1,800mm
7) Weight: 1,500kg

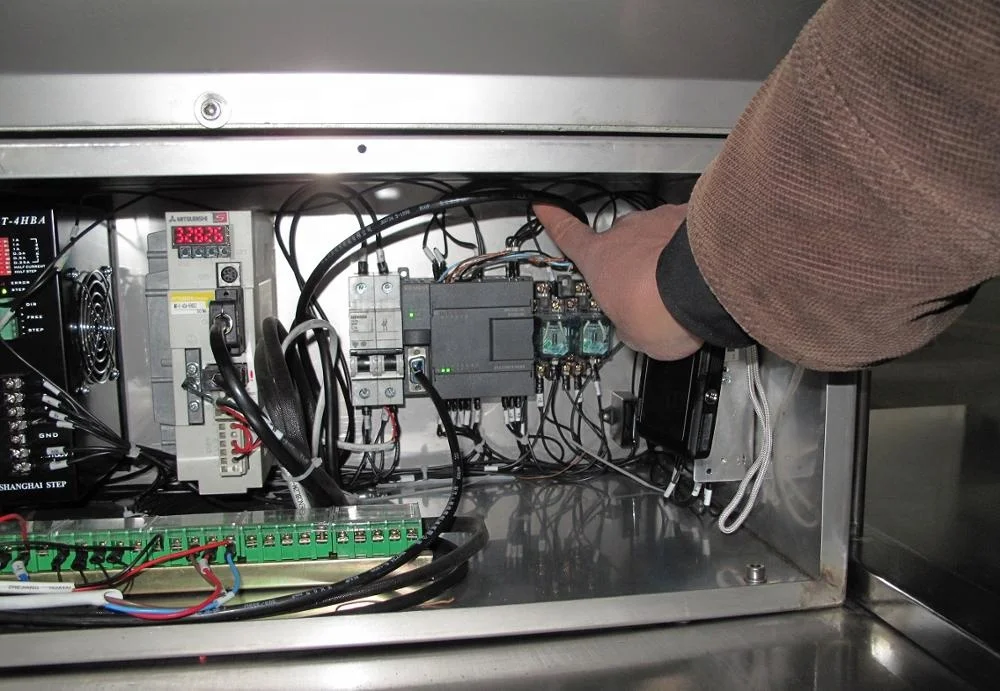

Configuration List:

No	Item	Specification	Brand	Qty
1	Main module	S7-200cpu224	SIEMENS	1
2	Extended module	EM223	SIEMENS	3
3	Temperature control module	EM231	SIEMENS	1
4	Transducer	A4015	SIEMENS	1
5	SERVO MOTOR	BCH0602O12A1C	SCHNIDER	1
6	SERVO DRIVER	LXM23DU04M3X	SCHNIDER	1
7	TOUCH SCREEN		SIEMENS	1
	PLC		SIEMENS
8	POWER SWITCH	S-24-50	OMRON	1
9	POWER SWITCH	S-24-1OO	OMRON	1
10	SMALL RELAY	MY2NJ	OMRON	9
11	AIR SWITCH	5SJ63C203P	SIEMENS	1
12	AIR SWITCH	5SJ63C202P	SIEMENS	1
13	AIR SWITCH	5SJ63C101P	SIEMENS	3
14	AIR SWITCH	5SJ63C61P	SIEMENS	2
15	Solid relay	SSR-220R-25	CHINA-USA,LANNING	3
16	Cursor	KT3W-116	China	1
17	Emergency stop	XB2-BS542	Schneider,France	3
18	Button	XB2-EA121	Schneider,France	4
19	Optical fiber	E32-DC200	OMRON	4
20	Amplifier	E3X-NA11	OMRON	4
21	Approach switch	TL-Q5MC1-2	OMRON	7
22	Composite switch		Schneider,France	1
23	speed adjuster of vibration	DVC1006-4A	China	1
24	speed adjuster of motor	90W	China	1
25	Instruction lamp		korea	1
26	Solenoid valve	SY5120-5G-01	SMC, Japan	9
27	Pressure reduce valve	AW30-03	SMC, Japan	1
28	Main motor	WANNAN	WANNANG, ANHUI	1
29	Photo-electricity for print register	VTF18-4N1212	SICK, Germany	1
