DPP 88 Mini Tablet Capsule Blister Packing Machine

Product Overview

Description

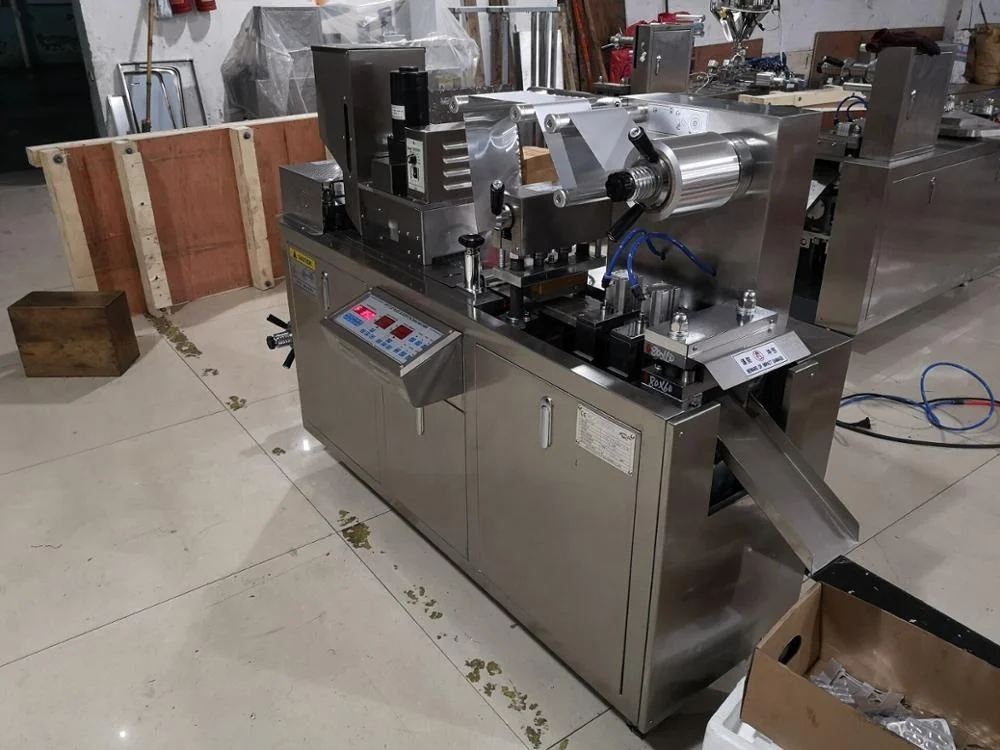

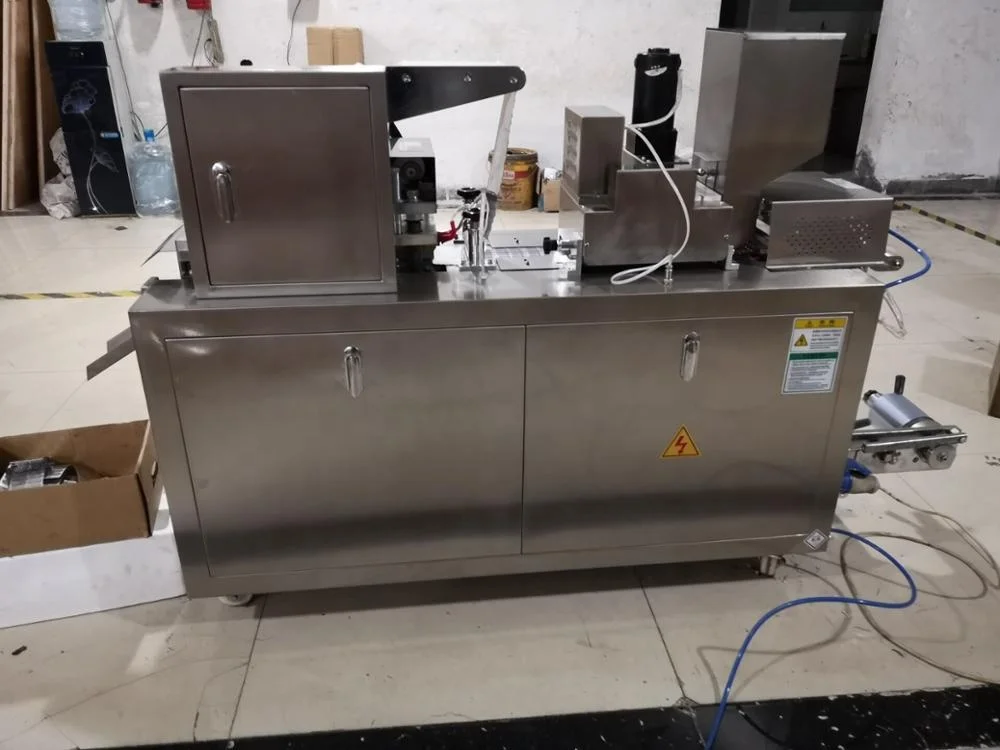

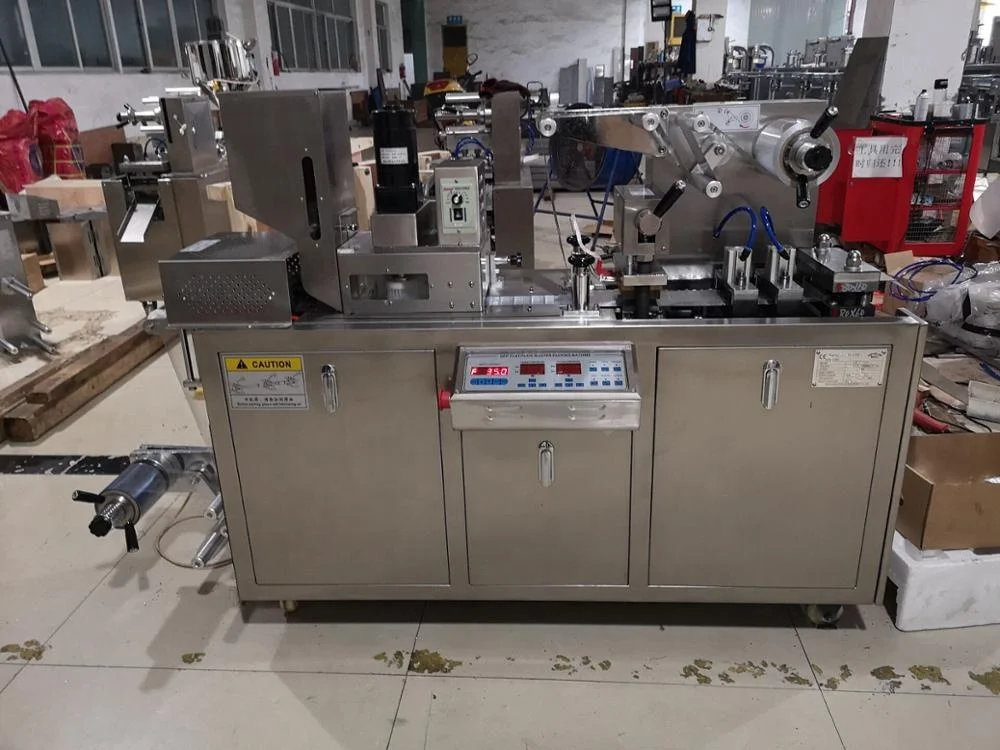

DPP-88 Mini Tablet Capsule Blister Packing Machine



I. Performance and Characteristics



1. Using the latest domestic large power transmission mechanism, by rows of chain drives a main drive shaft, exempt from other gear transmission error and the noise.

2. Electrical appliances imported control system, can according to the customer request, configure the lack of material leakage mending device and deficiency of detecting and removing device.

3. The machine adopts piecewise combination: PVC feeding, forming, heat sealing for a period, tropical aluminum cold forming, heat sealing, blanking is a section can be split packing.

4. Photoelectric control system, PVC, PTP, aluminium packaging waste side automatic feeding, automatic punching device, ensure that the ultra long distance multi station synchronous stability.

5. The other with photoelectric detection correction device, equipped with imported stepping motor traction, graphic version of printing and packaging, the packaging grade optimization.

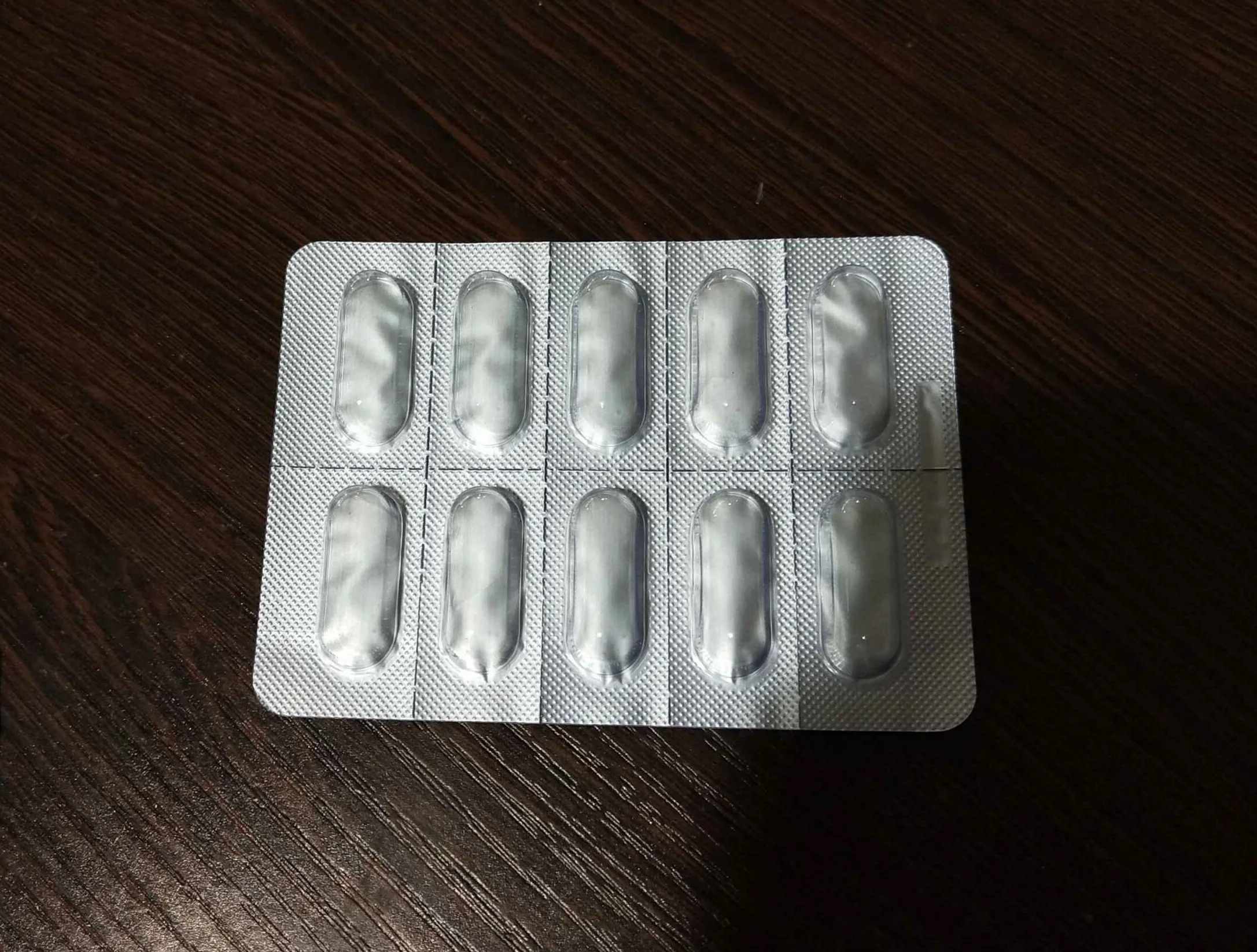

6. The machine is suitable for: capsules, tablets, sugar coated, capsule, injection, and other special-shaped and medical device, light food, electronic components, blister sealing packing.



II. Technical Parameters:



Model	Dpp88
Blanking Frequency	10-35times/min
Max output capacity	2400 blister/h

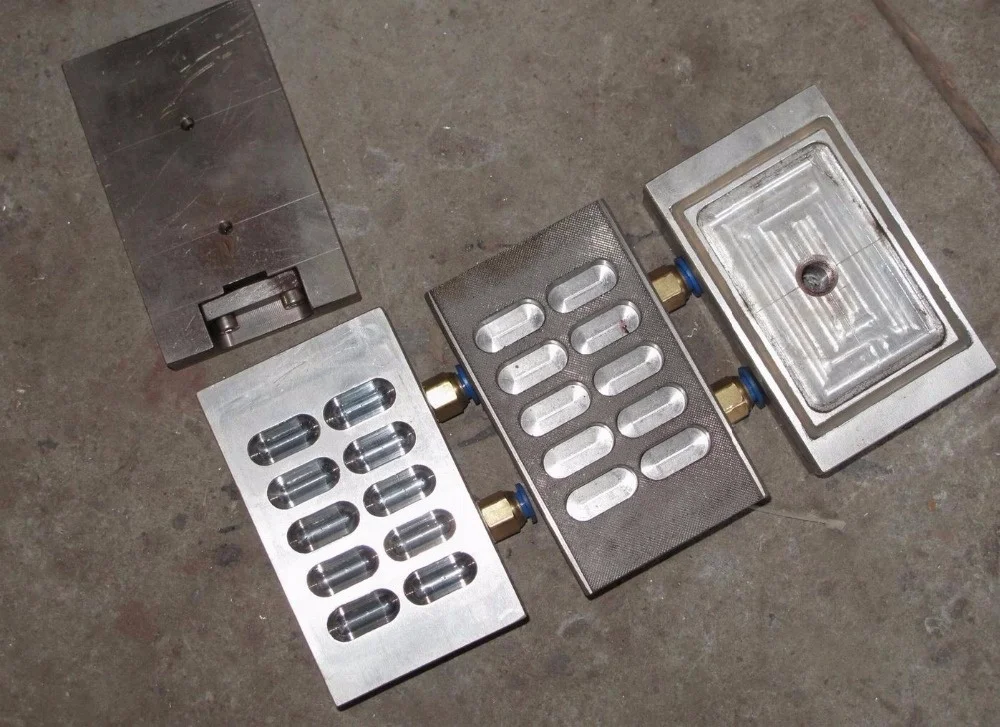

Max forming area and depth: L*w*H for Al-pvc	70*110*13(mm), form depth can be enlarge by extra charge by mechanical forming (26mm)
Max form size for AL-AL	70*100mm*13mm, form depth can be enlarge by  extra charge by mechanical forming (26mm)
Standard Scope of Travel	20-80MM( can made to need)
Stand max blister size	80*57mm (can made to need)
Air pressure	0.6-0.8 Mpa  (user prepared himself)
Voltage , General power	220V/1/50Hz or 60hz, 3.0Kw  , 220v/3 or 380v/3 need extra charge
Main electrode powr	0.75Kw
PVC Film thickness	0.15-0.5(mm)
PTP Aluminum foil thickness	0.02-0.035 (mm)
Dialysis paper	50-100g(mm)
Mould cooling method	City water or cycled water (user prepared himself)
Overall size	1500*600*1200(mm)
Weight	450(Kg)
Noise	<75dBA
