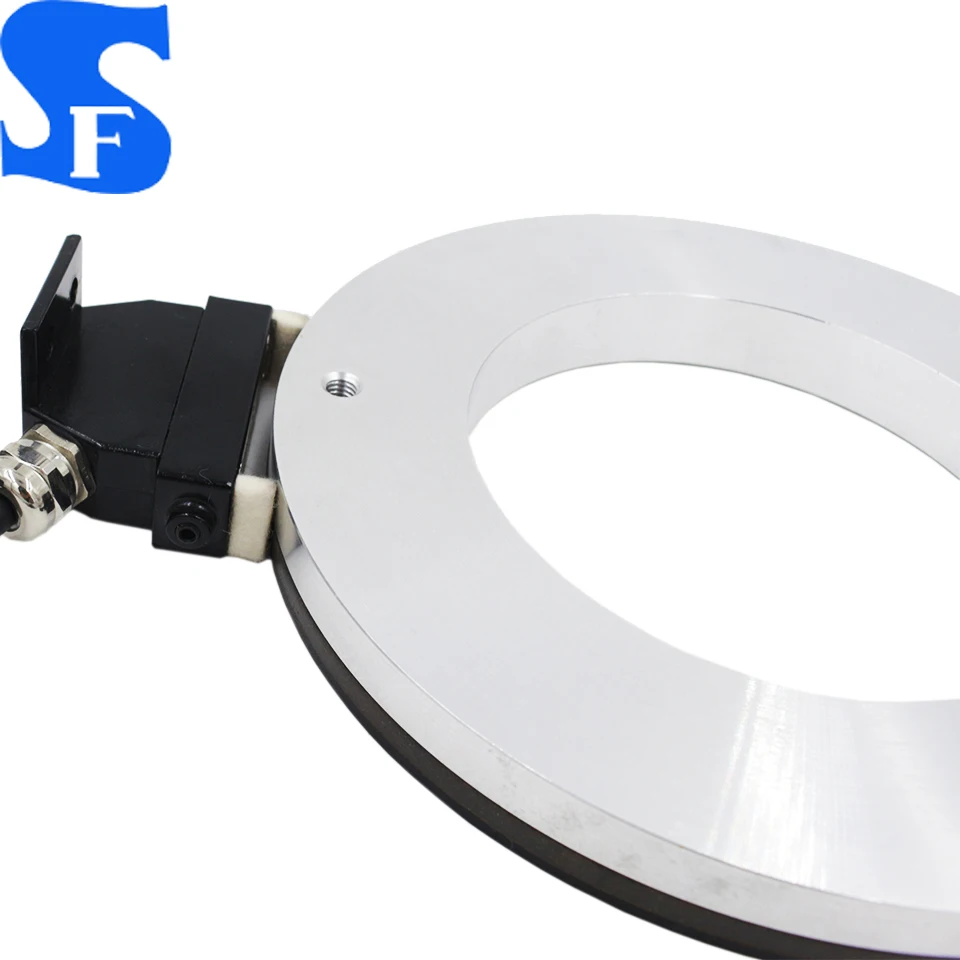

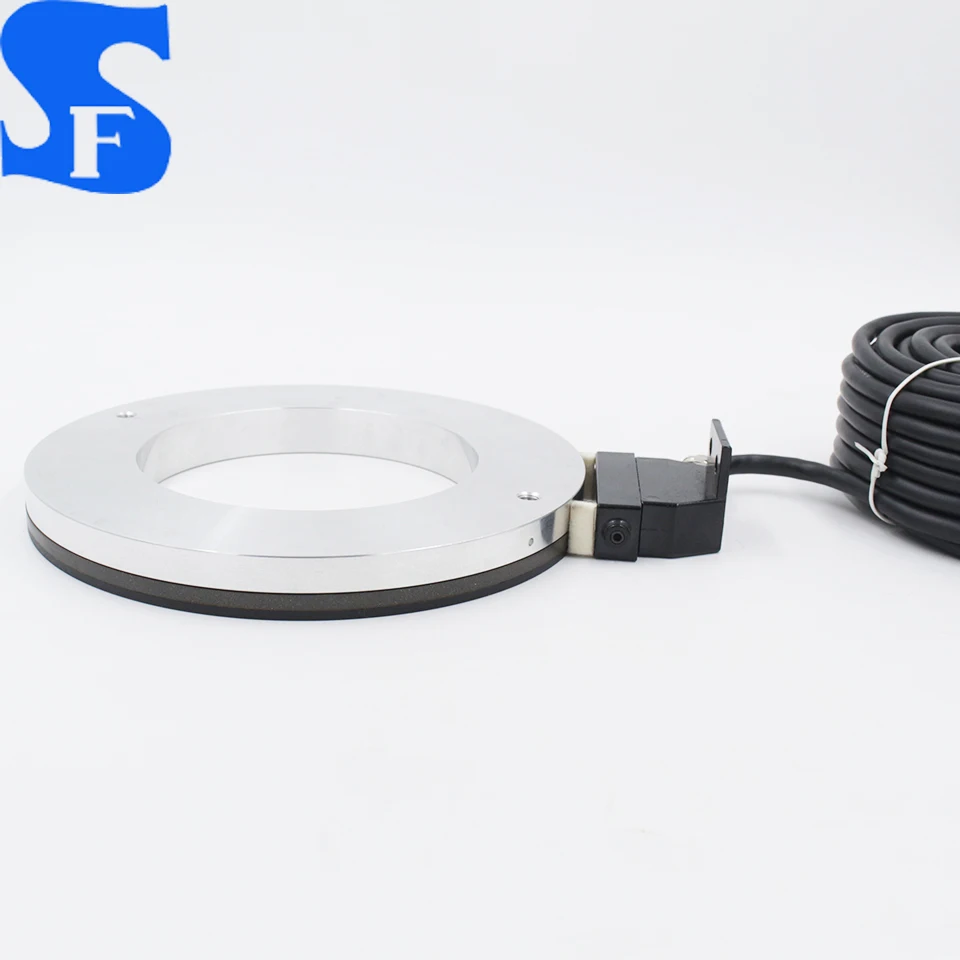

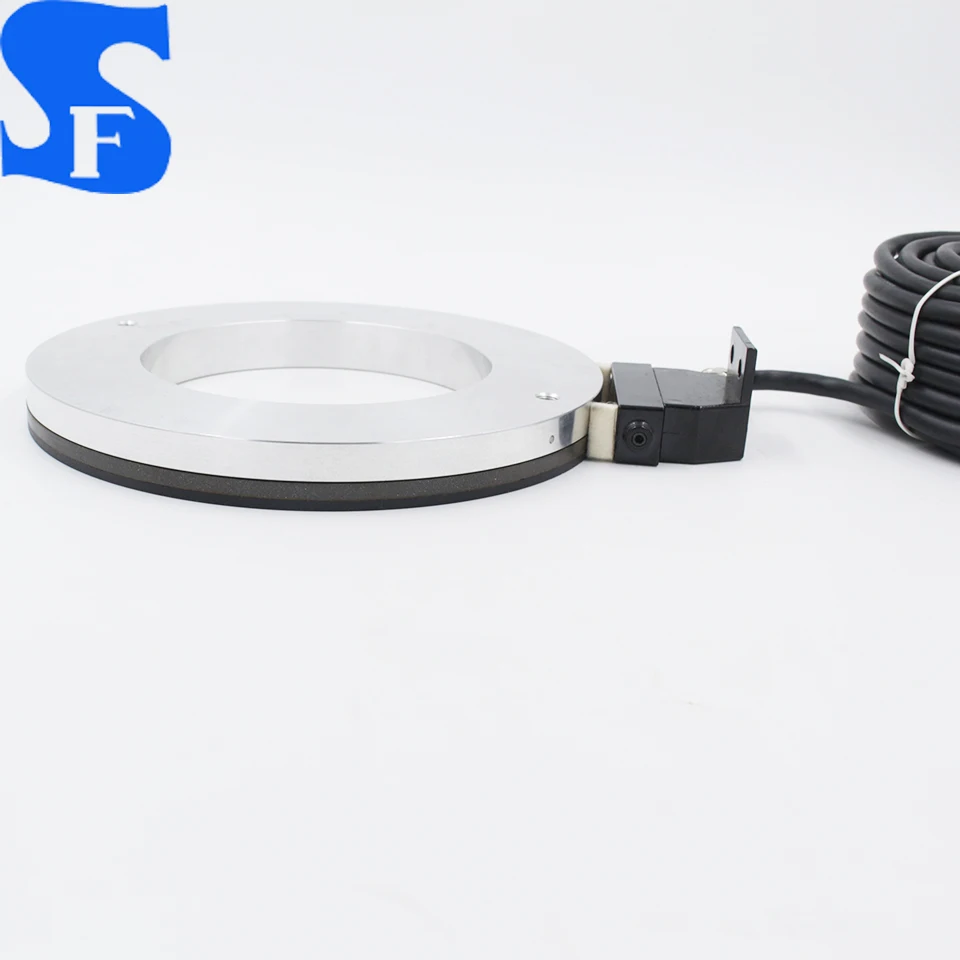

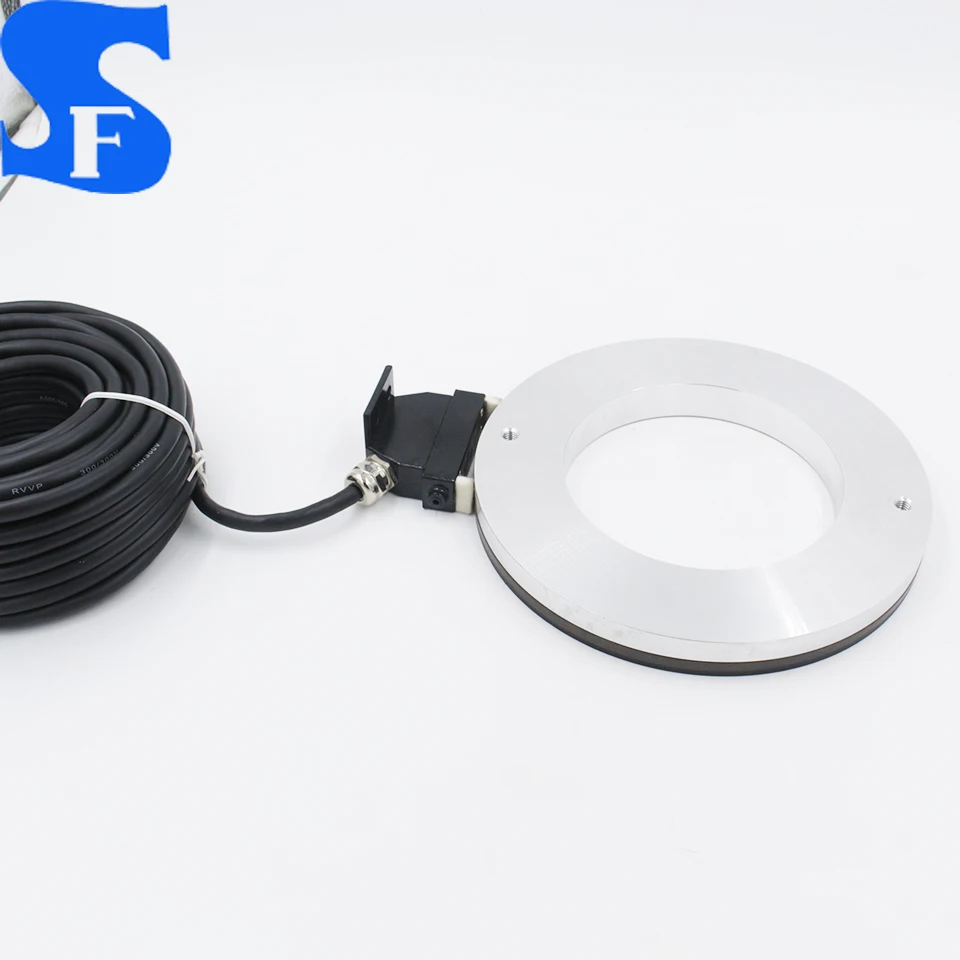

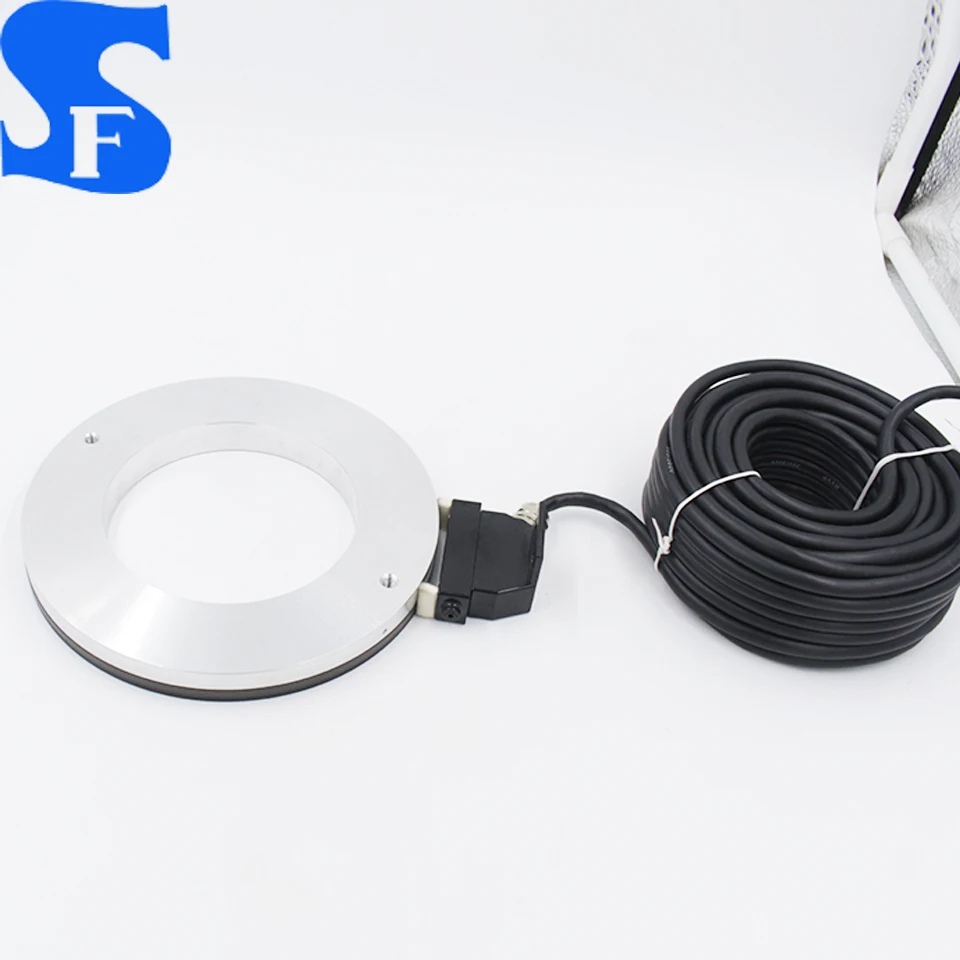

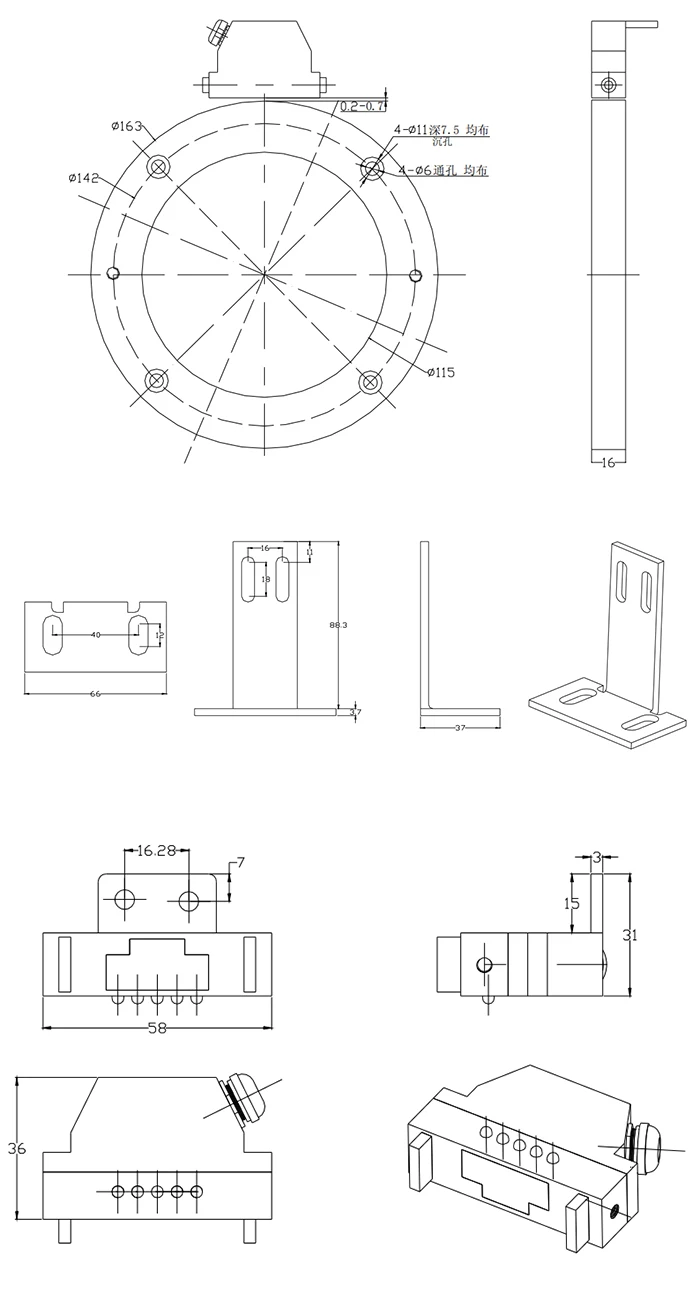

PKM series 40mm 82mm 100mm 163mm magnetic ring incremental rotary encoder

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

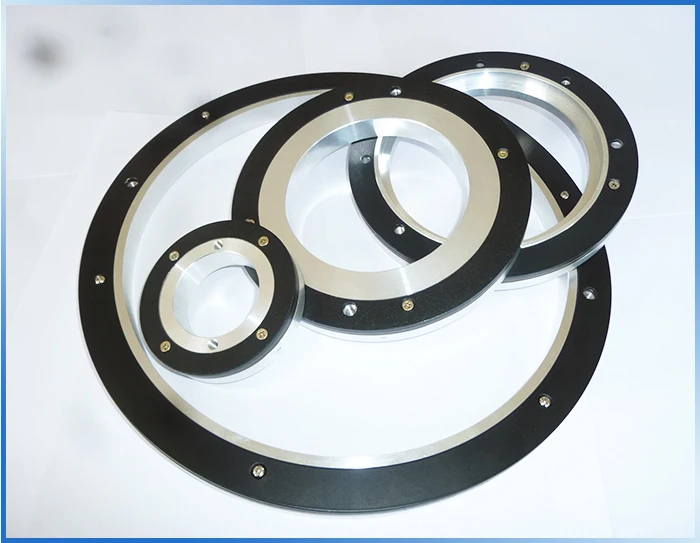

PKM series 40mm 82mm 100mm 163mm magnetic ring incremental rotary encoder

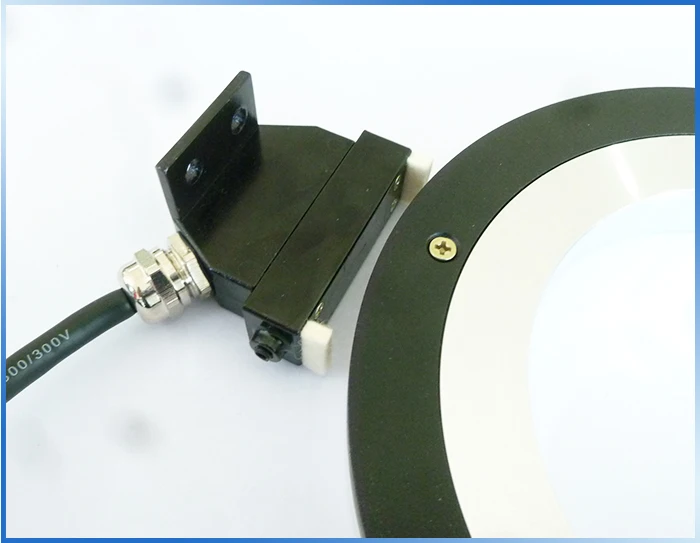

hall effect sensors magnetic incremental encoder with switch






































































Resolution



128P/R~8960P/R



Supply Voltage



DCV±5V



VH Output Voltage



5V



VL Output Voltage



≤0.5V



Current Consumption



≤150mA



Output Phase



A.B.Z.A(_).B(_).Z(_)



Frequency Response



100kHz



Rise / Fall Time



≤1μS



Max Rotating Speed



10000r/min



Vibration Resistance



50m/s2(10~200Hz)2 Hours in xyz Direction



Shock Resistance



980m/s2  3 Times in xyz Direction



Protection



IP65



Operating Temperature



-20℃~+80℃



Storage Temperature



-20℃~+90℃



Operating Humidity



30~85%RH



Weight(no cable)



0.4Kg



hall effect sensors magnetic incremental encoder with switch


hall effect sensors magnetic incremental encoder with switch


hall effect sensors magnetic incremental encoder with switchhall effect sensors magnetic incremental encoder with switchhall effect sensors magnetic incremental encoder with switchhall effect sensors magnetic incremental encoder with switch































Cable Color



Red



Black



White



Green



Yellow



Blue



Orange



Brown



Shield



Output Form



L



Vcc



0V



A



B



Z



A(_)



B(_)



Z(_)



FG



hall effect sensors magnetic incremental encoder with switchIf you have any question,feel free to contact me.


We are glad to help.




hall effect sensors magnetic incremental encoder with switch













9.jpghall effect sensors magnetic incremental encoder with switch






















































Are you a trading company or a manufacturer?



We are a manufacturer of 20 years experience.



Do you accept OEM brand?



Accept large OEM brand customers, or a large number of customers.



Does your product have a factory inspection?



Every product we send is strictly factory inspection.



How long will you ship the goods?



Our delivery time ranges from 3 days to 3 weeks.



Can you provide free samples?



Regular products provide samples according to the original price. Customized products are provided at cost price.



What kind of packing do you send?



We use high-quality corrugated paper packing box, internal environmental protection buffer material.



What is our loading port?



Dalian port, or apply for other ports.



How long is your quality guarantee period?



The guarantee period for our products is one year.
