Product Description

 automatic blister packaging machine/Paper Card Blister Packing Machine

I.       Overview

Based on the manufacturing experience of medicinal Al-plastic packing machine with many years and combined with many customers’ feedback, according to the special performance and requirements of plastic tray forming, our researchers developed this new generation product of JP-450D paper-plastic blister packing machine by reference to proper model. It not only adopted frequency conversion and integrated automatic control technology, but also was created strictly according to the GMP requirements of pharmaceutical industry. This machine has such characteristics as stroke adjustable, station structure module, combination of blow forming and compression forming (need to change mould), automatic continuous forming, punching euro hole and cutting, which can ensure the product quality reliable and production capacity stable. This machine can be used to produce cup lid, bowl cover and the other plastic case and tray.

II.    Technological Process

→put PVC on the roller →PVC heating →PVC forming →servo drawing →punching euro hole →cutting →rolling up the waste PVC →finished product discharge

III.Application Range

It can be used to produce bottle tray, biscuit tray, cup lid, bowl cover and so on for such industries as battery, stationary, food, medical instruments, toy, hardware, electronics, car and motorcycle accessories, daily goods and cosmetics etc.

IV.Main Characteristics

1.     It has hydraulic transmission, servo motor drawing, rational construction and simple operation.

2.     With stainless steel housing and beautiful appearance, the product quality and level can be improved; at the same time, this machine is easy to clean.

3.     PLC control system and frequency converter can reduce the noise and increase the running stability.

4.     Photoelectric control and auto-detecting system can improve the operating safety.

5.     Design the moulds and choose auto-feeding method according to the shape of packed material.

V.    Main Performance

1.     The mould employs pressing plate to clamp, easy to adjust and install.

2.     The main motor adopts frequency converter to control speed: the cutting frequency is adjustable in the range from 1 to 28times/min, which is set depending on the stroke and degree of forming difficulty.

3.     It adopts servo motor transmission and manipulator clamp feeding mechanism drawing, running stably with exact sync. Its stroke is adjustable from 60mm to 220mm, which mean the section size in this range can be designed at random.

4.     The heat-forming plates separate and close automatically. This machine can delay to start up after putting down the heating plate, restricting the material waste in one stroke. This machine adopts two contacting plates to heat, which can reduce the heating power and temperature, save the energy and improve the plastic film stability.

5.     It will alarm and stop automatically while the plastic film is used up or breaks off. This machine is also equipped with emergency stop device to improve the operators’ safety in the process of debugging and changing mould.

6.     All the parts directly contacted with plastic film adopt stainless steel or non-toxic material, in accordance with QS requirement.

Technical specifications:

Different machine

Remark: Machine will be designed according to customer's detail requirements. Please contact with us for choose.

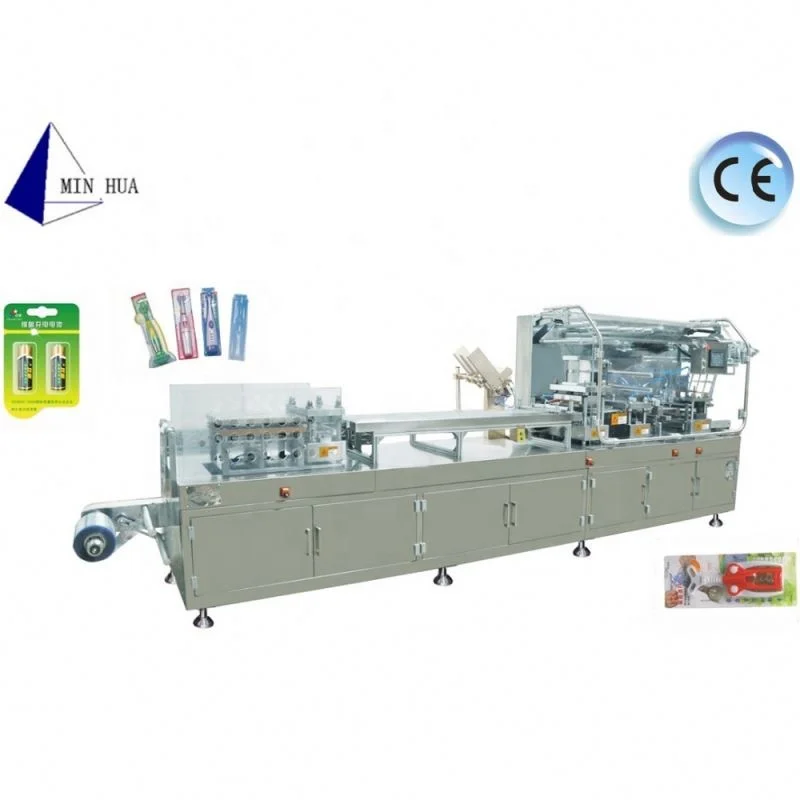

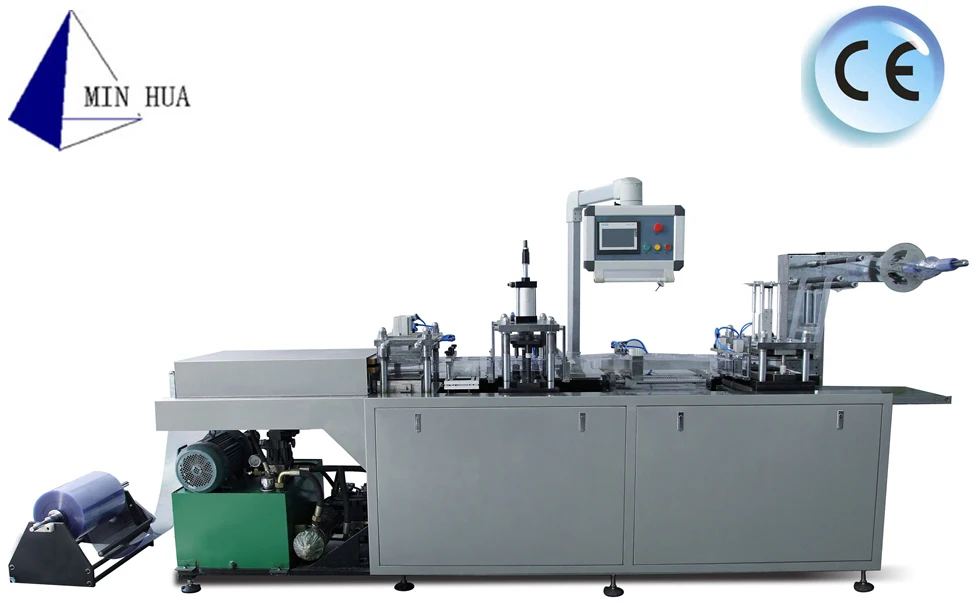

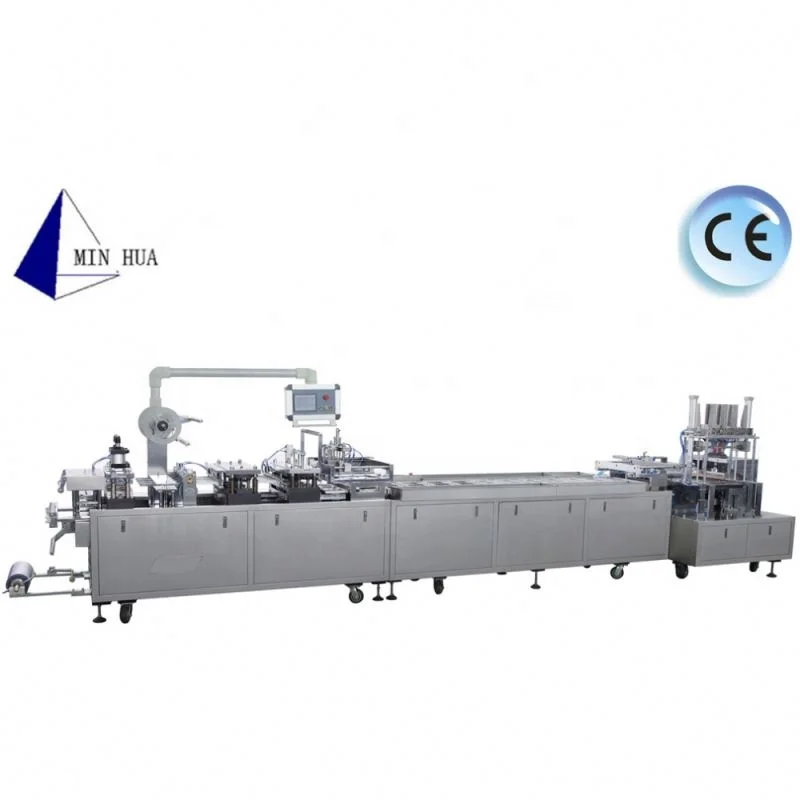

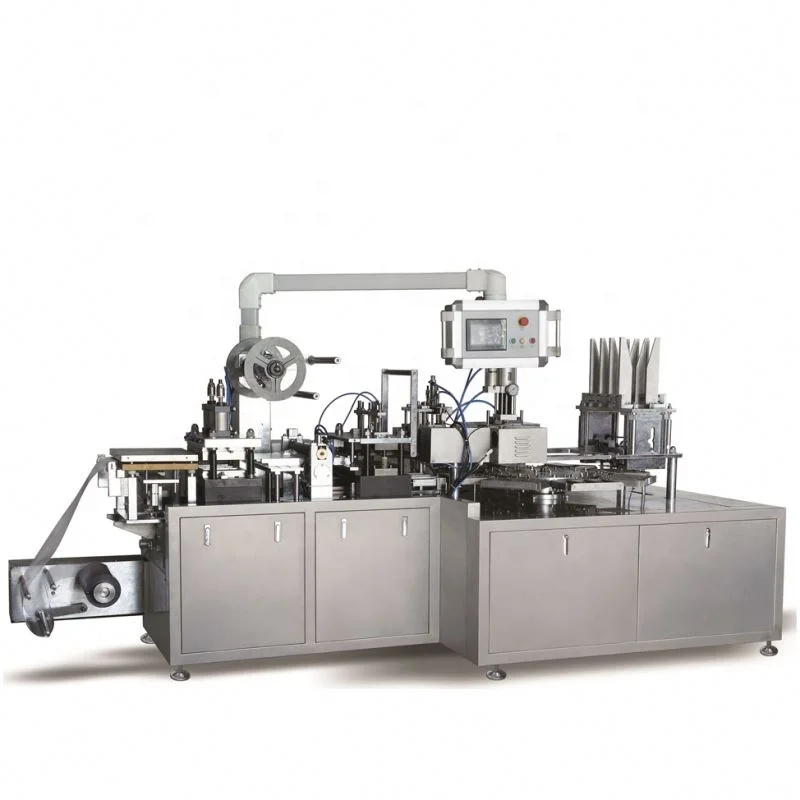

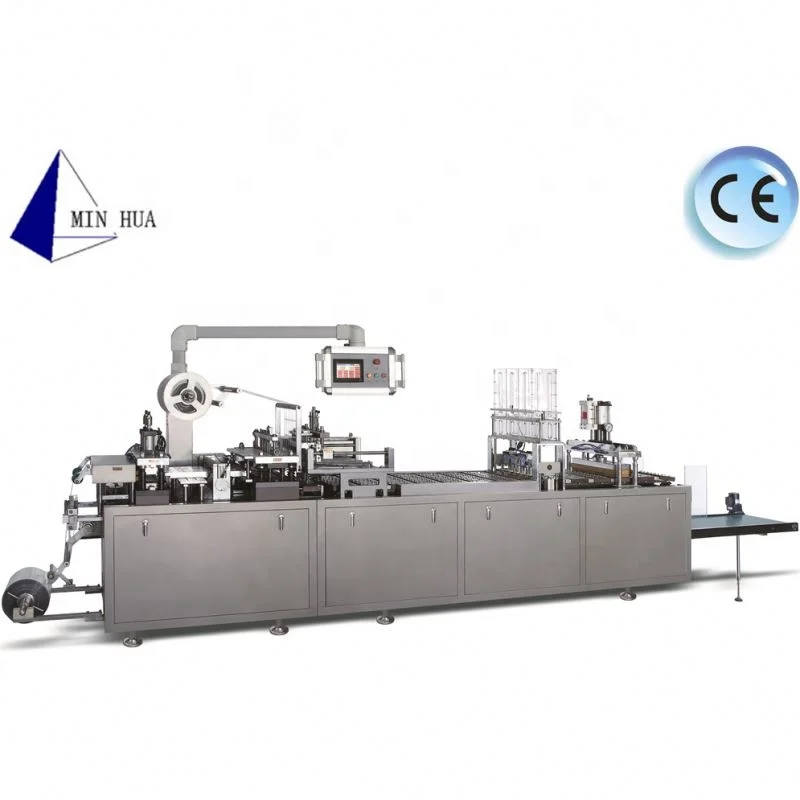

Product Pictures

Details

Product Samples­

Packaging & Shipping

Our Company:

Shanghai Zixiong Pharmaceutical Machinery Co., ltd is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We are located in Shanghai.

We have a disciplined factory and fairly professional technical engineers. We will provide personalized customized service for you. We have designed and developed many types of machinery and equipments, including tablet press, soft and hard blister packing machine, capsule filling machine,

clean-room project, soft-gel production line, glass-lined reactor, centrifuge, granulator, mixer, dryers, pulverizer, cartoner and rollers, etc.
Our products are of good quality and reputation. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. Our products are exported to many countries & areas, such as the USA, Australia, Canada, the UK, Spain, Hungary,Russia,Germany, Sweden, Korea, India, Indonesia, Pakistan, Thailand, Vietnam, , Japan, Denmark, Romania, Bulgaria, , South Africa, Nigeria, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In ZIXIONG you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.

Our Services

Pre-sales service:

1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.

2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.

3.We will recommend and offer machine according to customer’s use and purchase budget.

In-sale service:

1.We will supply each manufacturing step photo for customer checking on time.

2.We will prepare packing and shipment according to customer’s needing in advance.

3.Testing the machine and making video for customer’s checking.

After-sale service:

1.We will guarantee the machine quality for 1 year.

2.We provide free training and answer customer's question on technology in time.

Our Customer

Welcome to Shanghai. Welcome to visit our company.

Certificate

FAQ

1. What about your baling machine quality?

Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.

2. What about your baling machine price?

Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!

3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for baling machine?

1>Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.

2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.

3>It is free to train your worker in our factory or in your side or by video.
