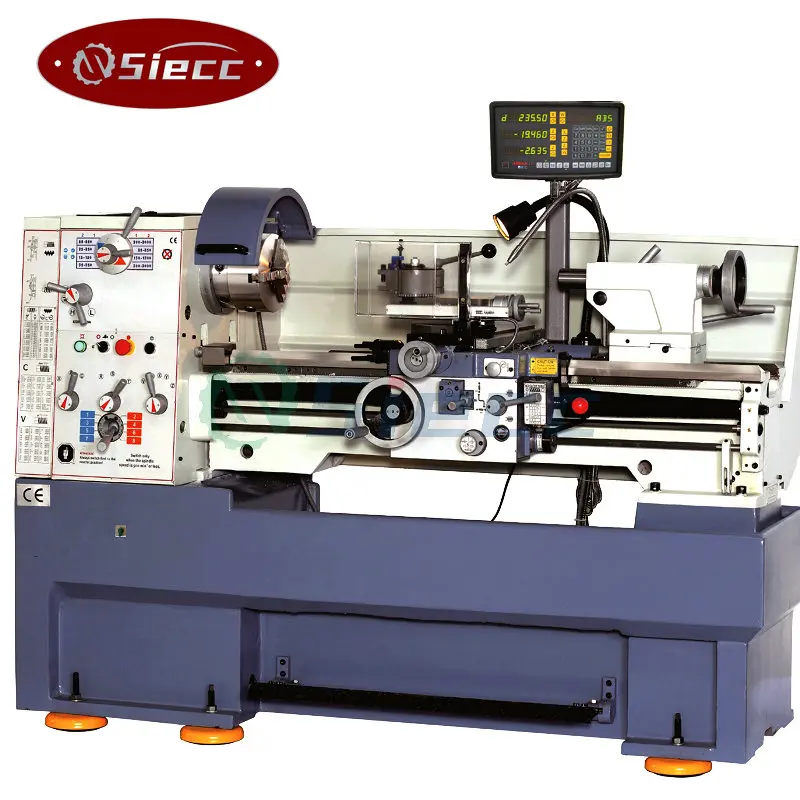

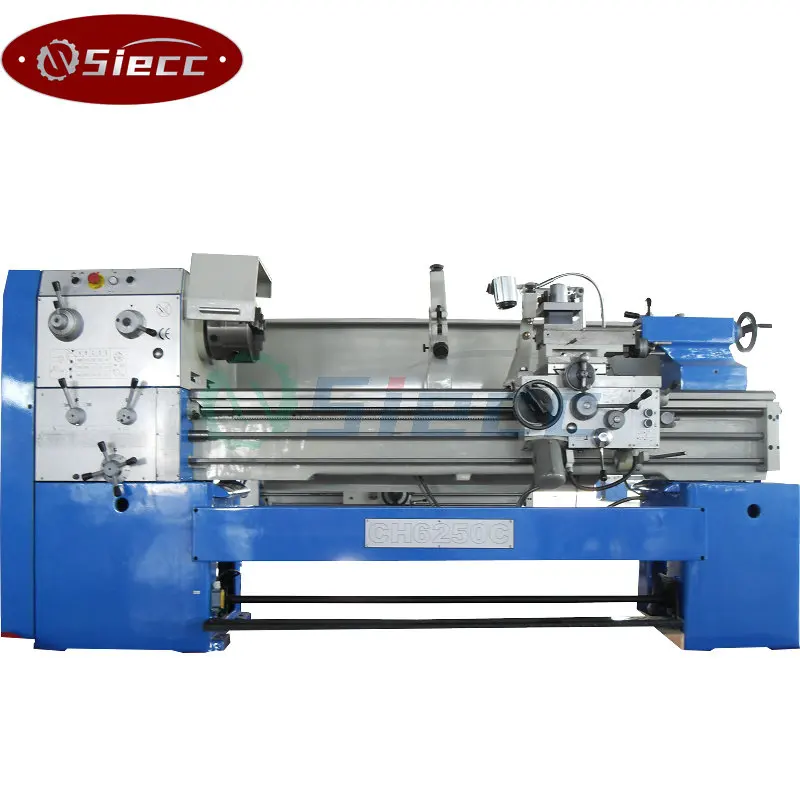

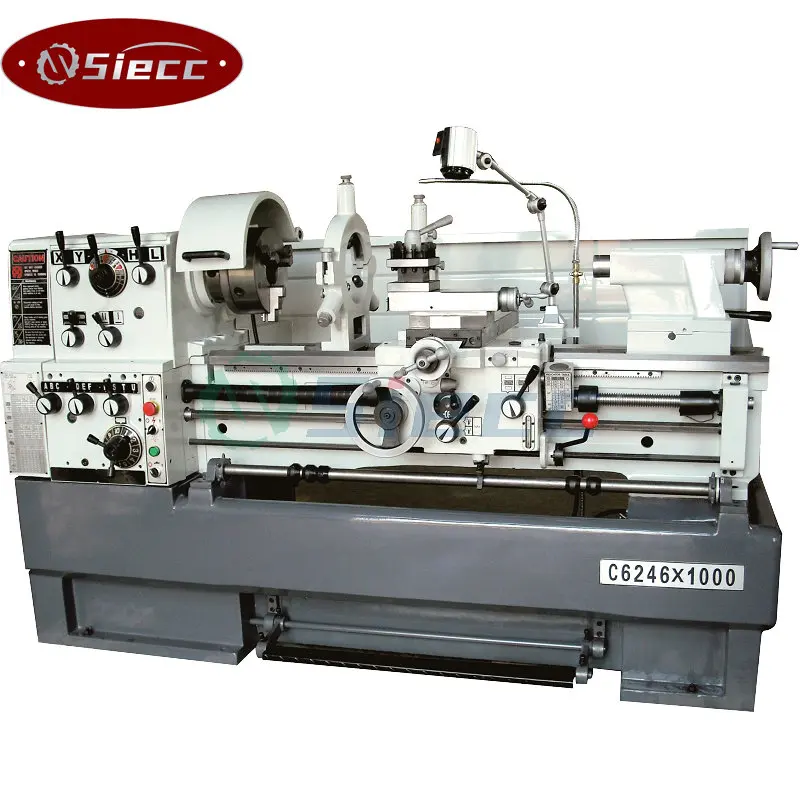

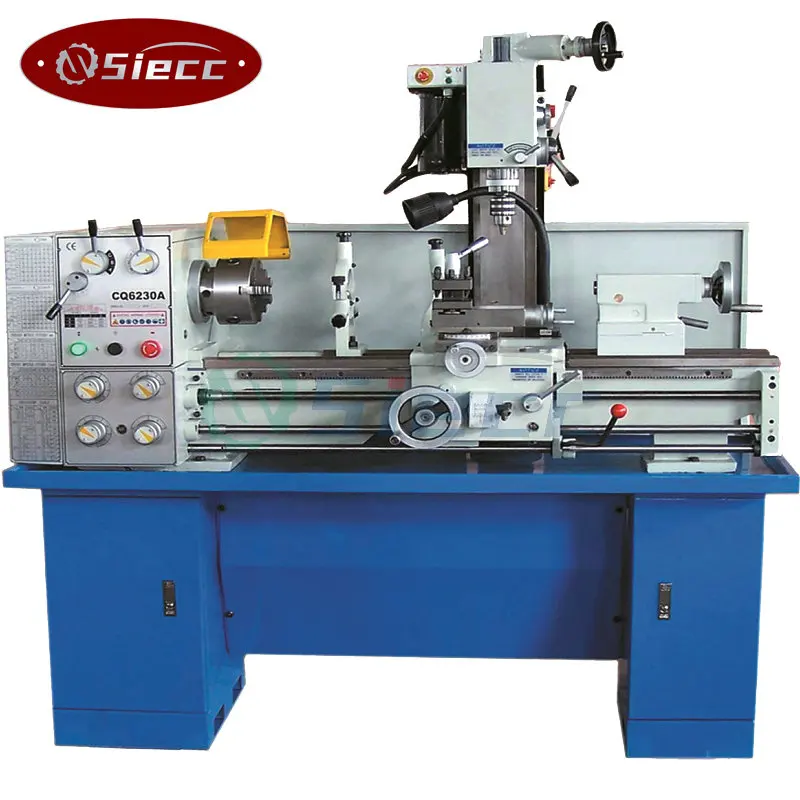

lathe machine conventional lathe machine tools, face lathe machine, geared head engine lathe SIECC
- Category: >>>
- Supplier: Shining Industrial Enterprise (china) Co. Ltd.
Share on (60741615347):
Product Overview
Description
Product Description

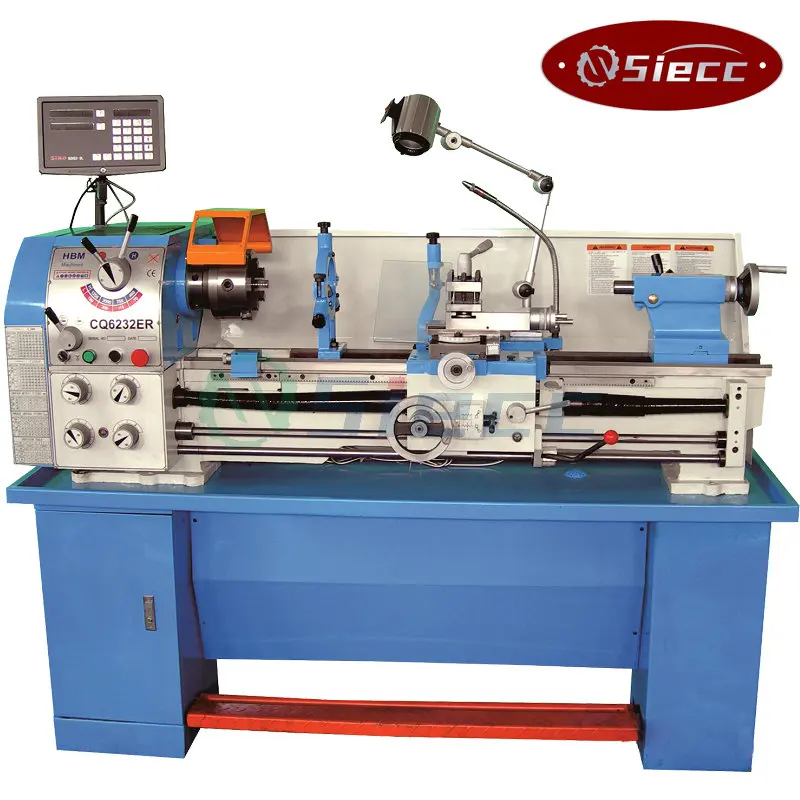

| Model No. | CQ6232G x750 CQ6232G x1000 |

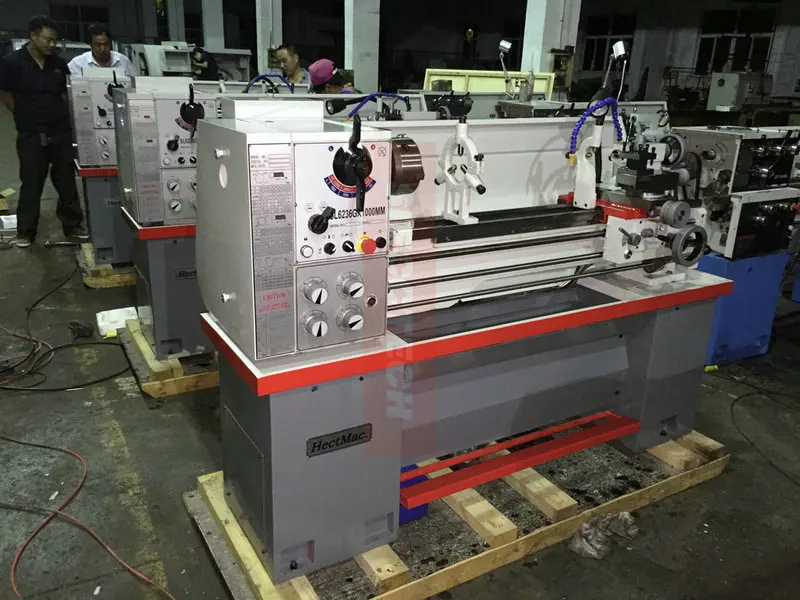

| Item No. | CQ6236G x750 CQ6236G x1000 |
| Specifications | |
| Distance between centers | 750/1000 mm |
| Swing over bed | 330 mm 360mm |
| Swing over gap | 476 mm 491mm |
| Swing over cross slide | 198 mm 212mm |
| Bed width | 187 mm |
| Taper of spindle bore | MT5 |
| Spindle nose | D1-4 |
| Spindle bore | 38 mm or 52mm |
| Step of spindle speeds | 8 |
| Range of spindle speeds | 70-2000 rpm |
| Range of cross feeds | 0.018-0.238 mm/r |
| Range of longitudinal feeds | 0.078-1.044 mm/r |
| Range of inch threads | 2-1/4-40 T.P.I |
| Range of metric threads | 0.45-10 mm |
| Top slide travel | 76 mm |
| Cross slide travel | 175 mm |
| Tailstock quill travel | 92 mm |
| Taper of tailstock quill | MT3 |
| Motor | 1.5 kw |
| Packing size | 1740/1950 x 750 x 1510 mm |
| Net weight | (750mm) 570/620kgs (1000mm) 640/690kgs |
| Standard Accessories | Optional Accessories |

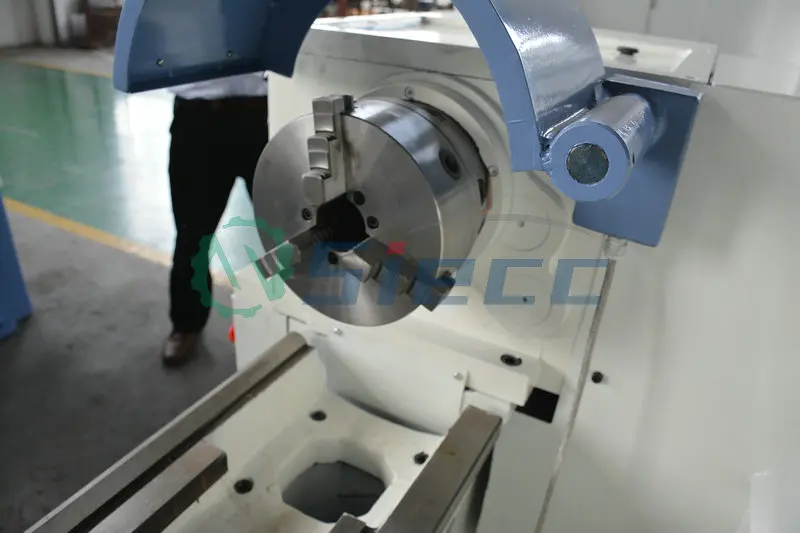

| 3-jaw chuck (160mm) | Quick change tool post |
| 4-jaw chuck (200mm) | Turning tools |
| Face plate (250mm) | Micro carriage stop |
| Steady rest | Halogen work lamp |
| Follow rest | Leadscrew cover |
| Splash guard | Chuck guard |
| Stand & oil tray | Tool post cover |
Company Information
Company | Shining Industrial Enterprise(China) Co., Ltd Nantong Brillante Industrial Enterprise Co., Ltd Edward Pearson Machinery (Shanghai) Co., Ltd NANTONG LIANZHONG MACHINE CO., LTD JIANGSU GOLD-PARTNER ENTERPRISE CO.,LTD |
Brand | SIECC/EDWARDS PEARSON/HECTMAC |
Website | www.allmachinetool.com |
Video | 1. Rolling https://youtu.be/Fi3tFKSoLlY 2. Press brake https://youtu.be/pyIChKoh1eA 3. Grooving https://youtu.be/pFZh_n3vrss 4. Ironworker https://youtu.be/0O9OeCmu9QI 5. Plasma cutting https://youtu.be/71BKxv6tVB8 |
ek(a)chinasiecc.com ar(a)chinasiecc.com hl(a)chinasiecc.com ajj(a)chinasiecc.com he(a)chinasiecc.com jc(a)chinasiecc.com | |
https://www.facebook.com/siecctech | |
| |
| |
| |
| |
| |
| |
| |

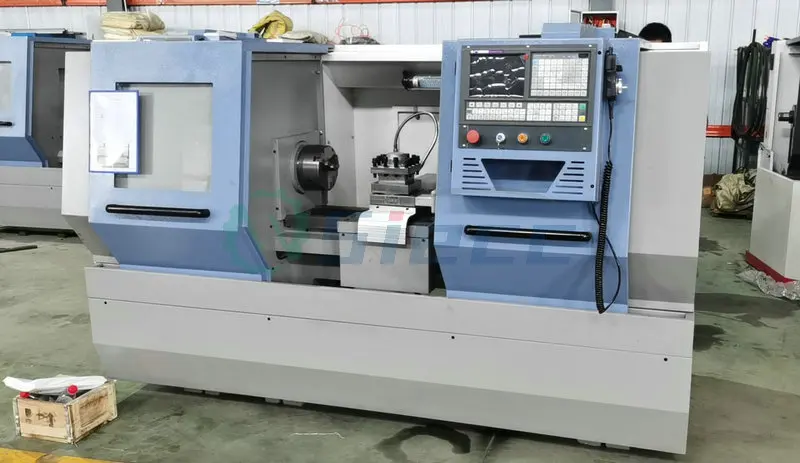

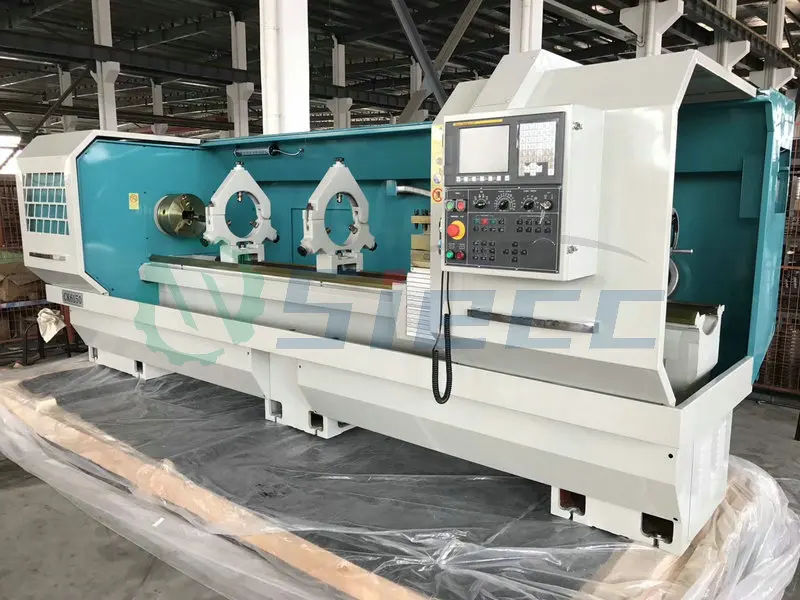

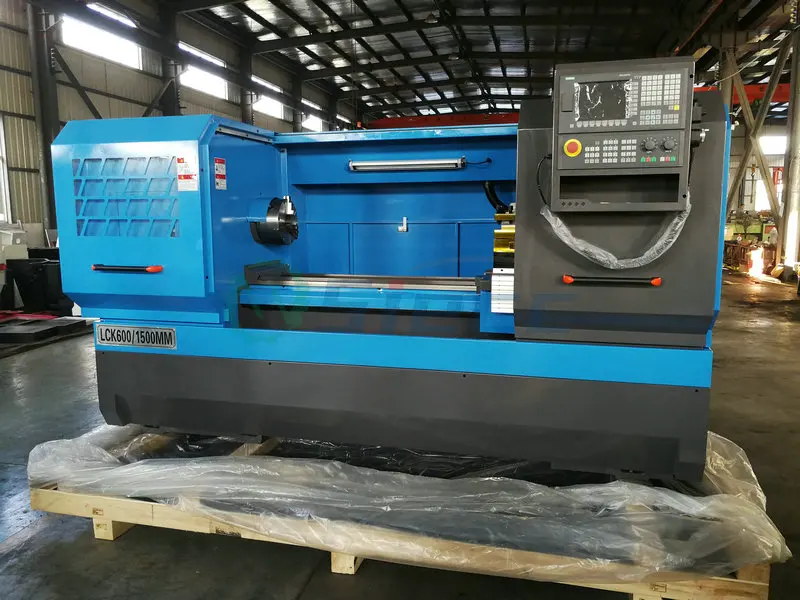

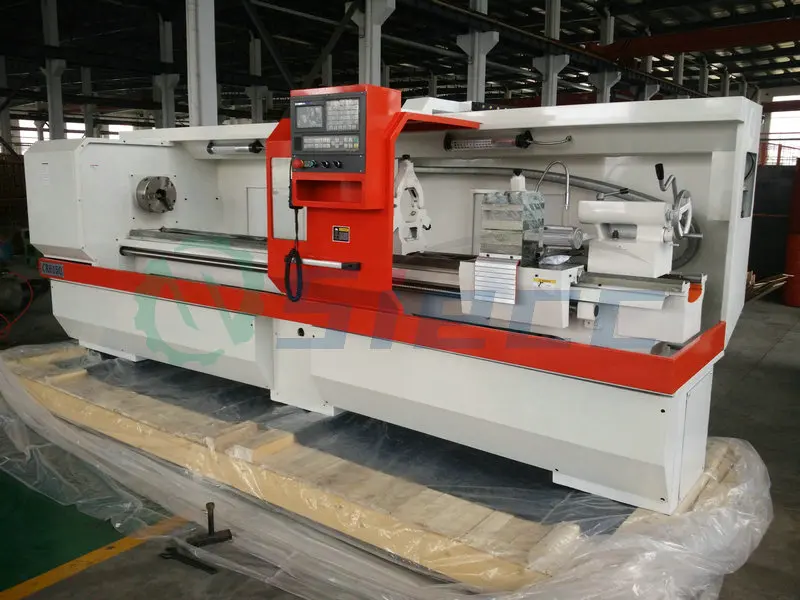

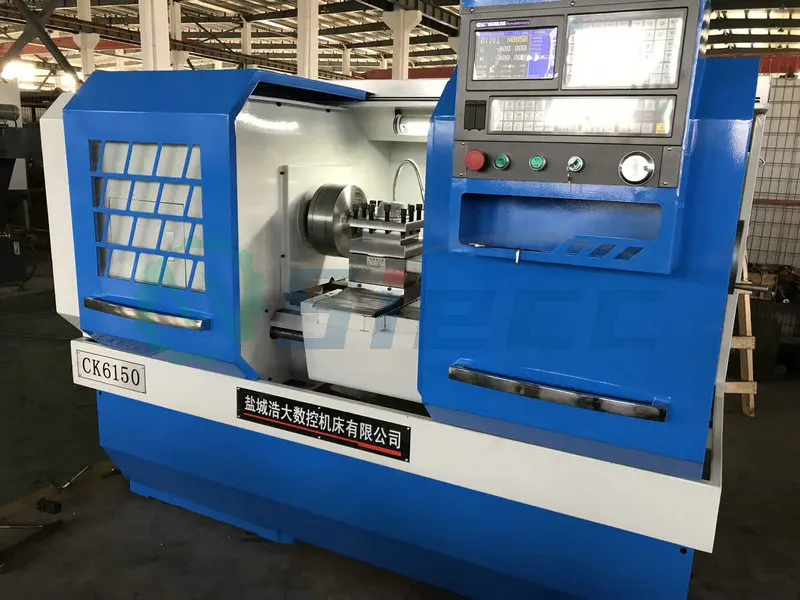

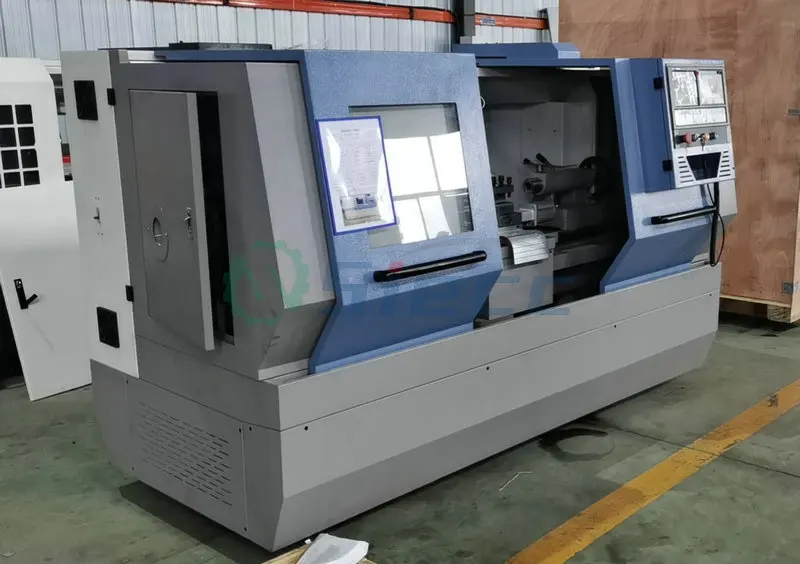

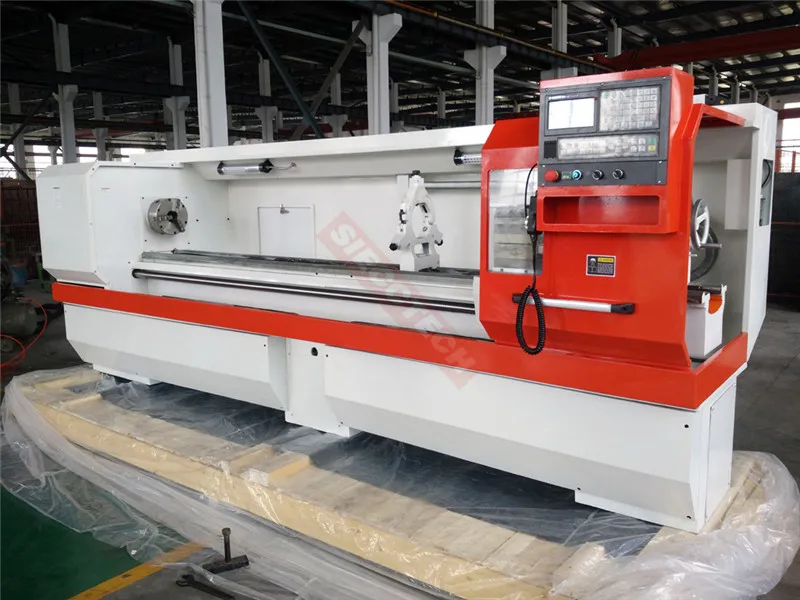

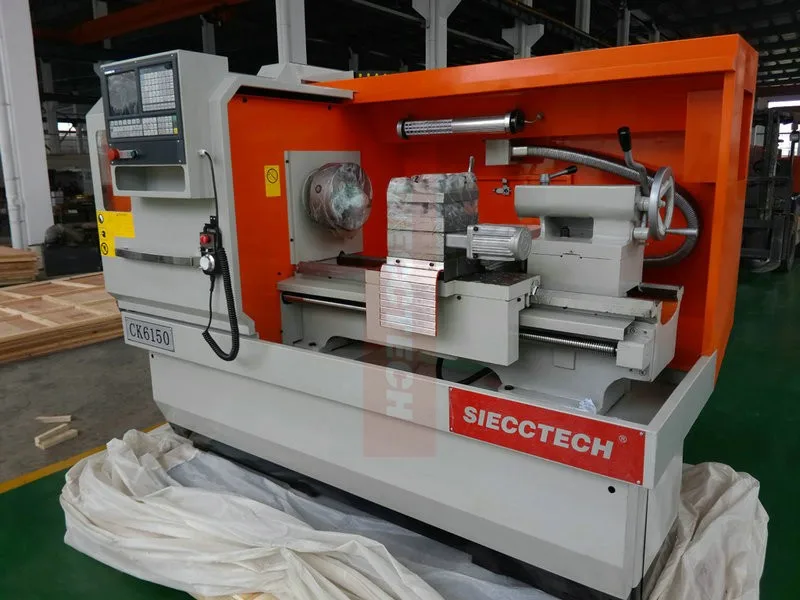

CNC LATHE MACHINE | |
| |
| |
| |
| |
   | |
| |
| |
