GIHO K80DO hydraulic cylinder rod ends

Product Overview

Description

GIHO-K80DO hydraulic cylinder rod ends



Features

  • Requiring maitenance,with female thread and locking nuts

  • Rings:chrome steel 52100(100Cr6),phosphating

  • Housing: alloy steel



Dimensions

  • Inside Diameter(Bore): 80mm

  • Outside Diameter(Head): 205mm

  • Net Weight: 15.0kg

  • Thread: M48x2.0

  • Load Ratings: 400KN(dynamic), 585KN(Static)

  • Maximum Angular Misalignment: 6 Degree

  • Total Length: 287.5mm

  • Center of Ball to Bottom of Shank: 185mm

  • Length Through Bore: 55mm

  • Length Through Housing: 47mm



Features  • sliding contact surface: steel / steel  • housing: carbon steel • requiring maintenance • inner ring    —bearing steel     —heat treated HRC 58-64    —phosphating • outer ring    —bearing steel     —heat treated HRC 54-60    —phosphating

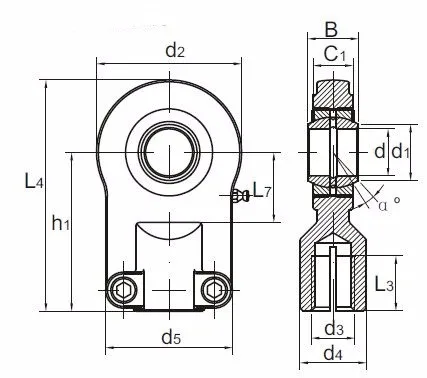

Part No.		Dimension (mm)														Weight (kg)
Right hand	Left hand	d	d3	d4	L3	B	C1	d2	L7	h1	L4	d5	d1	C2	a
			6H		min				min						≈
GIHO-K 12 DO*	GIHO-KL 12 DO*	12	M10x1.25	17	15	10	8	35	16	42	59.5	35	15	13	11	0.12
GIHO-K 16 DO	GIHO-KL 16 DO	16	M12x1.25	21	17	14	11	45	20	48	70.5	45	20.7	13	10	0.22
GIHO-K 20 DO	GIHO-KL 20 DO	20	M14x1.5	25	19	16	13	55	25	58	85.5	55	24.2	17	9	0.43
GIHO-K 25 DO	GIHO-KL 25 DO	25	M16x1.5	30	23	20	17	65	30	68	100.5	62	29.3	17	7	0.67
GIHO-K 30 DO	GIHO-KL 30 DO	30	M20x1.5	36	29	22	19	80	35	85	125	77	34.2	19	6	1.25
GIHO-K 40 DO	GIHO-KL 40 DO	40	M27x2.0	45	37	28	23	100	45	105	155	90	45	23	7	2.16
GIHO-K 50 DO	GIHO-KL 50 DO	50	M33x2.0	55	46	35	30	120	58	130	190	105	55.9	30	6	3.9
GIHO-K 60 DO	GIHO-KL 60 DO	60	M42x2.0	68	57	44	38	160	68	150	230	134	66.8	38	6	7.15
GIHO-K 80 DO	GIHO-KL 80 DO	80	M48x2.0	90	64	55	47	205	82	185	287.5	156	89.4	47	6	15
GIHO-K 100 DO	GIHO-KL 100 DO	100	M64x3.0	110	86	70	55	240	116	240	360	190	109.5	55	7	27.3



—As GIHR-K..DO with radial spherical plain bearing GE..LO.

—Relubrication not available for sizes marked “*”.

—Requiring maintenance,with female thread and locking nuts.



C&H can offer the following variants:

Maintenance type	maintenance-free, maintenance required
Rings	chrome steel 52100(100Cr6),phosphating
Housing	carbon steel, alloy steel
Without Connecting	GIHR..DO
With Locking Nuts	GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK
Welding Connecting	GK..DO,GF..DO,GF..LO,TS..NF
