Product Overview

Description

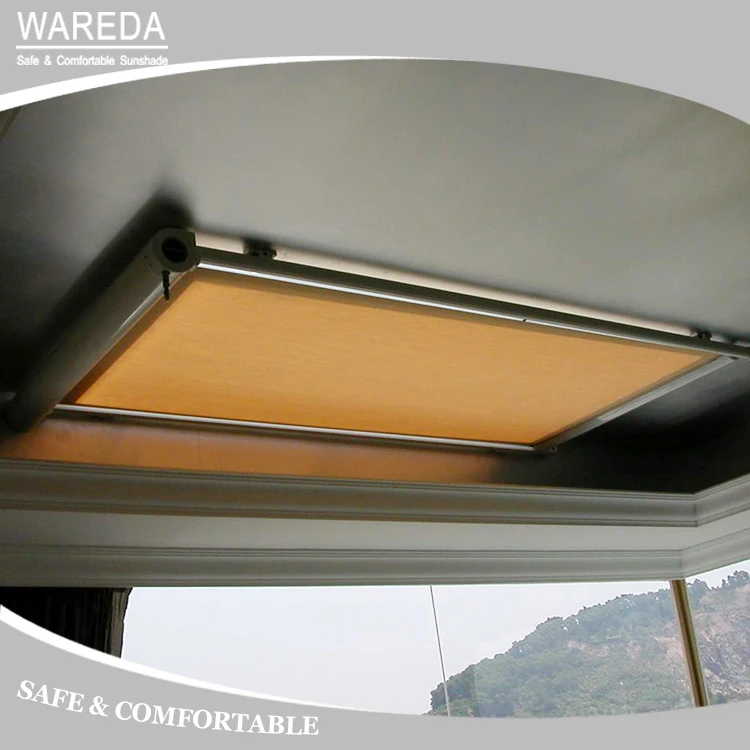

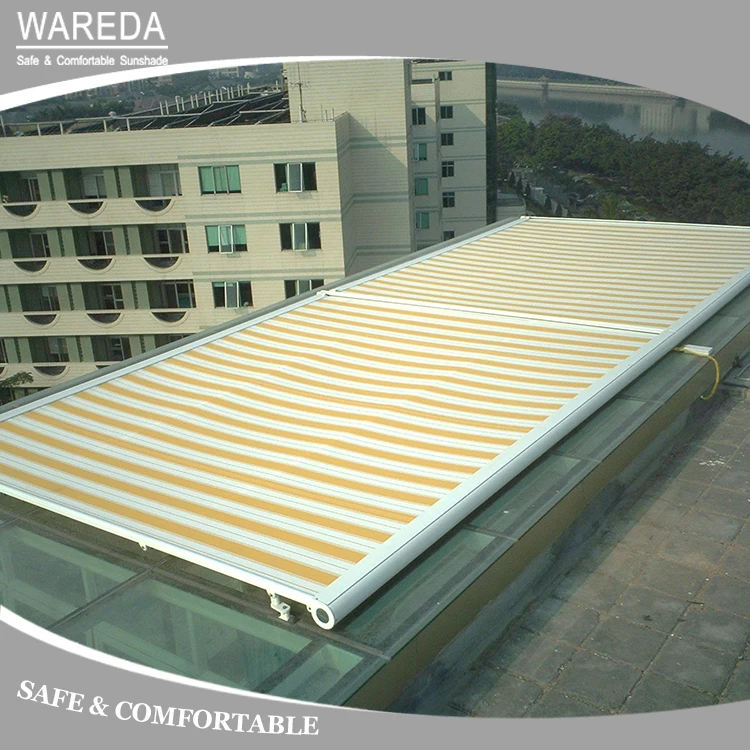

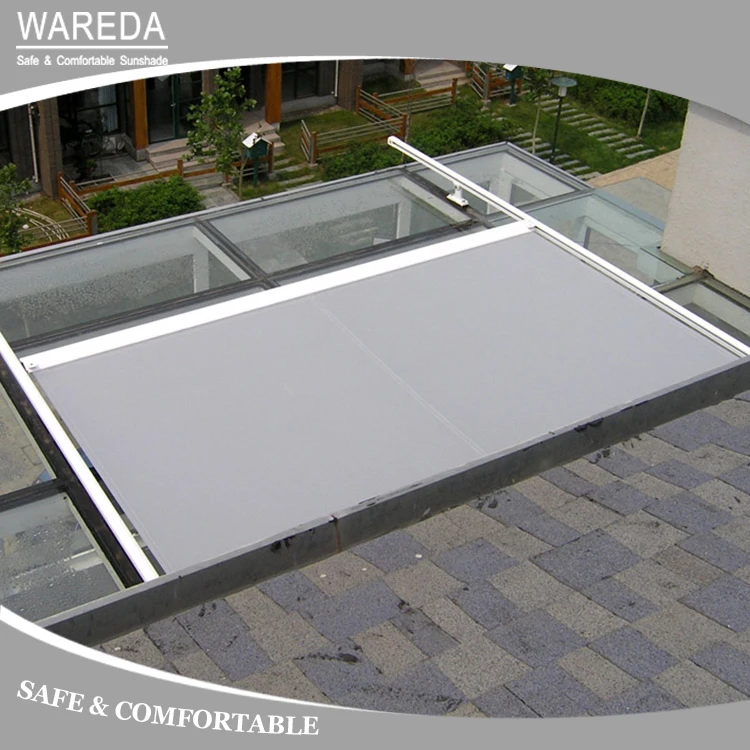

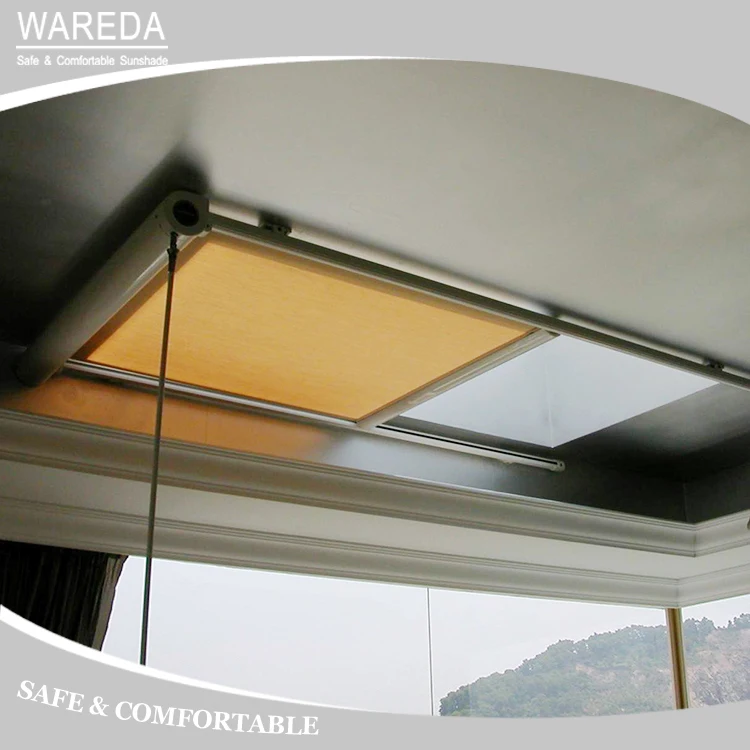

Motorized Waterproof Roof Awning Sunroom Conservatory Awning



Designed to be installed on top of the roof structure, stops heat and glair at source, with covers available in either acrylic in a wide choice of colours and designs or special sunscreen fabrics to reduce the heat and filter the light.led together for wider installations; a maximum projection of 6m is possible depending on width.



1) 5years warranty on UV degradation
2) Spring auxiliary power
3) Multi-operation method



Technical data



Name : Conservatory awning



Model : SW880



Fabric type : Polyester, Acrylic (280-310g/m²),



Fabric brand: Serge Ferrari, PARA, Recasense



Fabric color : All color available



Frame color : White powder coated, special color can customized



Width Max. size:  600cm



Width Min. size:  200cm



Extension Max. size:600cm



Extension Min. size:200cm



Gear Box:  1:11



Cassette size : 285x150mm



Alu.Roller:  Dia80x2.0mm



Alu. Front Bar: 120x70x2.0mm



Guide rail:80x60x1.5mm



Operation system:



Motorized system only



1) Switch control



2) Remote control



3) Sensor control(Wind sensor, Rain sensor. Solar sensor)



Fabric color
