High performance PTFE industrial filter bag for dust collector
Product Description
1.Specifications
1.Material:PPS/PTFE/P84
2.Weight:550g/m2
3.Thickness:1.7-2.8
4.Working temperature:100-260
5.High quality&Low price
2.Physical Properties:
Weight(gsm)
500
Thickness(mm)
1.7
Width(mm)
≤2.2m
Finish treatment
Singeing, Calendering, Heat setting
Air permeability(L/m2.s)
200-300
Tensile strength(N/5cm)
warp
≥1100
weft
≥1500
Tensile elongation(%)
warp
≤35
weft
≤60
Heat shrinkage(%)
warp
≤1.5
weft
≤1.0
Temperature(°C)
Continue
130
Instant
150
3.Chemical Properties:
Anti-acid
Middle
Anti-alkali
Middle
Anti-abrasion
Excellent
hydrolysis stability
Middle
4.Structure and application
Filter bag are made by non-woven filter material bag body and supported in role, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.

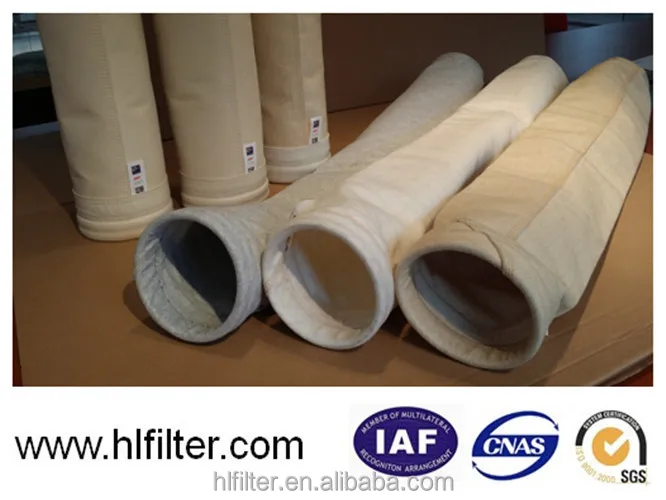

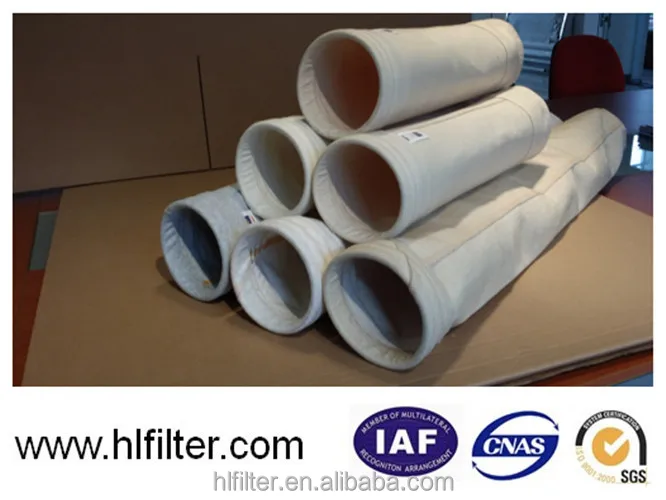

Detailed Images
Our Services
1.Customized is available.
2.Strictly quality control.
3. Enquiries quickly reply within 24 hours.
4.After-sales service, problems solved within 48hours.
