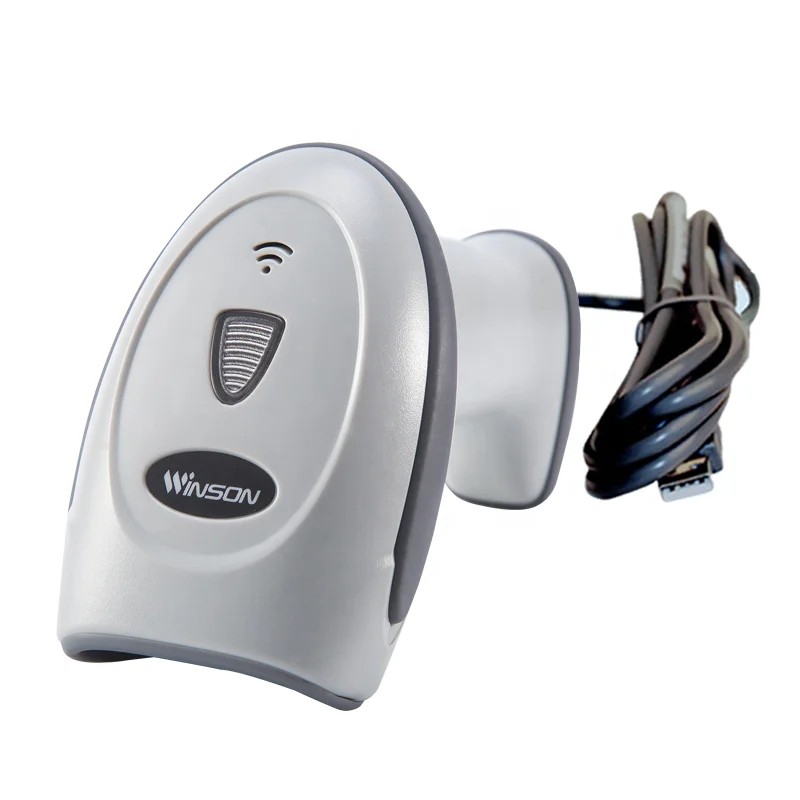

air passport 2D handheld wired OCR barcode reader qr barcode scanner USB

Technical Parameters

Electrical Characteristics

Interface

USB HID KEYBOARD/USB VCP

Voltage requirement

5V DC±10%

Current consumption

270mA Max,7mA Min

Optical Characteristics

Photo sensor

CMOS array sensor

SENSOR RESOLUTION

640X480 pixels

Light source

Super-bright white LED*2

Aim light source

Green LED bar

Performance Characteristics

Scan Rate

Up to 100fps

Decode angle

Pitch angle:±65°

Skew angle:±65°

Tilt angle:360°

Min resolution

1D:4mil(0.1mm)

Min.PCS value

25% minimum reflective difference

curvature

R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)

Field of View

38° (H) x 28.9° (V)

Identification

(1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11,
Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS),
IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey,

S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode,

Korean Postal Authority code, POSTNET

2D CODE: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes,

Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417,

 Micro QR Code, PDF417, QR code

Physical Characteristics

Dimensions

108mm H x71 mm W x185 mm D

Weight

226g

Case material

PC  white

Shock drop test

1.8m drop onto concrete surface

Environmental Characteristics

Temp

0° C to 40° C  ( -4°F - 140°F )(operation) , -40° C to 70° C  (-40°F -185°F)storage)

Humidity

5%-95% (non-condensation)

Ambient Light :

Regulatory

Electrical Safety

UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.

LED Safety

IEC/EN60825-1:2001, IEC/EN62471:2006

EMI/RFI

FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024

Environmental

Compliant with RoHS directive 2002/95/EEC

Accessories

Cable (USB,RS232),Quick user manual,DC adapter (RS232 option)
