Middle Speed Nonwoven Textile Needle Punching Carpet Making Machine Price/Needle Loom Suede Velour Machine
- Category: >>>
- Supplier: Dongyang Aolong Nonwoven Equipment Co. Ltd.
Share on (60741896360):
Product Overview
Description
Product Description
Machine Name:Middle Speed Nonwoven Textile Needle Punching Carpet Making Machine Price/Needle Loom Suede Velour Machine
Production line working process: PET fiber, cotton and other raw materials are opened by Electric weighting bale opener, and then the proportions are set and proportioned according to the weight, color and fiber number of the required raw materials. Through the main opener machine's conveyor belt, the opener roll is evenly fed to open the raw material, and then the fan is sent to the large warehouse mixer to mix fiber and cotton. The mixed cotton fiber is evenly transported to the needle punching machine,than will finished winding and slitting.
Main Features:Middle Speed Nonwoven Textile Needle Punching Carpet Making Machine Price/Needle Loom Suede Velour Machine
1)Whole line be controled by PLC electric box,easy to operation.
2)HIgh capacity,machine can running whole day.
3)Working process no weast no pollution.
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t |

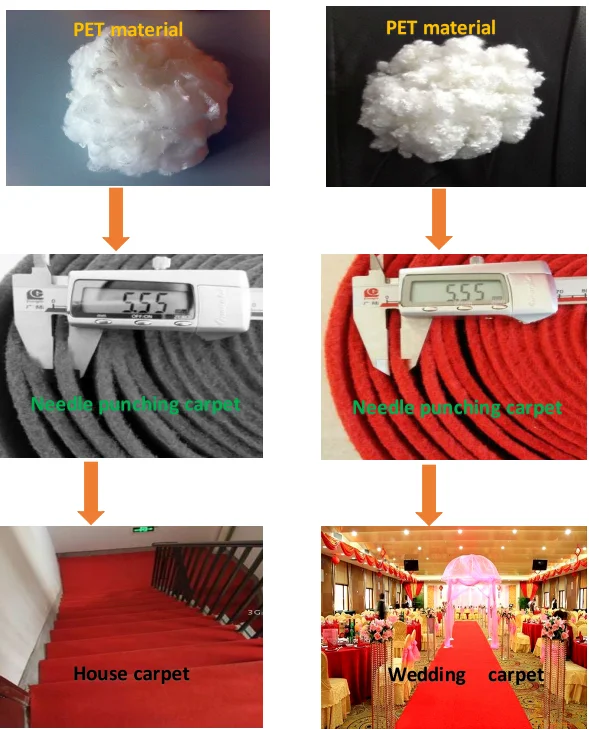

Product Show
Product of Middle Speed Nonwoven Textile Needle Punching Carpet Making Machine Price/Needle Loom Suede Velour Machine
Machine Main Parts
Main Parts of Middle Speed Nonwoven Textile Needle Punching Carpet Making Machine Price/Needle Loom Suede Velour Machine
Machine Parts

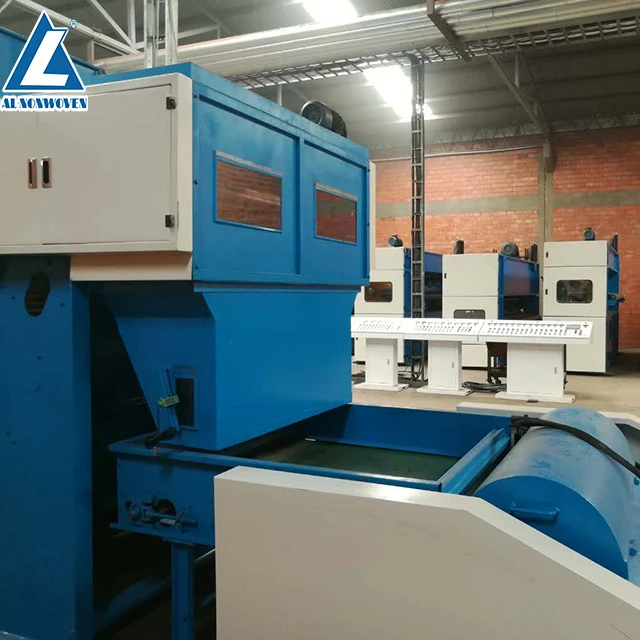

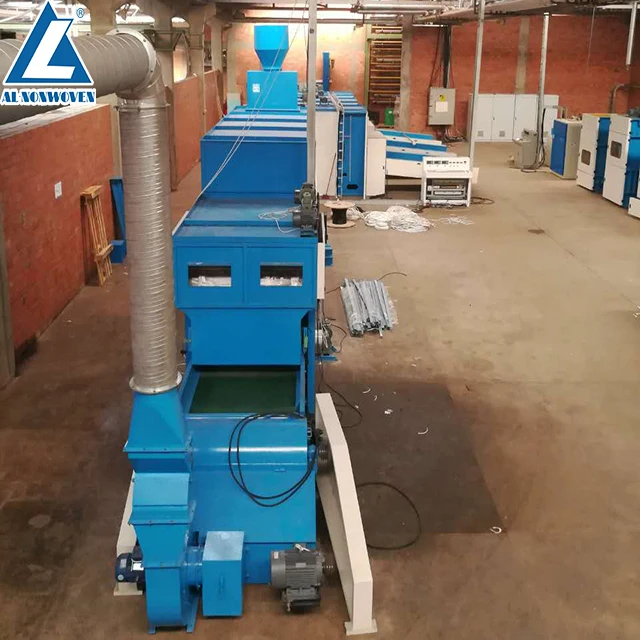

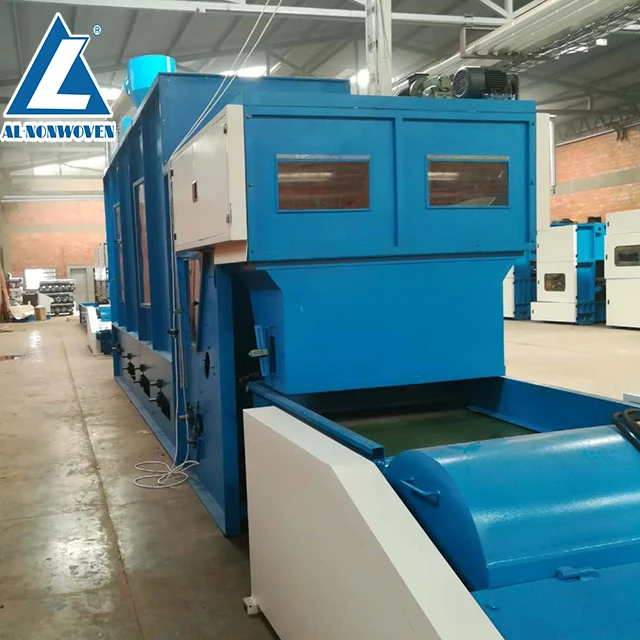

Name: Electronic weighing bale opener
Brand: A.L
Original: China
Works principle : whole or half bale of fiber put into Input lattice,move by Spiked lattice,Spiked lattice speed fit with stripping rollets,cotton balence rollers speed, let the material even into the auxiliary hopper .Across the Sensors, and PLCcontrol system,the Electric weight hopper can ensure Each bucket error less than 5% .Than across the after Compensation program to reduce the error,man-machine interface.
Main Parts

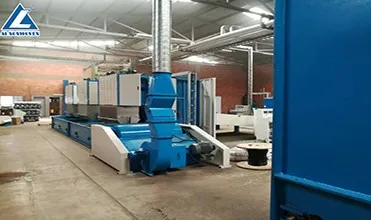

Name: Main opener
Brand: A.L
Original:China
Works principle:The Proportional fiber across feeding device imported raw materials,through the crush rollers crush the fiber fully break,follow the air of cotton feeder fan, pass the powerful magnet to remove dust ,than into next step.
Machine Parts

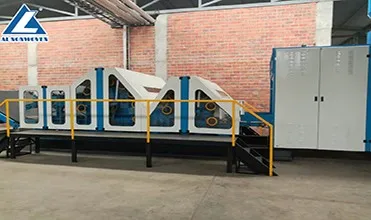

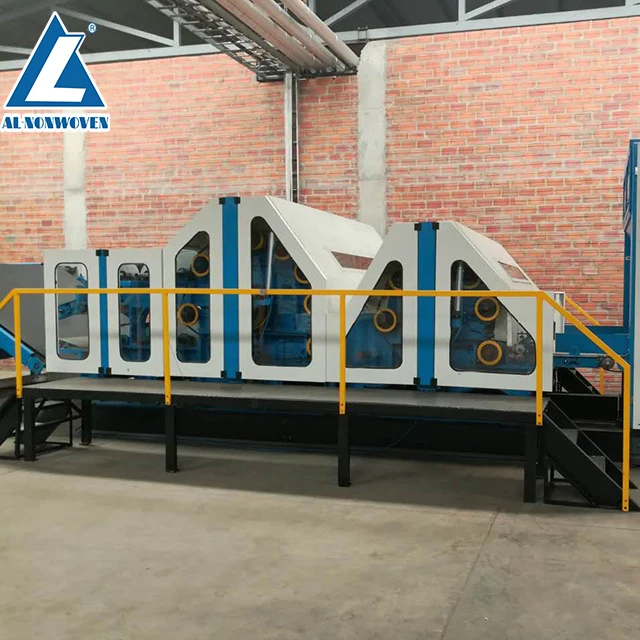

Name: Carding machine
Brand:A.L
Original: China
Works principle:Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function.Installed with 5 sets frequency changer to control the feeding, cylinder, doffer, inner clutter, outer clutter.Two layers output, the lattice is PVC lattice
Main Parts

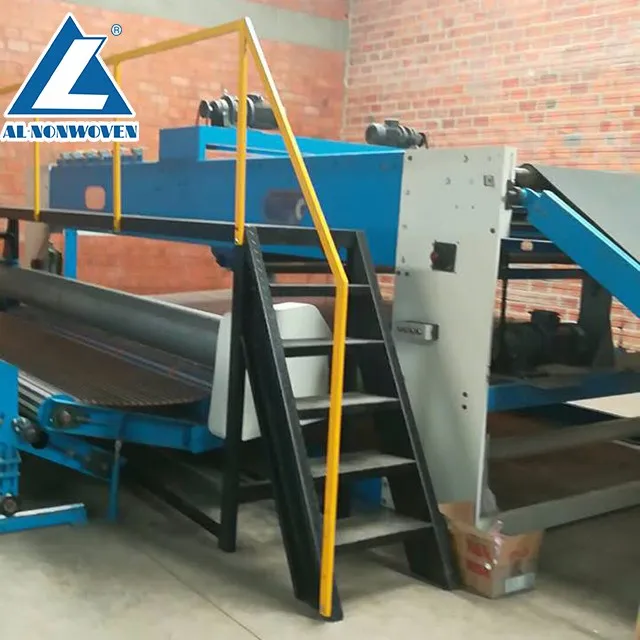

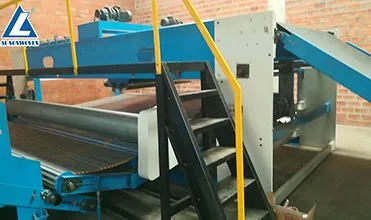

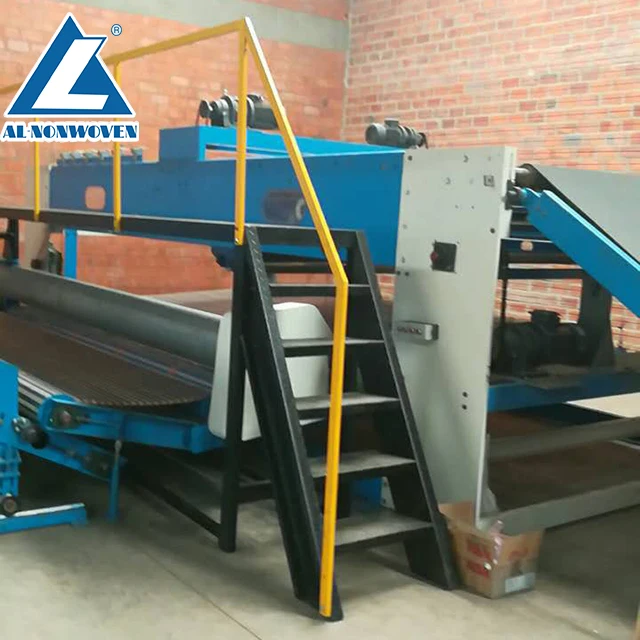

Name: Cross lapper machine
Brand: A.L
Original: China
Works principle:Reciprocating movement with multistage speed control (PLC programmed control, touch screen), 4kw motor frequency control with PLC, 14M synchronous belt drive straight after, reversal time within 20 microseconds to make sure the uniformity.
Main Parts

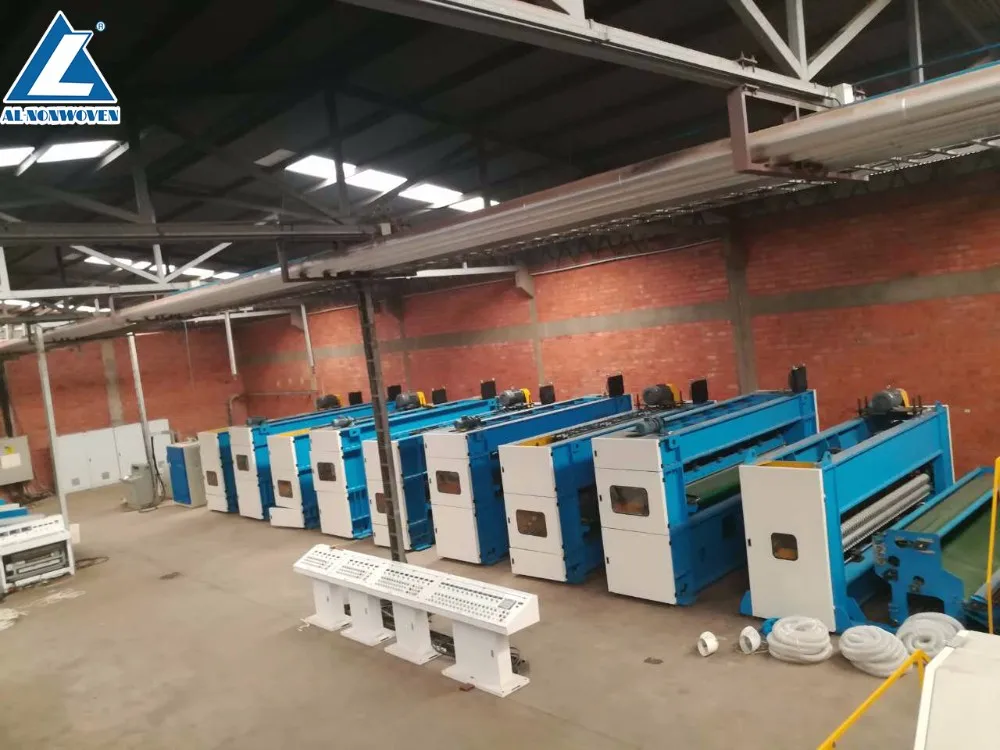

Name: Neesle punching machine
Brand:A.L
Original: China
Works principle:Needle destiny 4500pcs/m, random arrangement by computer, diaφ1.83mm, aluminum alloys needle beam, and aluminum magnesium alloy downward needle plate with bore-hole, single polyurethane plated, air locked needle plate.
