Product Overview
Description
Mini 4 Axis 3040 Multi-purpose Desktop Engraving 3d Cnc Router Machine
PRODUCT
| Model | CNC3040Z-A1500W |
| Dimension | 660*540*460mm(L*W*H) |
| worktable dimensions | 570*360*20mm(L*W*T) |
| Working area | 300mm*400mm*90mm |
| Frame material | The machine is 6061 aluminum. Panel is 6063 aluminum. |
| Type of Screw | TBI SFU1605 ball screw |
| Rail type | Chrome plate shaft + Linear Bearings(surface hardening 61 HRC) |
| Spindle Motor(rated voltage) | 1500W(600HZ 2200WVFD) |
| Cooling mode | Water cooling |
| Control system | Mach3 USB port |
| Collet type | ER11 1/8”(3.175mm)and 6mm collet |
| Stepper motor | 57 type, 76 length, high torque, 5.6A heavy current |
| Max. working speed | 8000mm/min(engraving speed: 50-7500mm/min) |
| Repeat positioning | Less than or equal to 0.02mm |
| Carving accuracy | 0.02mm |
| Spindle speed | 24000rpm/min |
| Command code | G Code (tap, nc, ncc, text) |
| Input voltage | AC220V/AC110V |
| Package size | 65*52*44cm(L*W*H) |
| Package weight | 62Kg |
| Packing | Carton |
| 5axis parameters | ||
| Reduction ratio | 6:01 | |
| Chuck | 100 Chuck can clamp 100mm inner diameter subject or square stock machining | |
| Center height | 98mm | |
| Dimension | 450*150*160mm | |
| System | Mach3 | |
| Net weight | 13KG | |
| Package weight | 15KG | |
DETAILS AND SAMPLE
Click here for more information

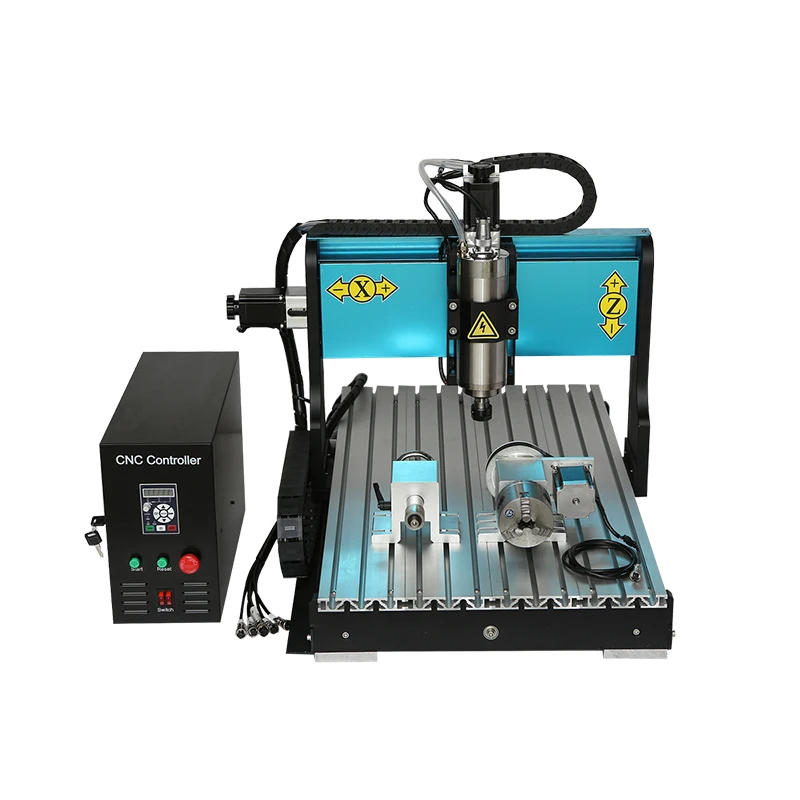

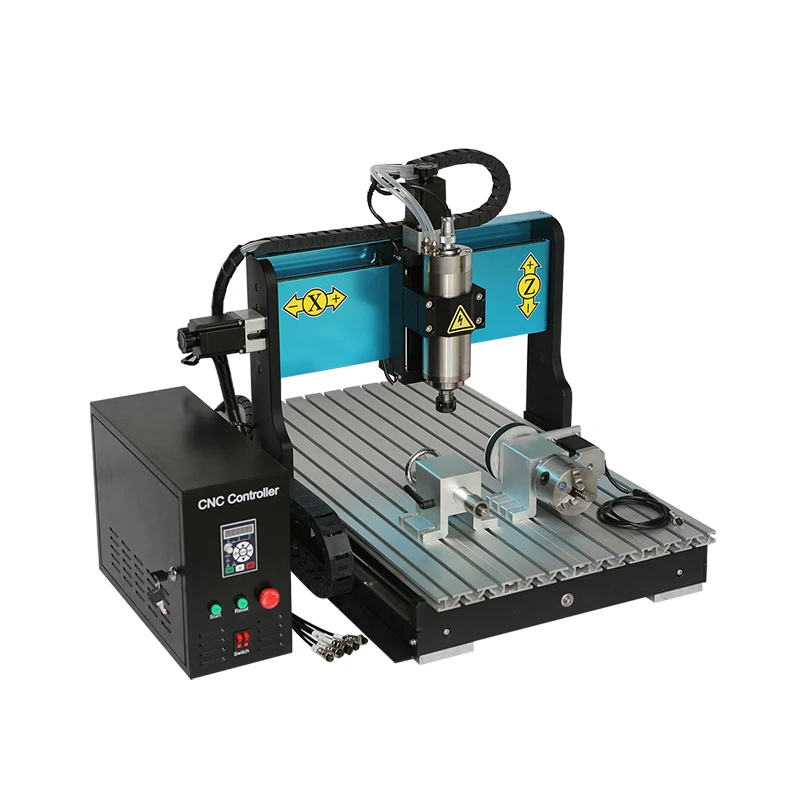

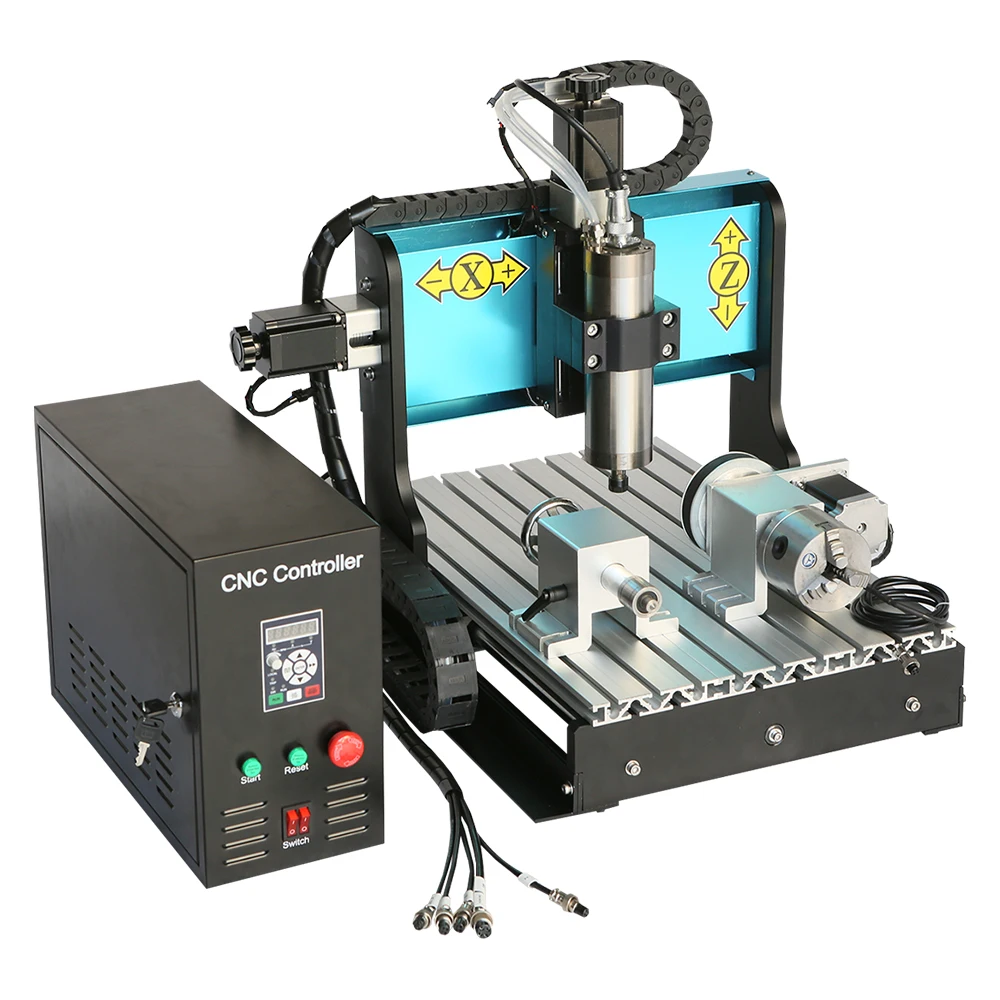

Product Show

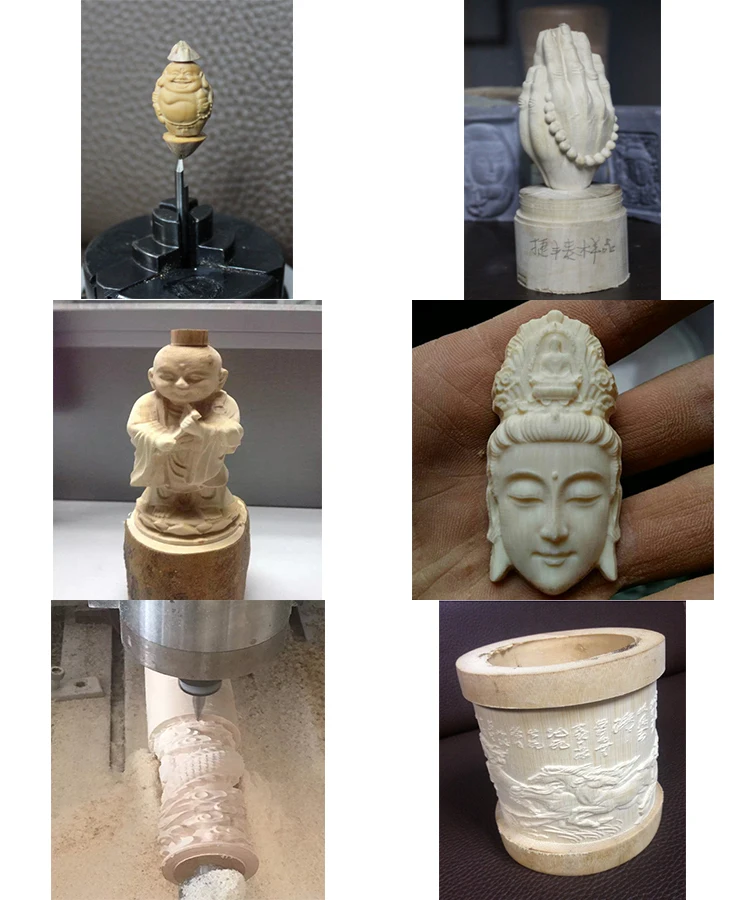

Carving sample
