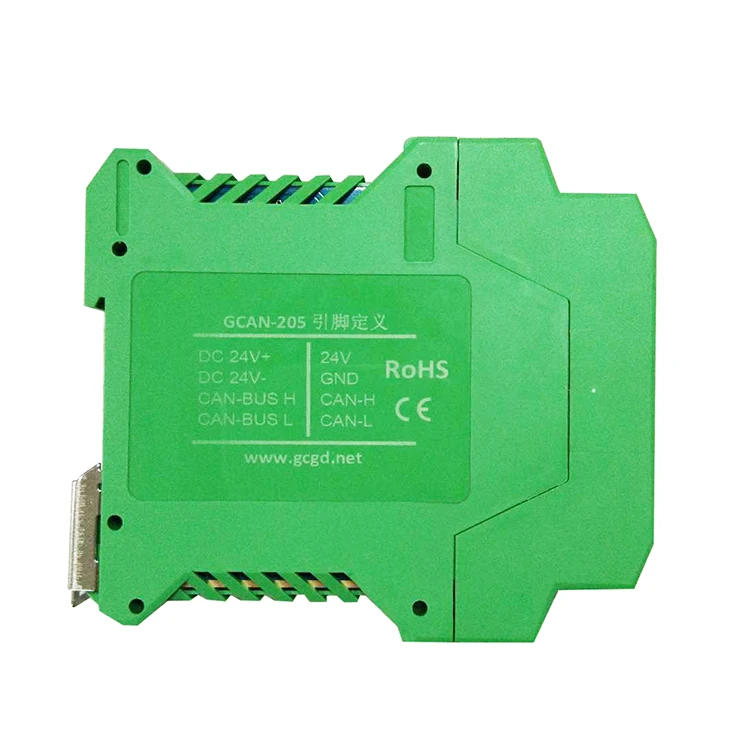

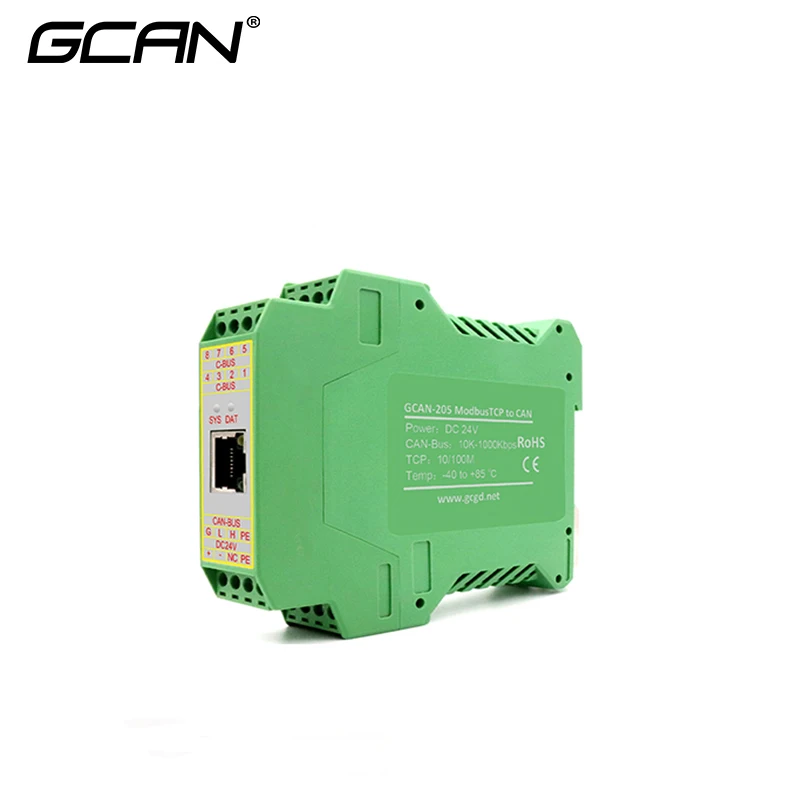

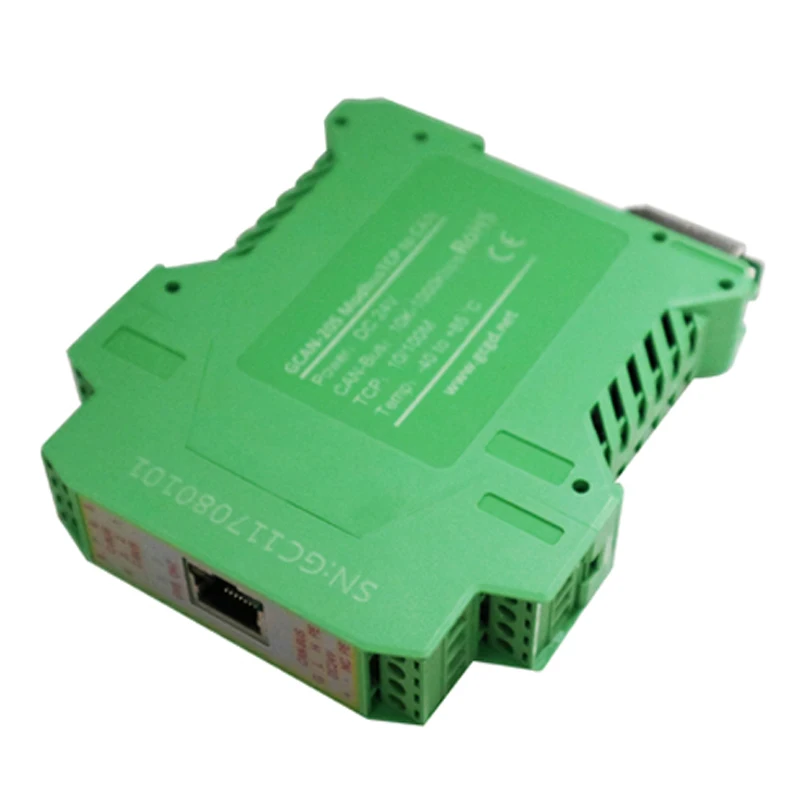

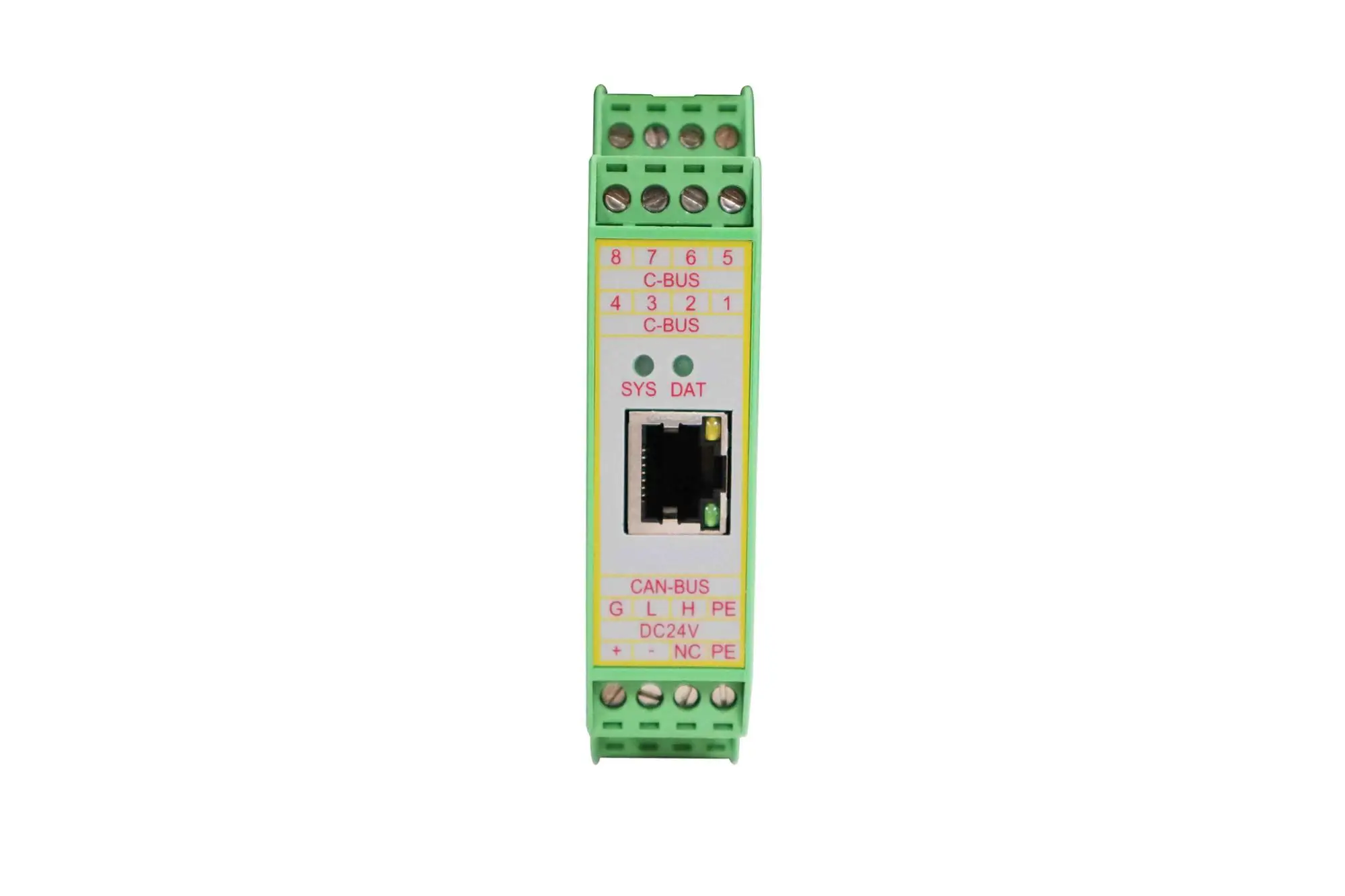

CAN bus module CAN bus converter used for Ethernet and CAN Bus connection Modbus TCP protocol

Hardware Features

1. High speed 32-bit industrial grade processor
2. Embedded Watchdog timer
3. External voltage (DC+24V, 40mA)
4. Electrostatic discharge (ESD) Immunity level: Contact Discharge±2KV, Air Discharge±15KV
5. Fast transient Burst Impedance Level: ±1KV
6. Surge immunity level: ±1KV
7. Working temperature: -40.00℃~ 85.00℃
8. Working humidity: 5%~95%, no condensation

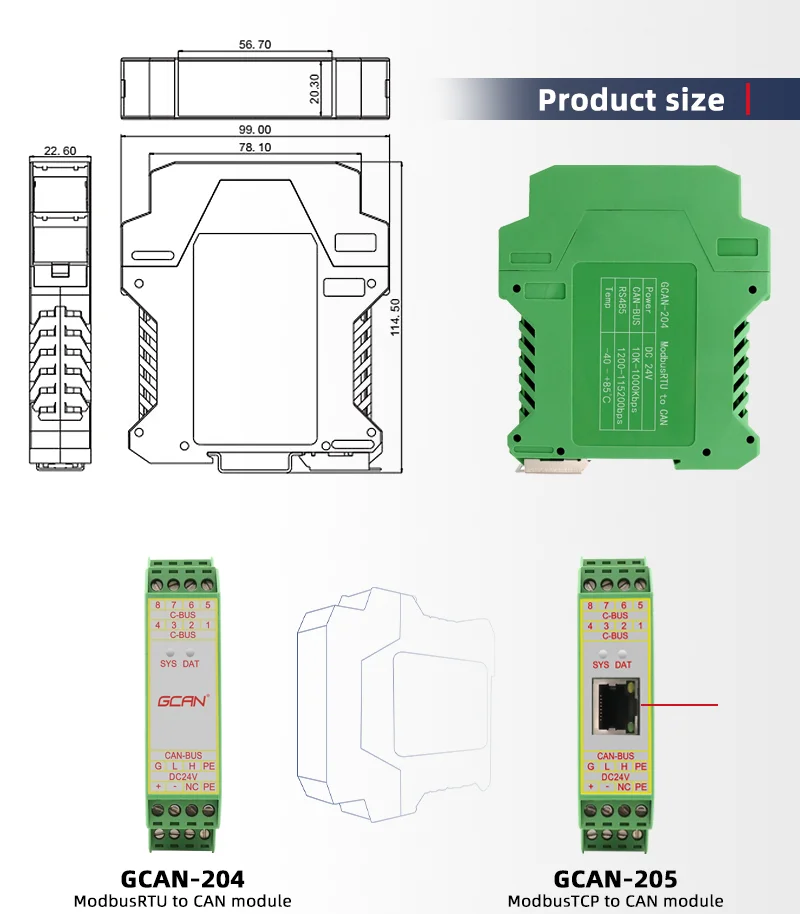

9. Dimensions: 115mm (L) * 100mm (W) * 22mm (H)
10. Customization

CAN Features

1. Integrate one CAN-Bus channel, with terminal connection
2. Support CAN2.0A and CAN2.0B, conform to ISO/DIS11898
3. Support communication baud rate: 5Kbps~1Mbps
4. Electric isolation, insulation level: DC 3000V

Ethernet Features

1. Restore the network connection automatically after disconnecting, can establish a TCP connection.

2. Support protocol including Ethernet, ARP, IP, ICMP, UDP, DHCP, DNS, TCP
3. SOCKET working mode compatibility (TCP Server, TCP Client, UDP, etc), program communication software according to standard SOCKET rules
4. Support secondary development, we can provide VB routine or you can look for some another basic programming routine about Ethernet online

It is national certified high-tech enterprise. Our company has more 20 own intellectual-property rights with all of main products developed by ourselves, which is a leading supplier and service provider of industrial interconnection industry in China. We major in development, production, sales of industrial communication equipments and automatic equipments. The products cover CAN-Bus analyzer, ECU downloader, industrial gateway, remote IO, PLC core-board, and servo driver, software and hardware of industrial communication and providing for comprehensive solution. Since founded in 2010, our company has been on a mission to “promote the progress of industrial interconnection technique, offer competitive product and service”. We always create value for our customers. Now, we have served over 10 billion customers, involving traffic, electric power, energy, medical apparatus, ship, military industry, and automatic, multiple industries.

Service: 1 years guarantee, and professional technical staff help.
Supply ability: We usually have 3000-5000 units in stock for urgent orders.
Capacity: 50K/month, can meet the demand of most enterprises application.
Lifetime: At least 5 years for each device, can still produce just if you need.
Cooperation: Welcome the cooperation with distributors all over the world.

1. How to make sure the quality?
Process Quality Control
Final Quality Control
Outgoing Quality Control
2. Can you do the design for us?
Yes, Just tell us your idea (logo,text., etc) and our professional R&D team will help to carry out your ideas into reality.
3. How to get the order?
First,Tell us the model and quantity of the products you want.
Second ,we will make a PI for you.
Third, After confirm everything,the payment will be arranged (Paypal, Western Union,T/T or Ali Trade Assurance for your money safety are welcomed)
Fourth, we will send you the goods within the promissory time.
4. What's the delivery time?
Sample within 2-5 days;
Wholesales 4-7days according different quantities;
OEM 7-14 days after all info confirmed.
ODM depends on the detail requirements.
