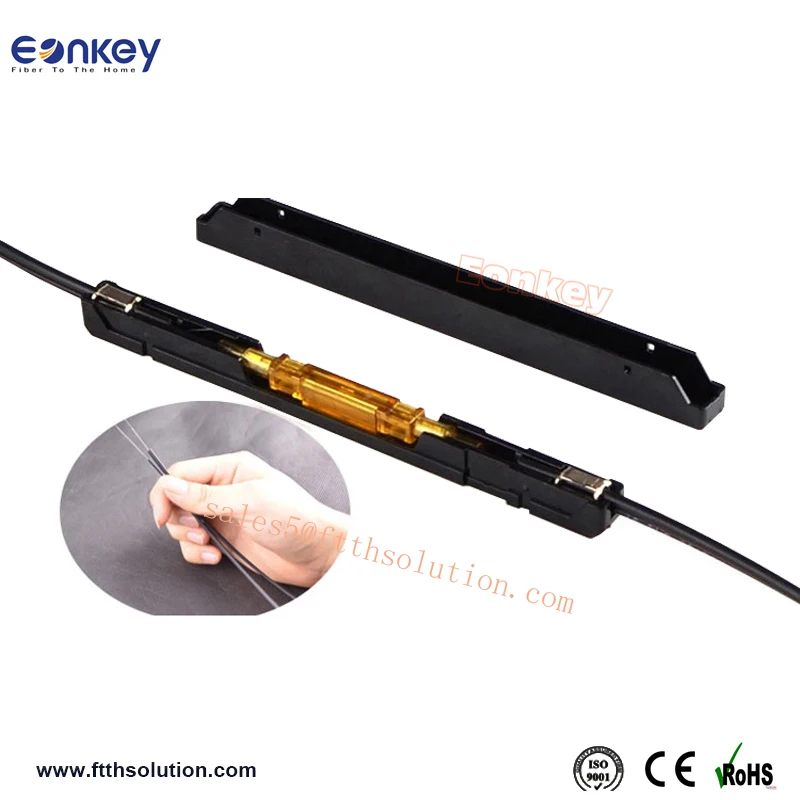

Eonkey FTTH drop cable Fast Fiber Optic Mechanical Splicer
- Category: >>>
- Supplier: Ningbo Eonkey Optical Communication Co. Ltd.
Share on (60742109253):
Product Overview
Description
Eonkey FTTH drop cable Fast Fiber Optic Mechanical Splicer
Product Description
Feature | |
Low insertion loss | High tensile strength |
Good thermal and environmental stability | Good design for simple assemble |
Field installable, high reliability. | Compact size, lightweight, quick and easy operation. |
Apply to splice the drop cable and breakpoint resume. | |
Reusability >50 times (before cover the housing). | |
Fast splice without fusion machine, but could achieve same fusion splicing effect. | |
Specification | |
Scope of application: 2x3mm drop cable | Fiber diameter: 250 um or 900 um |
Fiber mode: SM&MM | Operation time: <30s (No fiber cut) |
Life time: 30 years | Insertion loss: ≤0.3dB (Typical: 0.1dB) |
Return loss: ≥45dB | Tensile strength: ≥454g |
Fastening strength of bare fiber: ≥3N | Fastening strength of drop fiber: ≥50N |
Operating temperature: -40°C to 80°C | emperature influence: IL change ≤0.5dB |
Product description
The key tech of optic fiber splice is pre-installed fiber and inserted fiber connect by matching gel in the V-shaped groove.
Our fiber optic mechanical splice is special designed glass V-shaped groove, the material is as same as optical fiber, it could keep fiber won't be changed by the varies temperature, to minimize the fiber insertion loss. Meanwhile, the optic fiber splice is designed of dust & water proof, it is better suited
for FTTH of the complex environment with wet and dust.
Company Information
Packaging & Shipping
Packing of Fast Fiber Optic Mechanical Splicer:
standard transparent bag or customized
Delivery of Fast Fiber Optic Mechanical Splicer: 3-7 days after payment
The best service for you
FAQ
1,Do you provide free Fast Fiber Optic Mechanical Splicer samples?
------ yes, we can supply some free samples , the buyer should bear the shipping cost.
2,Are you trading company or manufacturer ?
------ We are factory also trader.
Welcome to visit us in any time.My cell number is +86 15158331064
3,How long is your delivery time?
------ Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4,What is your terms of Fast Fiber Optic Mechanical Splicer payment ?
------ Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
