sell 530 ton used injection molding machine second h haitian injection molding machine plastic crate injection molding machine

Product Overview

Description

Shenzhen Deligao Mould Plastic Co.,Ltd
DELIGAO INDUSTRIAL(HK)CO.,LTD
Engaged in used injection molding machine for 19 years. Have a lot of experience.
Technically, our company can provide customers with: Recondition and Repaint. Overseas assembly. Transform variable pump, servo. Wait one stop service.
Our company has huge warehouse and source of goods.
The existing injection molding machine in the warehouse:
Provide various kinds from 30T-4000T,
Place of origin:Japan,Korean,Taiwan,HK,China mainland.
Overall functions and stable capacity and high quality
Low cost, high efficiency and big ROI!
The stock keep more than 300 set of machines, provide different series and size of brands.Such as Engel,JSW,NESSEI,NIIGATA,TOSHIBA,TOYO,FCS,ChenHsong,HAITIAN...

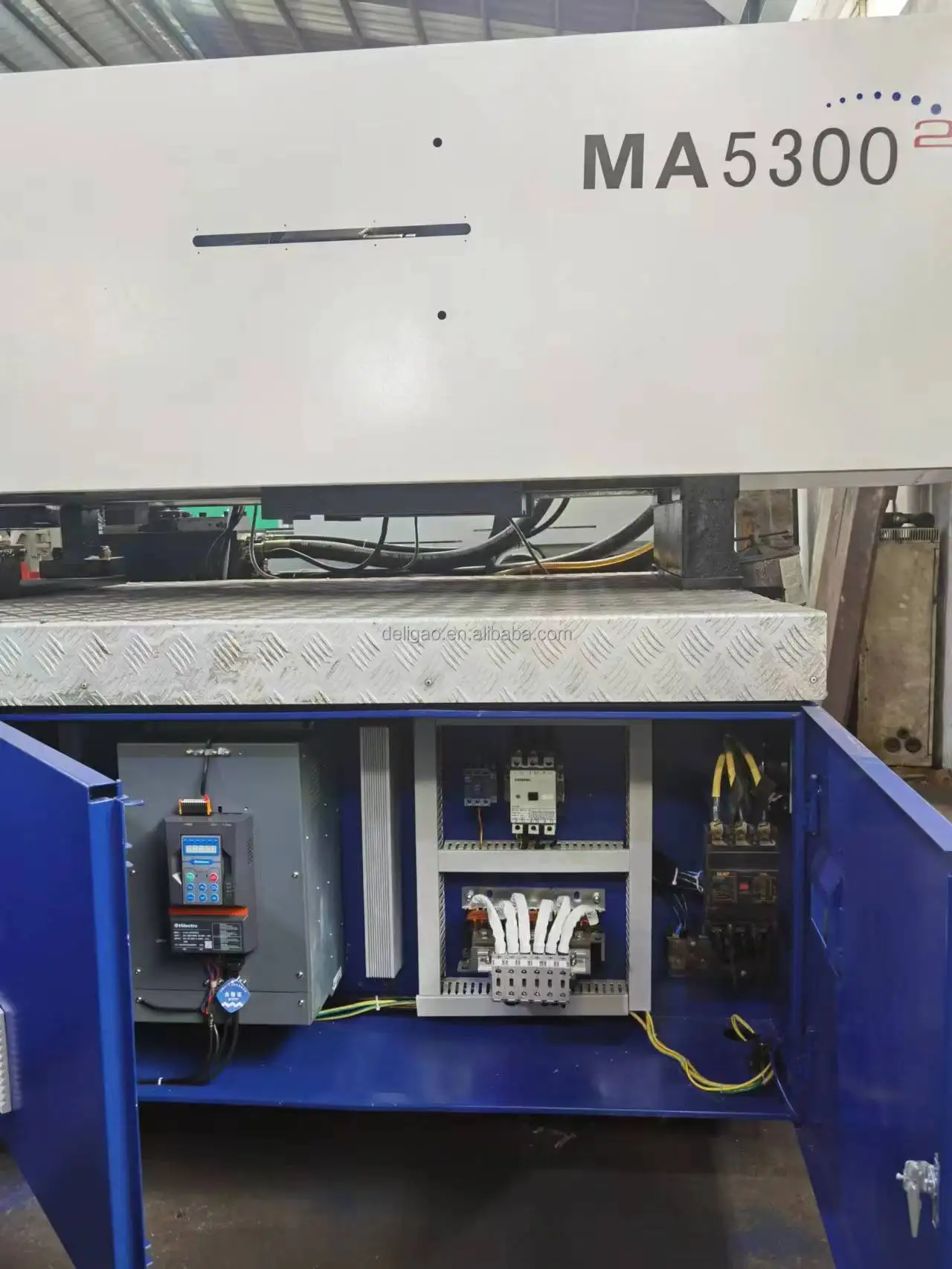

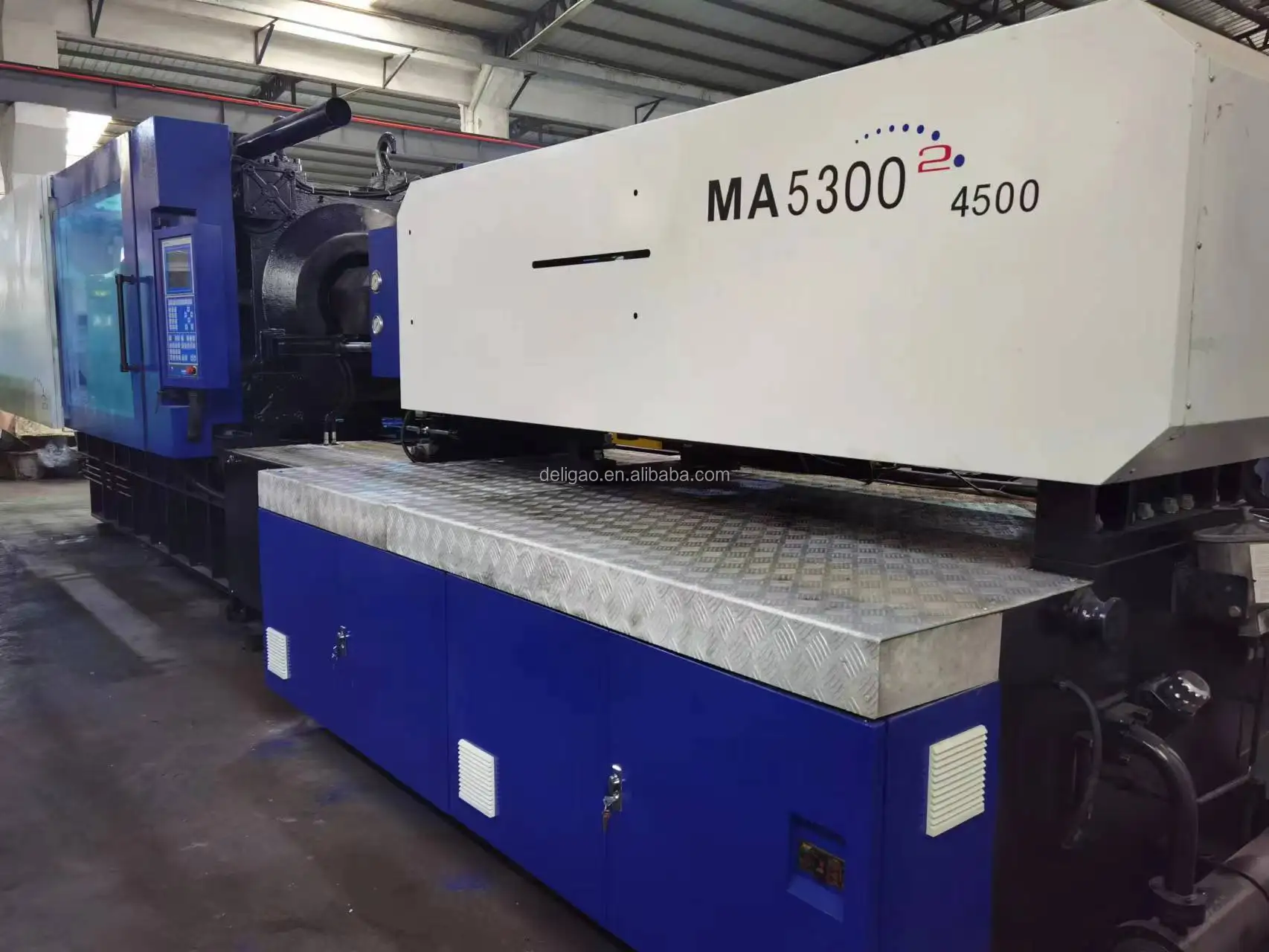

MA5300II

INJECTION UNIT		A	B	C	D
Screw Diameter	mm	80	84	90	100
Screw L/D Ratio	L/D	22	21	19.6	17.6
Shot Size(Theoretical)	cm3	2212	2438	2799	3456
Injection Weight(PS)	g	2012	2218	2547	3145
Injection Pressure	Mpa	180	163	142	115
Screw Speed	rpm	0~130
CLAMPING UNIT
Clamp Tonnage	KN	5300
Toggle Stroke	mm	825
Space Between Tie Bars	mm	830x800
Max.Mold Height	mm	850
Min.Mold Height	mm	350
Ejector Stroke	mm	200
Ejector Tonnage	KN	158
Ejector Number	Piece	17
OTHERS
Max.Pump Pressure	MPa	17.5
Pump Motor Power	kw	55
Heater Power	kw	40.25
Machine Dimension(LxWxH)	m	9x2.3x3.6
Machine Weight	t	26
Hopper Capacity	kg	200
Oil Tank Capacity	L	1250

High hardness: the template stress distribution is uniform, the deformation is small, and the precision of the product is effectively improved; the pressure center template structure is adopted to effectively improve the precision of the product.

Longer life: The new graphite steel casing greatly enhances the lubrication of the crankshaft and tie rods, smooth running of the mold clamping, longer service life and less maintenance.More precise: integral guide rod support, double-cylinder balanced injection device, so that the screw is evenly balanced during the advancement of the injection, linear advancement.
More efficient: highly optimized clamping unit, smoother high-speed opening and closing mold, effectively shortening cycle time,Innovative drive system, patented servo motor gear pump design.
