Shell And Tube Heat Exchanger Water Chiller Condenser
- Category: >>>
- Supplier: Shanghai Gorun Machinery Technology Co. Ltd.
Share on (60742133166):
Product Overview
Description
Product DescriptionShell And Tube Heat Exchanger Water Chiller Condenser

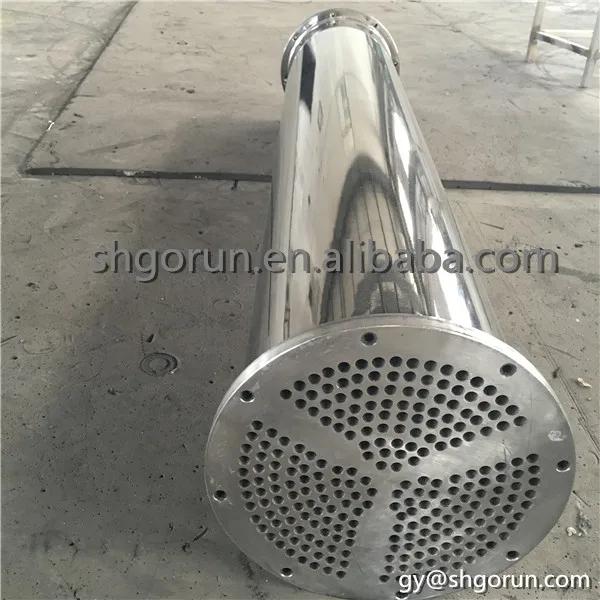

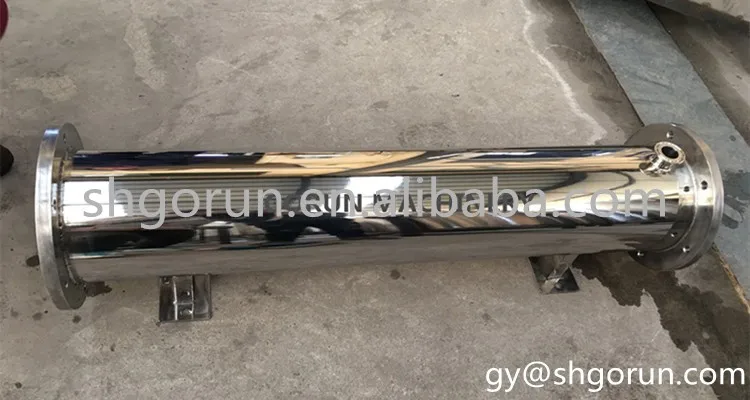

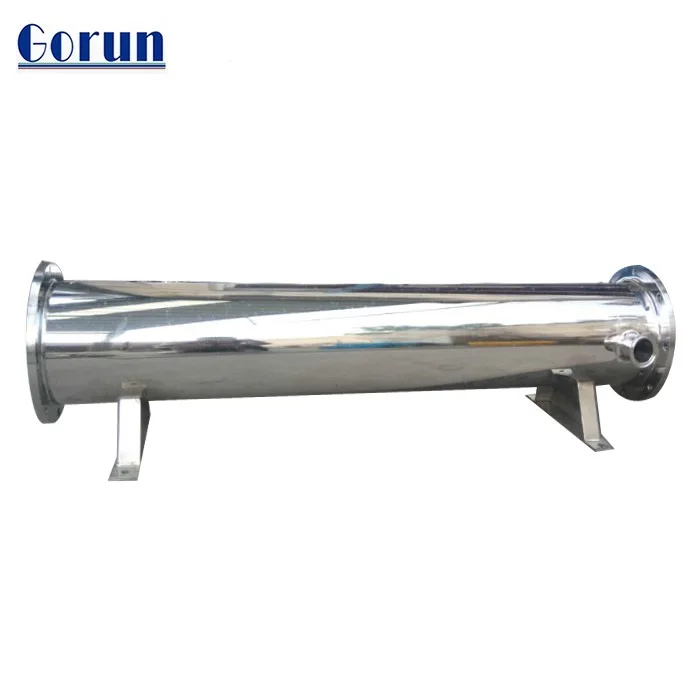

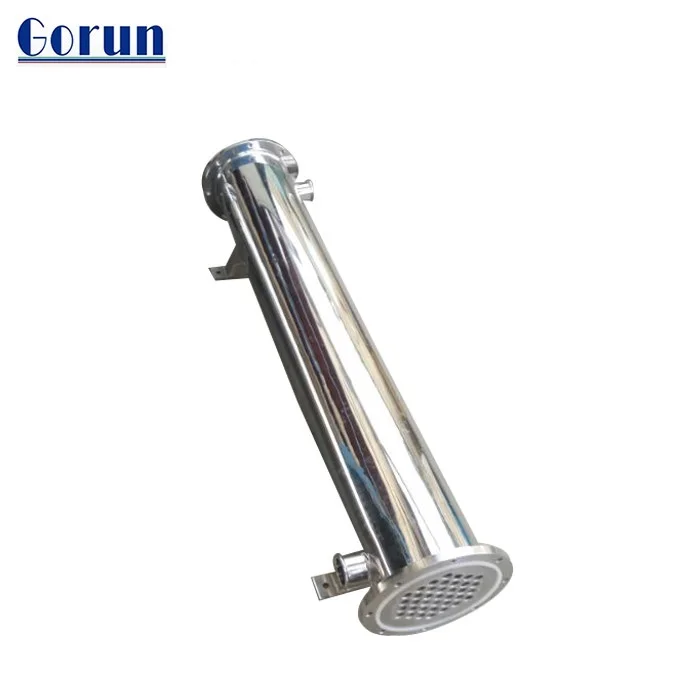

Shell And Tube Heat Exchanger Water Chiller Condenser
Brief Introduction
This tube heat exchanger is mainly used in the process of heating or cooling materials in pharmaceutic, chemical industry, food and beverage industry.The tube heat exchanger is made of SUS304 and SUS316L.

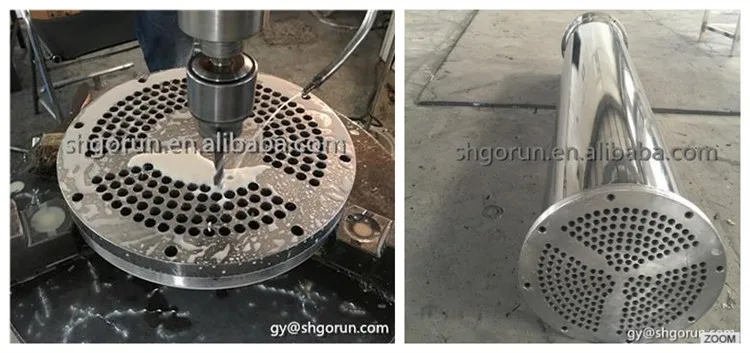

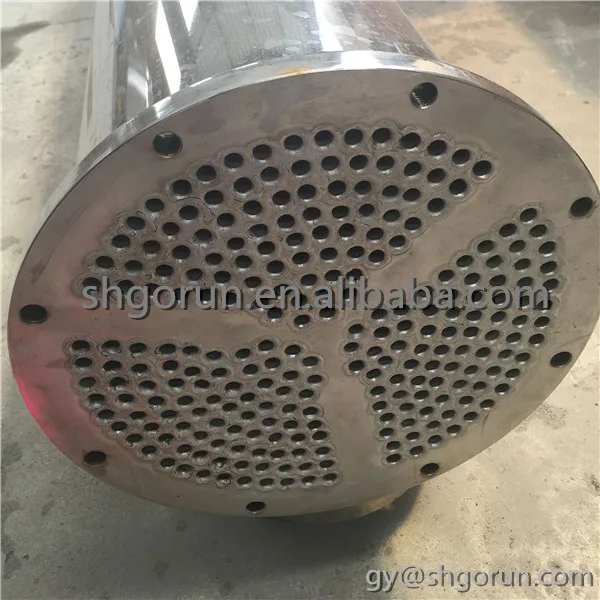

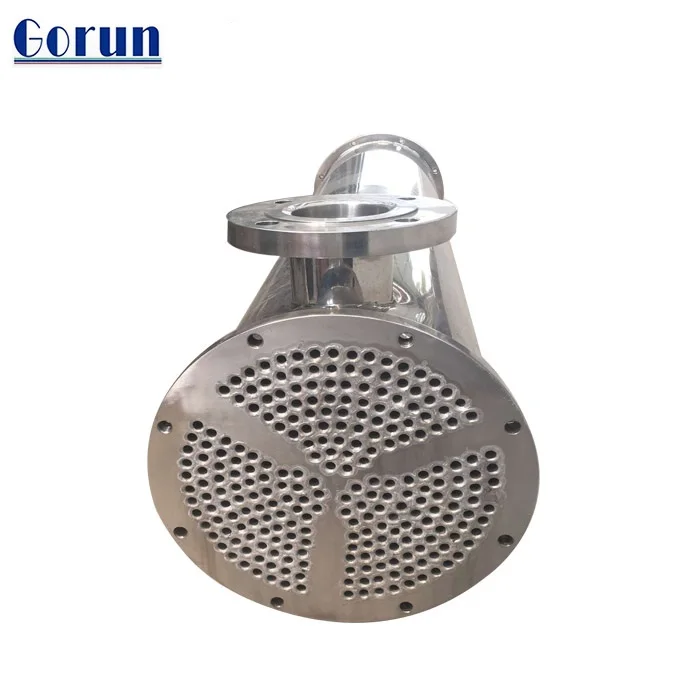

Connection between pipes and plates can be welding, expanding connecting, or expanding and welding. It also can be designed and produced according to customers various requirements.

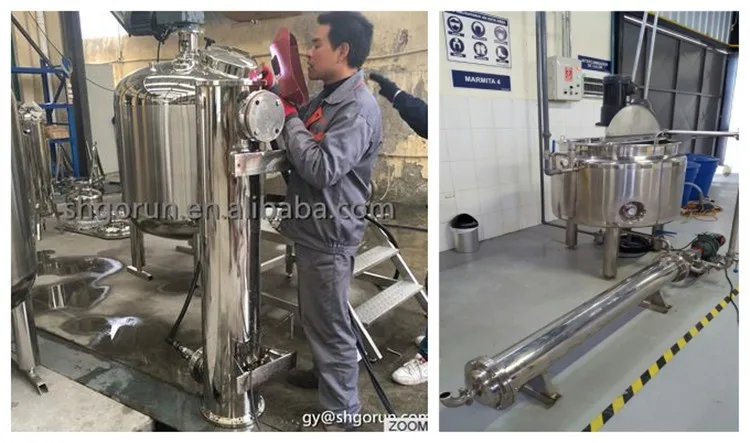

Case Application:
Features & Advantages
1.High efficient and energy conservation: heat transfer coefficient of the heat exchanger is 6000-8000W/m2.0C.
2.Long service life: all parts are made of Sus304 or Sus316
3.Fast heat transfer speed: resistance to high temperature (400 ℃), high voltage (2.5 Mpa).
4.Compact structure, small footprint, light weight, convenient installation, saving investment in civil construction.
5.Flexible design,saving money. complete specifications, practical and targeted,
6.Easy operation , long cleaning cycle and convenient cleaning, low maintenance cost
7.Wide application fields, which can be widely used in the fields of thermoelectric, factory, petrochemical, urban central heating, food and medicine, energy electronics, mechanical light industry, etc.
Specification for the heat exchanger
| Model | Heat exchanging area(m2) | Diameter of the pipe(mm) | Length of lined pipe(m) | Inlet & outlet (mm) | Inlet & outlet of heat exchanging medium | Heating exchanging pipe(mm) | Pressure in pipe (Mpa) | Pressure on housing (Mpa) |
| GH-2 | 2 | 219 | 1.5 | 25 | 32 | Φ20*1.5 | 0.25 | 0.25-0.5 |
| GH-4 | 4 | 300 | 1.5 | 32 | 40 | Φ20*1.5 | 0.25 | 0.25-0.5 |
| GH-6 | 6 | 300 | 1.8 | 32 | 40 | Φ20*1.5 | 0.25 | 0.25-0.5 |
| GH-8 | 8 | 400 | 1.8 | 40 | 50 | Φ20*1.5 | 0.25 | 0.25-0.5 |
| GH-10 | 10 | 400 | 2.2 | 40 | 50 | Φ20*1.5 | 0.25 | 0.25-0.5 |
| GH-15 | 15 | 426 | 2.2 | 50 | 50 | Φ25*1.5 | 0.25 | 0.25-0.5 |
| GH-30 | 30 | 530 | 2.55 | 50 | 65 | Φ25*1.5 | 0.25 | 0.25-0.5 |
| GH-45 | 45 | 550 | 3 | 50 | 65 | Φ25*1.5 | 0.25 | 0.25-0.5 |
Section Guide:
| Solution A | If you know about heat exchange and dimension of the heat exchanger,then we can quote accordingly | ||
| Solution B | If not,please let me know the working condition: 1.Material:ss304/316? 2.Tube side: medium? flow? temperature inlet&outlet? 3.Shell side:medium?flow?temperture inlet&outlet? 4.Working pressure? 5.Connection type: flang/clamp/thread | ||
Notice: all these parameters can be customized.Please tell me your requirements, then we will design for you as soon as possible.
Our Company
Shanghai Gorun Machinery Technology Co., LTD. ,deprived from 1993,is committed to the design, production and installation and commissioning of equipment in medicine, food, chemical industry and electronics industry for more than 23 years.
Main products: Heat exchanger, Stainless steel tank series, water treatment equipment, homogeneous emulsion pump series,water & powder mixer, colloid mill, wine fermentation tank, CIP online cleaning and process automation control and pipeline installation.
Exhibition Hall
Customers
Trade Fair
Main Products
1.Shell and tube heat exchanger
2.Stainless Steel Tanks(mixing tank, emulsifying tank, fermentation tank, storage tank, )
3.Water purification system
4.CIP Online cleaning system
5.Shell and Tube Heat Exchanger
6.Jacketed Cooking Kettle.
7.Sanitary pump series. etc.
8.Filter catridge
Want more...
Our ServiceAfter-sale services
Pre-sale services
1. free technical guidance
2. Inquires will be replied within 0-8 hours
3. Questions about the products will be replied without any reservation
4. Recommendation products according to your requirements
After-sale services
1. One year warranty provided
2. Lifelong technical support service
3. Engineers available to services overseas,(the accommodation, round-tickets and extra 50 dollars salary for per day ) is by your part.
4. Any technical advisory from you will be much appreciated
Related Products

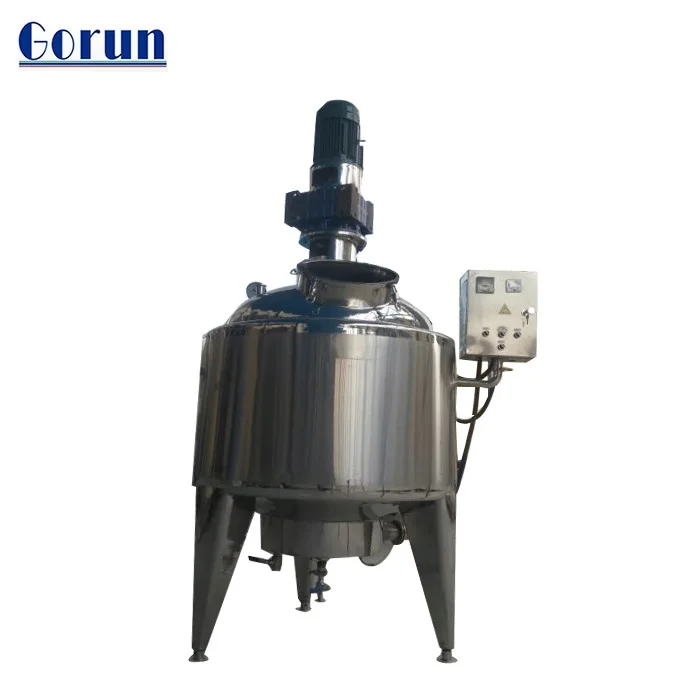

Electric Heating Mixing Tank

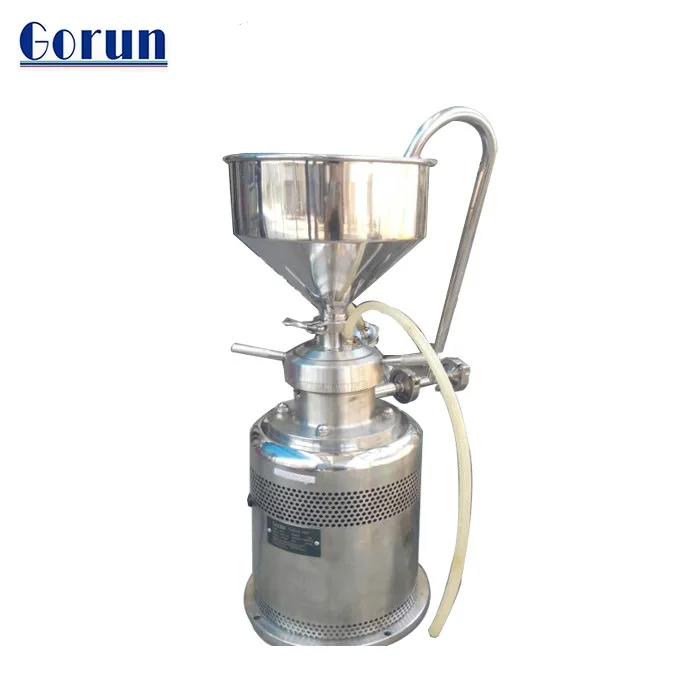

Standable Colloid Grinder

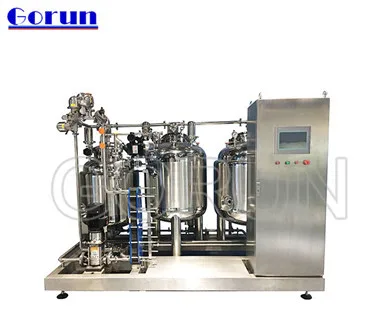

CIP(Cleaning in Place) System
Packing & Delivery
Packing: Plywood or wooden cases for the Shell And Tube Condenser
Delivery:About 13-30 days after your payment for Shell And Tube Condenser(HS Code:84352154213)
FAQ
1、How about the installation? And what if the machine goes down?
There are two options:
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided.Its easy to install because we will debug it when we send it.
2、Can we use our own design?
Yes,every design is welcome. Please give us your requirements.
3、How long will the warranty be?
One year.
4、How about your packaging and shipping time?
Packaging: neutral plywood and wooden box packaging according customers’ requirements.
Delivery: normally 10-45 days after payment and we promise we will delivery as soon as possible.
5、Are you manufacturer or trading company?
Gorun is a professional manufacturer.
6、.What the payment terms?
L/C,D/A,D/P,T/T,West Union/Money Gram/Paypal
