Ammonia Refrigeration Ice Cream Continue Freezer

Product Overview

Description

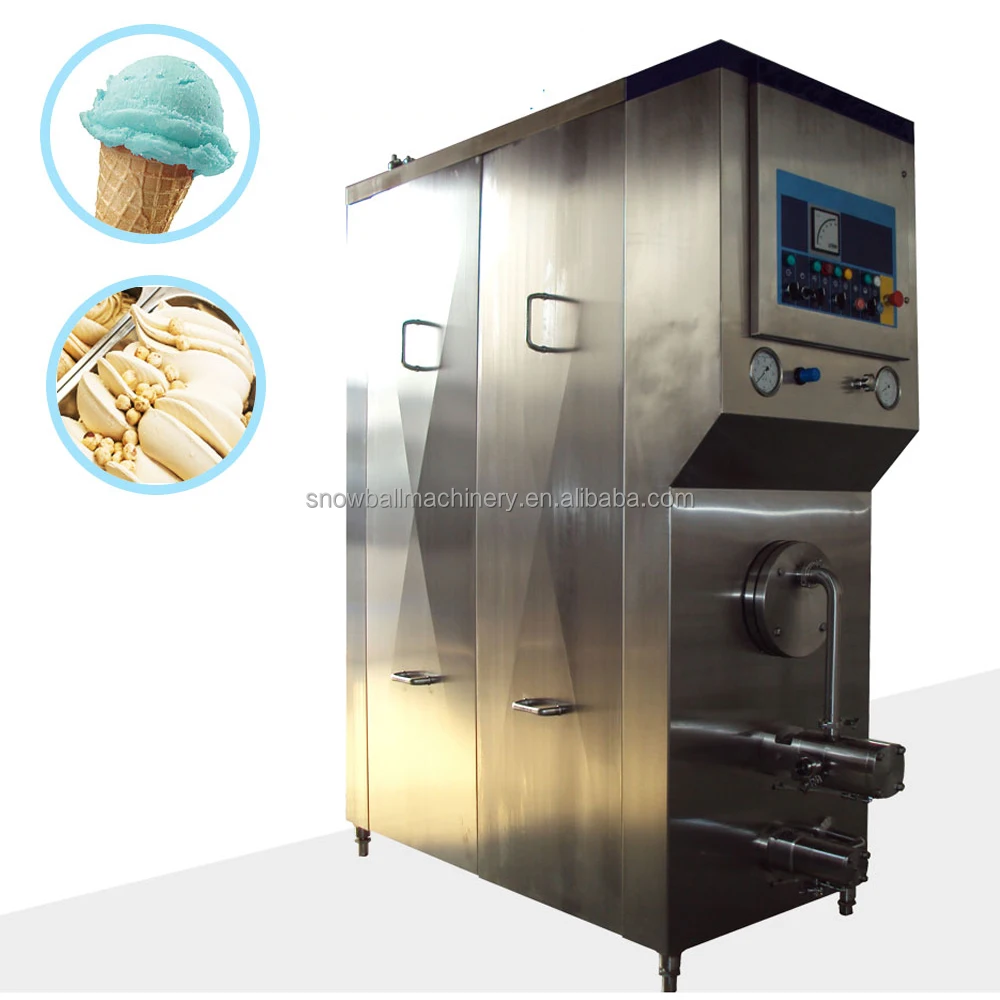

SNOWBALL- 1000L ICE CREAM CONTINUE FREEZER

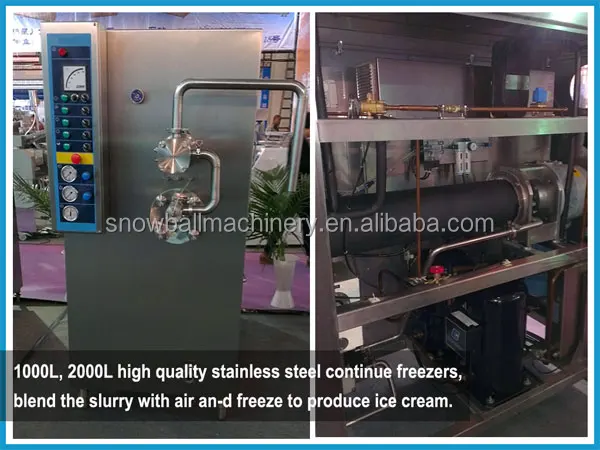

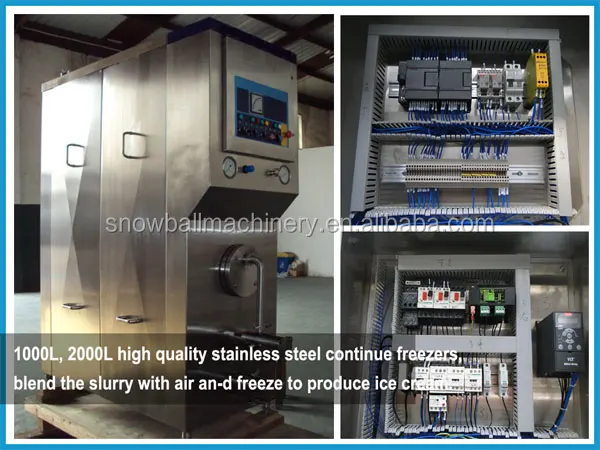

1000L, 2000L high quality stainless steel continue freezers, blend the slurry with air an-d freeze to produce ice cream. It is the best equipment for large-scale continuous soft ice cream production in cooling drink industry. Designed to optimize Energy Efficiency while improving product quality.

The machine adopts simple bulking control syste-m, durable self-cleaning slurry transfer pump, stable an-d dependable refrigeration control syste-m (adopt international advanced refrigeration control valve)to guarantee high quality products an-d high efficiency product.

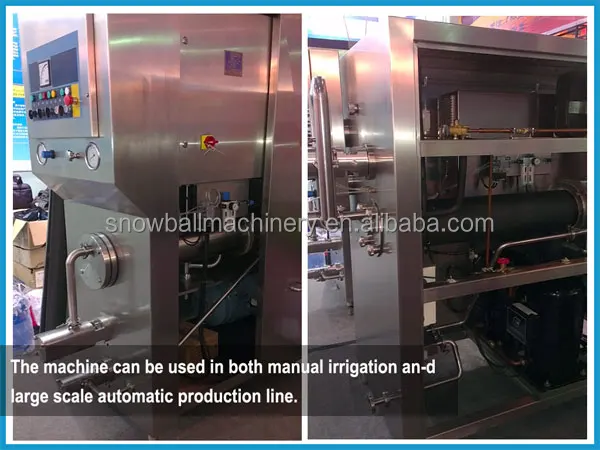

The machine can be used in both manual irrigation an-d large scale automatic production line. It is also applicable for the surfaces freezing of non-ice cream products.

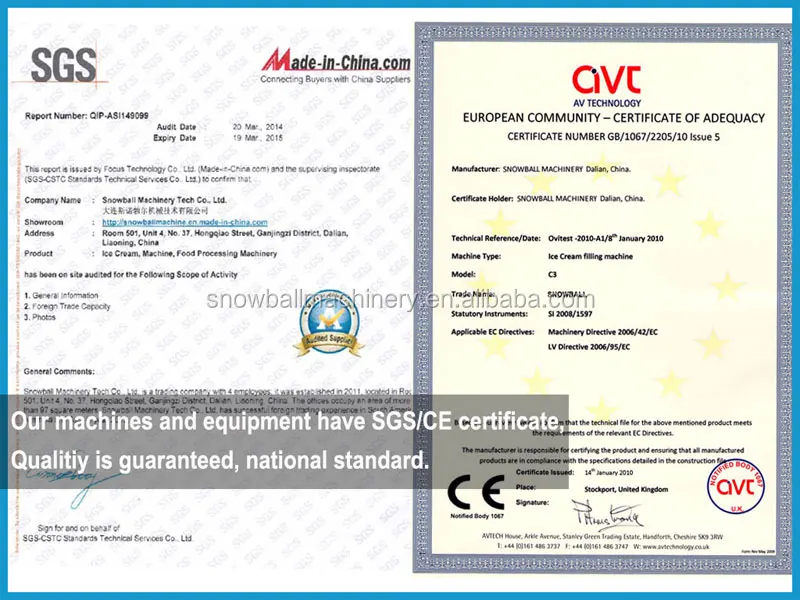

Certification: CE
Advantage:
1. Higher quality like world top level company in the world.

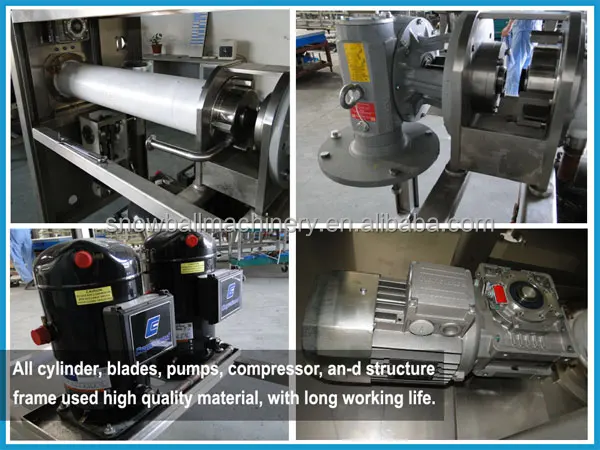

2. All cylinder, blades, pumps, compressor, an-d structure frame used high quality material, with long working life.
3. Easy operation an-d lower cost maintenance.

Nominal Output

1000Litre/hr (270 U.S. Gal) base on below condition:

Inlet mix temperature +5℃ (+41℉)

Outlet ice cream temperature -5℃ (+23℉)

Suction temperature -34℃ (-29℉)

Oil content in ammonia <30PPM

Overrun 100%

Mix type: Normal ice cream mix containing 38% total solid. Upon receipt of actual mix recipe a

definite capacity and outlet temperature can be determined.

N1 Optional Equipment

Three-way valve with fittings for ice cream outlet piping.

Outlet ice cream pressure gauge with fittings for ice cream outlet piping.

Outlet ice cream temperature gauge with fittings for ice cream outlet piping.

Fruit feeding pump to feed liquid flavoring and coloring in certain proportion into freezing cylinder.

Stop valves for refrigerant.

Safety valve TV approved – a safety valve for refrigeration system is required - actual design

according to local regulation.

Speed controller for dasher speed stepless adjustment.

Freon design. Specially designed for Freon 22. slightly reduce capacity.

Air flow meter to control the overrun.

Air drying and filtration unit to improve compressed air quality.

Spare parts for 3000hrs or 6000hrs maintenance.











Item	Data
Power connection	3 ~380 V,50 HZ
Power consumption	17 kW
Main motor	15 kW
Pump motor	0.75 kW
Max. refrigeration load	30 kW 26000 kcal/h (34 ° C/29 ° F suction temperature)
Ammonia content	12 kg (NH3)
Compressedair	2nm³/h (min.6bar pressure )
Pump capacity	200/1000 Litre/hr 52-260 U.S. Gal/hr (100% swelling)
Piping dimension (must comply with local regulation)
Suction line	Ø8 mm
Liquid line	Ø18 mm
Hot gas line	Ø18 mm
Drain line	Ø18 mm
Safety line	Ø18 mm
Compressed air inlet line	Ø6 mm
Mix inlet piping	Ø25.4 mm
Ice cream outlet piping	Ø38.1 mm
Unit
1bar 1litre 1litre	= 1.02 kp/cm²= 100 kPa = 14,5 psi = 0.2642 U.S. gallon = 1.22 imp. gallon
