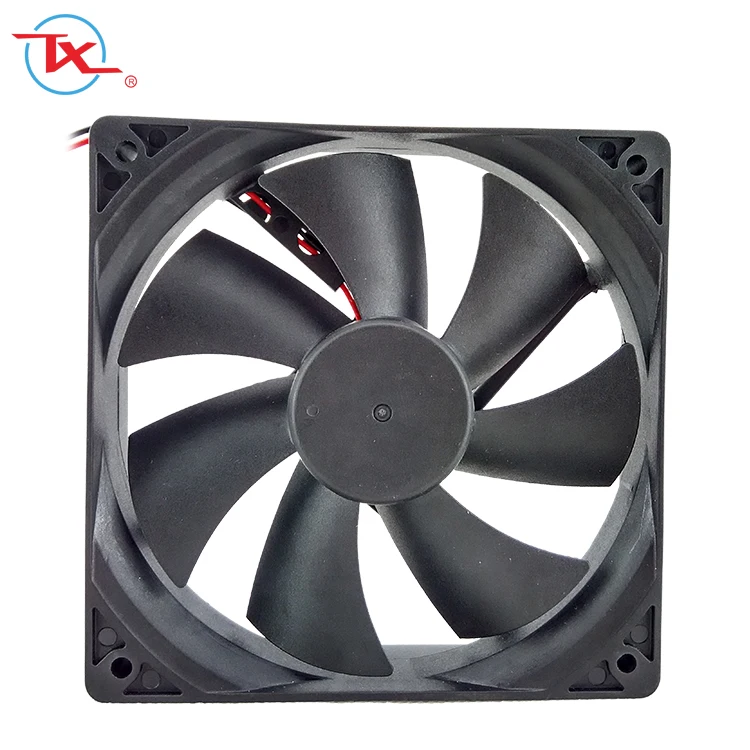

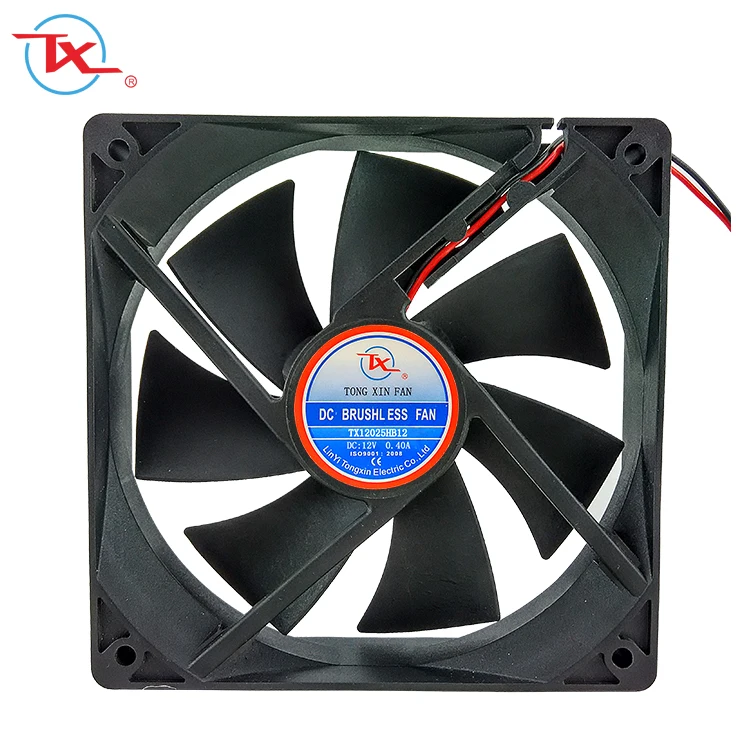

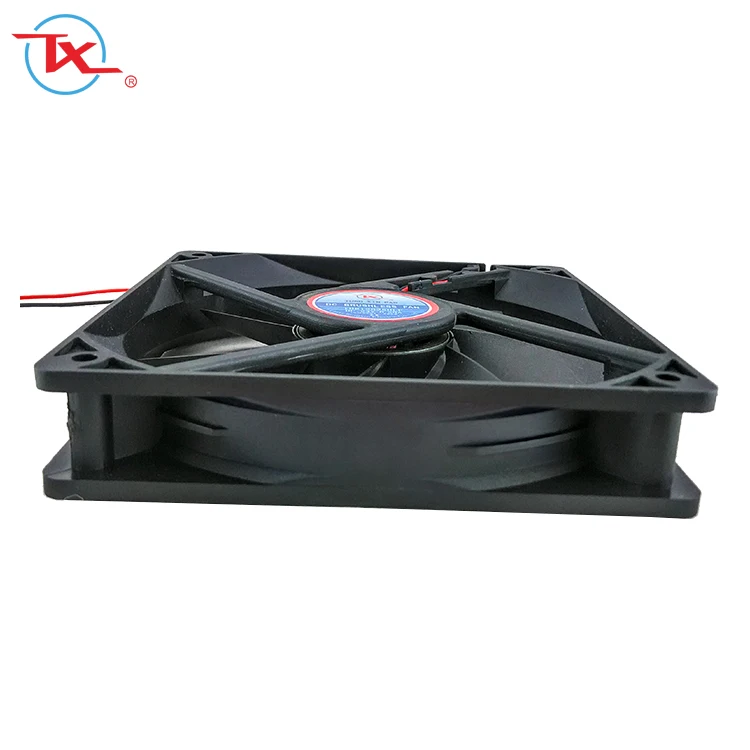

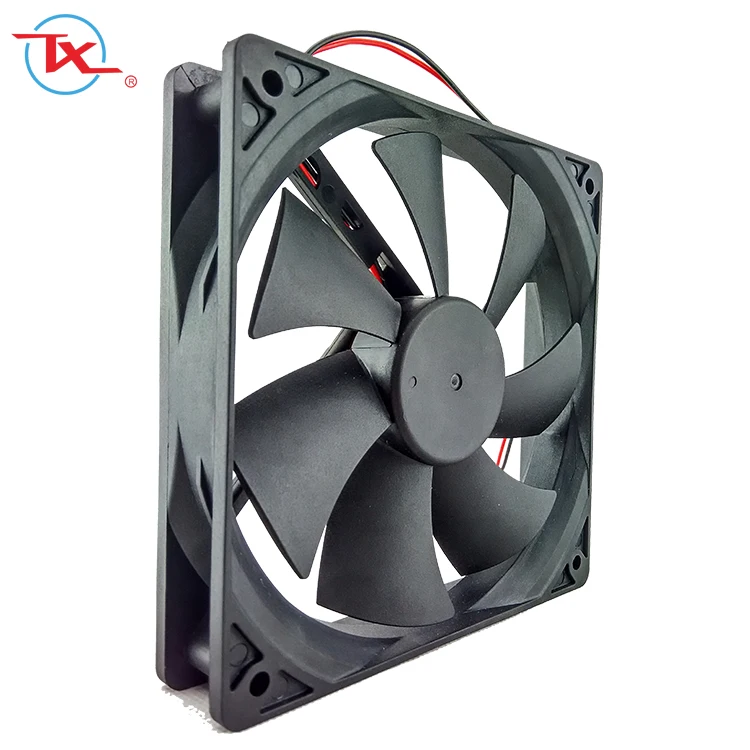

Вентиляторы высокого статического давления 120 мм 12 В постоянного тока 120 мм x 25 мм вентилятор постоянного тока
- Category: >>>
- Supplier: Linyi Tongxin Electric Co. Ltd.
Share on (60742168846):
Product Overview
Description
AC

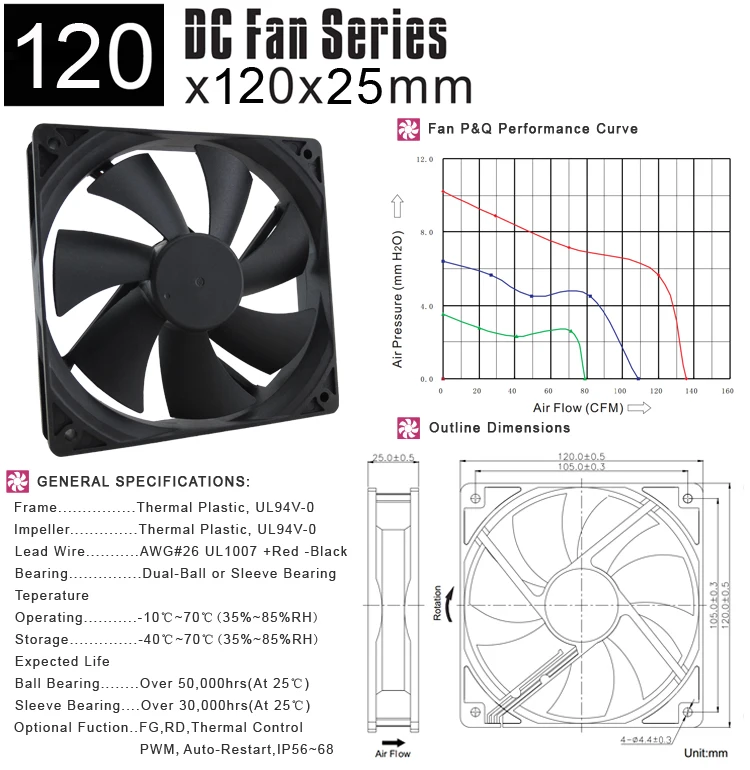

tongxin 120x120x25mm 12025 DC 12v 24v 48v mini axial PC case fan with USB connector

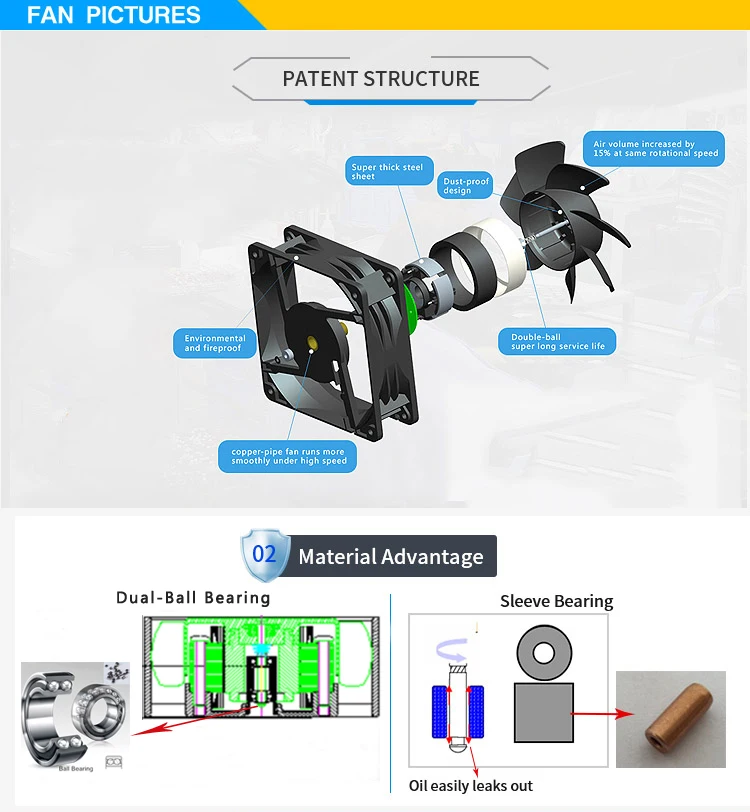

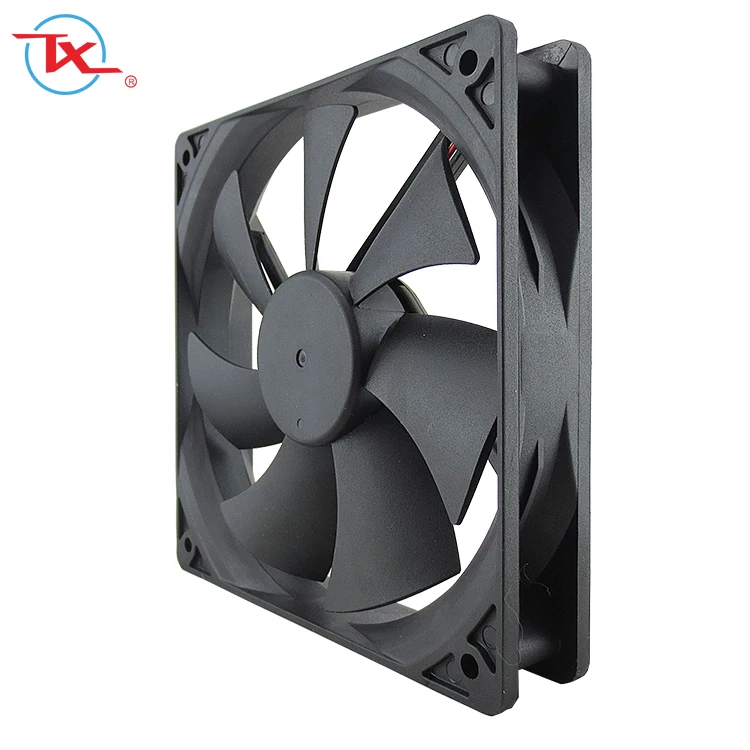

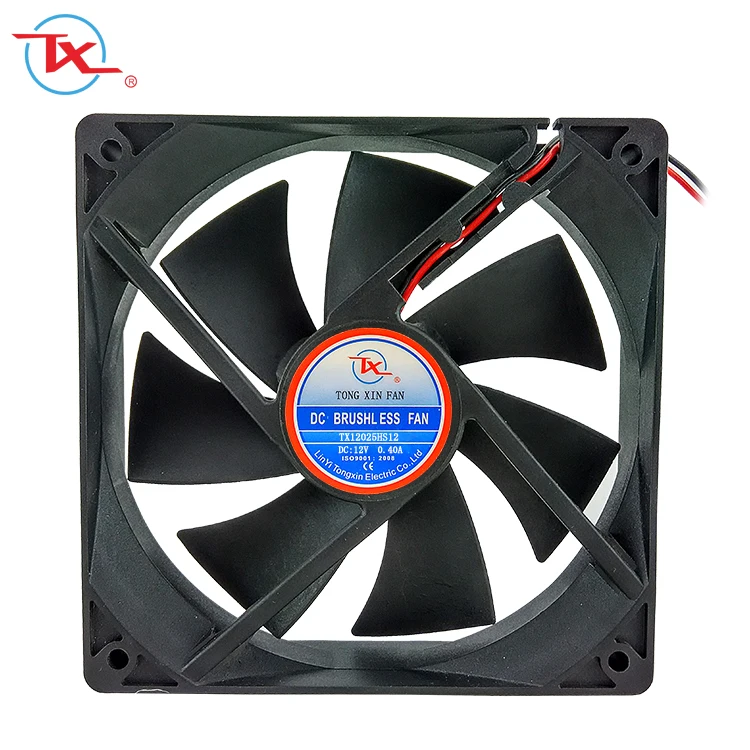

Product Pictures
| 1 | Model Number | TX-12025HB(S)12/24/48 DC PC Case Fan |
| 2 | Frame Size(mm) | 120*120*25mm DC Axial Case Fan |
| 3 | Bearing Type | Ball or Sleeve |
| 4 | Rated Voltage | 12/24/48 volt |
| 5 | Rated Current | 0.12~0.80 A |
| 6 | Power | 1.56~14.40 dBA |
| 7 | Nominal Speed | 1000~3800 RPM |
| 8 | Max. Air Flow | 49.1~135.5 CFM |
| 9 | Max. Air Static Pressure | 1.8~10.2 mm-H2O |
| 10 | Noise Level | 28~49 dBA |
| 11 | Frame Material | Black UL94V-0 Fiber Glass Filled P.B.T |
| 12 | Impeller Material | Black UL94V-0 Fiber Glass Filled P.B.T |
| 13 | Lead Wire | 250mm,AWG#26 UL1007 (+)Red (-)Black, Optional |
| 14 | Connector | Without or With, Optional |
| 15 | Motor | 4 Poles DC Brushless Motor |
| 16 | Motor Protection | Impedance Protected, Thermal Protected, Reverse Polarity Protected(Auto Restart) |
| 17 | Insulation Resistance | Above 100 MΩ, DC 500V (Between Lead Wire And Frame) |
| 18 | Insulation | Class A |
| 19 | Protection Grade | IP55~IP68, Optional |
| 20 | Life Expectancy | Sleeve Bearing:30,000 Hours at 25 Degree C/L10 (RH65%±20%) Ball Bearing:50,000 Hour at 25 Degree C/L10 (RH65%±20%) |
| 21 | Storage Temperature | -40℃~85℃ (20%~85% RH) |
| 22 | Operating Temperature | -10℃~70℃ (20%~85% RH) |
| 23 | Available Functions | FG, RD, PWM, IP55~68, Thermal Control, Auto Restart |
| 24 | Sample Service | Samples Can Be Free, But You 're Suggest Paying Freight Fee. |
| 25 | Quality Assurance | Sleeve Bearing Type:12 Months Ball Bearing Type:24 Months |
| 26 | Item Condition | Brand New |
| 27 | OEM | Acceptable |
| 28 | Weight | 285 G |
Model
| Rated Voltage V | Operating Voltage V | Power W | Current Amp | Speed RPM | Air Flow | Pressure mm-H20 | Noise dBA | Weight G |
| TX12025HB(S)12 | 12.0 | 6.0~13.8 | 9.60 | 0.80 | 3800 | 135.5 | 10.2 | 49 | 125 |
| TX12025MB(S)12 | 12.0 | 6.0~13.8 | 6.00 | 0.50 | 3000 | 108.8 | 6.4 | 44 | 125 |
| TX12025LB(S)12 | 12.0 | 6.0~13.8 | 3.60 | 0.30 | 2200 | 79.0 | 3.5 | 36 | 125 |
| TX12025DB(S)12 | 12.0 | 6.0~13.8 | 1.56 | 0.13 | 1000 | 49.1 | 1.8 | 29 | 125 |
| TX12025HB(S)24 | 24.0 | 12.0~27.6 | 10.80 | 0.45 | 3800 | 135.5 | 10.2 | 49 | 125 |
| TX12025MB(S)24 | 24.0 | 12.0~27.6 | 8.40 | 0.35 | 3000 | 108.8 | 6.4 | 44 | 125 |
| TX12025LB(S)24 | 24.0 | 12.0~27.6 | 5.28 | 0.22 | 2200 | 79.0 | 3.5 | 36 | 125 |
| TX12025DB(S)24 | 24.0 | 12.0~27.6 | 2.64 | 0.11 | 1000 | 49.1 | 1.8 | 29 | 125 |
| TX12025HB(S)48 | 48.0 | 24.0~55.2 | 14.40 | 0.30 | 3800 | 135.5 | 10.2 | 49 | 125 |
| TX12025MB(S)48 | 48.0 | 24.0~55.2 | 12.00 | 0.25 | 3000 | 108.8 | 6.4 | 44 | 125 |
| TX12025LB(S)48 | 48.0 | 24.0~55.2 | 7.20 | 0.15 | 2200 | 79.0 | 3.5 | 36 | 125 |
| TX12025DB(S)48 | 48.0 | 24.0~55.2 | 3.36 | 0.07 | 1000 | 49.1 | 1.8 | 29 | 125 |
Advantages
Packing & Shipping & Payment

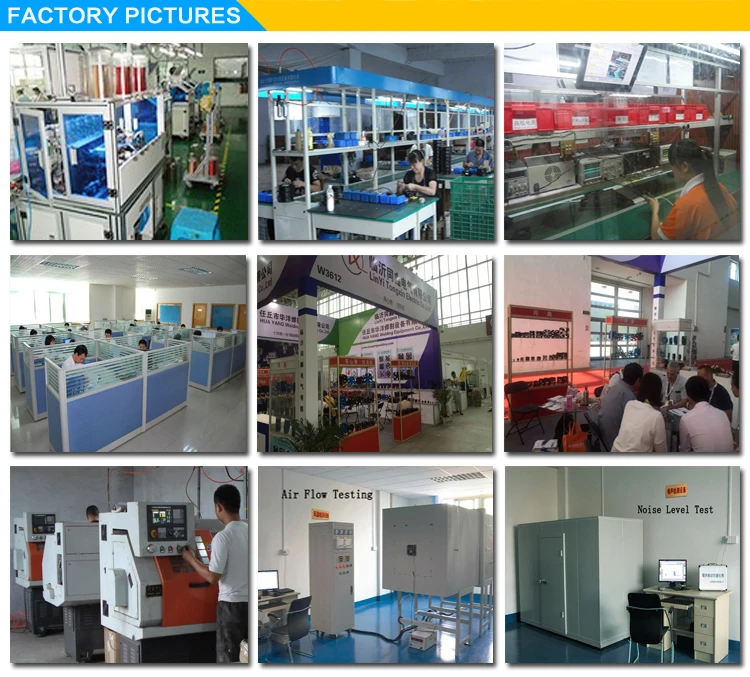

About TONGXIN
