4' Inch H Type Irrigation Drip Automatic Water Treatment Disc Filter Irrigation System

Product Overview

Description



                                        ARKA

           FUZHOU HIAFENG PLASTIC PRODUCTS CO.LTD

1.PRODUCT DESCRIPTION



AZUD SPIRAL CLEAN SEMIAUTOMATIC  FILTERS

1. Maximum filtering surface

2. Robustness.base and  lid manufactured  in technical  thermoplastic.

3. 100% effective and easy cleaning . the screen is cleaned  with a single ture of the handle .

4. non-stop working .it is not necessary to stop the supply of water.

5. the filter is ce=leaned without disassembling it.

6. avaiable with AZUD doi kit.

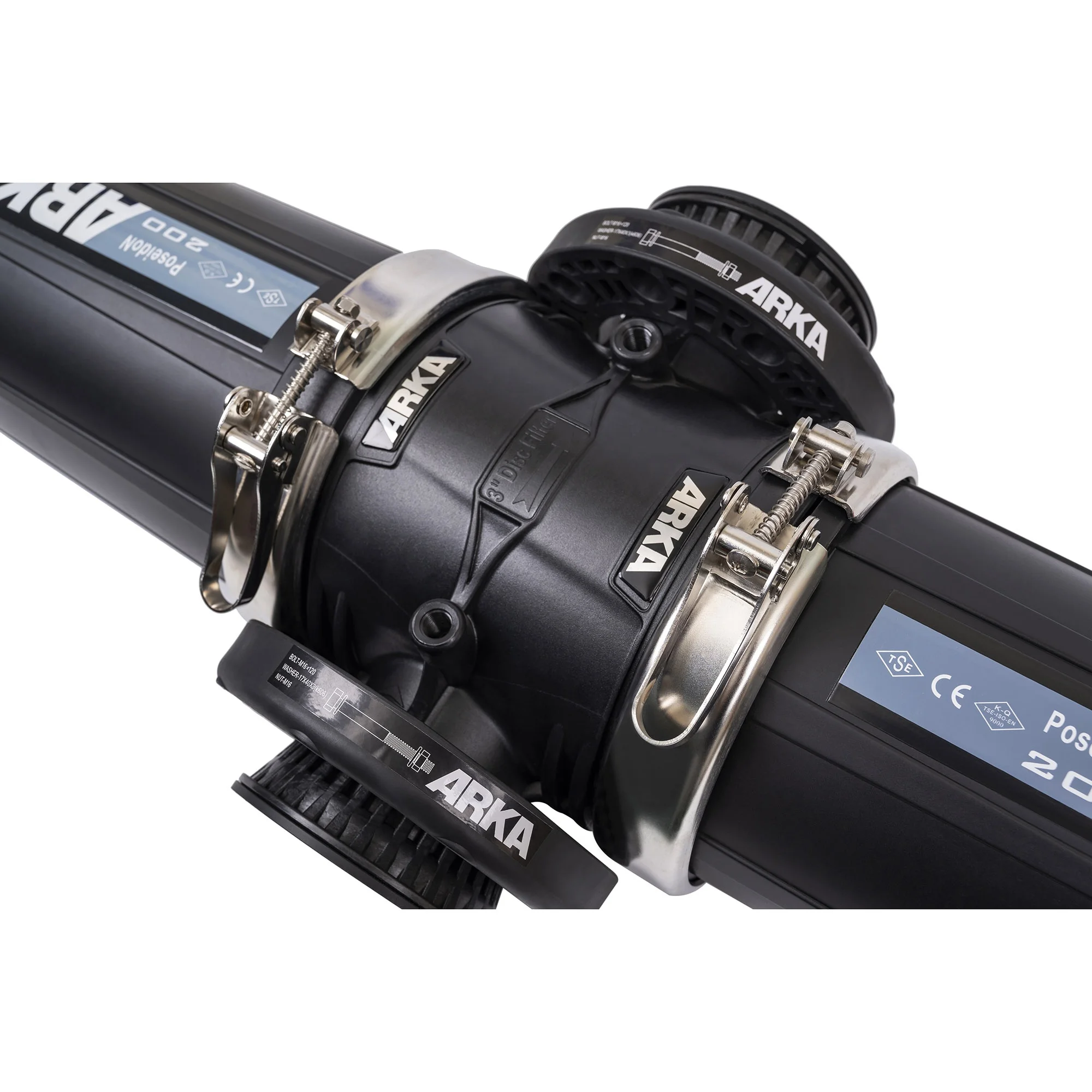

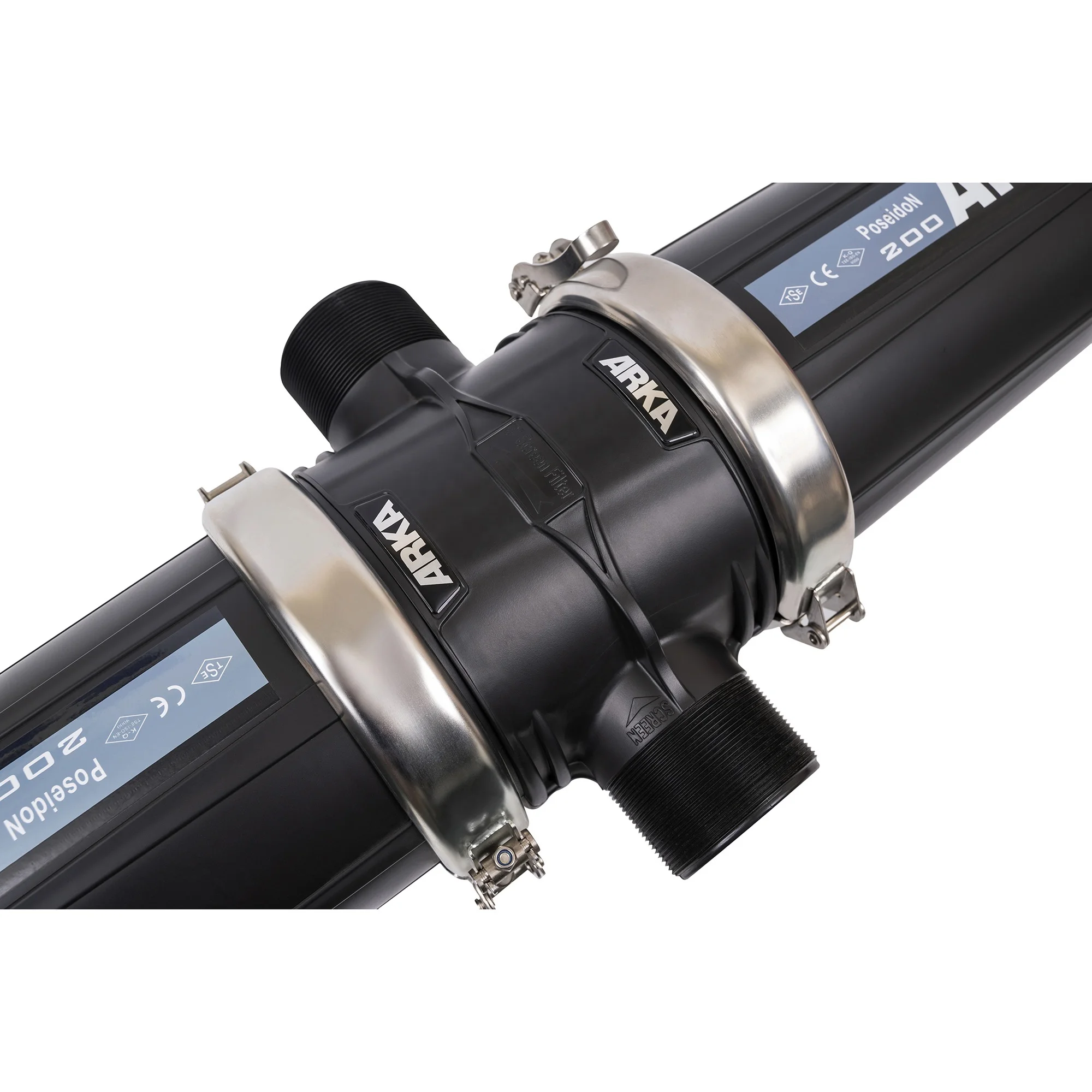

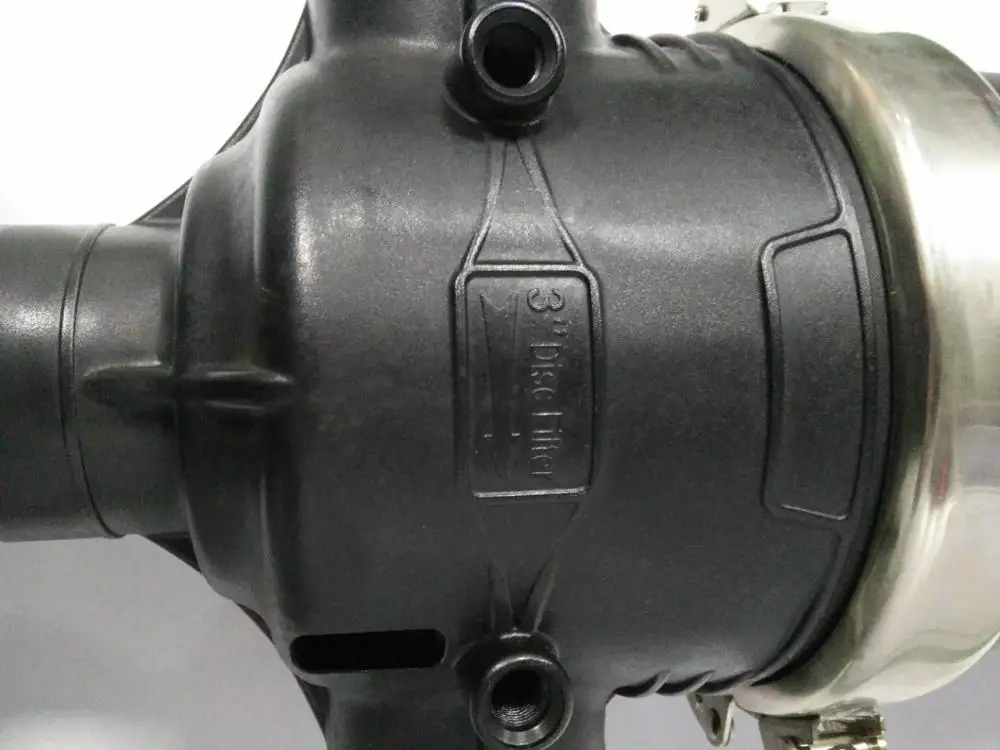

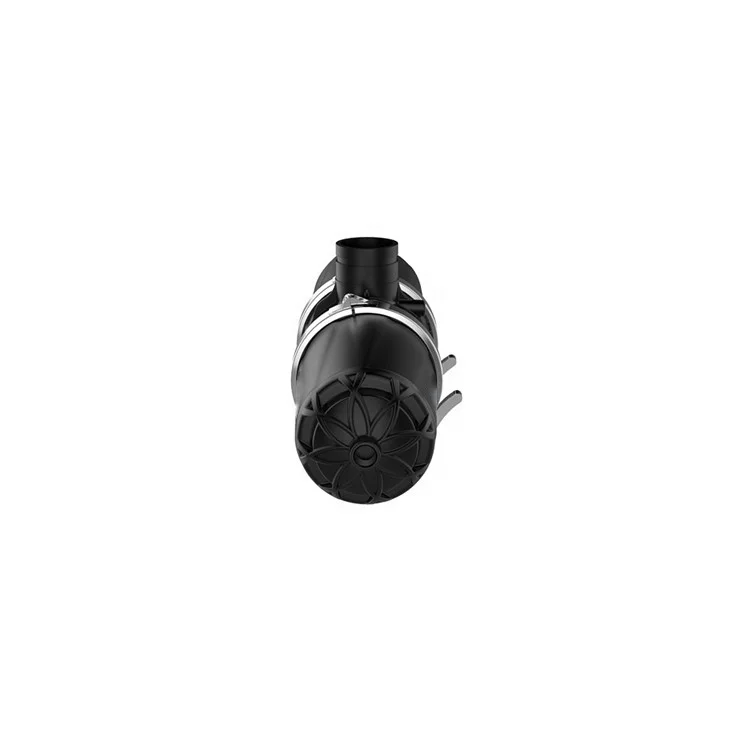

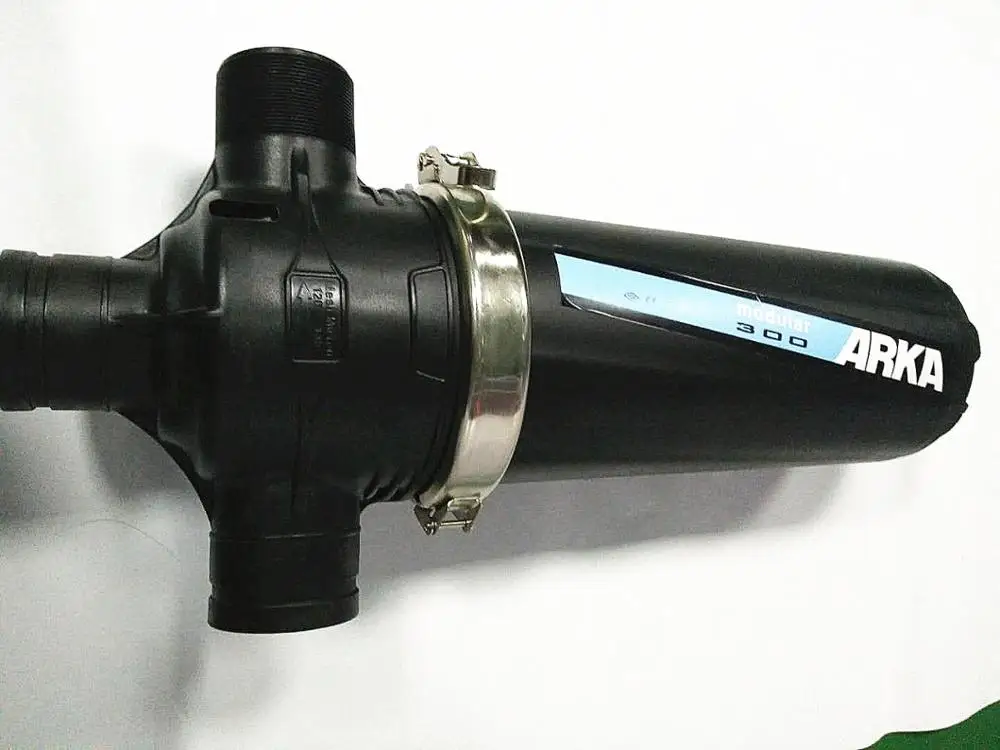

2.PRODUCT  PICTURE

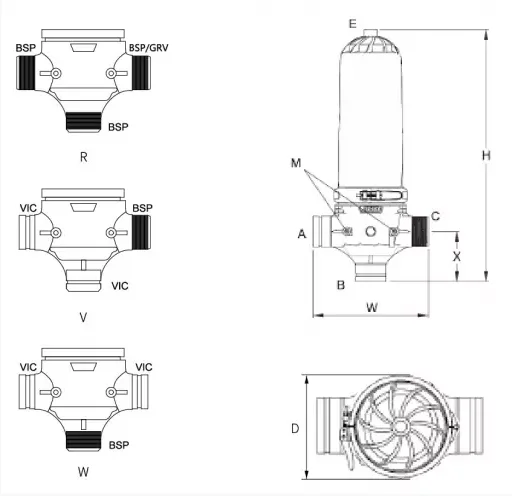

TYPE DISC FILTER



With the excellent disc technology,  T type disc filters have a micron-precise, high-efficiency and large volume filtration advantage.The well- designed structure makes it easy to clean.And the Tstructure can be easily installed in a narrow space.



TYPICAL APPLICATION



T type disc filters are applicable to low flow rate water filte ring for household, agrilculture irrigation, municipal garden Irrigation. Built-in pressure pipeline,T type disc filter will efficiently filter out particles.



FEATURE & ADVANTAGE



• Big volume structure for medium flow filtration;
• Micron-precise filtration;
• Innovative depth filter trapes design retains large amounts of solids;

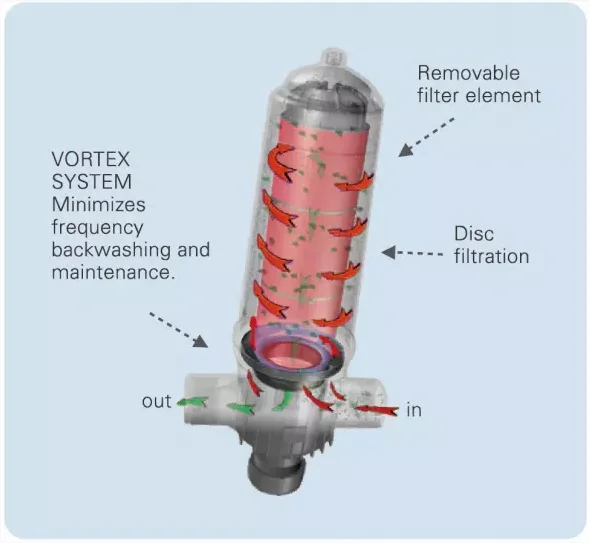

• Vortex technology create a centrifugal water flow to increase the filtration efficiency;
• Resistant to chemical products;
• Easy installation & easy maintenance;
• Various inlet/outlet sizes for diferent requirements;
• Preset 2 holes for connecting pressure guage

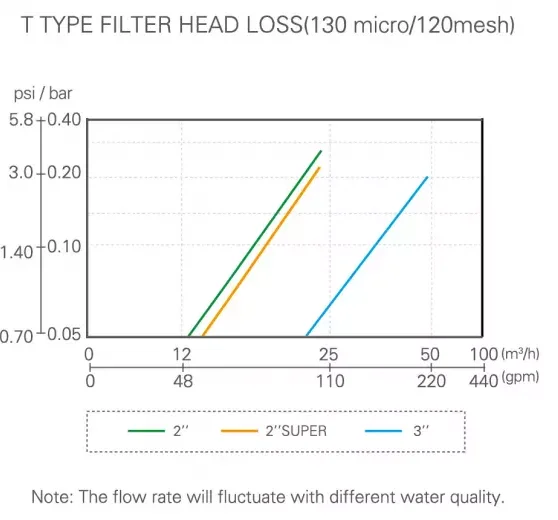

HEAD LOSS

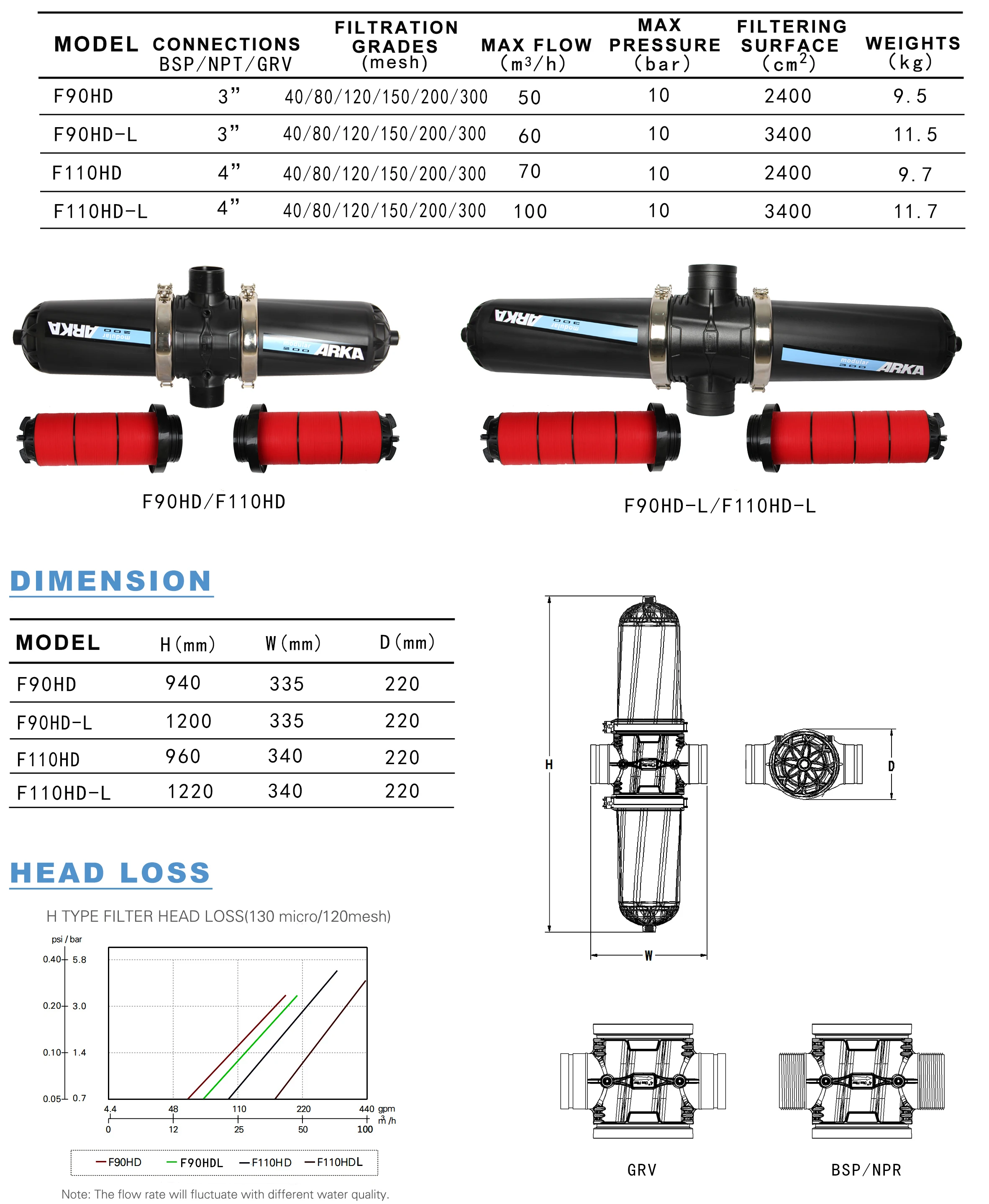

3.PRODUCT  TYPE

	F63TDZ	F63TDZL	F90TDZ	F90HDZ	F110HDZ	F110HDZL
CONNECTION  SAZE	2''BSP	2''BSP	3''BSP	3''BSP	4''BSP	4''BSP
FILTRATION AREA	1020CM²	1492CM²	1492CM²	2040CM²	2040CM²	2984CM²
MAX PRESSURE	10BAR	10BAR	10BAR	10BAR	10BAR	10BAR
FILTER ACCURACY	120MESH	120MESH	120MESH	120MESH	120MESH	120MESH
MAX FLOW	25M³/h	30M³/h	32M³/h	50M³/h	55M³/h	64M³/h
SHAPE SIZE	610x320x220mm	730x340x220mm	740x340x220mm	940x340x220mm	960x3640x220mm	1220x340x220mm
BACK FLUSHING	1.8bar	2bar	2bar	2bar	2bar	2bar

4.EXHIBITION

OUR SERVICE

1. OEM/ODM services are accepted.

2. Technical support and design personalized solutions by the engineer team.

3. Accept sample order.

4.Quality tracking & service.

5.Provide the free catalog for you.

6.Various irrigation products for your choice.

7.Warranty: All our products have 1 year warranty. If there’s any quality problems during the warranty period, we ship new spare parts for replacement free for you.



COMPANY  PROFILE

* Founded in 2018.

*Strong capacity in supplying chain managerment, integrated production and manufacturing.

*Unique innovation in the development and design of water recycling system control integration.

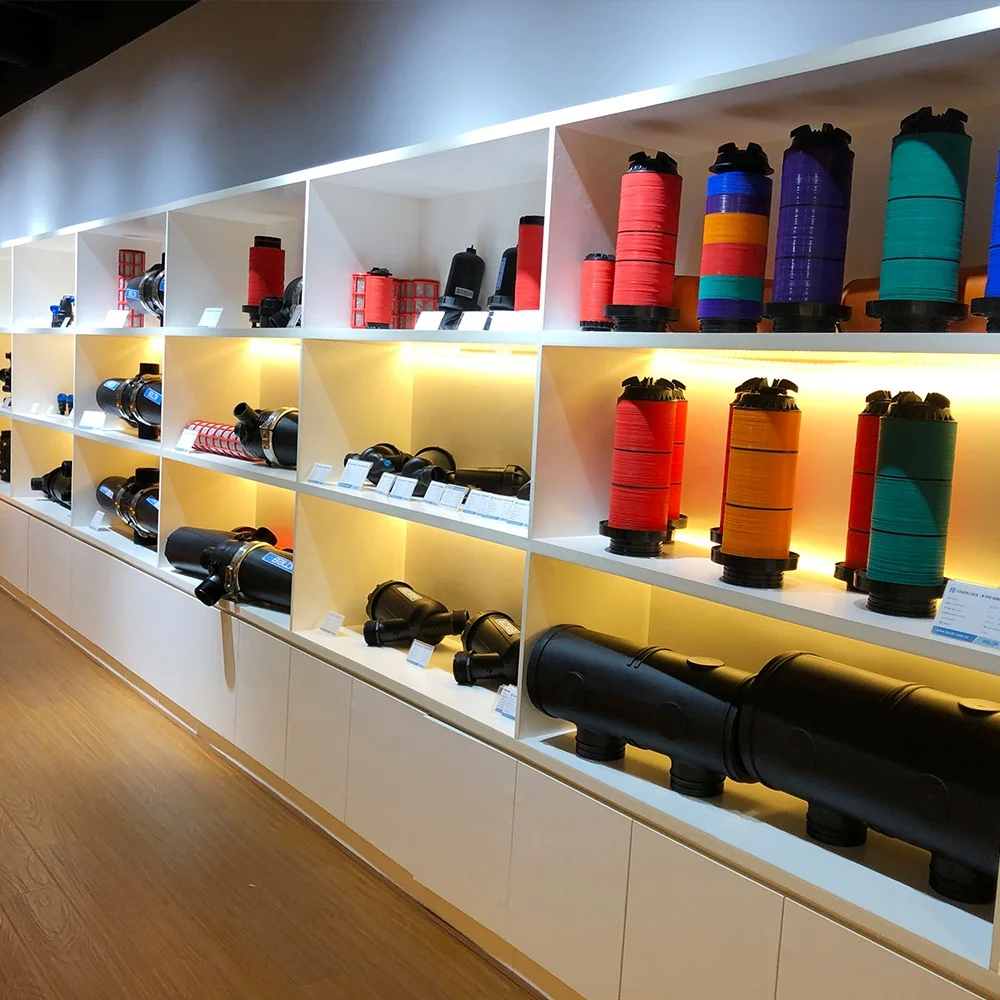

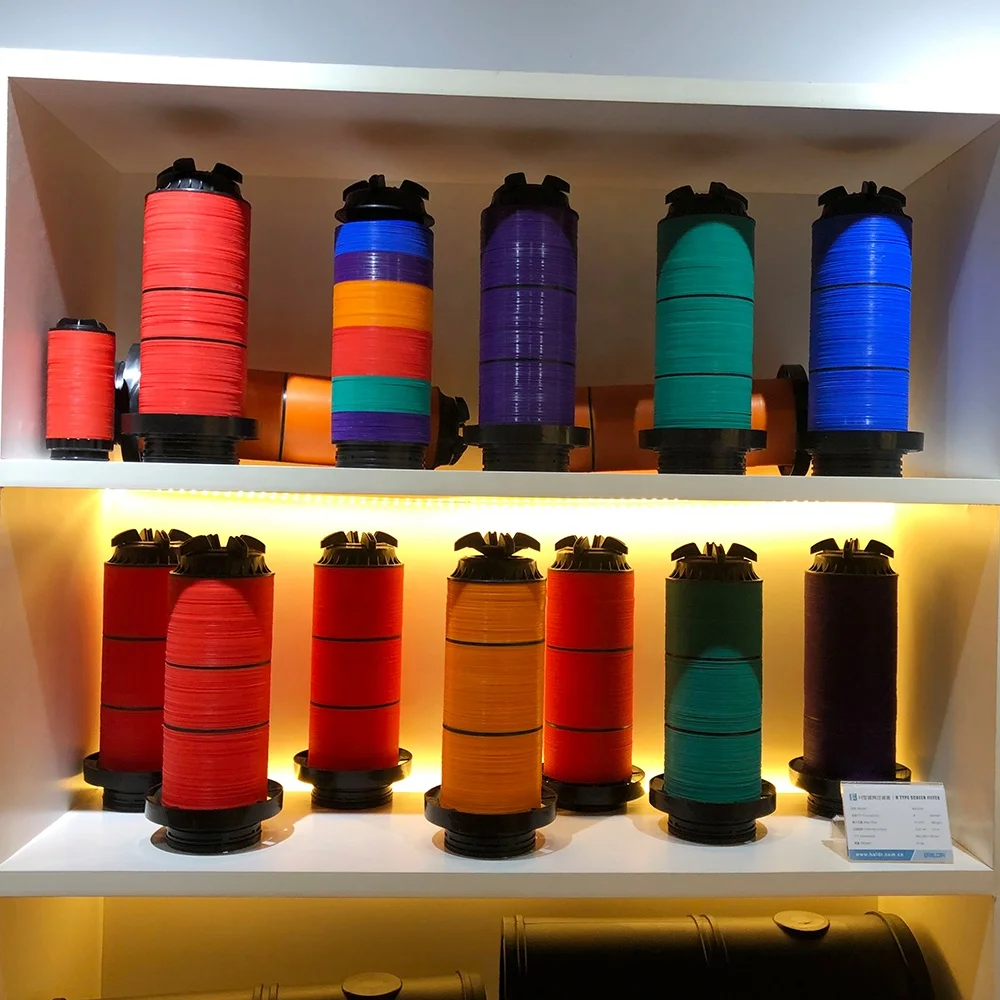

WORKSHOP AND SHOWROOM
