high temperature resistant epoxy resin AB adhesive SD829

Share on (60742207457):


Price:$4.50

Quantity:


Product Overview

Description


Product Description

high temperature resistant epoxy resin AB adhesive SD829

1,Quick details:
Sandao High temperature resistant epoxy resin AB adhesive SD829 is a two component high temperature resistant adhesive based on epoxy resin. It has high shear peeling strength, good toughness, waterproofing, corrosion resistance ,weak acid and alkali resistance, impact resistance, low smell, resistance to most chemical media, Extreme temperature and excellent electrical insulation. Self-leveling, suitable for filling, bonding and sealing.


2,Feature:

It has high strength, shock resistance, high toughness, high transparency and fast speed. Its working temperature is -50 ~ 130℃, and it can reach 150 degree of temperature at short time.

3,
Useage:

Bonding of metals, plastics, rubber, glass, electroplating / baking paint / magnetic materials, such as for aircraft, motor, etc.


3,Use instructions:

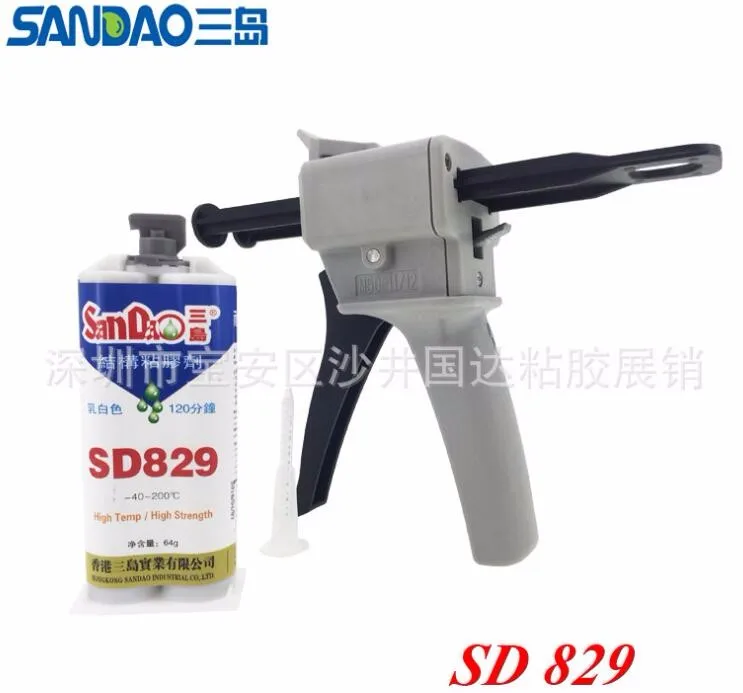

Put on AB glue gun and put on the thread mixing head. The thickness of adhesive layer should be 0.05mm, the coated object should be clamped immediately, and the maximum bonding strength will be guaranteed by uniform contact pressure. To obtain the highest mechanical strength, the surface of the material can be polished or sandblasted, and then the dust and oil stains on the surface can be scrubbed with a special solvent. Adhesive should be put on both sides of the object and fix the splice in avoid of dislocation. Do not mix the lid of A and B to prevent contamination of the gum.



4,technical function:


\t

\t
A glue
\t
B glue
\t
appearance
\t
 transparent liquid
\t
 transparent liquid
\t
viscosity(mPa.s)
\t
26000-28000
\t
26000-28000
\t
density  (g/ml)
\t
1.0~1.05
\t
1.0~1.05
\t
hardness(D)
\t
73/80
\t
73/80
\t
ratio
\t
1
\t
1
\t
gel time at room temperature
(25℃) 20g
\t
5 min
\t
5 min
\t
temperature-resistant(℃)
\t
-60℃-150℃
\t
 -60℃-150℃
\t
volume resistivity
(Ω.cm)25℃
\t
5.0×10^16
\t
5.0×10^16
\t
 surface resistivity
(Ω.cm)25℃
\t
7.5×1012
\t
7.5×1012

Revelent Product Recommend

              SD 868
                         SD 830
                    SD 829
                 SD 823
Application

            electroplating products

                  plane model


             power drive machine

Our Company

Huizhou SANDAO New Material Co., Ltd, manufacturer founded in 2004 , with Headquarter in Shenzhen and factory in Huizhou, Guangdong. We specialized in producing adhesive and sealant for 14 years. Main products including thermal conductive gel adhesive, heat conductive grease, RTV sicicone rubber, glass glue, expoxy resin AB glue, UV glue , anaerobe etc.

Our products are widely used in LED display products, high-tech semiconductors, electronics, electrical appliances, optoelectronic display, optics, toys, solar photovoltaic modules, power modules, automotive, mechanical, metal, aviation, construction and other industries.

Our company has 2 production departments, laboratory and testing centers, 2 branch factories, equipped with perfect product testing equipment, such as gas chromatograph, particle size meter, thermal conductivity meter, pressure tester, etc. Infrared spectrometer, electron microscope, X-ray fluorescence spectrometer (ROHS detector) and hot impact test box, aging resistance constant temperature oven, etc.

As a national new and high-tech enterprise, we are aimed to offer customers high quality products which is safe and healthy. All our products meet the requirements of ROHS, REACH and UL. Thanks to our strong R&D team ,we developed wide range of product series which cover more than 150 items.

We have 2 Sub-plants with an annual output of 5000 tons. So the delivery time is very fast, normally within a week. Many items are in stock. Now Sandao customers are from all over the world, we're continuous upgrading our sweet service.

SANDAO, Trustworthy!

Certifications
Packing & Delivery

Packaging and preservation:

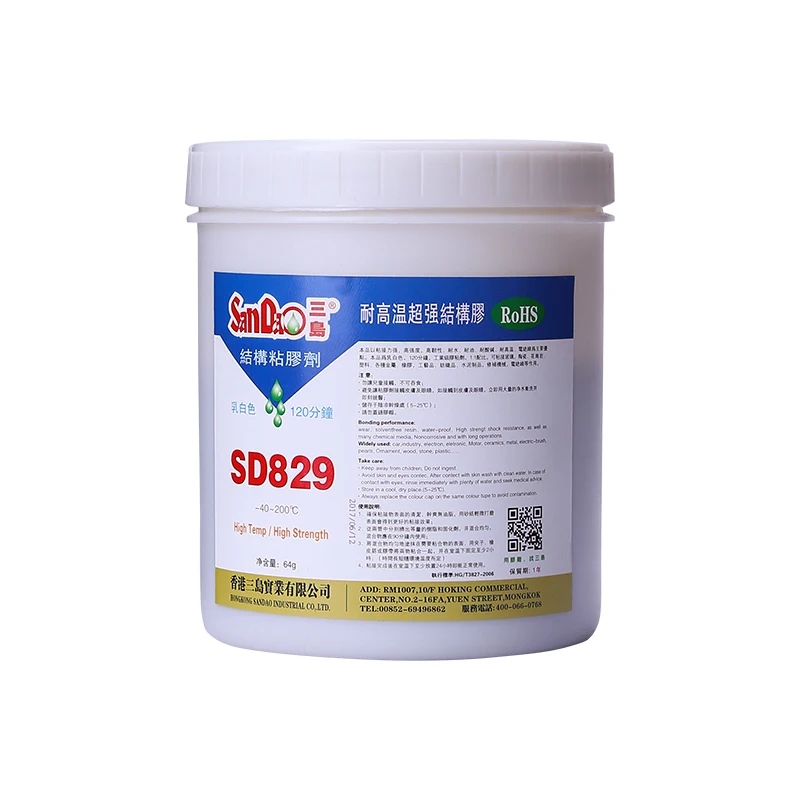

This product is packed with AB mixed pipe, 64g/ pcs, transported as non-dangerous goods, should be stored in a dry, shady place (below 5 ℃ ~ 26 ℃), the shelf life is within 12 months from the date of manufacture.


Delivery Time:
3-5 working days upon the receipt of the down payment

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer

Q: How long is your delivery time?

A:3-5 working days for goods in stock. 7-10 working days if none in stock.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the free sample but exclued freight, kindly noted.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
