Product Overview

Description


Product Description

Wireless Gateway data collector RH560

1) All channels sychronous collection
2) One sensor collects both vibration and temperature
3) Intelligent alarm for vibration and temperature data
4) Alarm SMS/EMAIL
5) Sampling value(RMS) of 5min interval
6) Cable free, easy to Install

RH560 Wireless Data Collector

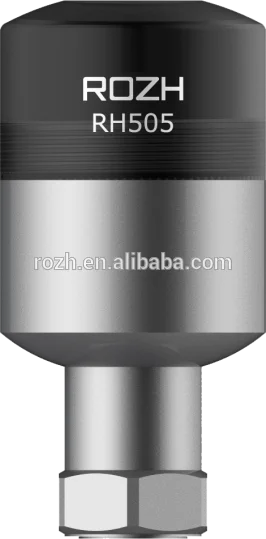

RH505 Wireless Vibration and Temperature Sensor
Communication Protocol
2.4GHz IEEE 802.15.4
Vibration Range
±50 g
No. of RH505 connecting
30-60units
Linearity
1%
Analysis Frequency (Hz)
500/1K/2K/5K/10K/15K/20K
Analysis Frequency (Hz)
500/1K/2K/5K/10K/15K/20K
Sampling Number
1K~128K (1K=1024)
Sampling Number
1~128K (1K=1024)
Power Supply
220V AC
Sampling Rate
Max. 51.2KHZ
Dimension (L*W*H)
203mm*82mm*260mm
Temperature Measuring Range
-40~125℃

Weight
3KGS
Temperature Accuracy
±1 °C
Moungting
Hanging or fixation via holder
Power Supply
Lithium - thionyl chloride battery, 3.6V, 3.3Ah
Working Temperature
-40~70℃
Communication Method
2.4GHz IEEE 802.15.4
IP Grade
IP66
Dimension


46 mm × 94 mm (Diameter * Height)

Weight
188g

Working Temperature
-40~70℃

IP Grade
IP67

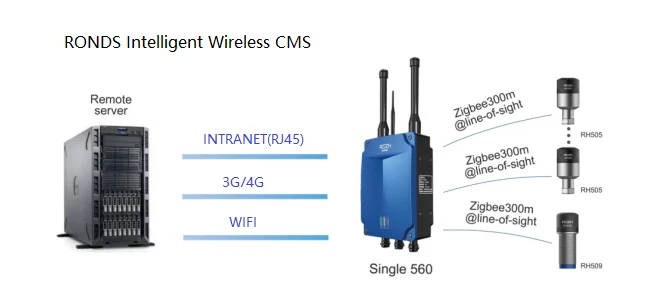

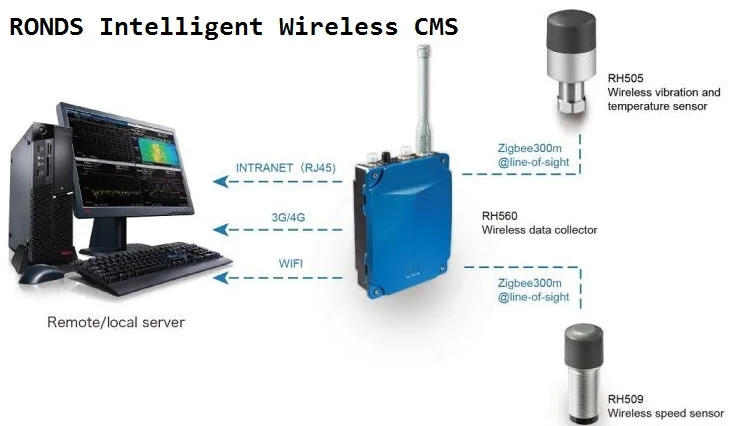

System Overview

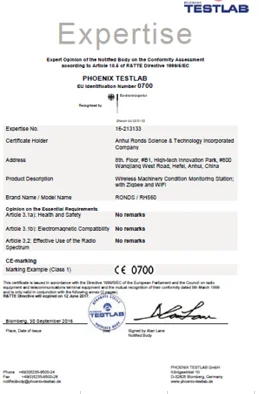

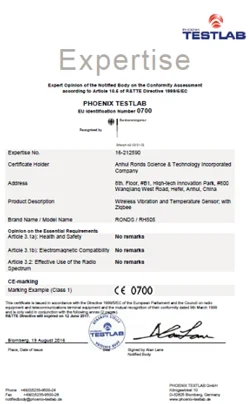

Certifications






Projects

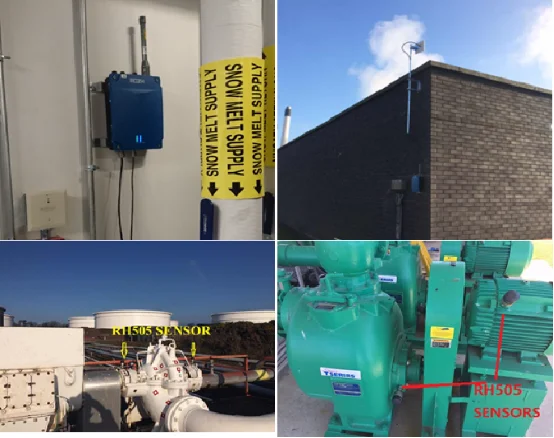

Wifi  version RH560  used in xx Petrochemical Plant

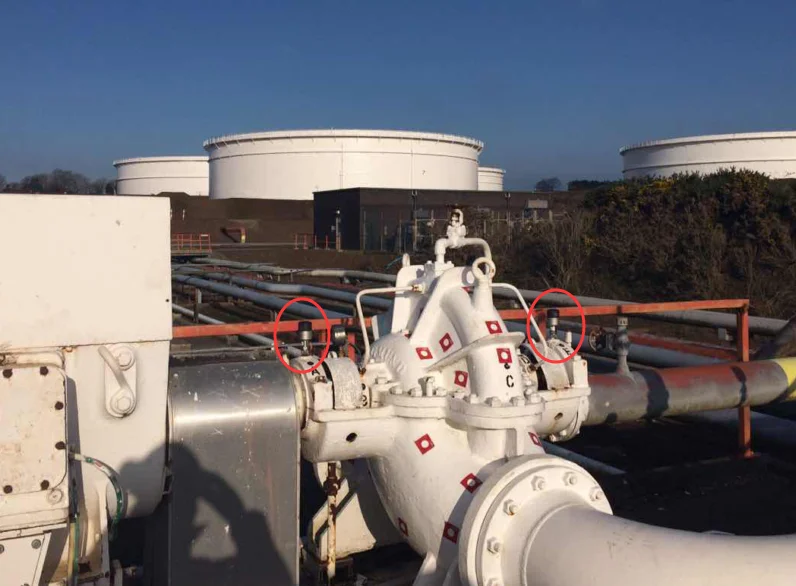

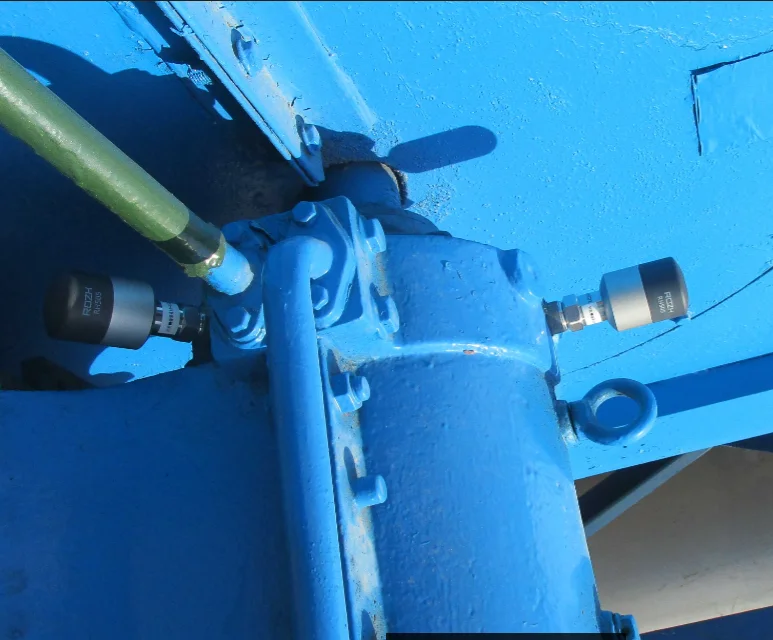

RH505  in xx Petrochemical Plant

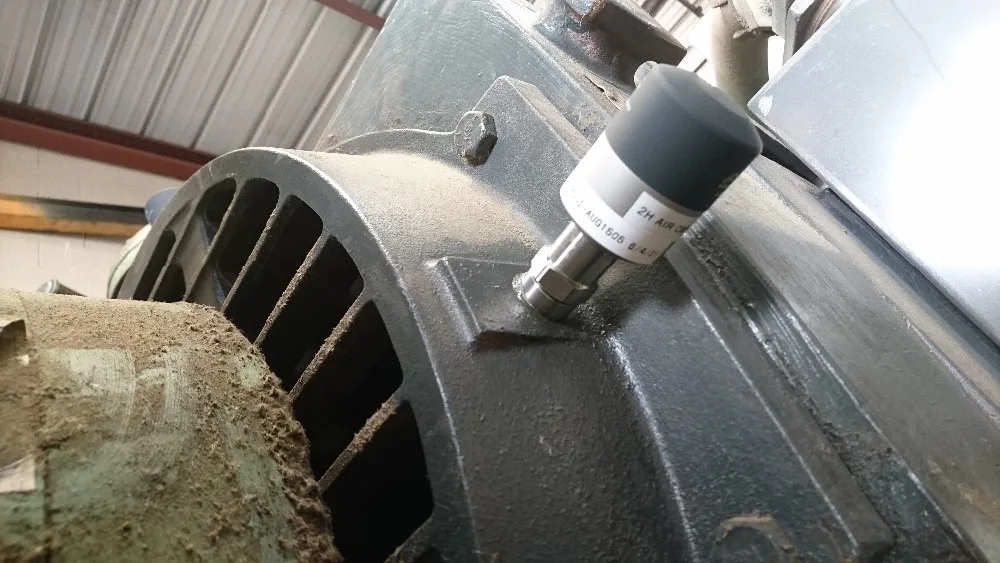

RH505 in USA xx Water Plant

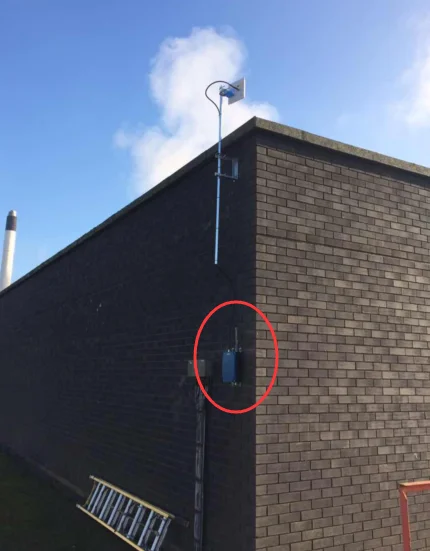

RH560 in UK xx Chemical Plant

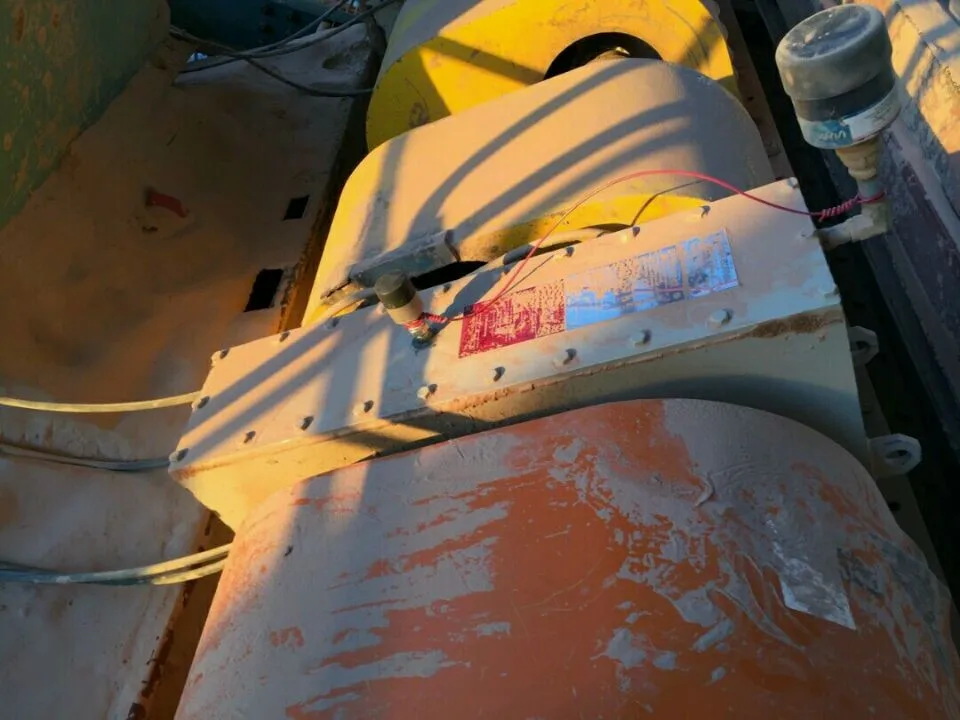

RH505 in Chile xx Mine

RH505 in Chile xx Mine


More Information

For more information, please visit //en.ronds.com.cn/; or

Contact

Charles Luo, Global Marketing

Email: xingang.luo(at)ronds.com.cn

Mobile/WeChat: +86 17352909986

Skype: charlesluoxg
