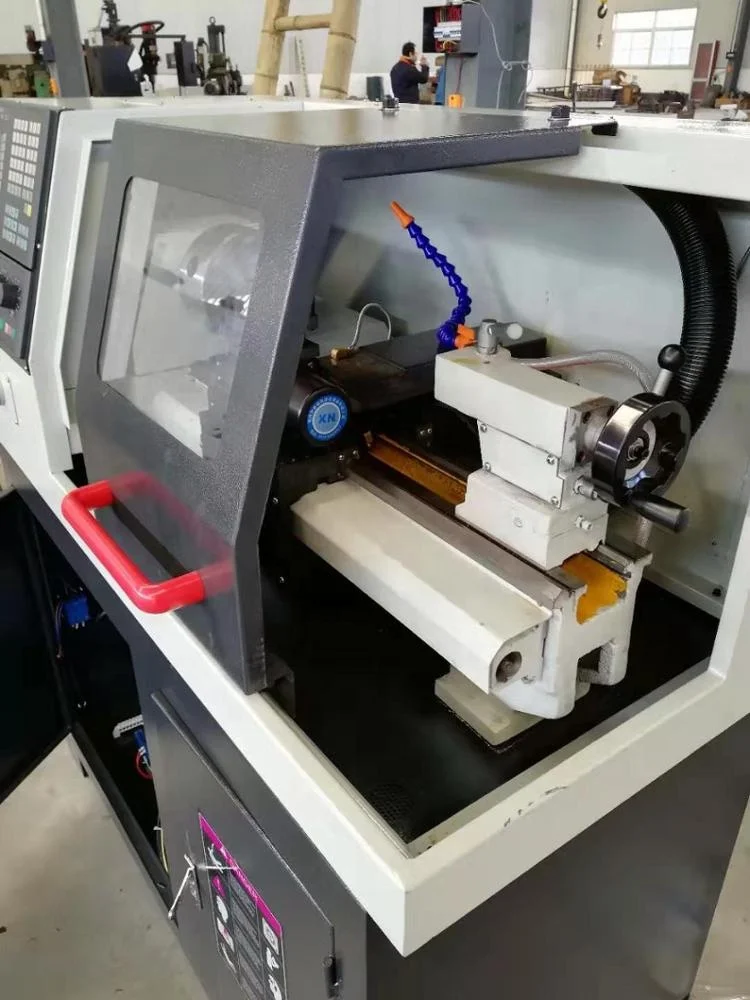

LCK280 new arrival cnc lathe machine with good price
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (60742252202):
Product Overview
Description
COME WITH GSK928TEA controller
Specifications:
| SPECIFICATION | LCK280/500MM | |
| CAPACITY | Max.swing over bed | 280mm |
| Max.swing over cross slide | 150mm | |
| Center Distance | 500mm | |
| Bed Width | 155mm | |
| HEADSTOCK | Spindle hole | 28mm |
| Spindle nose | ISO-D4 | |
| Spindle taper | MT4 | |
| Spindle speed steps | Variable | |
| Spindle speed | 100-3000rpm | |
| CARRIAGE | X/Z axis rapid travel speed | 2000/3000mm/min |
| Max.travel of X/Z axis | 125/350mm | |
| Number of tool post | 4 | |
| Max.size of toolshank | 14*14mm2 | |
| ACCURACY | Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.005mm | |
| The smallest unit | 0.001mm | |
| TAILSTOCK | Dia.of tailstock sleeve | 40mm |
| Taper of tailstock sleeve | MT3 | |
| Max.travel of tailstock | 50mm | |
| MOTOR | Main drive motor | 2KW |
| Coolant pump motor | 40W | |
| PACKING(L*W*H) | 125*88*150cm | |
| N.W/G.W | 285/355kgs | |
Standard Accessories:
| 3-jaw chuck(Φ160mm) |
| 4-station electrical toolpost |
| Work lamp |
| Coolant system |
| Standard safty cover |
| Leadscrew cover |
| Dead centre(MT3) |
| Live centre(MT3) |
| Centre sleeve(MT4/3) |
| Oil gun |
| Paddings |
| One whole set spanner |
| Tool box |
| Operation manual |
Optional Accessories:
| Four jaw chuck(Φ160mm) |
| Pneumatic chuck(Φ160mm) |
| Hydraulic chuck(Φ160mm) |
| Hollow hydraulic chuck(Φ160mm) |
| 4-position hydraulic toolpost |
