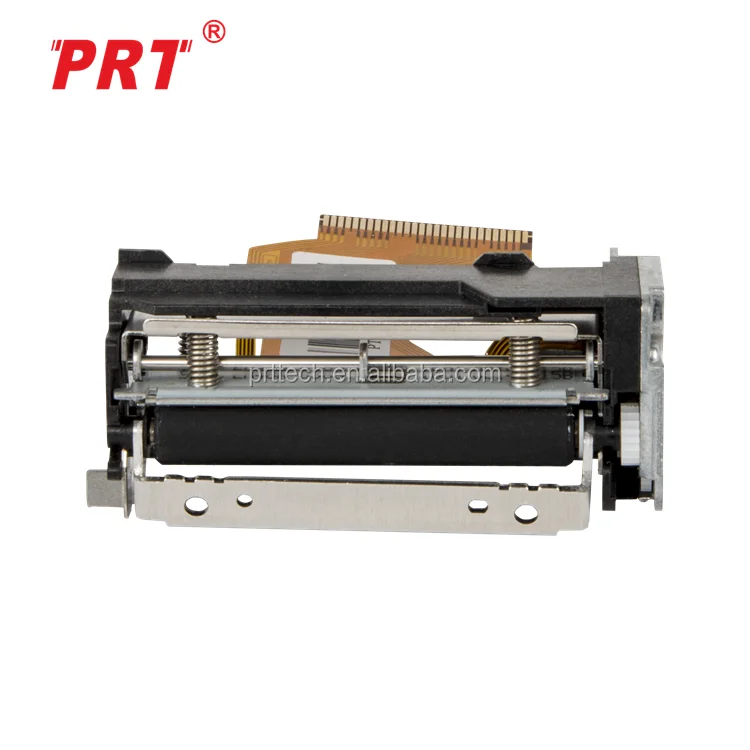

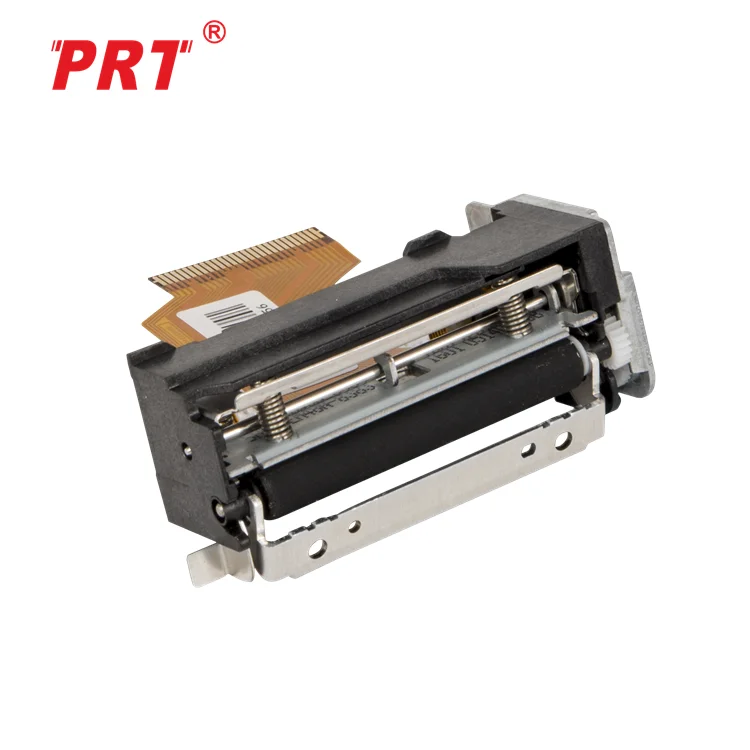

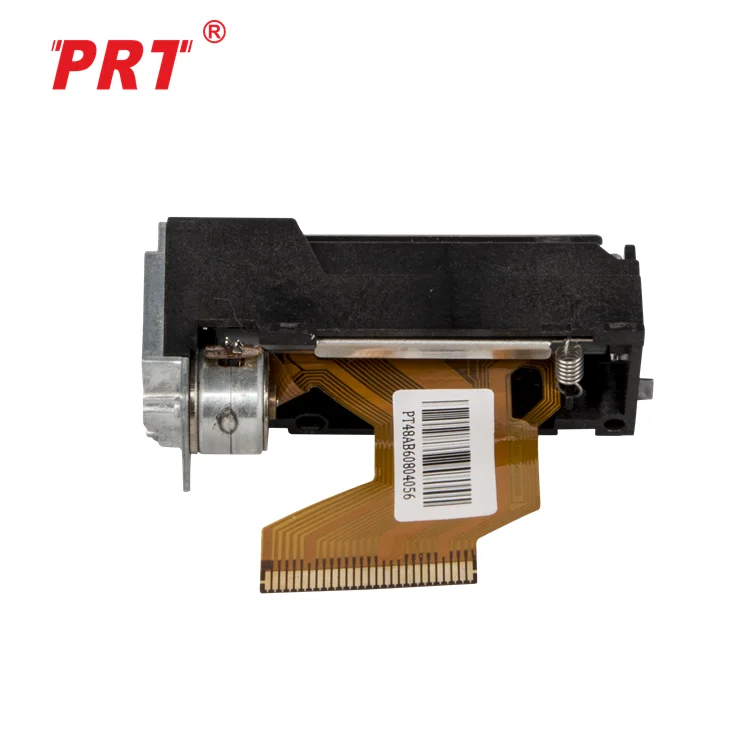

PT48A 2 Inch Direct Thermal Printer Mechanism Compatible With Seiko LTPA245 384 E
- Category: >>>
- Supplier: Xiamen PRT Technology Co. Ltd.
Share on (60742265419):
Product Overview
Description
PT48A
Features:
l Low noise, sturdy and durable
l Printing speed:90mm/s(8.5V)
l Easy paper loading
l Platen latch function
l Curved path paper
Specification:
Series Model | PT48A |
Brand & Compatible model | Compatible With Seiko LTPA245-384-E |
Print Method | Direct line thermal |
Resolution | 8 dots/mm |
Max. Printing Width | 48mm |
Number of Dots | 384 |
Paper Width | 57.5±0.5mm |
Max. Printing Speed | 90mm/s |
Paper Path | Curved |
DETECTION |
|
Head Temperature | By thermistor |
Paper Out | By photo sensor |
Platen Open | NA |
POWER SUPPLY |
|
TPH Logic Voltage | 2.7V-5.5V |
Drive Voltage | 4.2V - 9.5V |
PEAK CURRENT |
|
Head(Max.) | 2.3A(7.2V/64dots) |
Motor | 600mA |
RELIABILITY |
|
Pulse Activation | 100 million |
Abrasion Resistance | 50KM |
ENVIRONMENTAL |
|
Operating Temperature | 0 - 50℃ |
PHYSICAL CHARACTERISTICS |
|
Dimensions(W*D*H) | 69.2*28.3*31.7m(exclude level of lock arm) |
Mass | 42g |
Application:
l Cash registers
l EFT POS terminals
l Gas pumps
l Portable terminals
l Measuring instruments and analysers
l Taxi meters
l Fire control system
l Medical devices
l Weighing scale
