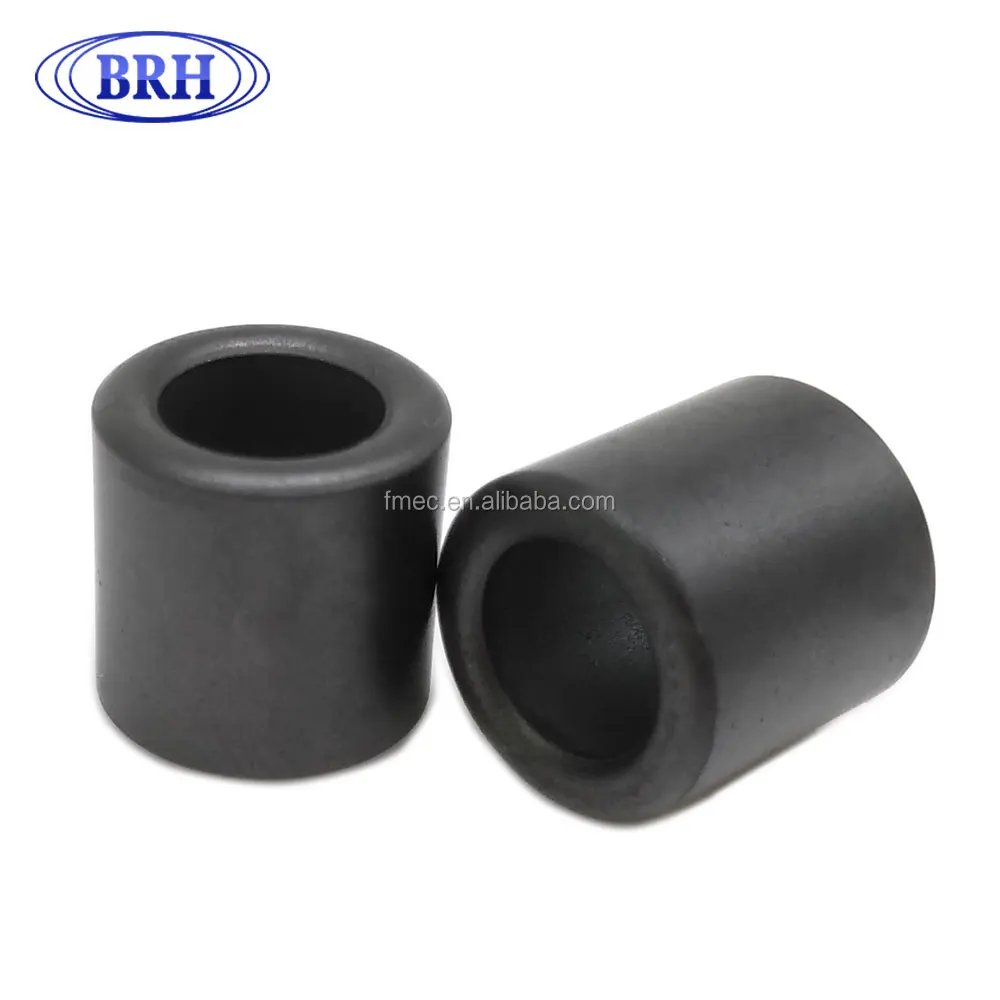

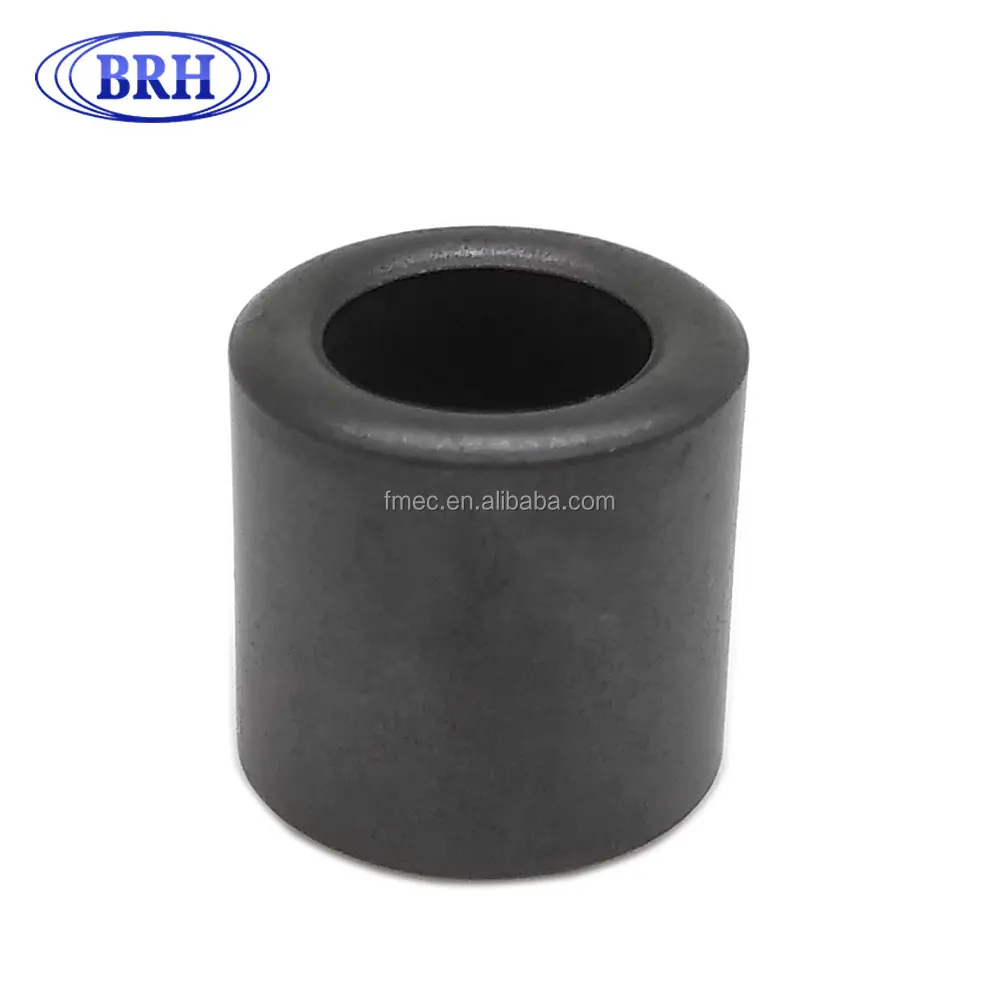

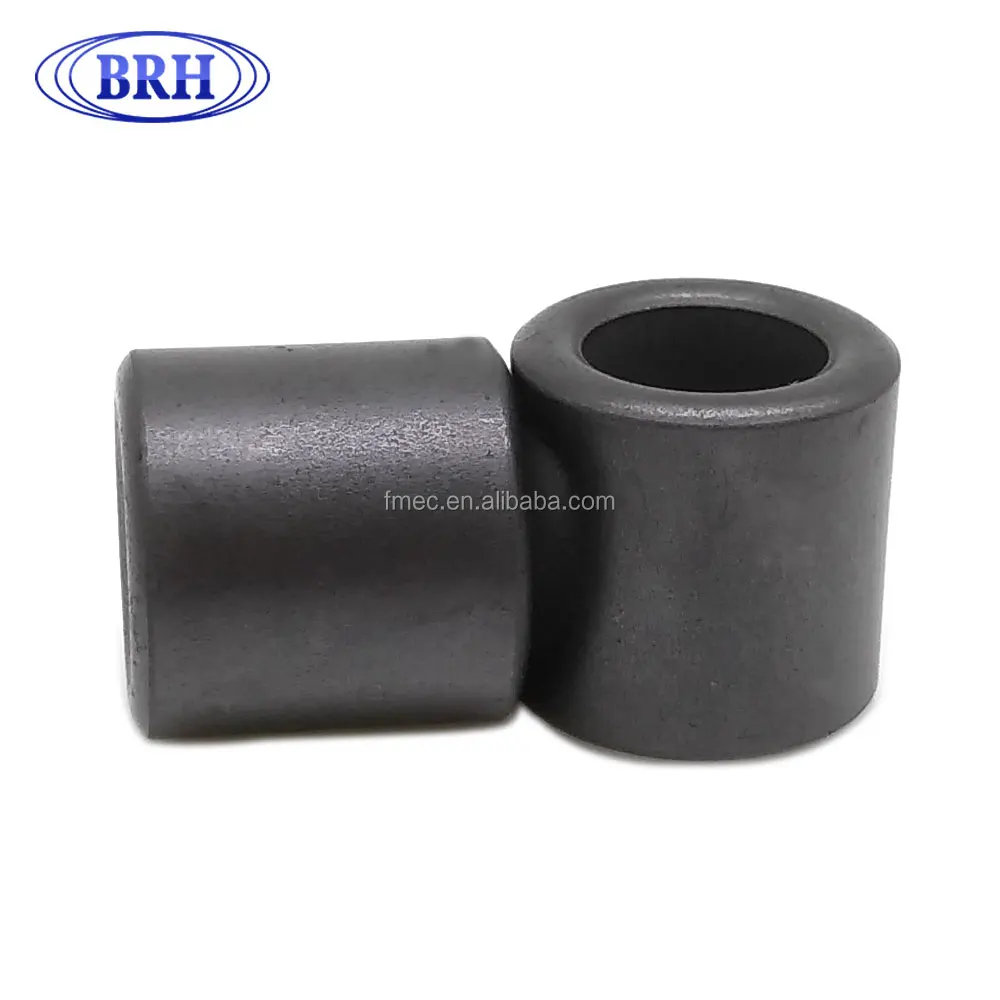

Hot Sale high frequency Toroid Ferrite core Manufacturer
Hot Sale high frequency Toroid Ferrite core Manufacturer
Hot Sale high frequency Toroid Ferrite core Manufacturer
Hot Sale high frequency Toroid Ferrite core Manufacturer
Hot Sale high frequency Toroid Ferrite core Manufacturer

Hot Sale high frequency Toroid Ferrite core Manufacturer

Share on (60742277185):


Price:RUB 2.73 - RUB 6.45

Quantity:


Product Overview

Description

Description

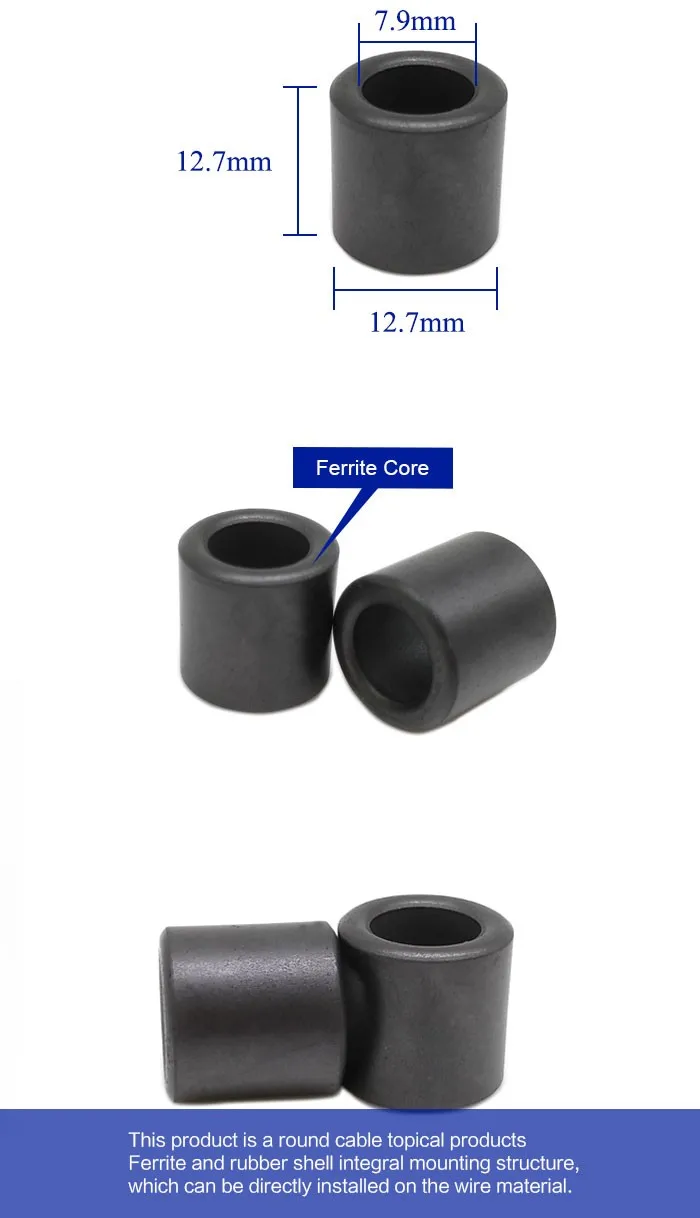

SIZE CODE （mm)
A
B
C
A2 RH 12.7*12.7*7.9
12.7±0.60
12.7±0.60
7.9±0.50
Parameter

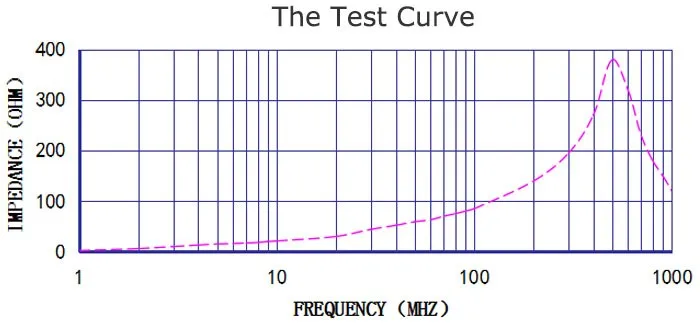

Electrical Requirements
SIZE CODE （mm)
A2 RH 12.7*12.7*7.9
25 MHz
28Ω MIN
100 MHz
65Ω MIN
TEST INSTRUMENTS
HP 4191A
LCR METER
HP 4286
WIRE
0.65T.C.W*100m/m 1/2Ts
TEMPERATURE
15℃ to 35℃
HUMIDITY
25% to 85% RH
Test Data For Pre Production Samples
MEAS.
 Item
Ω
 AT 25MHz
Ω
 AT 100MHz
A
 m/m
B
 m/m
C
 m/m
Suggest
28Ω MIN
65Ω MIN
12.7±0.60
12.7±0.60
7.9±0.50
1
37.20
85.01
12.77
12.78
7.86
2
36.20
86.02
12.79
12.82
7.95
3
37.40
84.85
12.83
12.71
8.07
4
36.45
85.04
12.78
12.84
8.02
5
36.50
85.45
12.79
12.71
7.92
6
37.02
86.15
12.76
12.74
7.96
7
37.12
86.45
12.77
12.79
7.87
8
38.05
85.23
12.85
12.82
7.92
9
37.12
86.15
12.82
12.76
7.86
10
37.15
87.15
12.84
12.79
7.88





X-bar
37.02
85.75
12.80
12.78
7.93
R
1.85
2.30
0.09
0.13
0.21
The above test data for reference，Actual results may differ due to different production batches
