LR PSL 15P Good Quality Automatic Pocket Spring Units Roll Packing Machine

Share on (60742289525):


Price:

Quantity:


Product Overview

Description

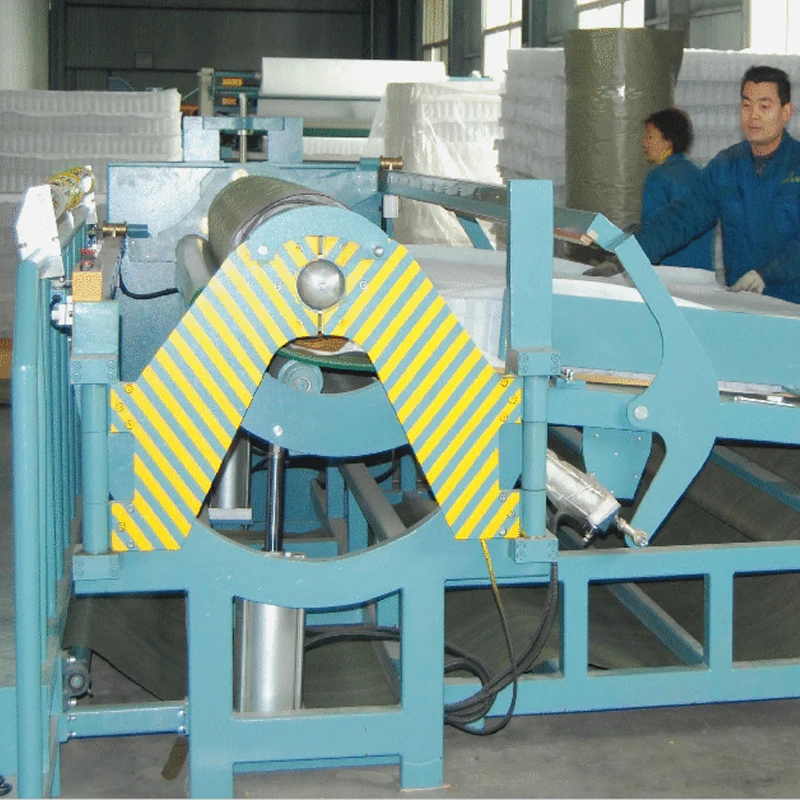

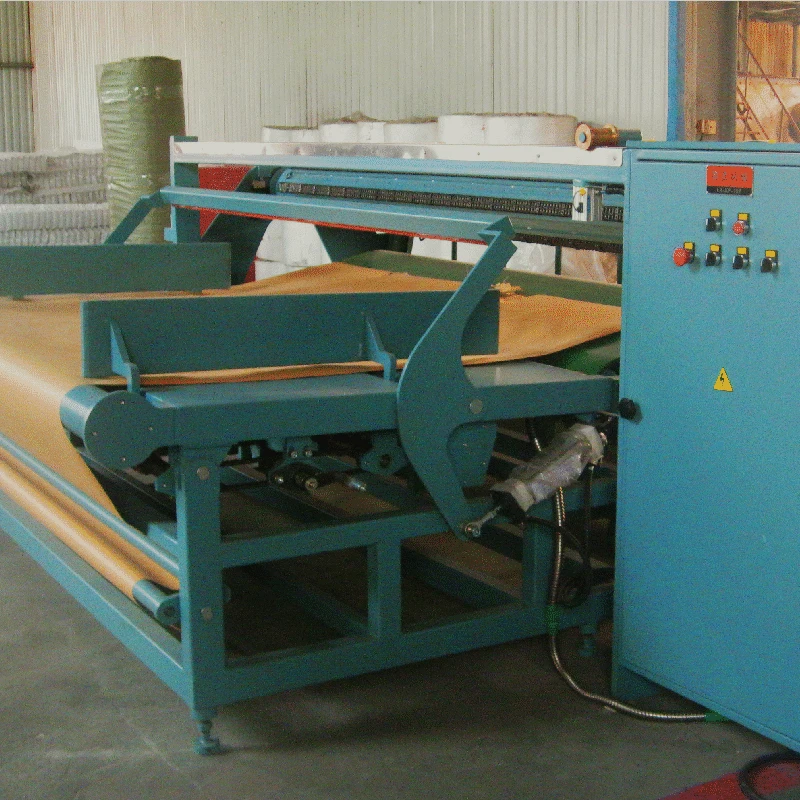

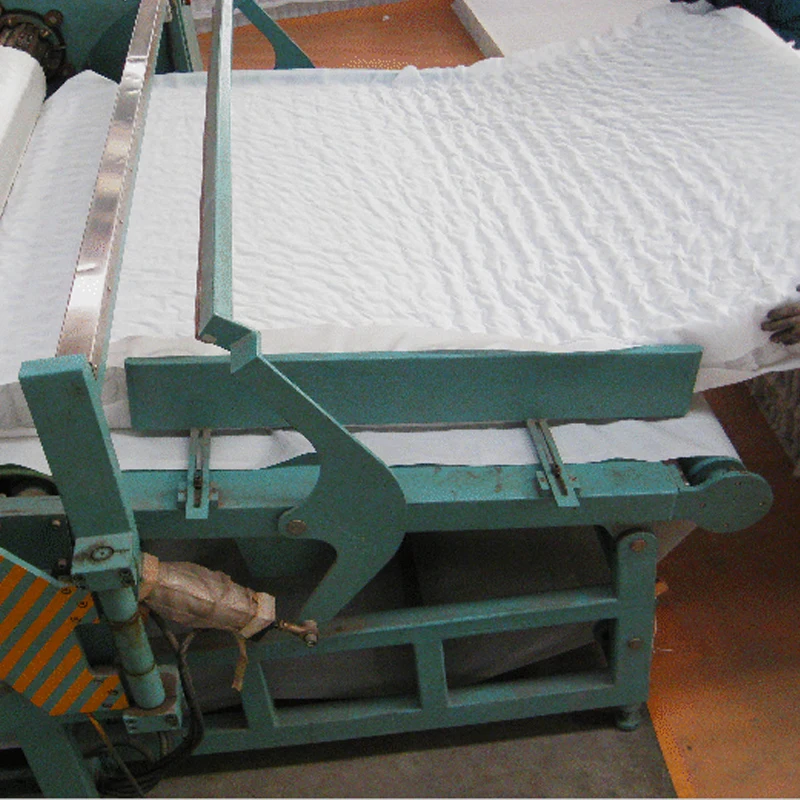

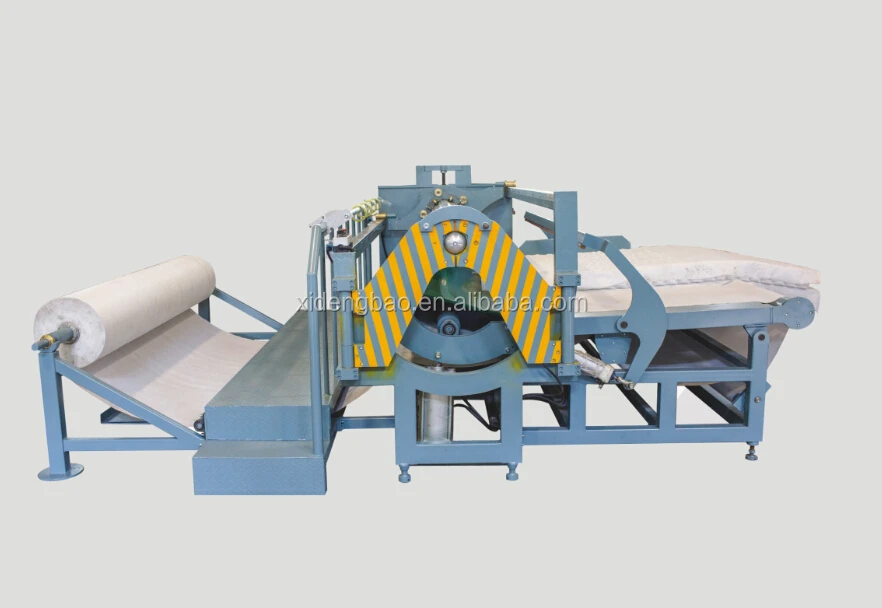

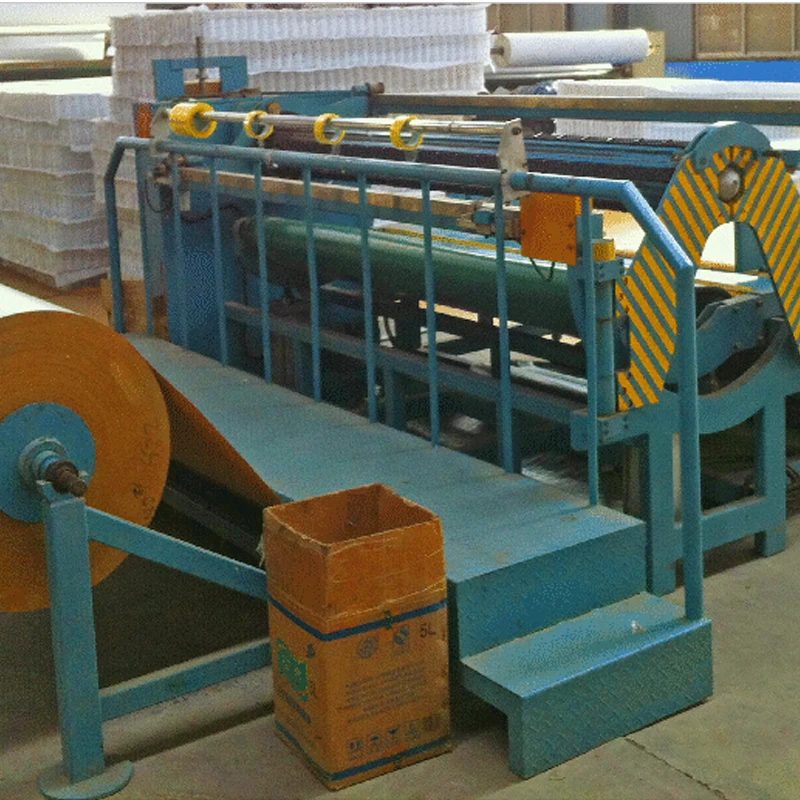

LR-PSL-15P Automatic Pocket Spring Units spring roll machines















Product Description:





This machine is used to roll-pack the pocket spring units and also suitable for the foam and latex mattress.



Technical characteristics:


1. Rolling & Packing about 10-12 pocket spring Units into one roll;


2. Packing material cutting device;


3. Safety Switch for discharging the compressed roll;


4. Portable carrier for compressed roll;


5. International patented & electronically controlled discharging system for compressed roll;


6. Low maintenance /stable performance
















































Mattress TypeFoam/Latex
Production Speed8~10minutes/Roll (6~13units/Roll)
Mattress WidthMax. 2000mm
Mattress Height50-250mm
ControlPLC
Air consumptionApprox 5m3/h 0.8mpa
Power Requirements380V/220V 50HZ/60HZ
Main Drive Power5KVA
Overall Dimension3800×4000×1500MM
Machine weight2700KG

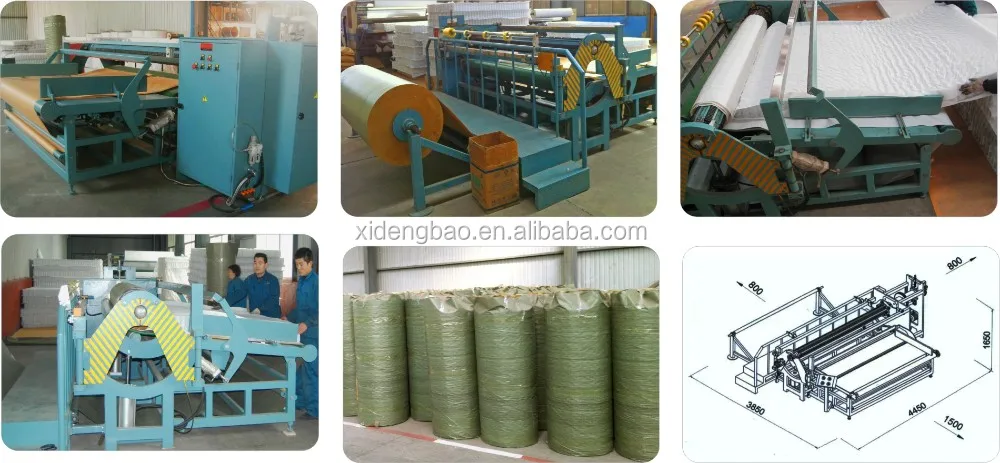

LR-PSL-15P
