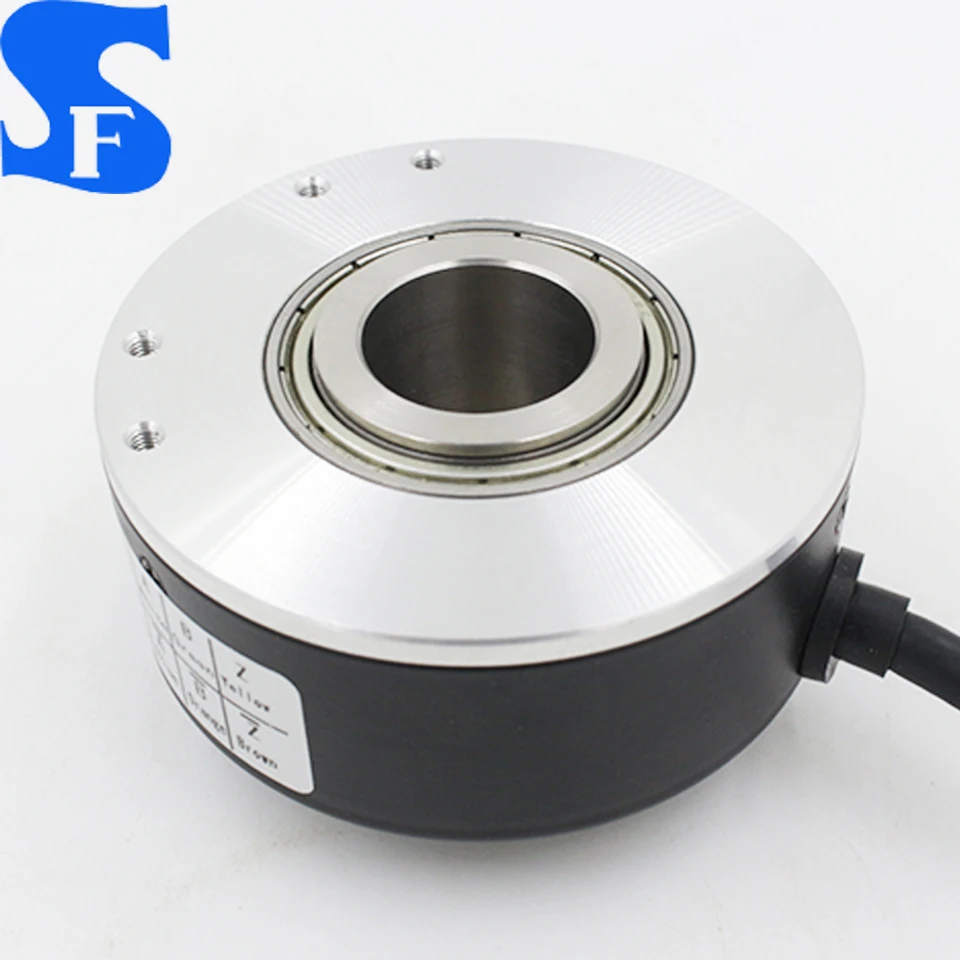

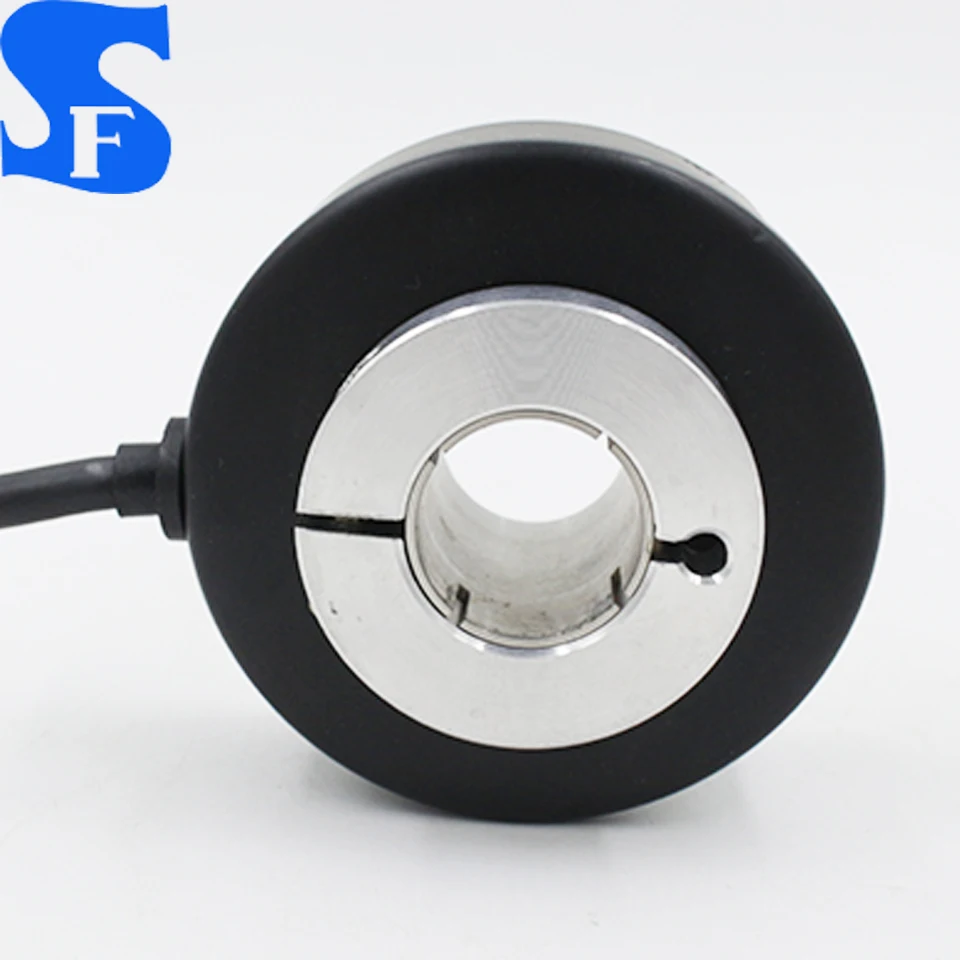

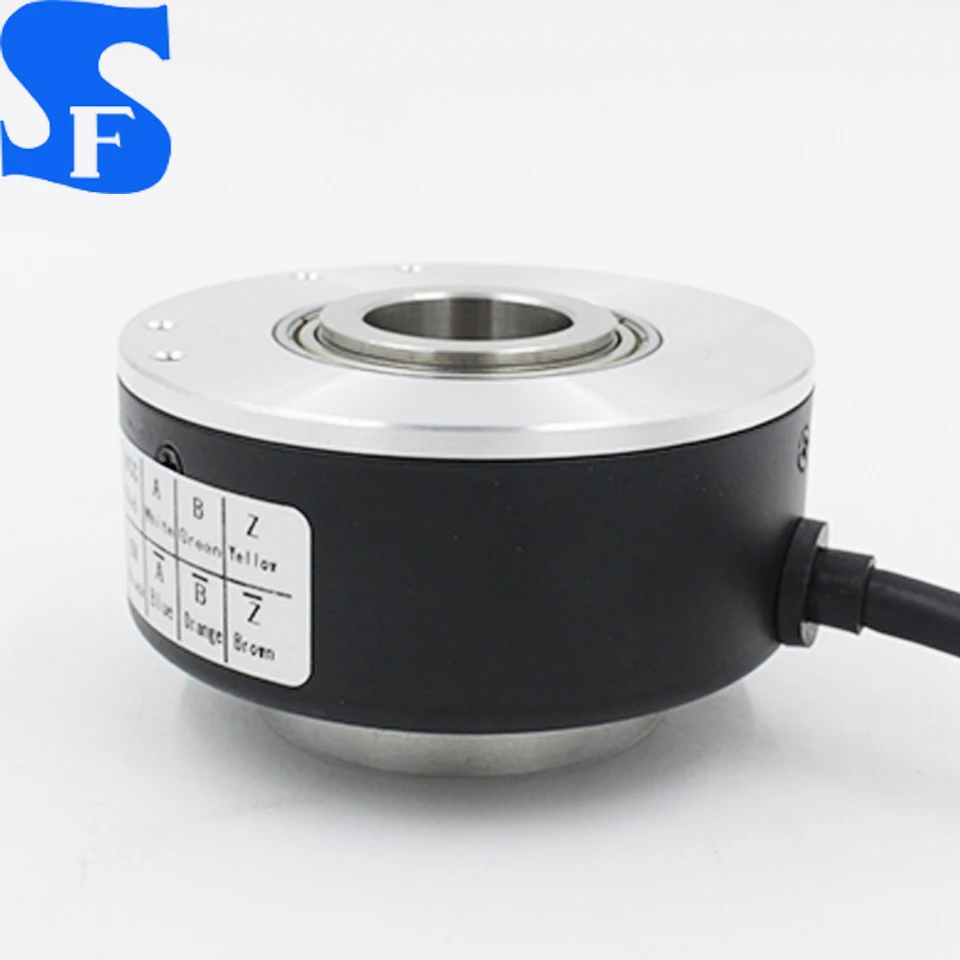

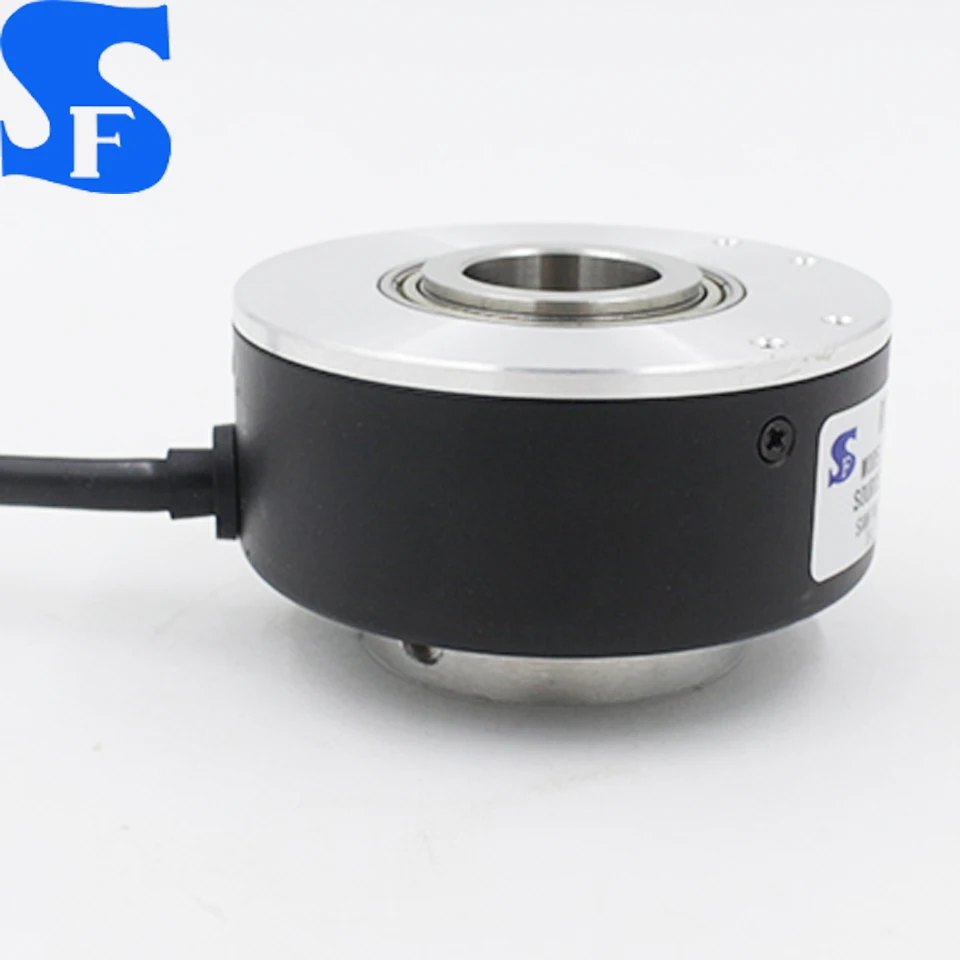

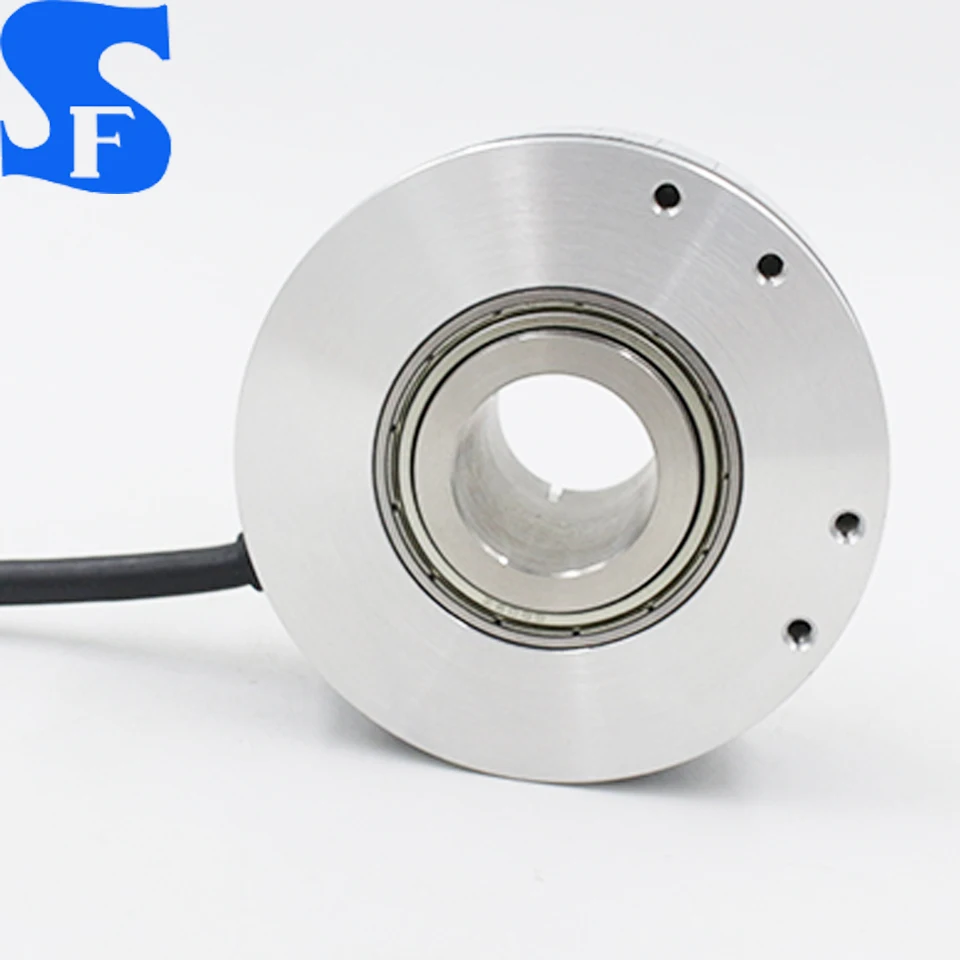

PKT series 20mm hollow shaft 1024 pulse rotary encoder PKT6020 1024Z G05L
- Category: >>>
- Supplier: Changchun Sanfeng Photo-Electronics Instrument Manufacturing Co. Ltd.
Share on (60742292701):
Product Overview
Description
PKT series 20mm hollow shaft 1024 pulse rotary encoder PKT6020-1024Z-G05L
Resolution | 2048,4096,8192P/R | |||
Supply Voltage | DC5V±5% | |||
VH Output Voltage | ≥2.5V | |||
VL Output Voltage | ≤0.5V | |||
Current Consumption | ≤200mA | |||
Output Phase | A.B.Z(U.V.W available) | |||
Frequency Response | 200kHz Max | |||
Rise / Fall Time | ≤1μS | |||
Starting Torque | 9.8*10-3N*m(+25℃) | |||
Shaft Loading | Radial | 40N | Axial | 20N |
Rotating Inertia | 6.5*10-4Kg*m2 | |||
Max Rotating Speed | 6000r/min | |||
Vibration Resistance | 70m/s2(10~200Hz)2 Hours in XYZ Direction | |||
Shock Resistance | 980m/s2(3 Times in XYZ Direction,each time 11ms) | |||
Protection | IP52 | |||
Operation Temperature | -10℃~+70℃ | |||
Storage Temperature | -20℃~+80℃ | |||
Operating Humidity | 30~85%RH | |||
Weight(no cable) | 0.5Kg | |||
Accessories | Elastic Mounting Plate | |||
Cable Color | Blue | Blue/Black | Green | Green/Black | Yellow | Yellow/Black | Brown |
Signal | A | A(_) | B | B(_) | Z | Z(_) | U |
Signal | A | A(_) | B | B(_) | Z | Z(_) | - |
Cable Color | Brown/Black | Grey | Grey/Black | White | White/Black | Red | Black | Shield |
Signal | U(_) | V | V(_) | W | W(_) | Vcc | 0V | FG |
Signal | - | Vcc | 0V | FG | ||||
If you have any question,feel free to contact me.
Are you a trading company or a manufacturer? |
We are a manufacturer of 20 years experience. |
Do you accept OEM brand? |
Accept large OEM brand customers, or a large number of customers. |
Does your product have a factory inspection? |
Every product we send is strictly factory inspection. |
How long will you ship the goods? |
Our delivery time ranges from 3 days to 3 weeks. |
Can you provide free samples? |
Regular products provide samples according to the original price. Customized products are provided at cost price. |
What kind of packing do you send? |
We use high-quality corrugated paper packing box, internal environmental protection buffer material. |
What is our loading port? |
Dalian port, or apply for other ports. |
How long is your quality guarantee period? |
The guarantee period for our products is one year. |
