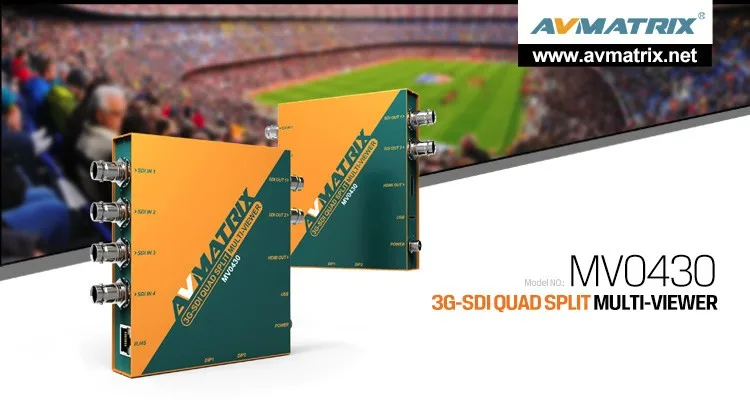

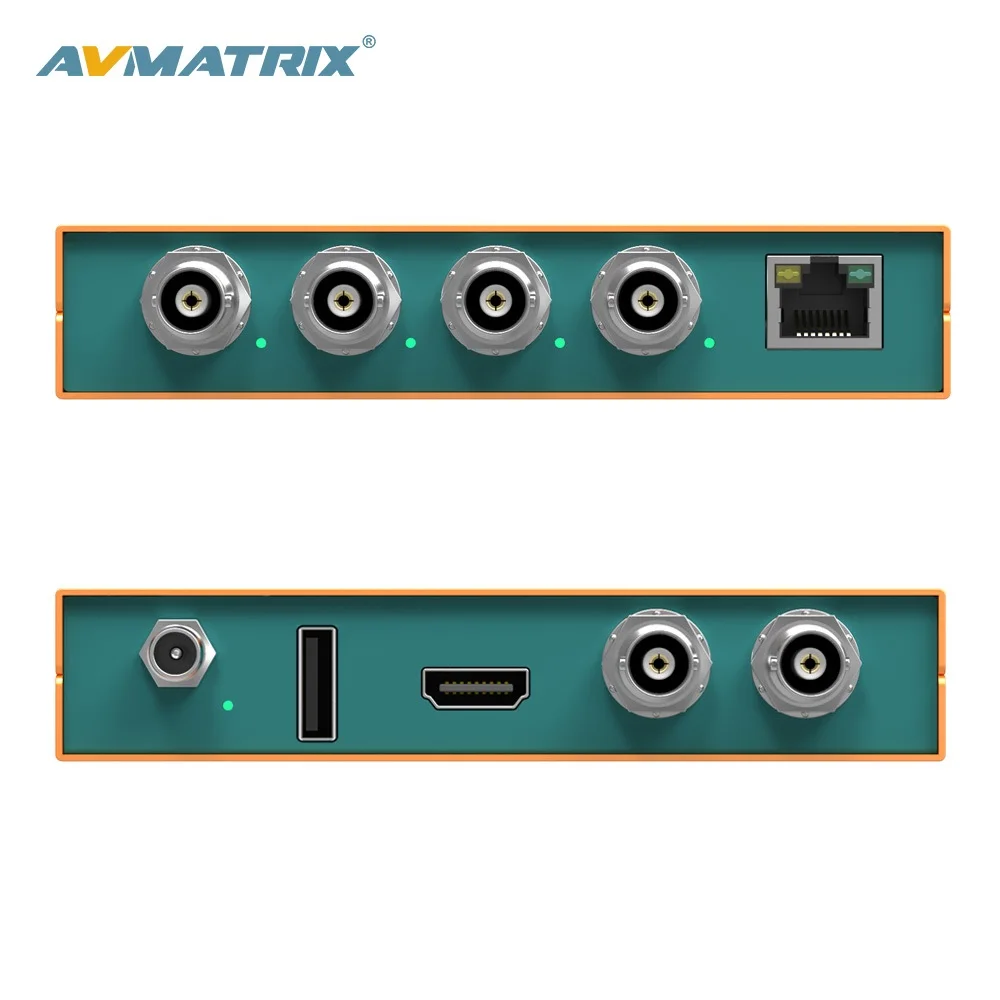

MV0430

SDI Quad Screen Multiviewer

MV0430 is an exquisite and professional 4 Channel SDI scaling multiviewer which features 4-channel 3G/HD/SD-SDI auto adaptive inputs and 2-channel 3G-SDI and 1-channel HDMI outputs. Total 16 preset layouts are provided for choices. User can also adjust the size and position of 11-character UMD and audio meter overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications.

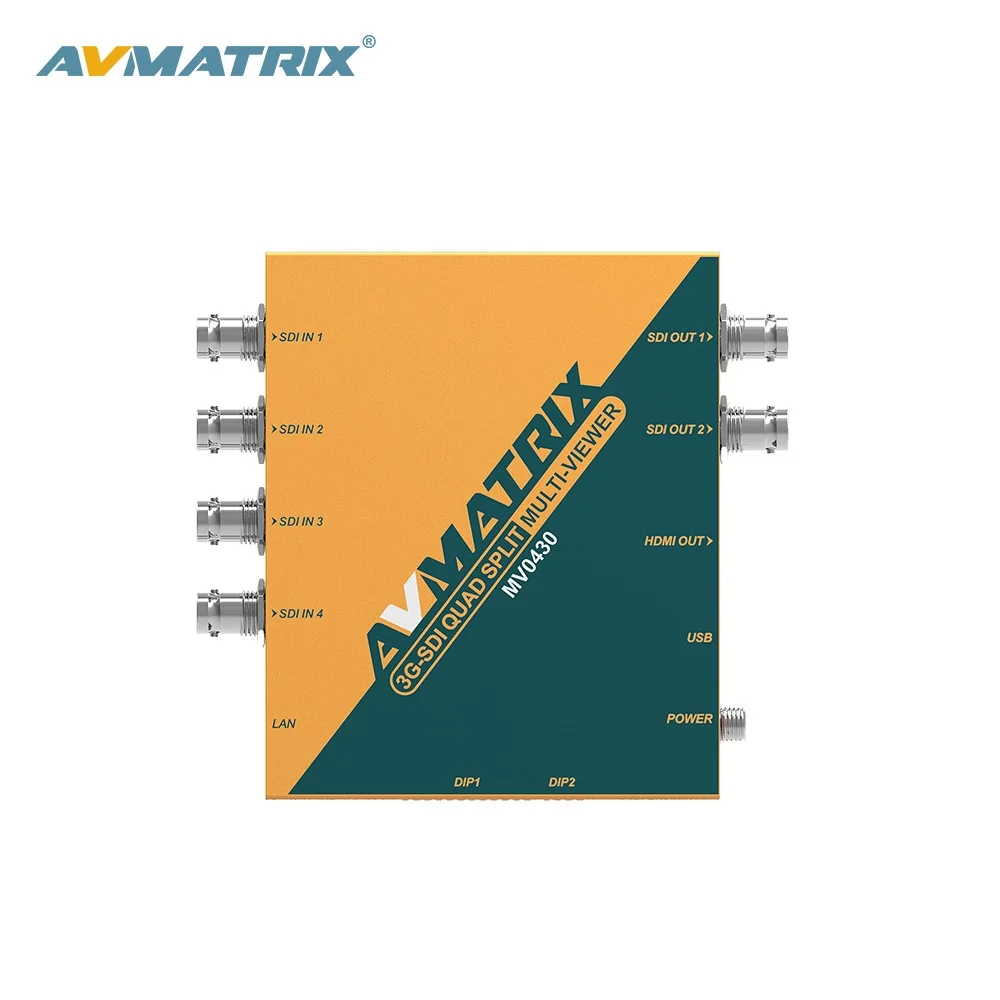

Main Features

1) 4×SD/HD/3G-SDI inputs with auto detection
2) 2×SD/HD/3G-SDI and 1×HDMI outputs for multiview
3) 11 selectable SDI & HDMI output formats
4) Up/down scaling and frame rate conversion
5) 16 preset layouts,Support both full-screen and multiview mode
6) 11 character UMD overlay, support custom position and color
7) Audio level meter overlay, support custom position
8) Control easily via the DIP switches
9) USB port for keyboard control
10) LAN port for control and firmware update
11) Threaded locking power connector

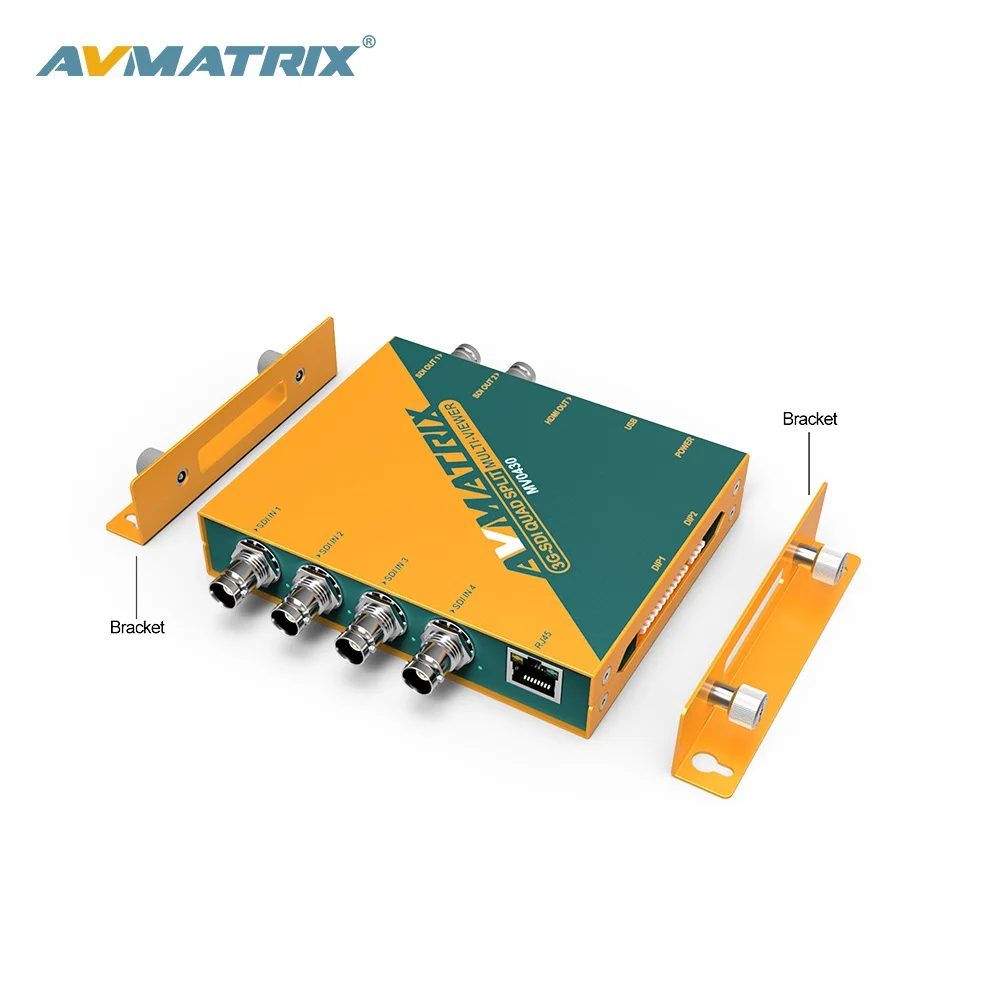

12) Detachable bracket design for wall mounting

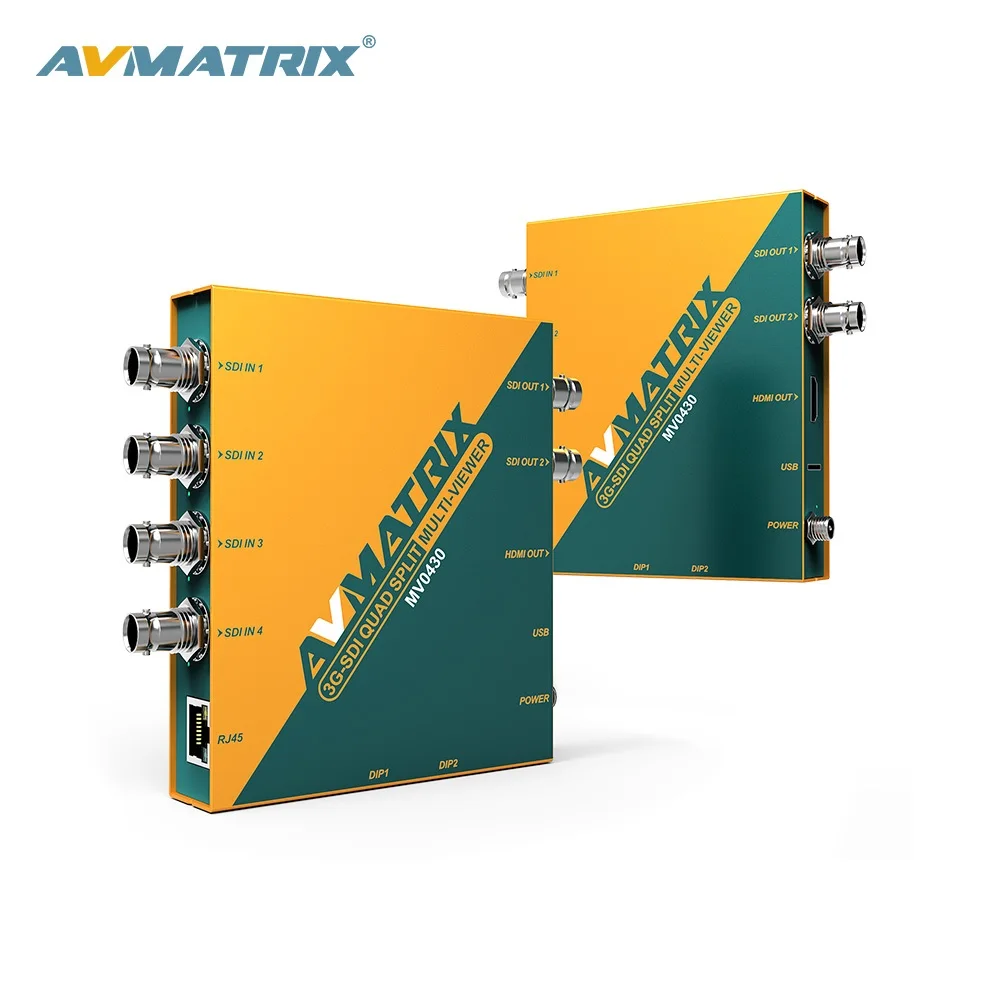

Product Description

11 Output Formats Selectable

The SDI Quad Screen Multiviewer features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Four inputs can be showed simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats are supported for user's choices. Up/ down scaling and frame rate conversion are aslo supported.


16 Group Preset Layouts

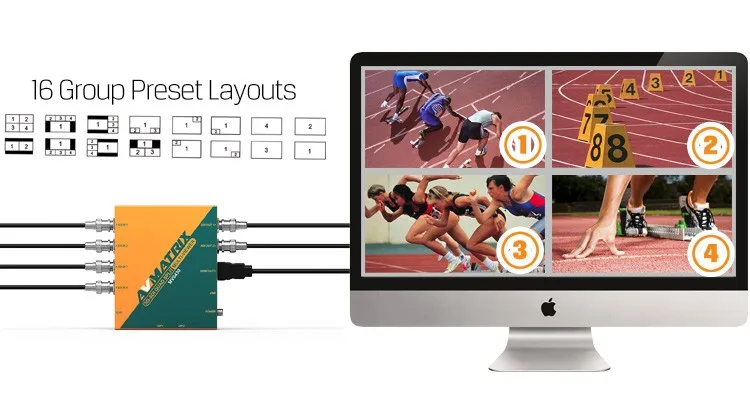

This 4 channel SDI scaling multiviewer scaler include 16 group preset layouts like frequently-used modes like quad split, full screen, triple windows, PiP and PoP mode etc for customers' choice.

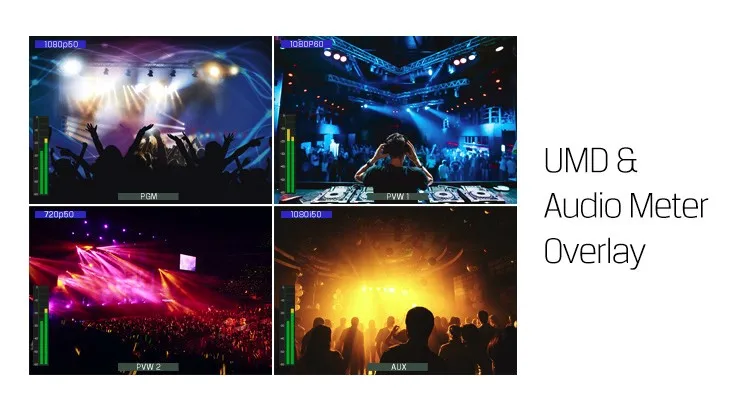

User-defined UMD and Audio Meter Overlay

These user-friendly design is the other feature of MV0430, for example, in each individual window, users can set 11 characters UMD overlay separately and adjust it's size and position freely. Similarly, the size and position of the 2–channel audio metering can also be user-defined.

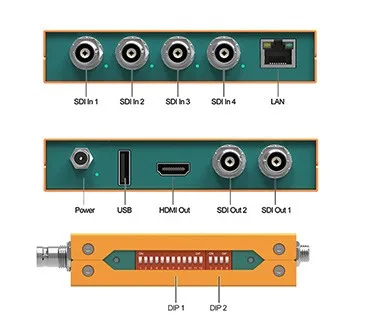

Easy Control over DIP Switches

Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, SDI Quad Screen Multiviewer scaler also can be remote set by using a software by connecting it with a PC via LAN. Besides, the latest firmware can be upgraded via LAN port.

Techniacl Parameter
\t


CONNECTIONS

\t
SDI Video Input
\t
SD/HD/3G-SDI(75Ω)×4
\t
SDI Video Output
\t
SD/HD/3G-SDI(75Ω)×2
\t
HDMI Video Output
\t
HDMI type A×1
\t







Formats
\t


SDI Input Format Support
\t
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50, 525i 59.94
\t
SDI Video Rate
\t
SD/HD/3G-SDI \t\t
\t
SDI Compliance
\t
SMPTE 292M/SMPTE 259M/SMPTE 424M
\t
SDI Color Space and Precision
\t
YUV 4:2:2
\t
SDI Auto Switching
\t
Auto selects SD, HD and 3G-SDI on input \t\t \t\t\t\t\t
\t

SDI & HDMI Output Format Support
\t
1080p 60/50/30/25/24
1080i 60/50
720p 60/50/30/25
\t
SDI & HDMI Color Space and Precision
\t
YUV or RGB for inputs, YUV for outputs
\t

Size
\t
Dimension(LWD)
\t

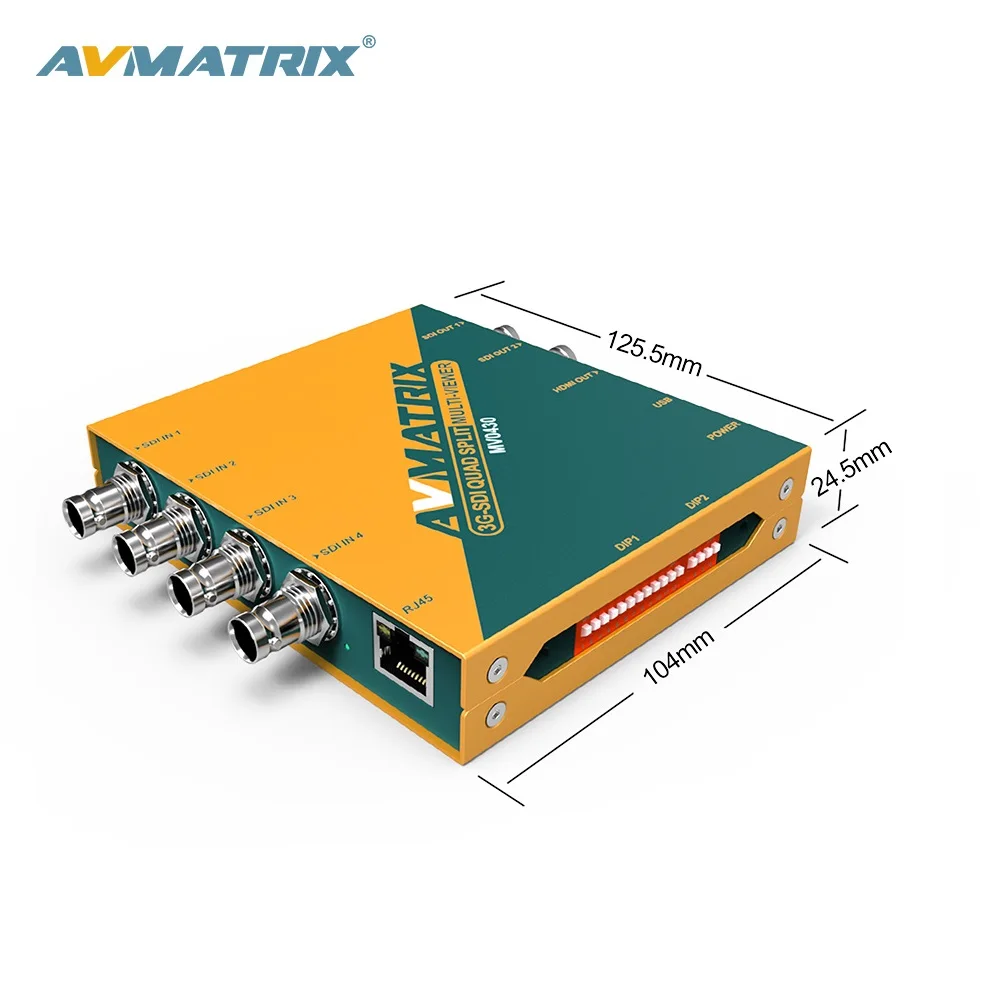

125.5mm × 104mm × 24.5mm
\t
Weight
\t
465g
\t

       Control
\t
Dip Switches
\t
Configuration
\t
LAN Port
\t
Configuration and firmware updates
\t
USB Port
\t
USB keyboard Control
\t

Power
\t
Power Connector
\t
Threaded locking connector
\t
Power Consumption
\t
6W
\t
Voltage Range
\t
6-24V
\t

Environment
\t
Operating Temperature
\t
-20℃~60℃(HDMI output for 0℃~60℃)
\t
Storage Temperature
\t
-30℃~70℃
\t
Relative Humidity
\t
0%~90% non-condensing
\t
Warranty
\t
Warranty
\t
3 year limited warranty
