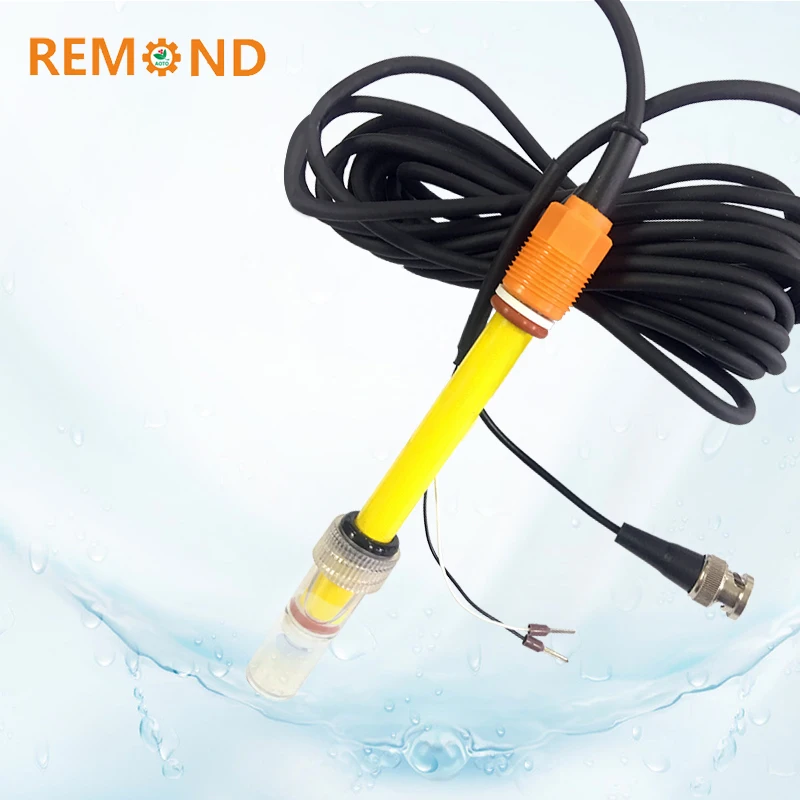

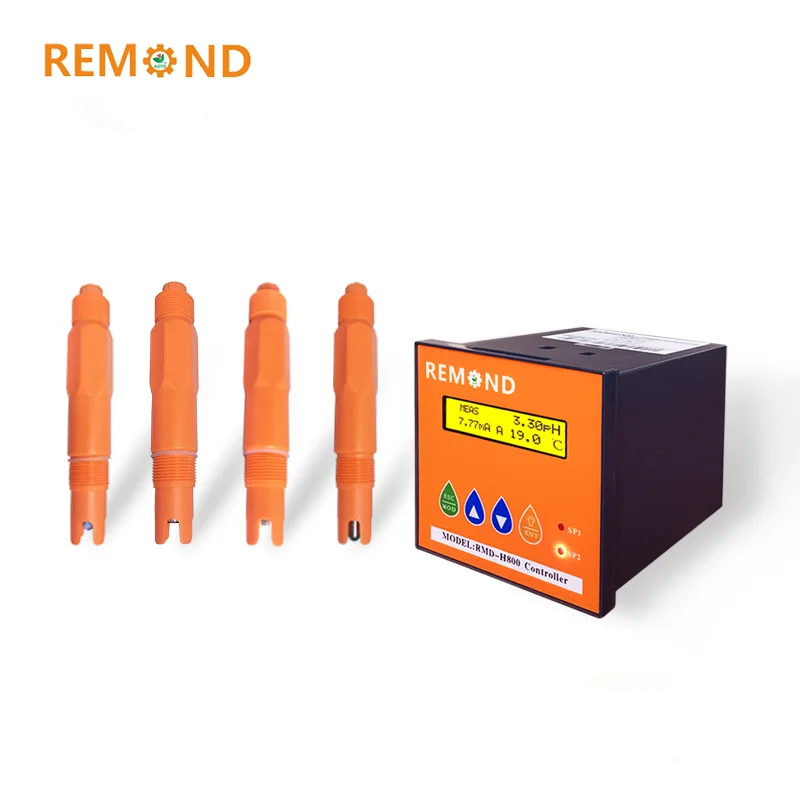

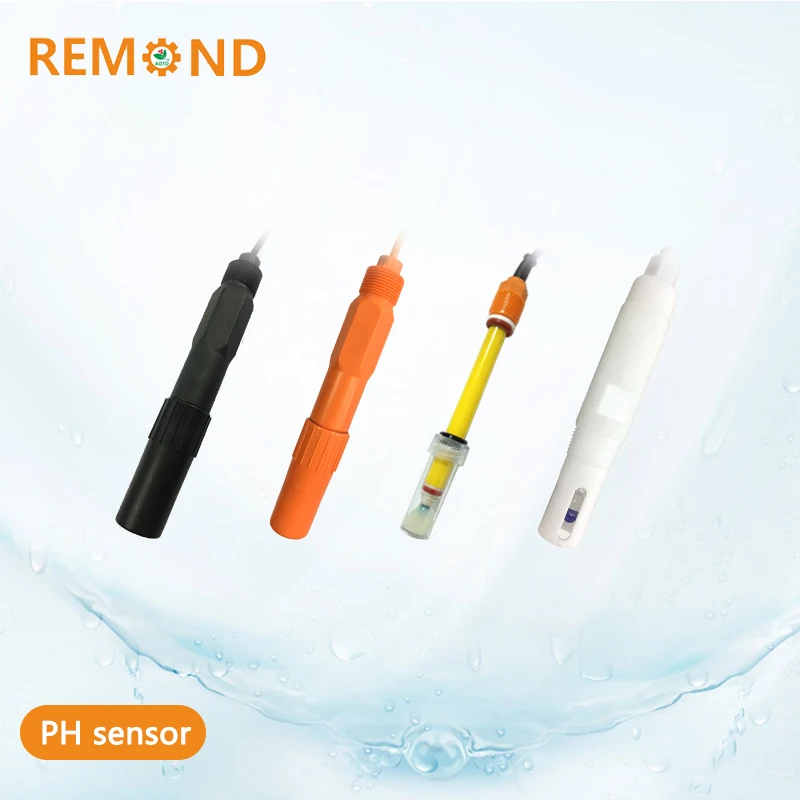

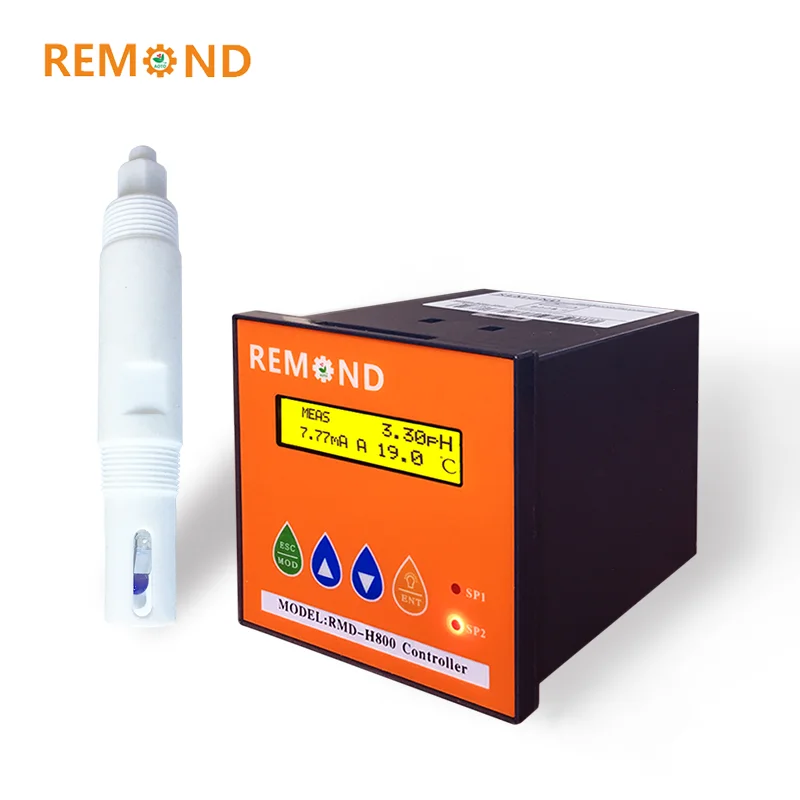

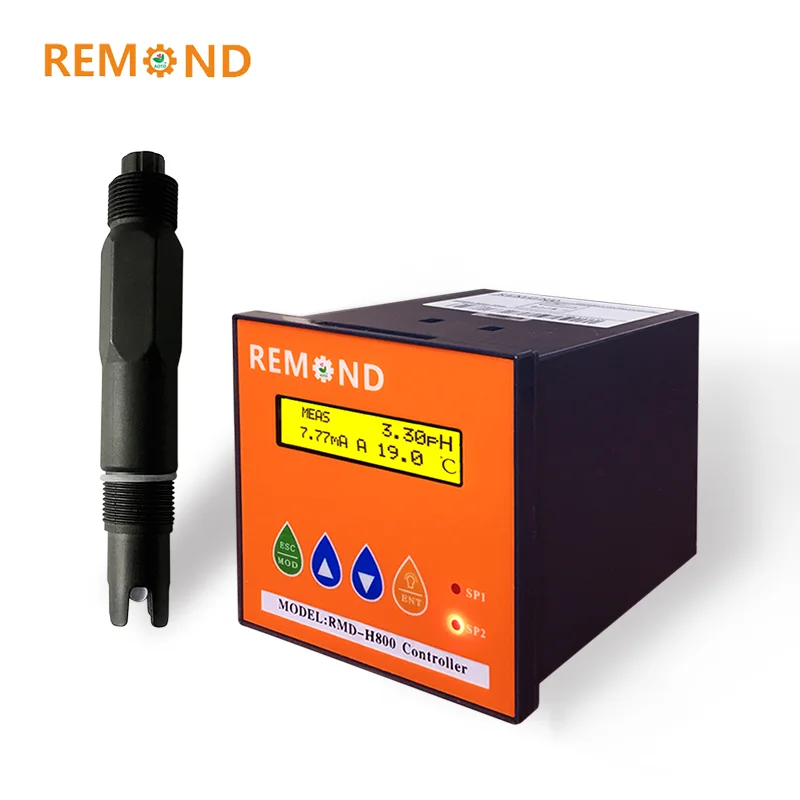

Water Analysis Instrument PH Sensor digital ph meter tester Ph Controller
- Category: >>>
- Supplier: Shanghai Lanchang Automation Technology Co. Ltd.
Share on (60742317867):
Product Overview
Description
Product Description
Technical parameter
| PH | Measure range | -2.00~16.00pH |
| Resolution | 0.01pH | |
| Accuracy | ±0.01pH | |
| Input impedance | ≥1012Ω | |
| ORP | Measure range | -2000~2000mV |
| Resolution | 1mV | |
| Accuracy | ±1mV | |
| Temperature | Measure range | -25~130℃ |
| Resolution | 0.1℃ | |
| Accuracy | ±0.3℃ | |
| Temperature Sensor | PT1000 | |
| TEMP.Compensation | Automatic/Manual | |
| Signal Output | PH/ORP signal output | 4-20 mA (Adjustable) |
| Current Accuracy | 1%FS | |
| Load | < 750 Ω | |
| Relay Output | On/Off | 2 SPST Relays |
| Load | 5A 250VAC / 5A 30VDC | |
| Data interface | RS485(Optional) | Compatible with standard MODBUS-RTU |
| Others | Power | 100~240VAC, 24VDC |
| Working Temperature | 0~60℃ | |
| Humidity | < 90% | |
| Installation | Panel Mounting | |

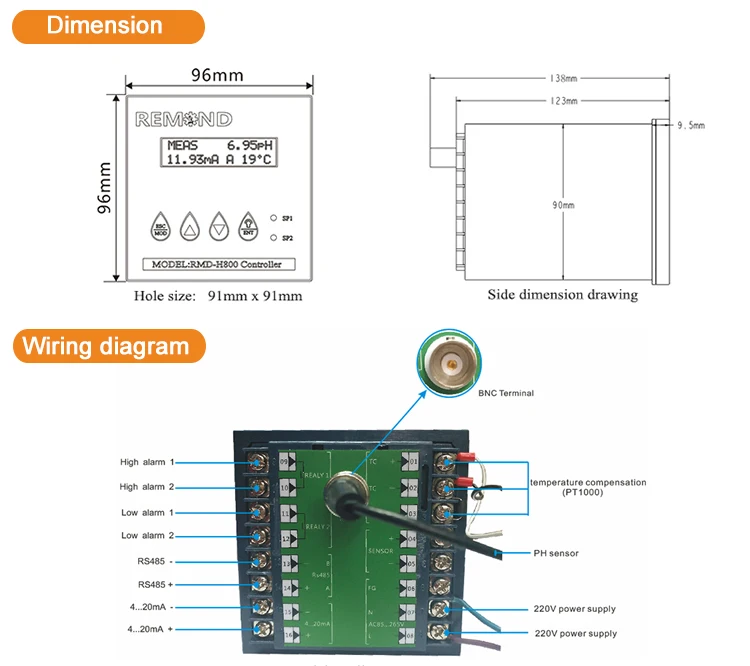

| Dimensions | 96*96*138mm(H*W*D) | |
| Hole size | 91*91mm | |
| Weight | 0.5kg |

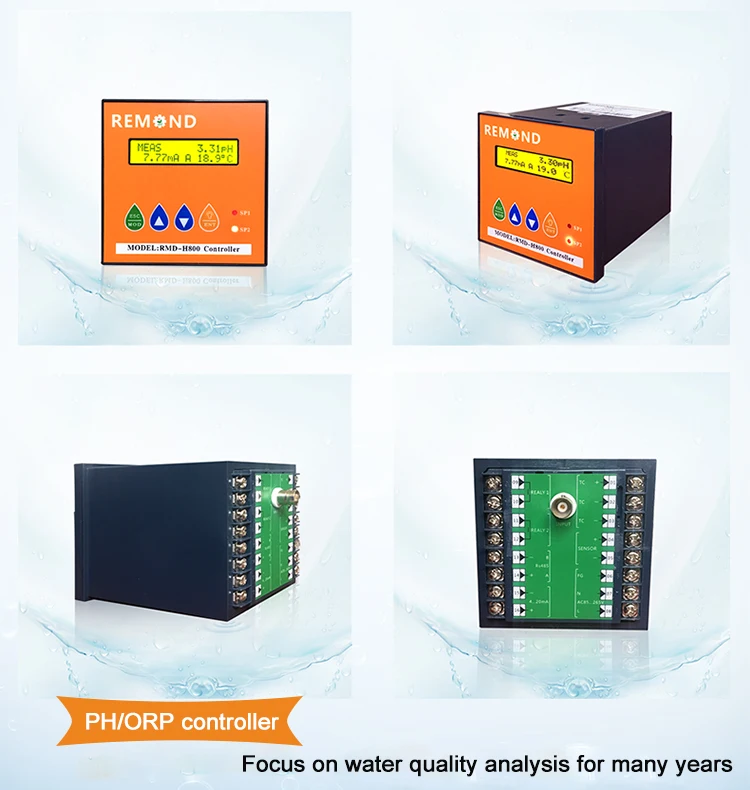

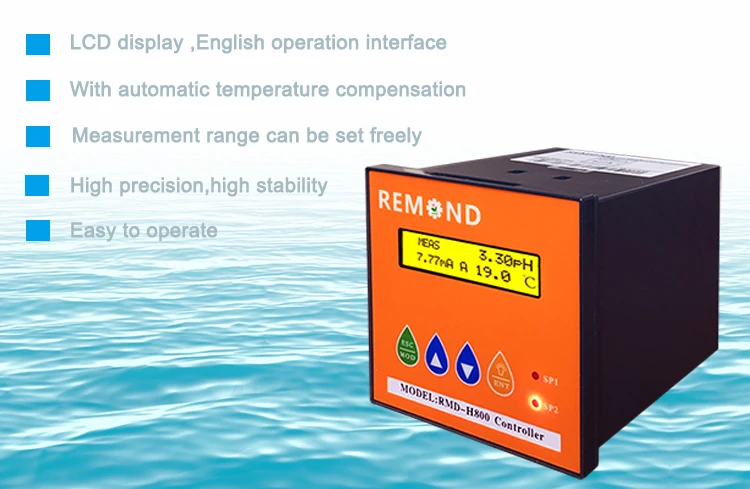

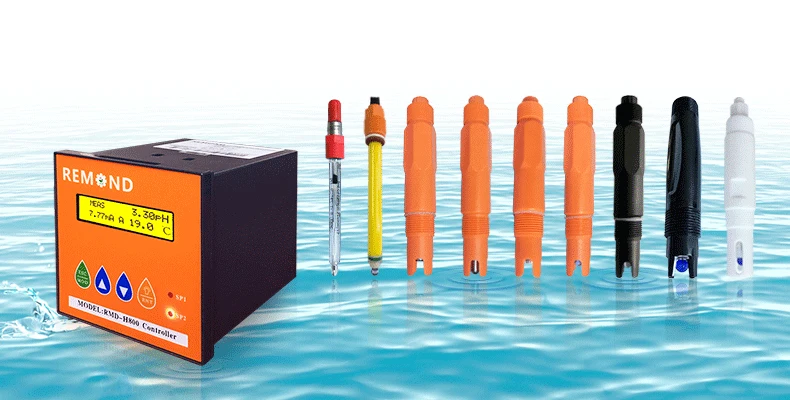

Detailed Images
Related Products
Company Information
Certifications
FAQ
Q: Are you the final manufacturer?
A: Yes, We are manufacturer
Q: Do you offer the OEM order ?
A: Yes, we can offer OEM service and label according to your requirements
Q: How to make payment?
A: We accept T/T , credit card
Q: Could we visit your factory?
A: Yes, Sincerely invite you to visit our factory
Q:Do you have any discount?
A:Yes, if you buy large quantity, please contact us or send email, we will give you a big discount
Q: What is your delivery time?
A: It is about 5-7 working days since the payment confirmed . If the quantity more than 100pcs , it will need extra 3-5 working days
Q: How long is the warranty of your products ?
A: controller 2 years warranty,sensor 1 year warranty
