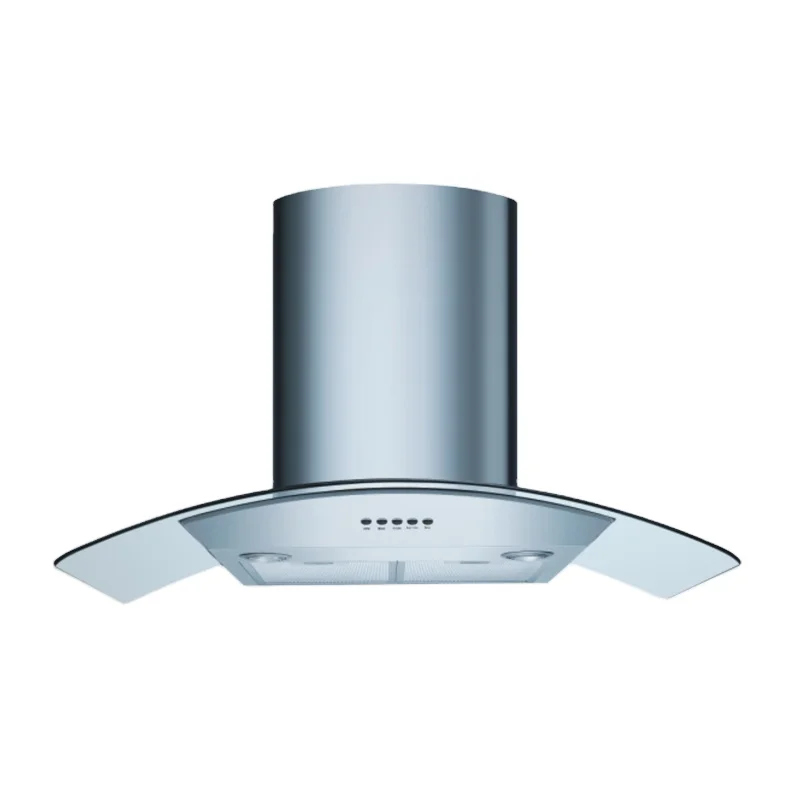

Big Suction Smoke KItchen Chimney Range Hood

Model No.:

Product size:

900X500X(450-850)mm; or 600X500X(450-850)mm

Finish:

High quality stainless steel 201/304/430 & tempered glass

Switch:

3 speeds digital display switch with Timer

Motor:

218W full sealed cooper motor

Fan:

Well balanced metal fan

Filter:

Aluminum filter

Lamp:

2*1.5W LED lamps

Duct size:

(450+400)mm

Pipe:

1.5m length flexible plastic pipe with dia. 160mm

Noise:

≤58dB

Airflow:

1000m3/h

Optional:

* 760m3/h airflow motor system

* Stainless Steel filter (baffle filter)

* Charcoal filter (1000m3/h motor system only)

* Voltage of 110-240V / 50-60Hz

MOQ:

50 pieces

Warranty:

1 year

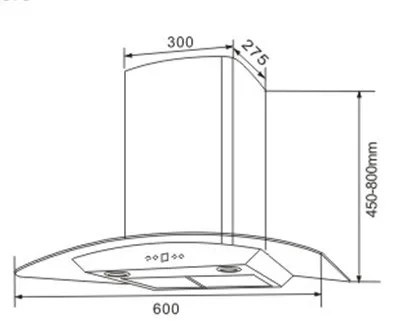

Installation Drawing:

Package size:

960X560X555mm; or 660X430X555mm

Loading quantity:

96pcs/20ft, 225pcs/40HQ ;128pcs/20ft, 288pcs/ 40HQ

Outer packing:

1set / CTN

Packing way:

strong carton box packing with PVC bag and protective foam

Shipping:

FCL, LCL by sea or by air
