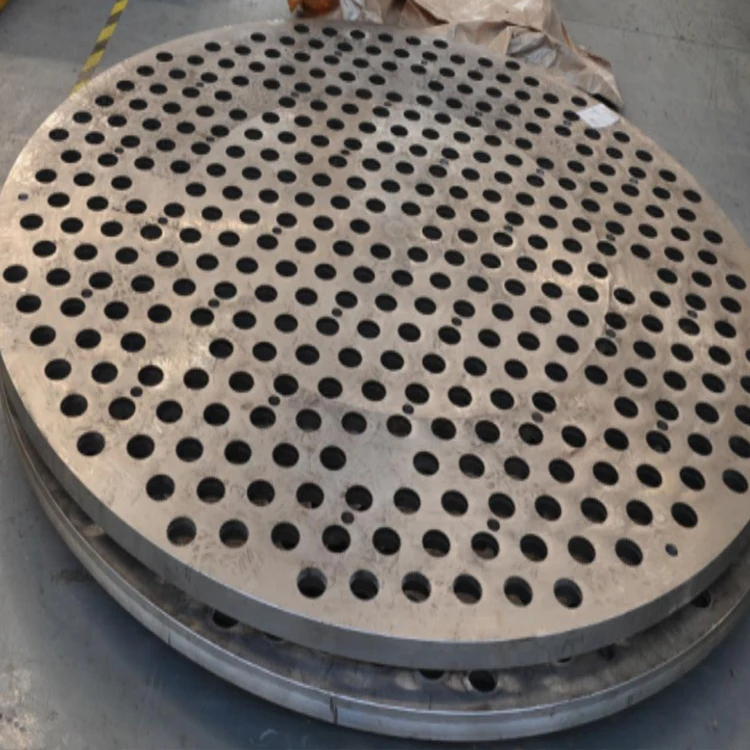

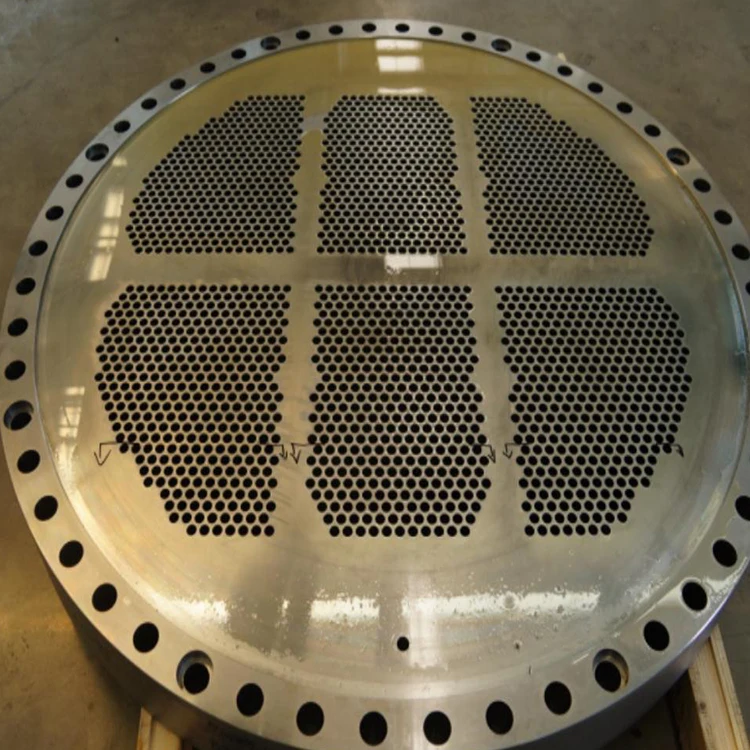

custom carbon steel, SS 304/316 Forged Tubesheet, Baffle, Heat Exchanger tube sheet

Product Overview

Description

We have contracted to custom make various of tube plate for heat exchangers, pressure vessels used in nuclear power industry, petro-chemical industry, water-treatment industry.

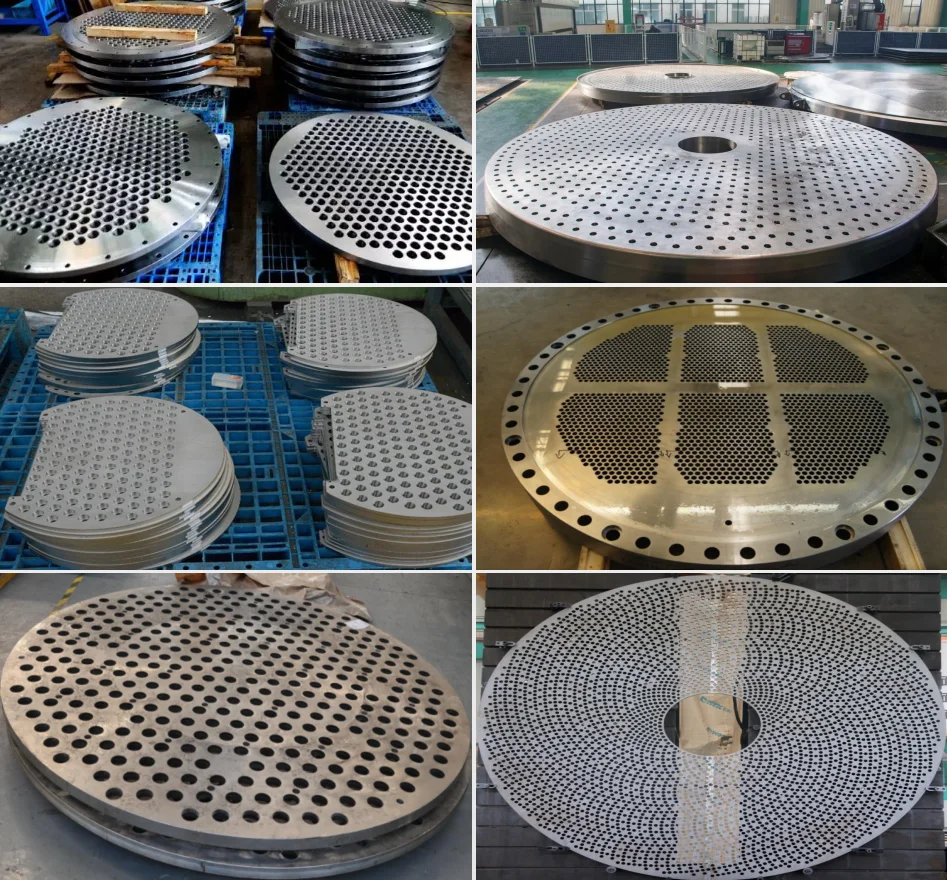

The tube plates we have produced feature in:

• Large diameter capability up to OD 8600mm

• High precision

• Deep boring possible

• Complex hole shape possible

• Multi machining processes possible

• Metal material can be carbon steel, stainless steel, and special alloy including Titanium

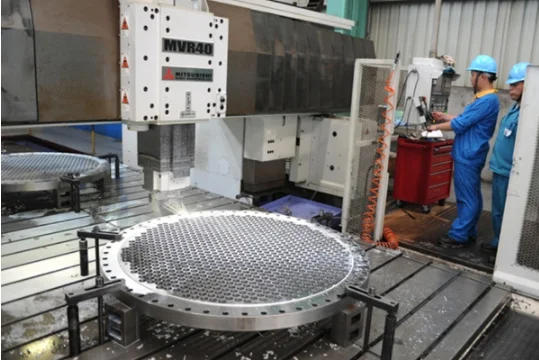

Tube plate machined by MVR40 gantry milling center

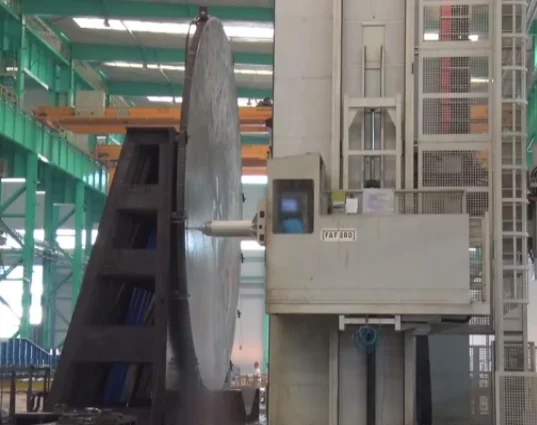

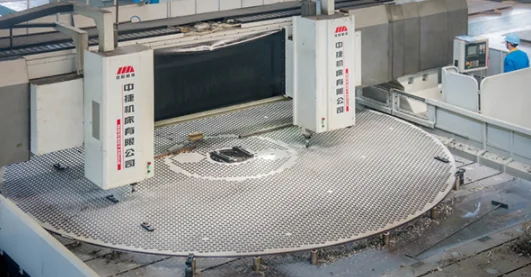

8.6m Tube Plate Machined by Innse Berardi FAF280

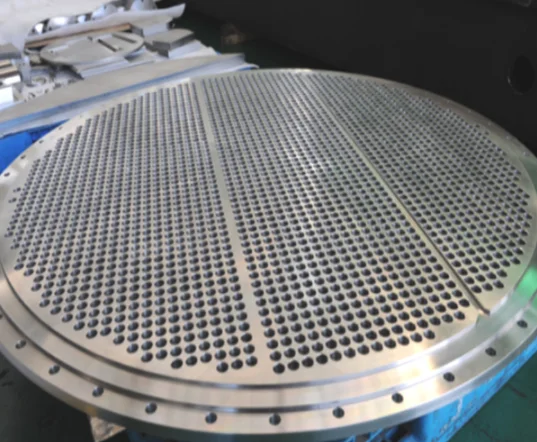

Stainless Steel Tube Plate – by multi spindle drilling and tapping center

Titanium Tube Plate

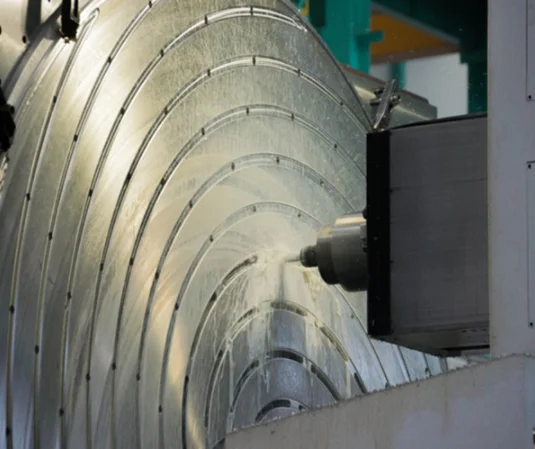

Tube Plate requiring multi-processes machining

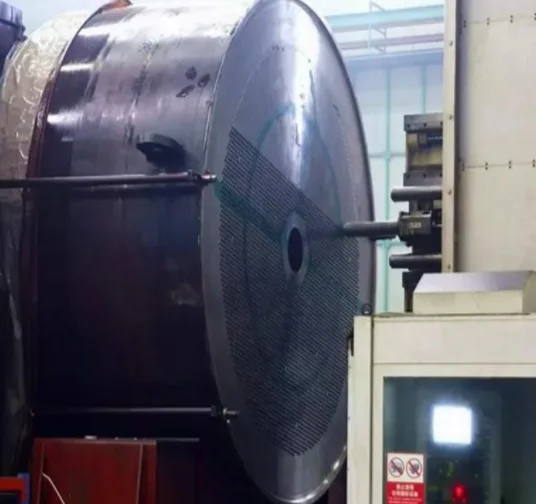

Tube plate with deep holes
