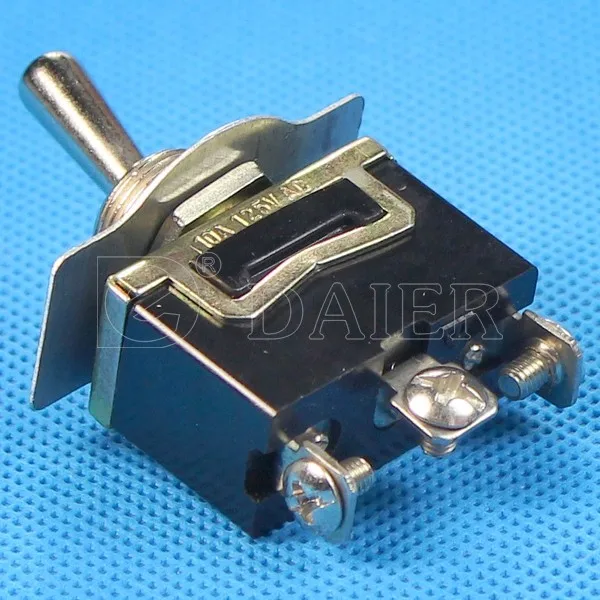

KN3 12MM 3 Screw Terminal Single Pole Latching Toggle Switch 15A
Rating
( )10A 125VAC;6A 250VAC
(A)15A 125VAC;10A 250VAC
(AA)20A 125VAC;15A 250VAC
Poles
1 POLE
Switch Function
ON-ON
Terminal options
Screw Terminal
Operating Temperature
-25℃~+85℃
Housing color
BK-Black, BN-Brown, OG-Orange
Products Show

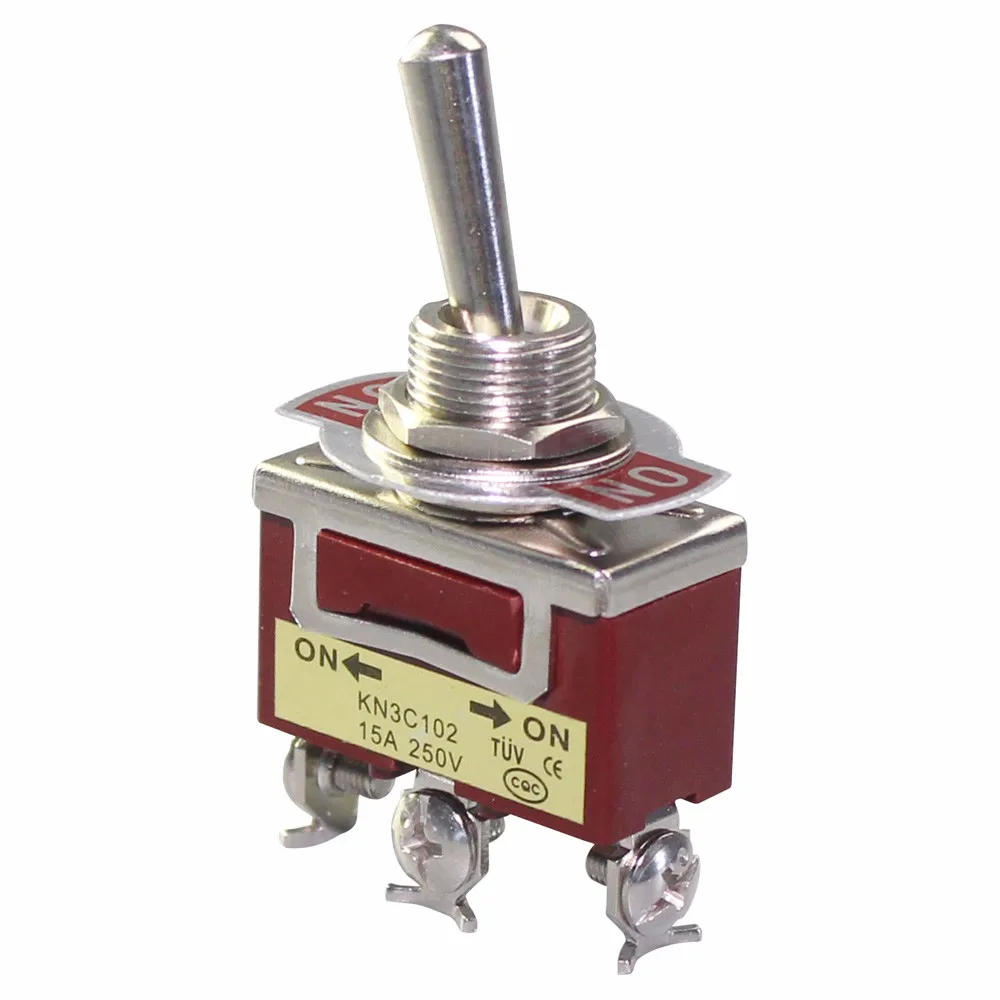

KN3C-102
1.Rating: ( )10A 125VAC;6A 250VAC
(A)15A 125VAC;10A 250VAC
(AA)20A 125VAC;15A 250VAC
2.Contact Resistance: 50mΩ max
3.Insulation Resistance: 500VDC 1000MΩ Min
4.Dielectric Strength: 1500VAC, 1Minute
5.Electrical Life: Electrical Life
KN3C-102
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
