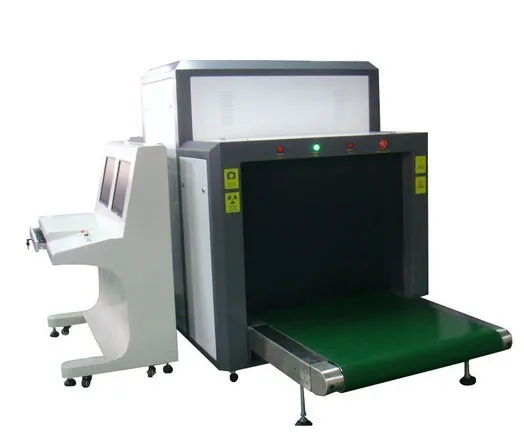

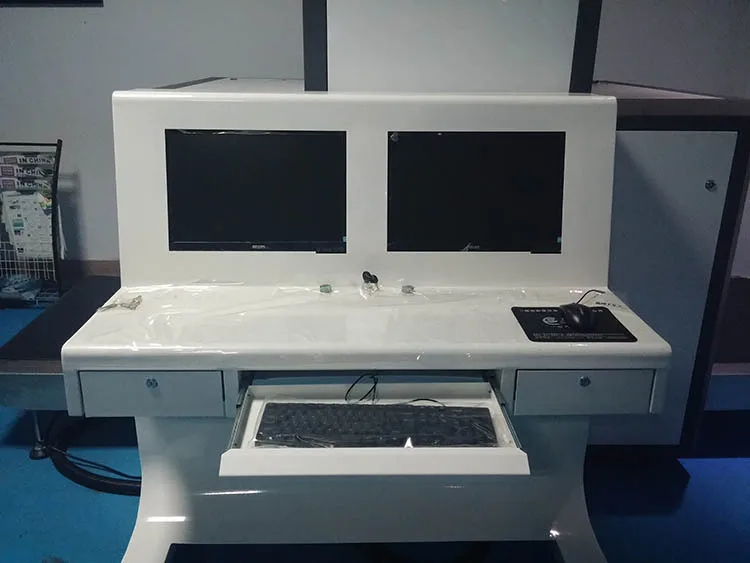

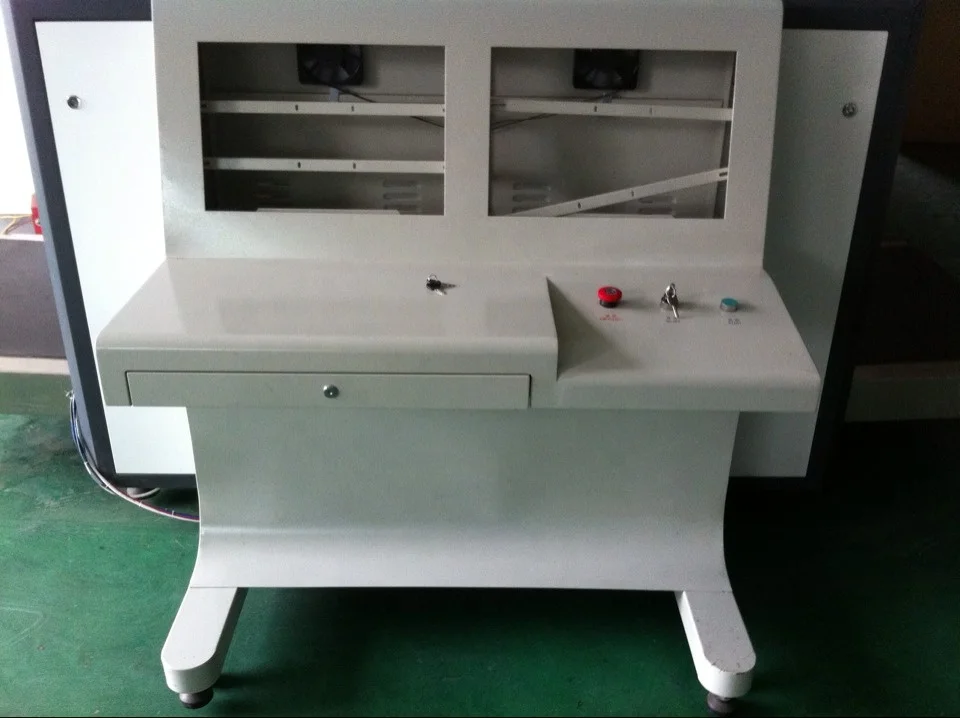

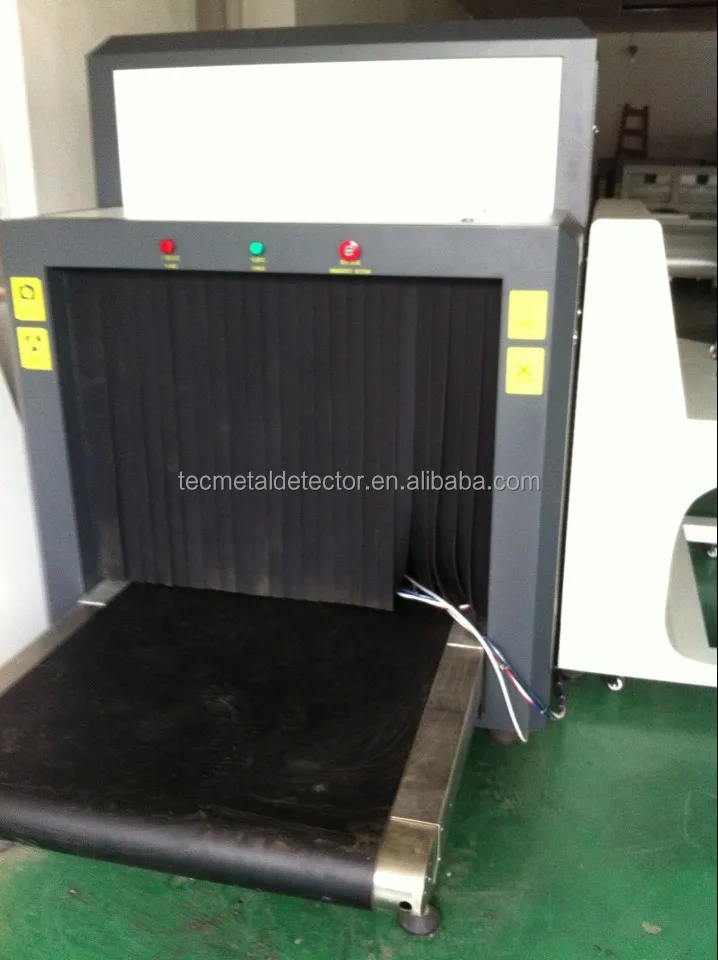

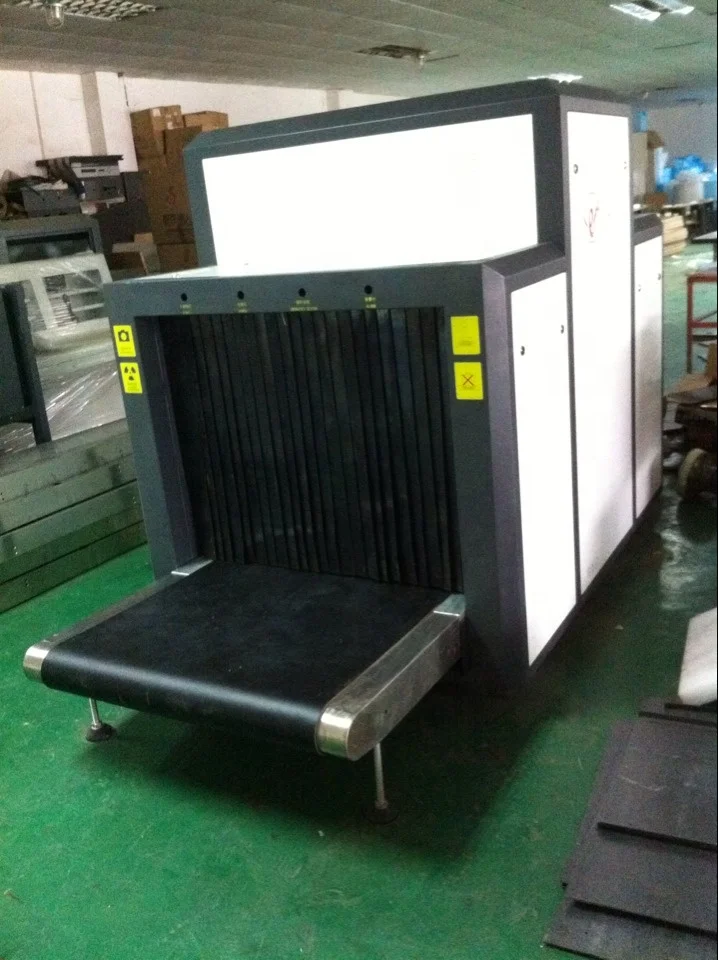

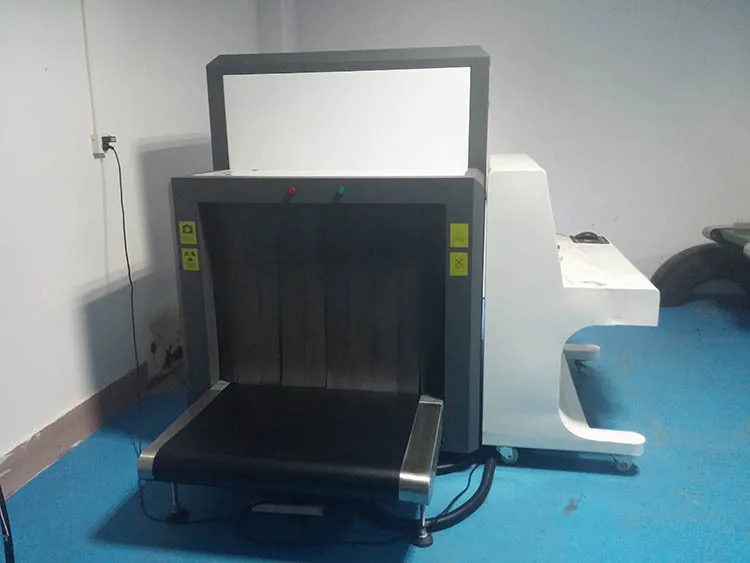

Airport Luggage Convey Belt Security Scanner Digital X-ray Inspection Machine TEC-10080



Contents	Index
Technical Data	Model Name: TEC-10080
	Tunnel Size: W1000*H800mm
	Conveyor Speed: 0.22m/s
	Conveyor Max Load: 200kg
	Resolution: 0.0787mm metal line
	Steel Penetration: 38mm armor plate
	Film Safety: For ISO 1600
	Maximum leakage radiation: <0.1µ GY/H
X-ray Generator	Orientation: Vertically Upward
	Tube Current: 0.4~1.2MA(adjustable)
	Anode Voltage: 100-160KV(adjustable)
	Angle: 80°

Operating Environment	Storage Temperature: -20ºC to 60ºC
	Operating Temperature: 0ºC to 45ºC
	Relative Humidity: 20 -90%non-condensing
	System Power:  220 VAC(±10%) 50±3HZ
	Power wastage:  1.0KW (Max)
	Noise:   <55DB



Preface



 TEC X-ray security inspection system is the global technology leader in X-ray imaging system.  The device combines many advantages of the high -low energy detector array, digital image processing techniques and computer technology, provide the high-quality image of reliable and efficient services for the users.



Establish this manual especially in order to make the user have a thorough understanding to the equipment, and use the equipment more conveniently.



This manual fully describes the work principle , maintain, maintenance, and maintenance of the Shenzhen TEC X-ray security inspection system.  please read this manual carefully before using X-ray security inspection equipment,.  the company does not undertake any responsibility if the user damages equipment for does not complying with safety regulations .



Only the person who have received formal training operate can equipment.  In order to avoid radiation hazards, the operator must always be strict compliance with radiation protection  rules. Shenzhen Tonyhoney Electronics company limited. has the copyright of this manual.  Nothing can reproduct it in any form manual but someone have the permission of TEC and authorized agents.



 As the time and energy is limited, the manual may be have inadequacies and omissions, please customers and experts give the criticism the correction.



System Overview



1.    Work Principle



Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes.  Luggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,.  After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel.  The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.



System Overview



1.    Work Principle



Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes.  Luggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,.  After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel.  The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.



2.    The main purpose



X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.
