Paper corrugated honeycomb pallet making machine with low price:

This machine is for Re-board( Vertical corrugated board), the proceed as following:Paper Roll Loading  ->Single Face Corrugated Making -> Slitting-> Gluing ->Standing>Lamination & Drying -> Board Cutting -> Surface Paper Feeding ->Gluing ->Lamination ->Drying ->Roller Lamination ->Cutting ->Conveyor.  It is L shape machine, it can separate into Vertical Corrugated Core and Board making machine .

\t
Max Paper Rolls Width
\t
1600mm
\t
FluteType
\t
A B C
\t
Core Paper GSM
\t
105--180GSM
\t
Surface Paper GSM
\t
Over 250GSM
\t
Core Thickness
\t
10-100mm
\t
Board Thickness
\t
10-100mm
\t
Working Speed For Core
\t
Max 15m/min
\t
Working Speed For Board
\t
Max 10m/min
\t
Glue Type
\t
Starch Glue
\t
Heating Type
\t
Steam or Electric
\t
Power Supply
\t
3-phase, 380V/220V
\t
Installed Power
\t
200KW

Main Features:

1)Working paper rolls width 1600mm, Core width max 700mm

2)High and mature technology in slitting, no strips will break off while standing.

3)Electric or Steam heating both available

4)Superior cutting system with Servo control

5)No bubbles or wrinkles on the board surface

Application
Paper Board for Pallet Making

•Widely using in transportation to replace the pallet

Carton Box

•Widely using in Heavy-duty packing carton box

Paper Funiture

•Widely using in funiture, display stand and so on

Detailed Images

Mechanical Paper Mill Stand

•Paper roll setting with Mechanical control
•Paper roll handling toward up or down and left or right
•With extension structure for different width paper rolls

Hudraulic Paper Mill Stand

•Paper roll setting with Hydraulic control
•Paper roll handling toward up or down and left or right
•With auto tension controller- electric control
•With extension structure for different width paper rolls

Slitting & Gluing Machine

•Slitting the single face corrugated paper

•Apply glue on it

Combined Machine

•Combined the standing paper strips together

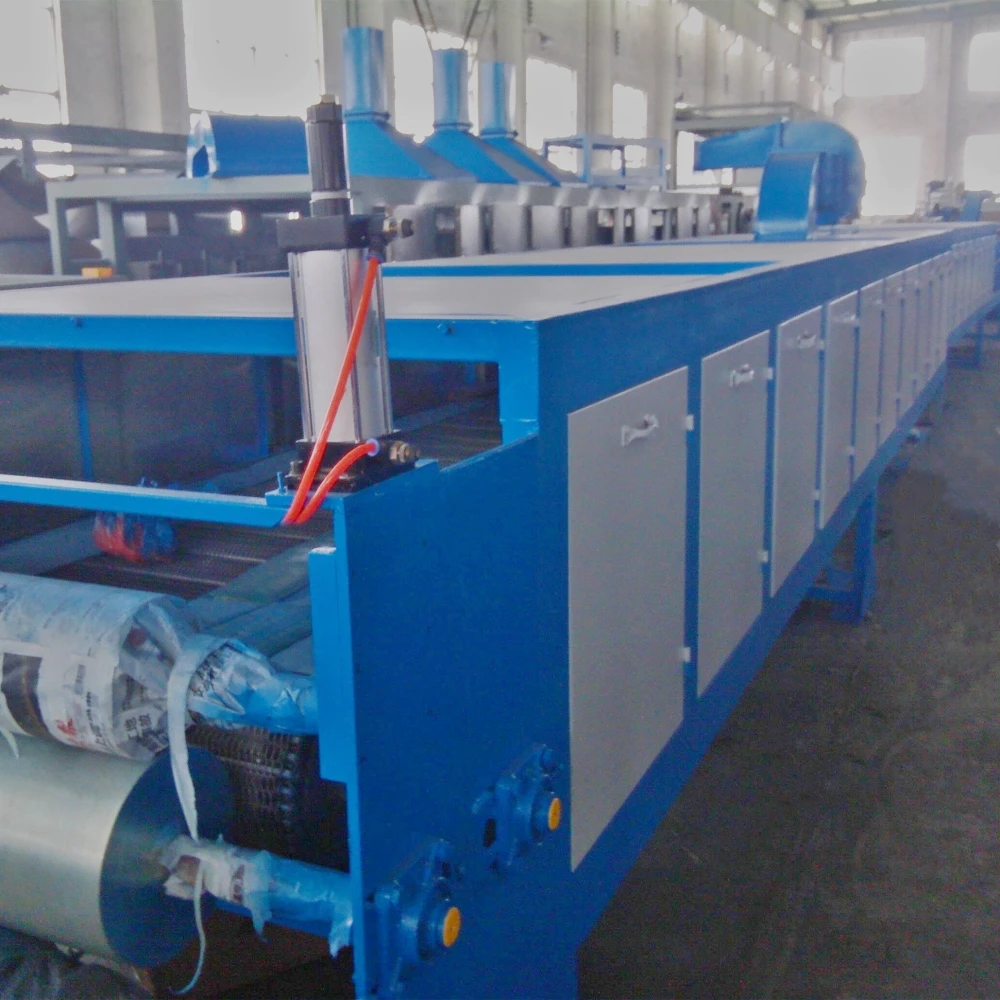

Drying Chamber

•Electric or steam both available,hot air recycle heating
•Normal length 8( length can customize)

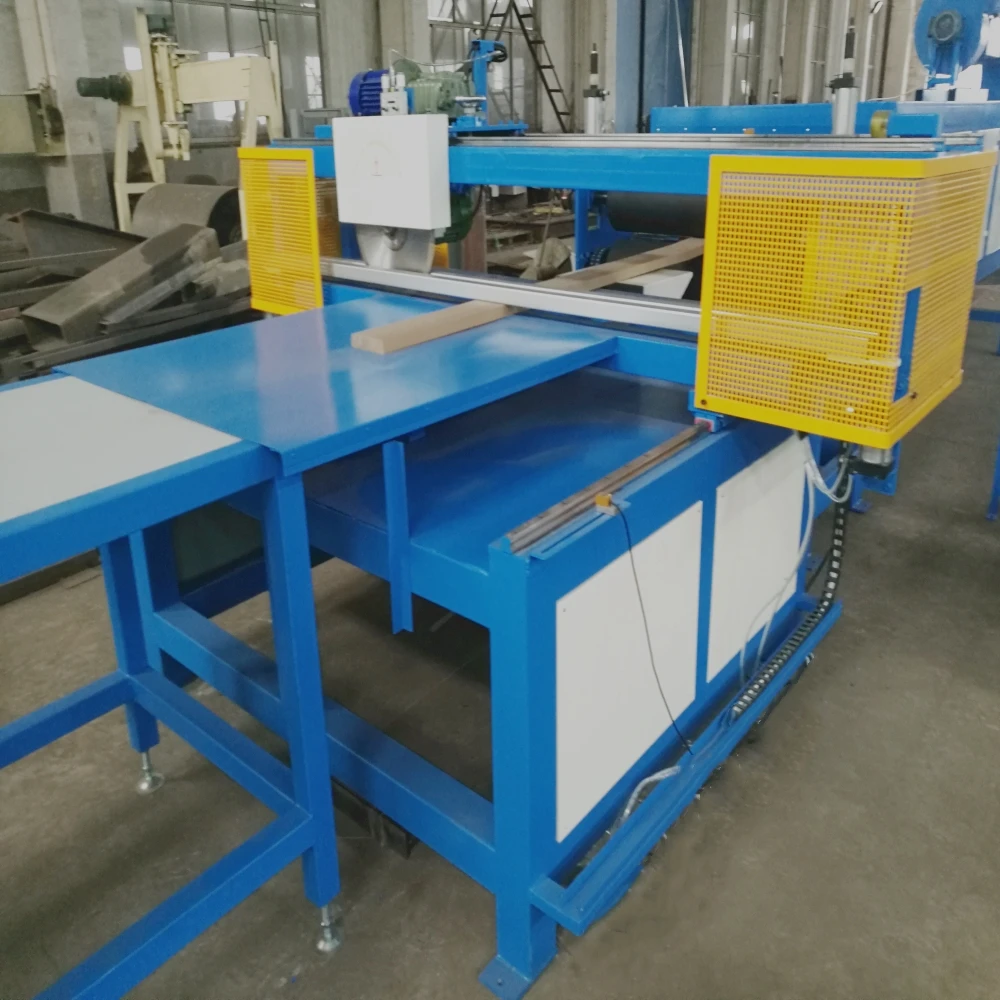

Cross Cutting

•NC control running cutter & Servo system guarantees cutting precise

Packing & Delivery
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Machine Design and Quotation Sheet with Technical Details
* View our Factory and See the Machine Running

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
