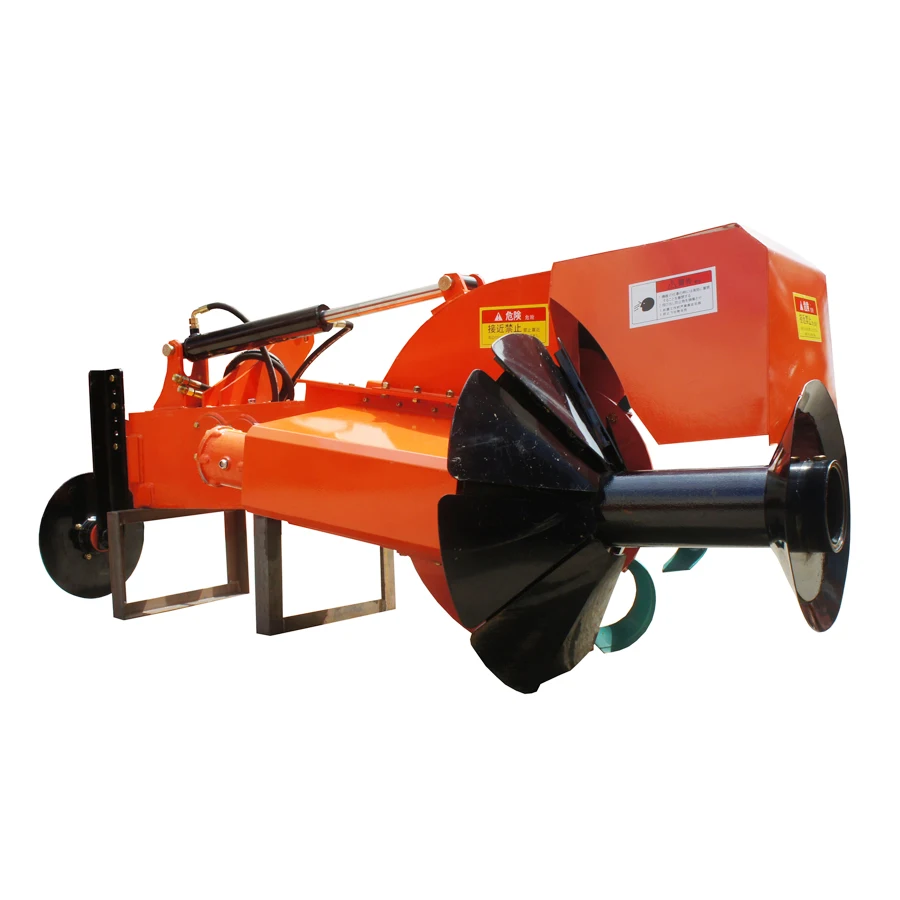

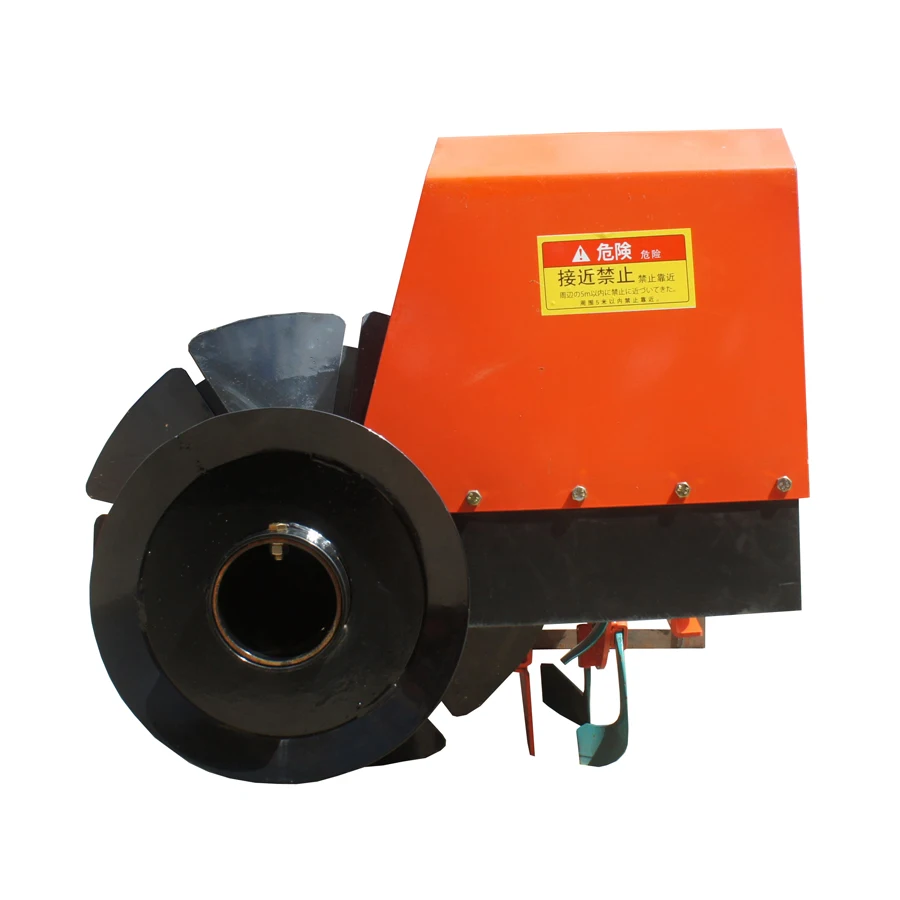

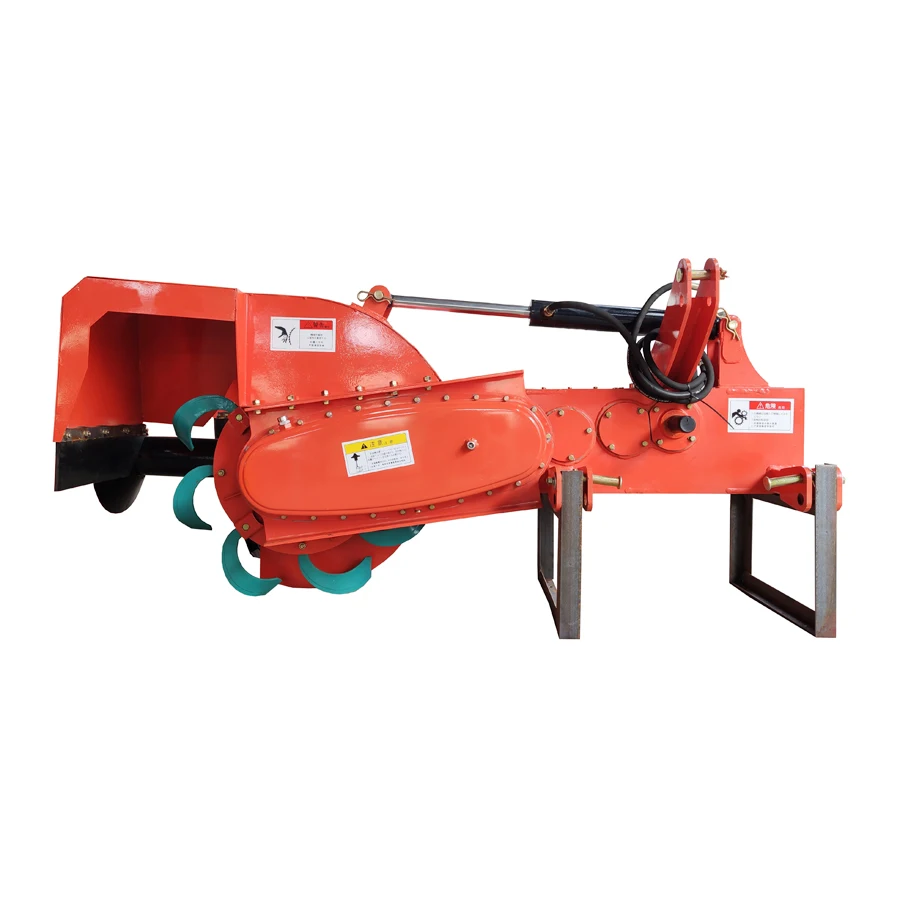

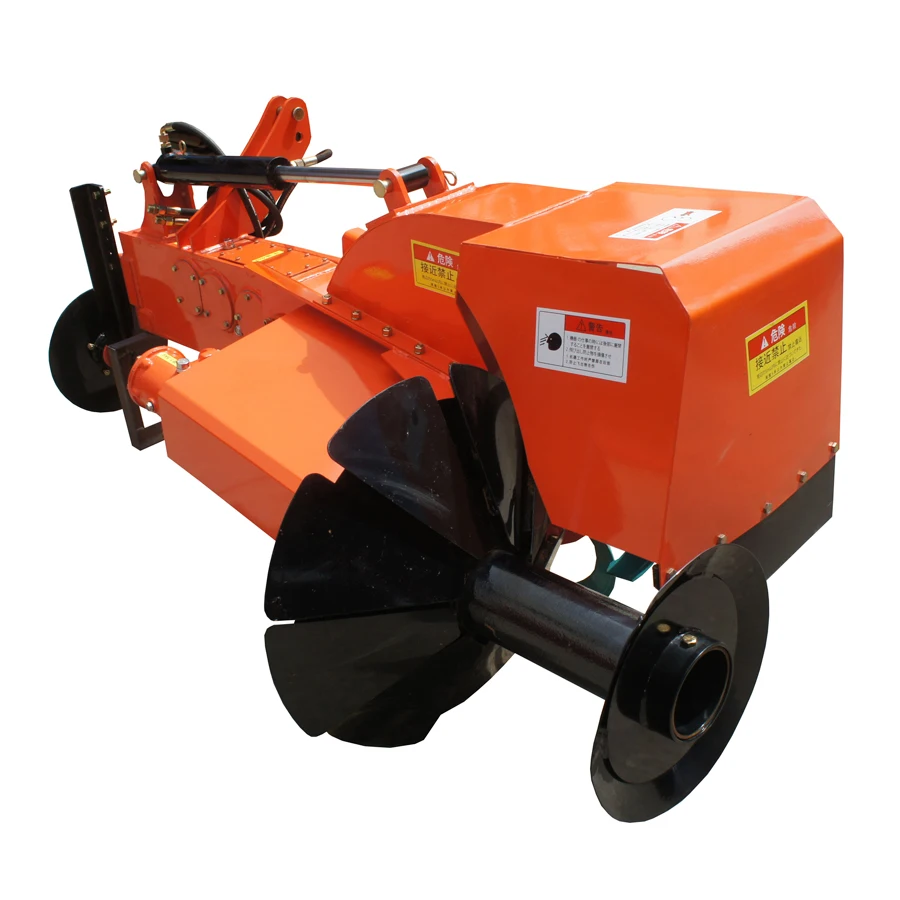

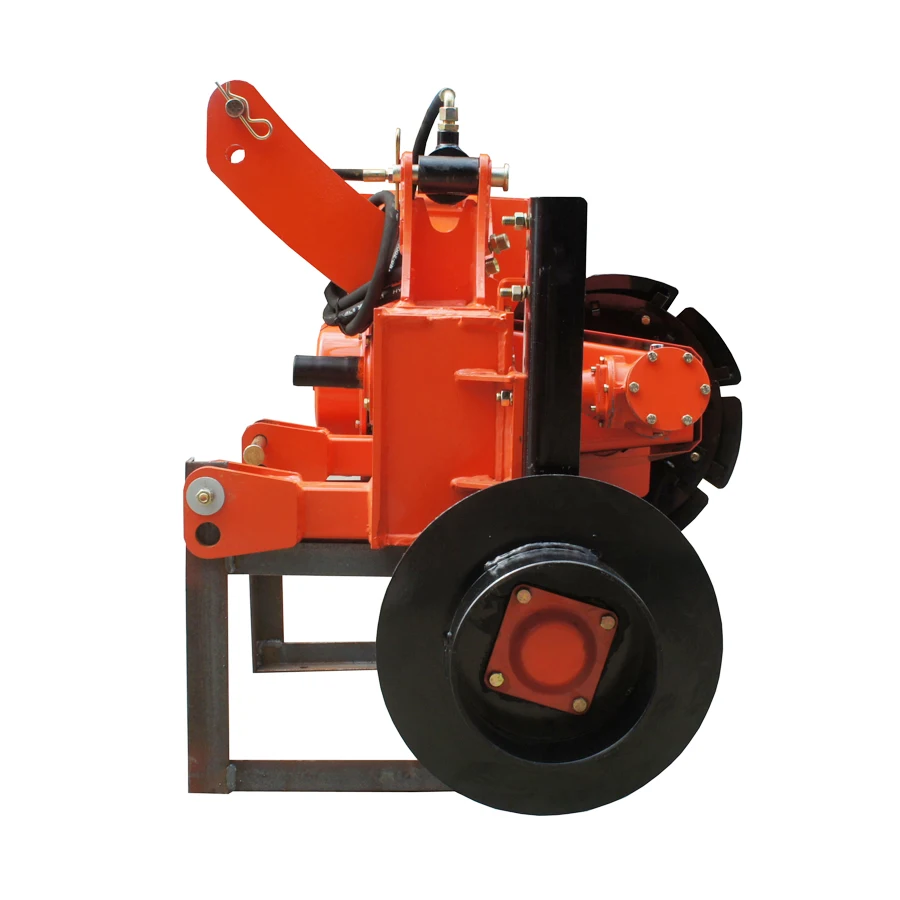

tractor mounted tiller with ridger making
- Category: >>>
- Supplier: Linyi Wali Machinery Co. Ltd.
Share on (60742376814):
Product Overview
Description
Product Description
Product Application
The high quality paddy ridge building machine, working with 45-130hp farm tractor, can caltivate the earth, forming and tightly pressing the paddy ridge at one operation. The completed ridge is hard, nice surface, straight and water-resistant. It is the best helper for paddy farmer with high efficiency.
Model \tZGJ-300H
Name \tSingle side ridger making machine
Work speed\t1000-1800 m/h
Configuration tractor\t29.4 kw (40HP) Tractor
Transmission type \ttractor PTO / shaft drive
on-link mode\tAfter the tractor mounted
Height adjustment\tAfter the tractor mounted / hydraulic cylinder adjust
Oil consumption\t≤3kg/km
Overall size \tLength 950mm
\tWidth 2040 mm(working) width1150 mm (moving)
\tHeight 1000 mm
Net weight \t260 KG
Speed \t240-280 r/min
Optimum operation conditions\tThe soil moisture content 30% - 30%
Main Features
1) Drive type: gear box and chain dirve .
2) Multipurpose: rice paddy field ridger making machine and build Canal.
3) Material: Alloy shovel and Manganese steel shrapnel.
4) It can be operated in frozen soil environment.
Detailed Images
Machine Parts

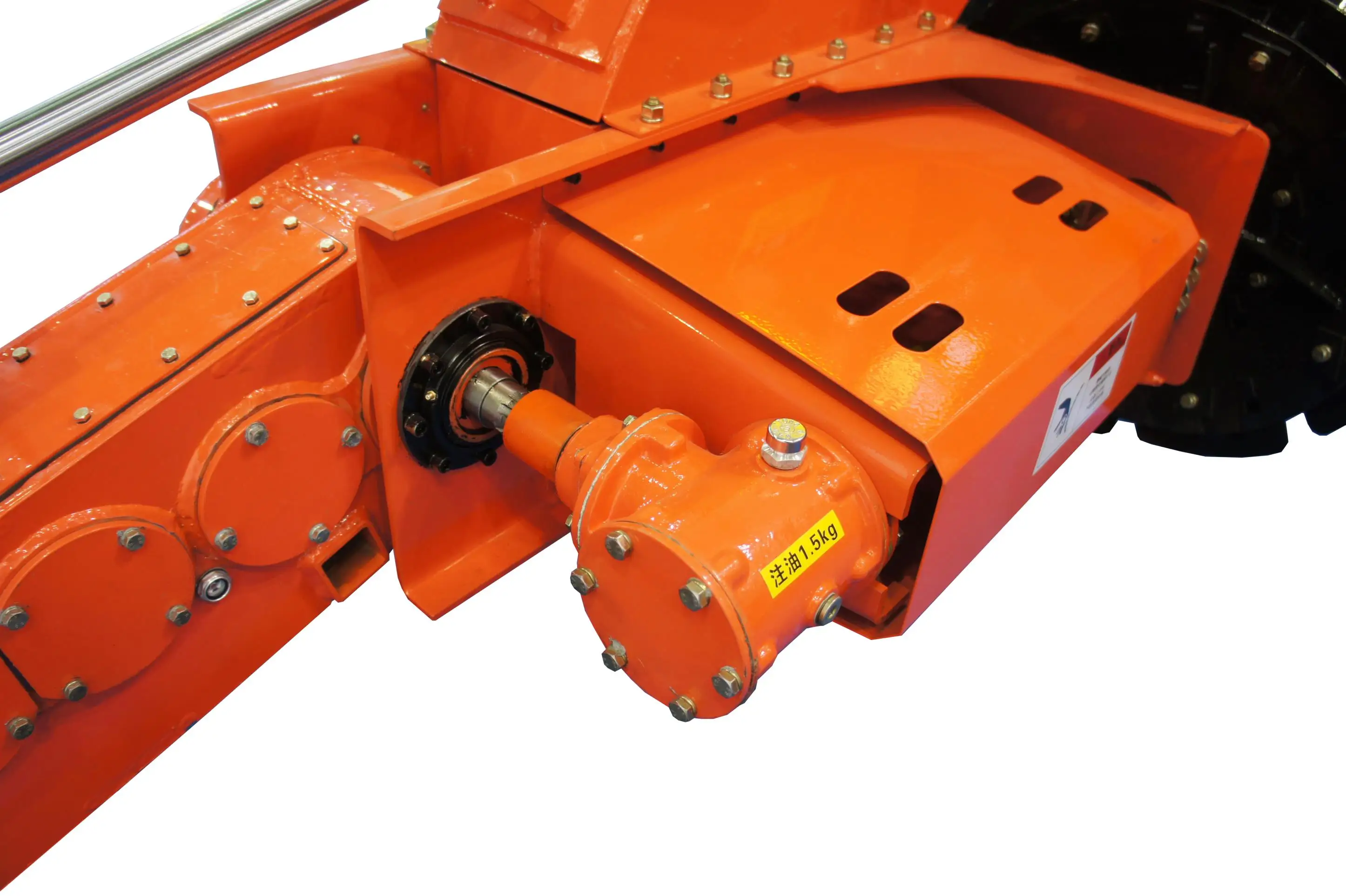

Name: Gear box drive and Transmission shaft drive
Brand: WALI NONGZHUANG
Original: CHINA
Main Features

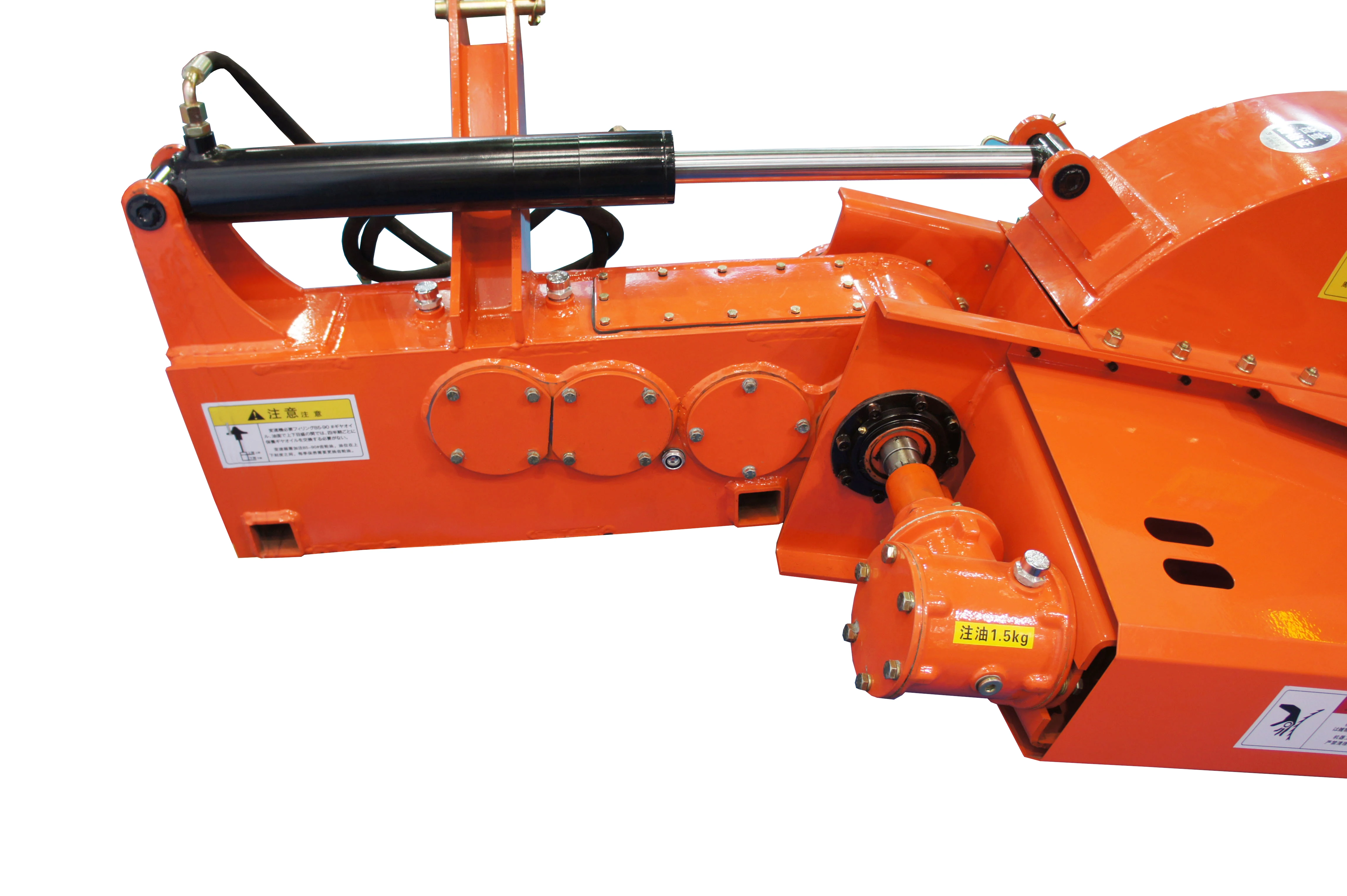

Name: Hydraulic cylinder adjust the ridger height
Brand: WALI NONGZHUANG
Original: CHINA
Machine Parts

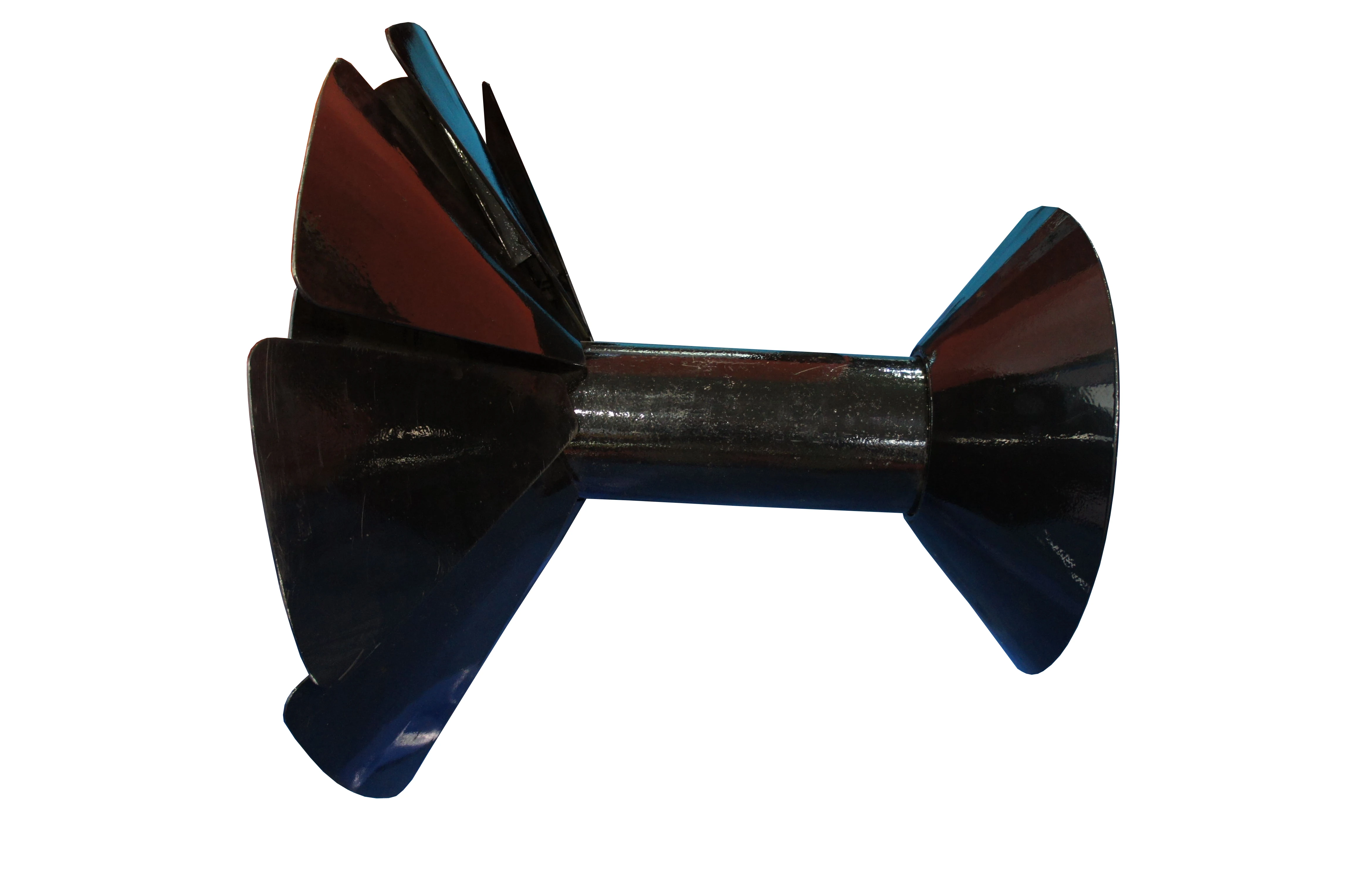

Name: Terrace roller
Brand: WALI NONGZHUANG
Original: CHINA
Main Features

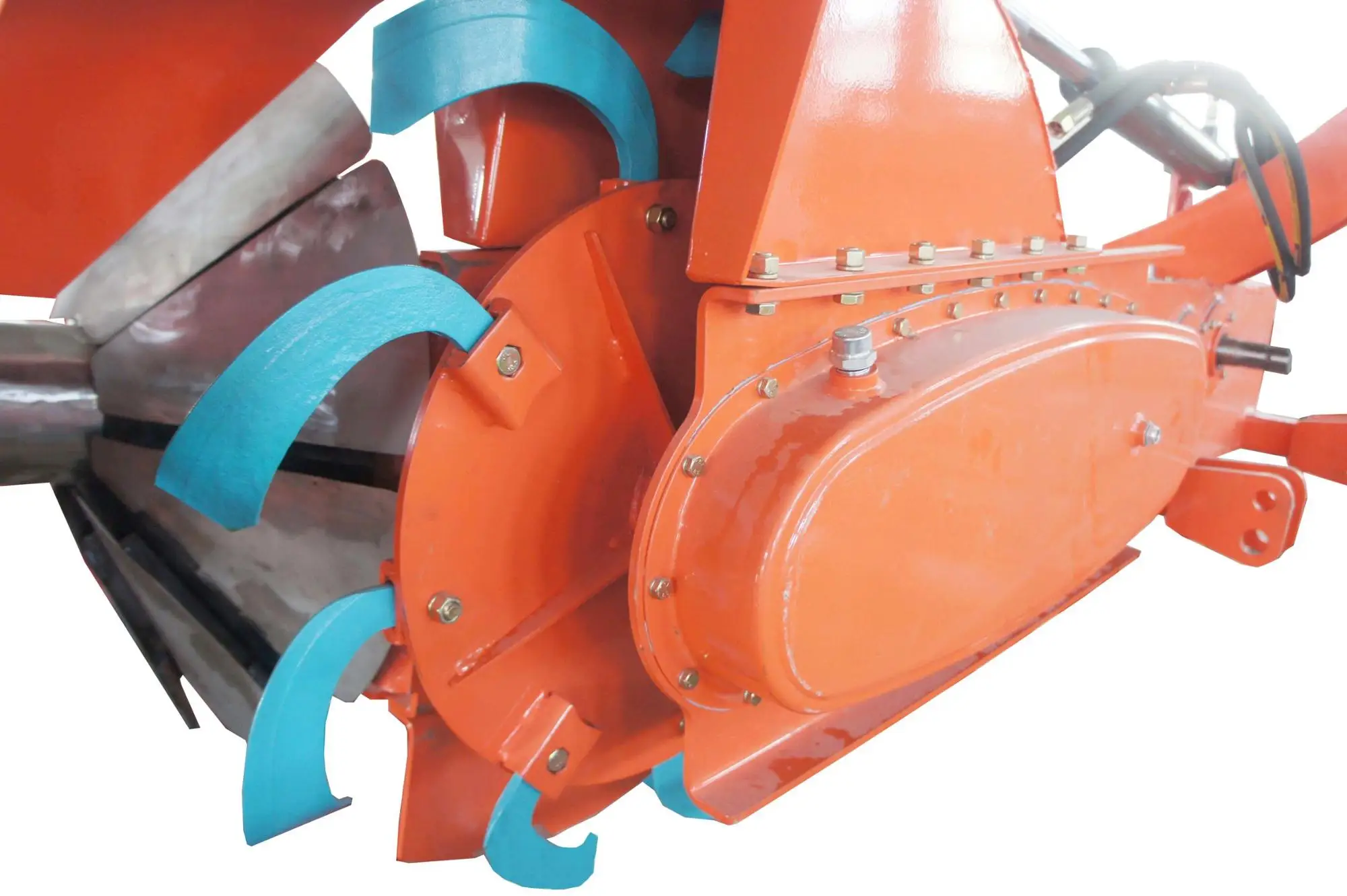

Name: Cultivator tiller rotary blade
Brand: WALI NONGZHUANG
Original: China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 2050x940x700 mm | |
Weight | 350 KG | |
Packaging Details | The normal package is wooden box(Size: 2050x940x700 mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2050x940x700 mm | |
Weight | 350 KG | |
Packaging Details | The normal package is wooden box(Size: 2050x940x700 mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
