Fast cutting speed advanced CO2 Laser wire stripping machine for nonmetal on sale
1.Technical Parameters:
Type
LB-SW100
Laser Power
0-60W serially adjustable
Laser wavelength
10640nm
Excellent design
Dual tube and double optical path design
Working area
70x70mm-110x100mm
Marking speed
≤7000mm/s
Minimum Linewidth
0.05mm
Repeated precision
±0.003mm
Coolling system
Water-cooling
Power supply
AC220V/50Hz
Power consumption
0.5KW
Dimension
1810x850x1400mm

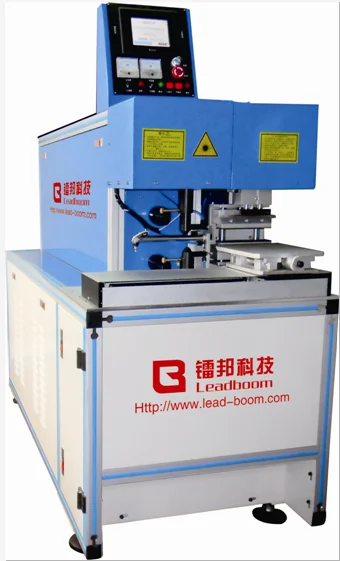

2.Product overview
LB-SW100 laser stripping machine is the newly developed and integrated multi-functions laser stripping machine. Totally new processing mode can meet various requirements.
3. Advantages

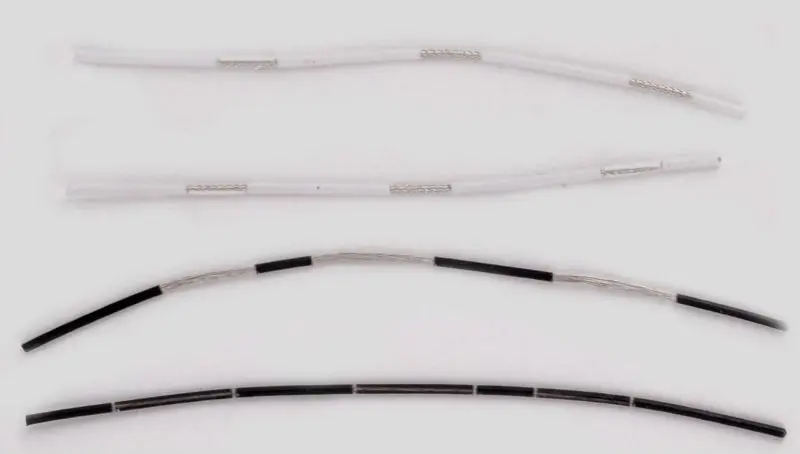

Used specifically for core sheath stripping with adjustable dimensions and positions, in particular, specific to multi-stage mid-stripping and window opening. The core wire can be stripped at one time without mechanical or manual pull-away. Compared to conventional method, it exponentially improved the efficiency.
Adopt dual tube and double optical path design, so as to output light with elevated efficiency.
Use two sets of high-speed driving system to achieve high processing precision and reduce noise level.
Use industrial personal computer and professional software to arbitrarily set and adjust processing dimensions and positions. Processing data can be arbitrarily saved.
Be able to adjust upper and lower laser head focusing in line with the tool size. The accessible and adjustable structure can be precisely adjusted with the aid of staff gauge.
The insulation performance of conductor makes no changes before and after laser stripping.
The machine can be also used for aluminum foil slitting.

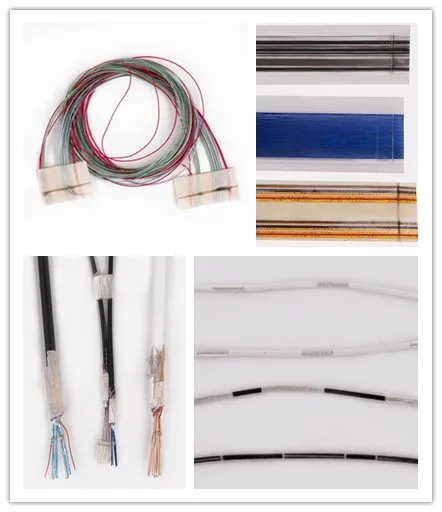

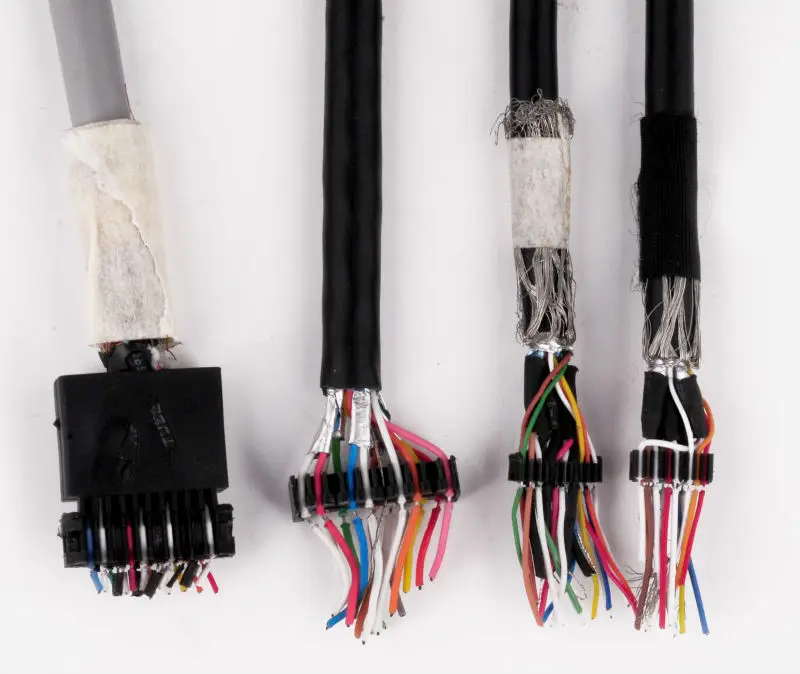

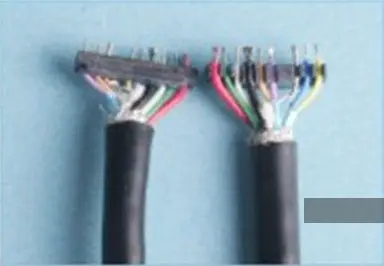

4.Application Material & field:

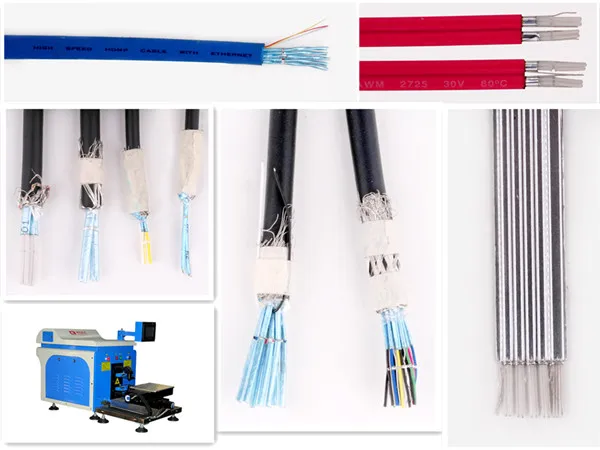

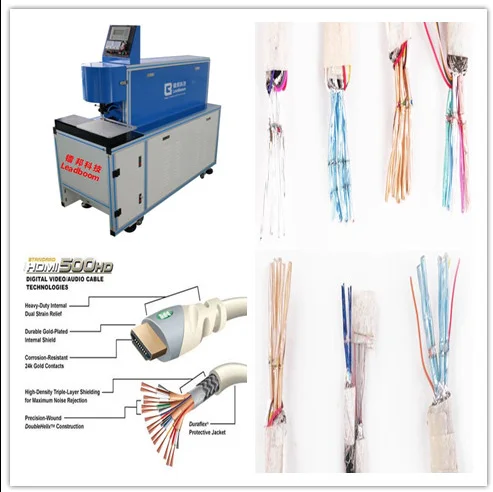

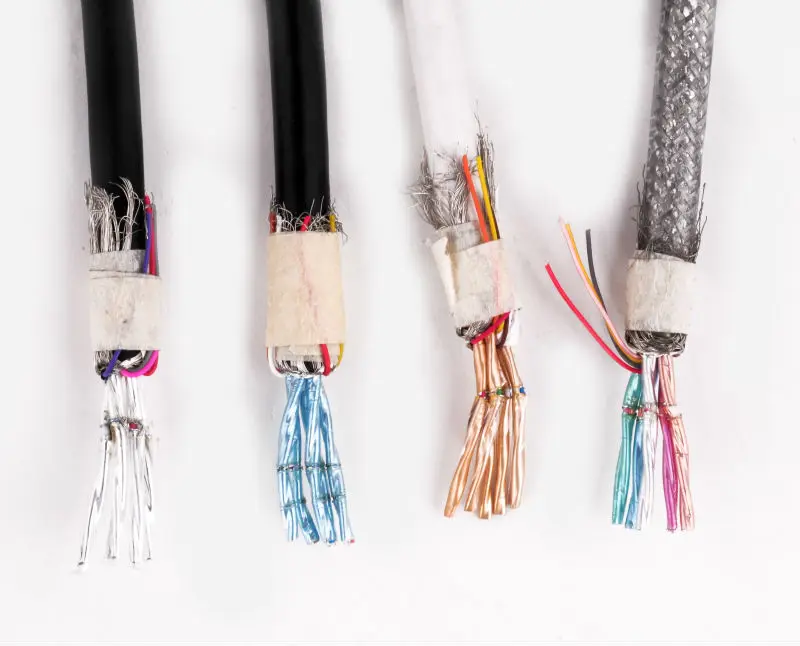

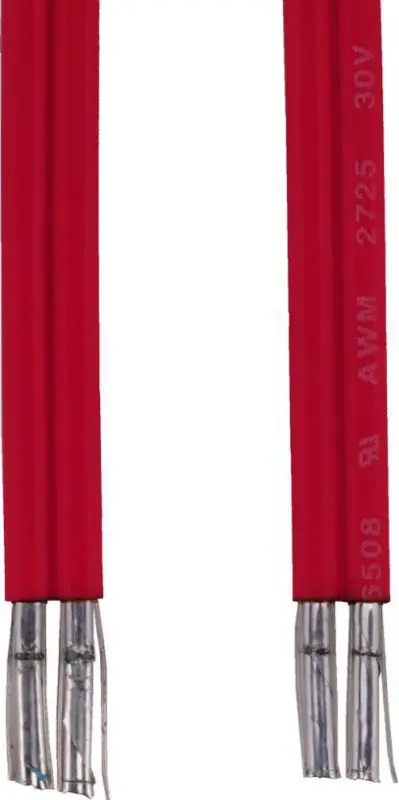

Materials: Filament, mini-filament coaxial cables, electronic cable industry and HDMI, USB, DVI, DP, SATA, SFP and other aluminum foil and corn wire stripping ,etc.
Fields: non-metallic materials, including polyvinyl chloride, glass fiber, polyester, polyester film, nylon, polyethylene, fluoride, silicon resin, other different hardness high temperature resistant insulating materials.

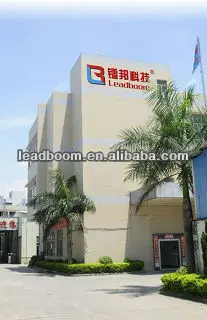

5.Our company
Dongguan Leadboom Photoelectric Technology Co., LTD., is dedicated to researching and developing laser equipments and mass manufacturing for our customers overseas. And we have built long term strategic parterships with the COHERENT, SYNRAD, II VI from the US, and MITSUBISHI, Panasonic from Japan, and Rofin, IPG from Germany,etc. Our main products including CO2 laser wire stripping machine, fiber laser wire stripping machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser cutting machine, laser engraving machine, solid laser welding machine series over 20 sets of laser equipment, etc. Our company takes "quality, innovation, efficiency, service" as business target and is now growing fast with our partner and client together. And we also believe that the basis of a enterprise development is the attitude of pursuing excellence and the support from customers will strengthen our confidence. The only device can no longer stand for our technology, we are offering the solutions. Let’s cooperate together for the brighter future!

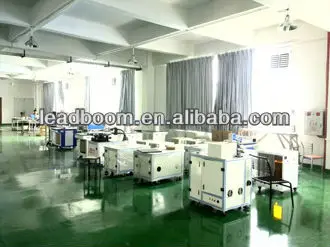

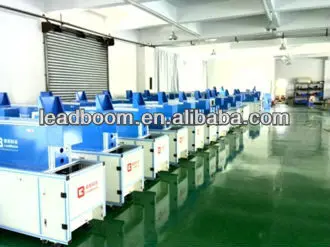

6.Our Workshop
FAQ
1.What are the main products of your company?
Our main products include laser engraving machine, laser cutting machine, laser marking machine and laser welding machine.
2.What are the advantages of your laser equipments?
Firstly, high quality and precision are the featured properties of our laser equipment. Our laser machine employs the domestic leading "Smart Engraving" technology, which could clearly engrave 2mm claracters and 1mm letters on the materials.
Secondly, compared with the laserpro, universal, trotec, the performance of Delshine laser machine. what's more, our price is the best.
3.How to control the quality when you produce laser equipment?
We introduce in international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser equipment. In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.
4.What countries are your laser machinery sold to?
Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, and other countries.
5.What certification has your company got?
All of our product with CE.
Our Services
1.We will train 1-2 technicists for free. 2.Training details: the machine’s operational principles, the machine’s system and structure, the safety and maintenance, software, the processing technique, and so on. 3.All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period. 4.We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer. 5.We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.
