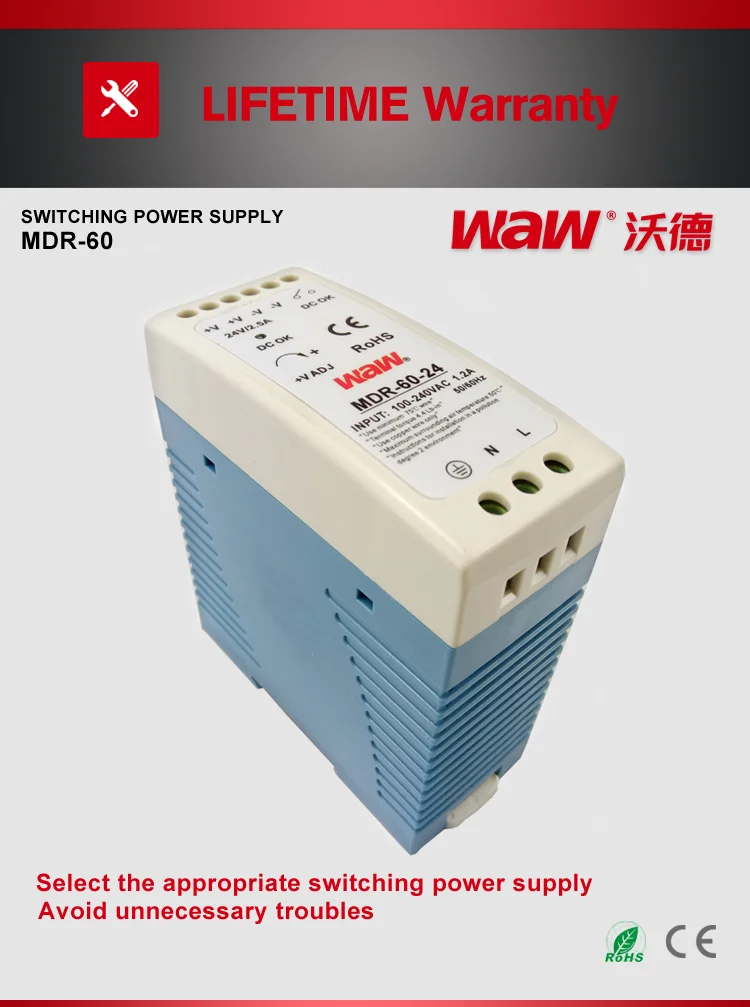

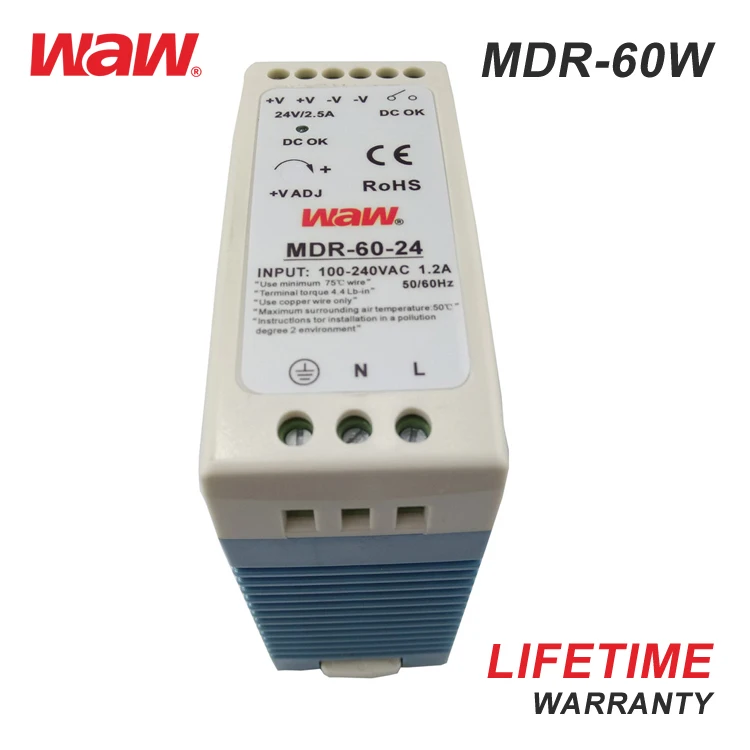

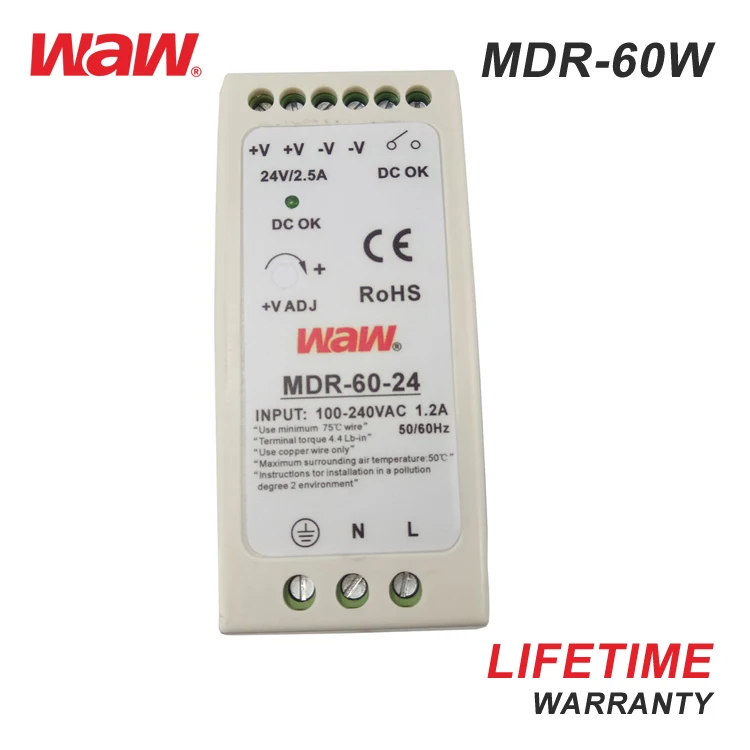

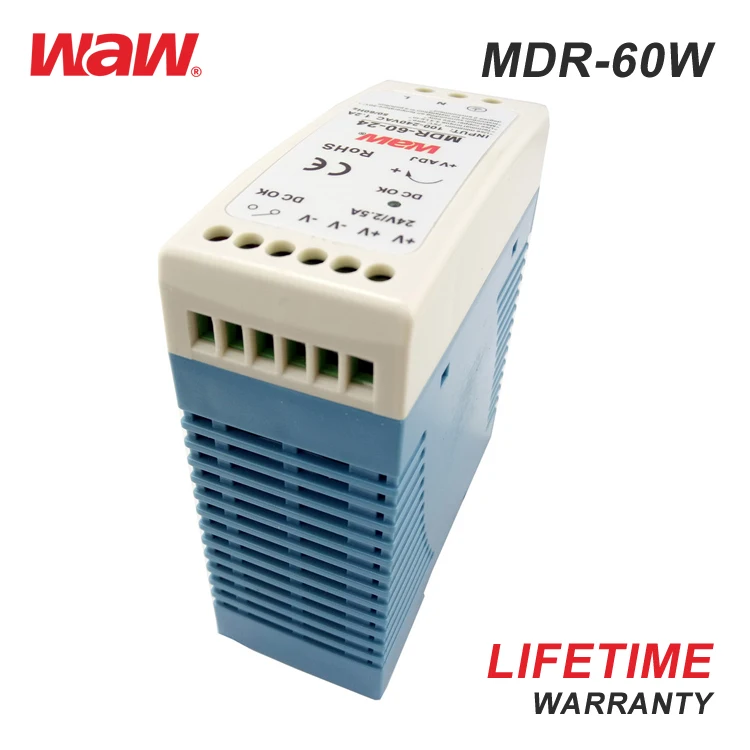

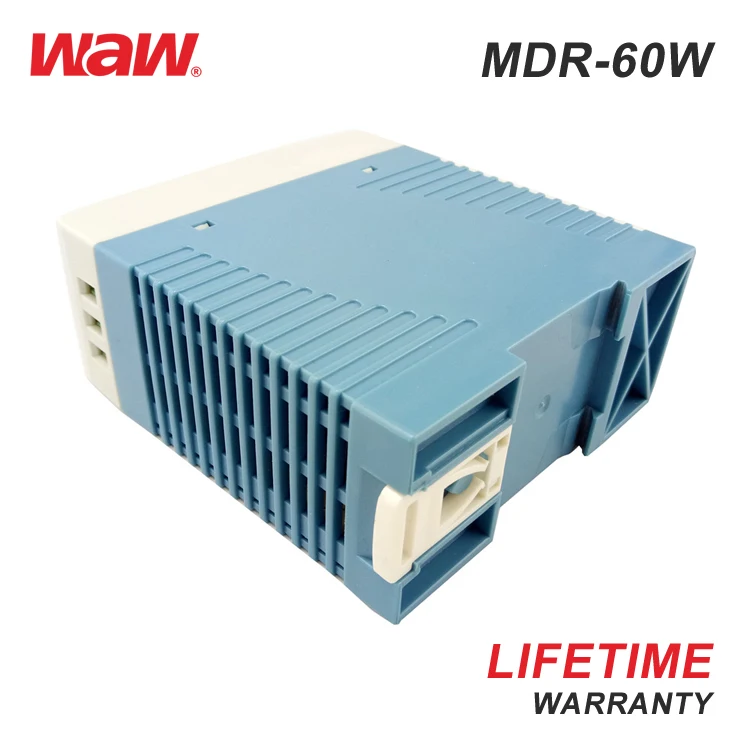

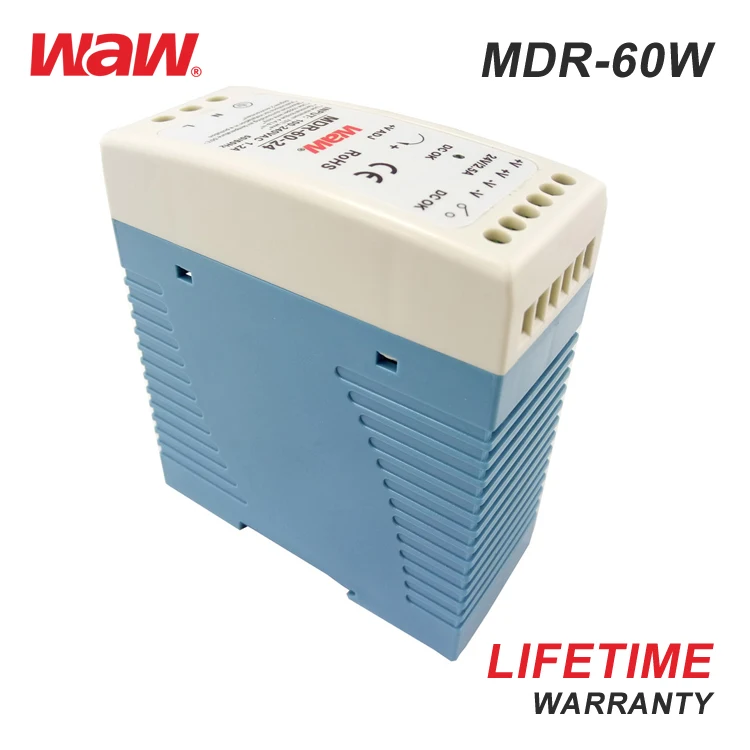

WODE Industrial 24 Volt 2.5A 60W Waterproof Switching Power Supply
- Category: >>>
- Supplier: Yueqing Wode Electrical Co. Ltd.
Share on (60742424910):
Product Overview
Description
Product Description
WODE Industrial 24 Volt 2.5A 60W Waterproof Switching Power Supply
♦ Features
1) High Efficiency And Good Price
2) Built-in EMI Filter
3) 100% Full Load Burn-in Test
4) Low Output Ripple And Noise
5) Protection:Over Load / Over Voltage / Short Circuit
6) Most items could provide adjustable +-10% for output voltage
7) Could meet the demand perfectly both for 220V and 110V input voltage
8) Could provide customized power supply for special output / special input / special protection etc.
*** Please note: We maybe modify the products according to different situation without informing.
| Din Rail Power Supply | ||||||
MODEL | MDR-60-5 | MDR-60-12 | MDR-60-24 | MDR-60-36 | MDR-60-48 | |
OUTPUT | DC voltage | 5V | 12V | 24V | 36V | 48V |
Rated output current | 10A | 5A | 2.5A | 1.67A | 1.25A | |
Output current range | 0-10A | 0-5A | 0-2.5A | 0-1.67A | 0-1.25A | |
DC power | 50W | 60W | 60W | 60W | 60W | |
Ripple and noise | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 21.6 ~ 26.4V | 32.4 ~39.6V | 43.2 ~ 52.8V | |
Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |
line regulation | ±1% | ±1% | ±1% | ±1% | ±1% | |
Load regulation | ±1.5% | ±1% | ±1% | ±1% | ±1% | |
Setup,rise time | 500ms,30ms/230VAC 500MS,30MS/115VAC at full load | |||||
Hold up time | 50ms/230VAC 20ms/115VAC at full load | |||||
INPUT | AC voltage range | AC85~265V wide range 47~63Hz | ||||
Frequency range | 47-63Hz | |||||
Efficiency | 78% | 86% | 88% | 88% | 87% | |
AC current | 1.8A/115VAC 1A/230VAC | |||||
Inrush current | COLD START 30A/115VAC 60A/230VAC | |||||
Leakage current | <1mA/240VAC | |||||
PROTECTION | Overload | Above 105% rated output power | ||||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||
Over-voltage | 5.75-6.75V | 13.8-16.2V | 27.6-32.4V | 41.4-48.6V | 55.2-64.81V | |
protection type:Shut down o/p voltage,re-power on torecover | ||||||
ENVIRONMENT | Working temp. | -25~+70℃ | ||||
Working humidity | 20~90% RH non-condensing | |||||
store temp.,humidity | -40~+80℃,10~95% RH | |||||
Temp. coefficient | ±0.03%/°C (0~50°C ) | |||||
Vibration | I/P-O/P;3KVAC | |||||

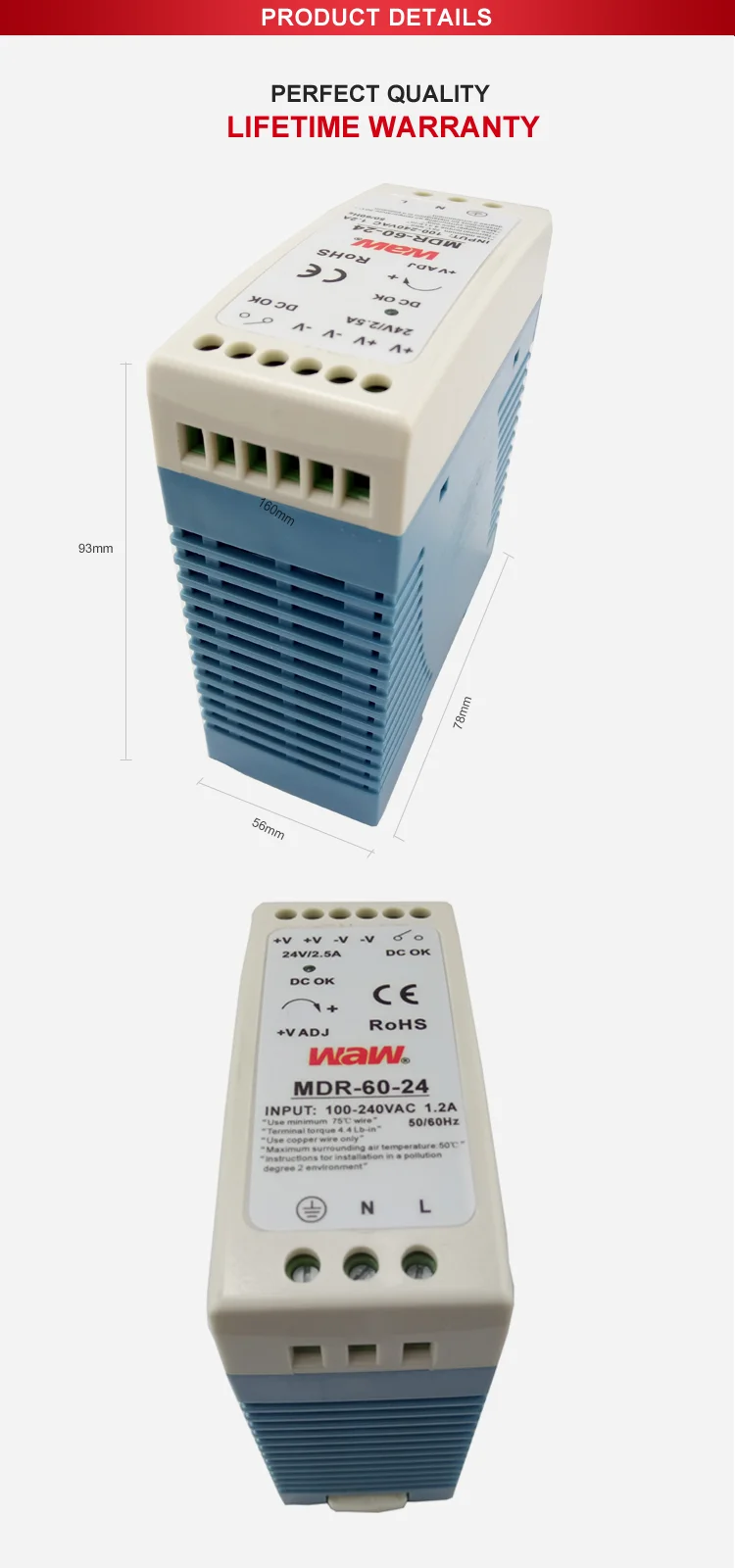

OTHER | Overall dimension | 40*90*100 mm 42pcs/Carton ( common packing ) | ||||
Weight | 0.33Kg | |||||
CERTIFICATE | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | ||||
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | ||||||
CE LVD Authenticate | EN61347-1:2008T A1:2001 EN61347-2-13:2006 | |||||
EN60950-1:2006+A11:2009+A1:2010+A12:2001 | ||||||
ROHS Authenticate | EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 | |||||
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008 | ||||||
Company Information
Wode Electrical Co.,Ltd. was established in 2005 as a professional Power Supply manufacture.Our products cover the following series: Switching Power Supply, water proof IP67 Led driver ,AC/DC converter.These products are widely usde in the fields of LED strip,CCTV system,CNC machine,Outdoors power supply,PLC control system, Interruption accident etc.
