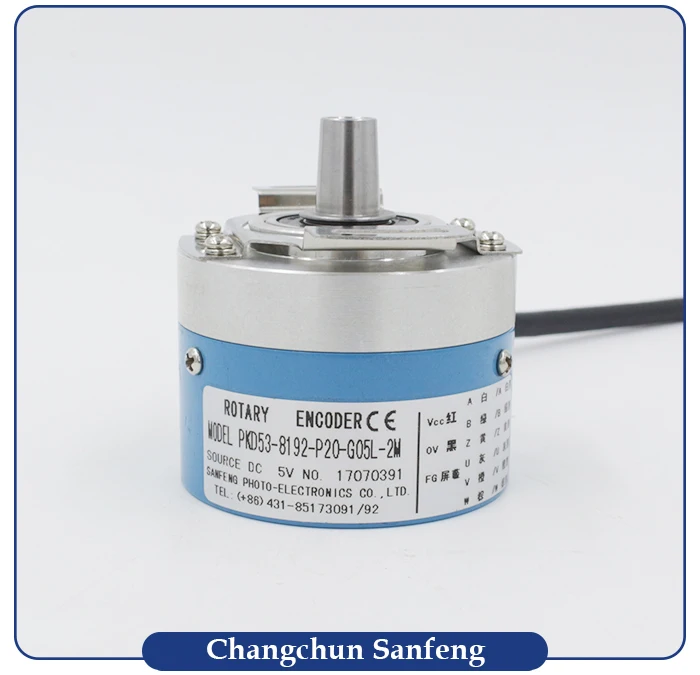

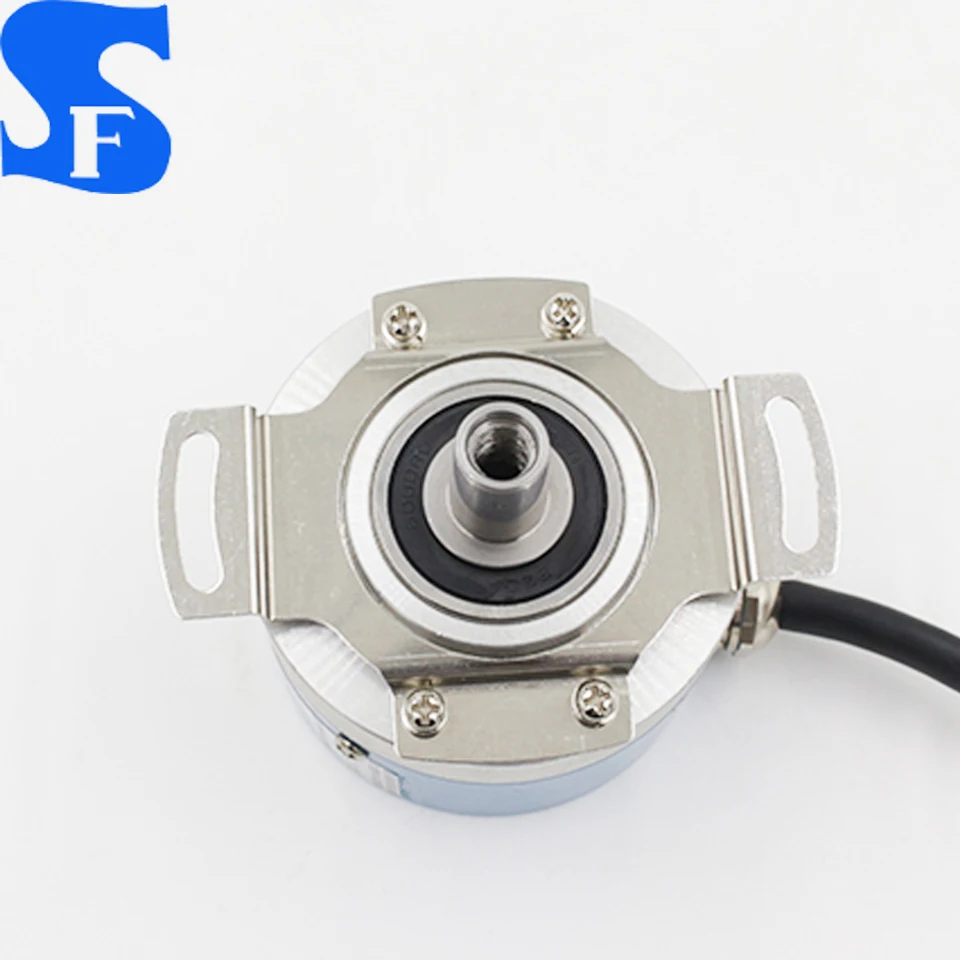

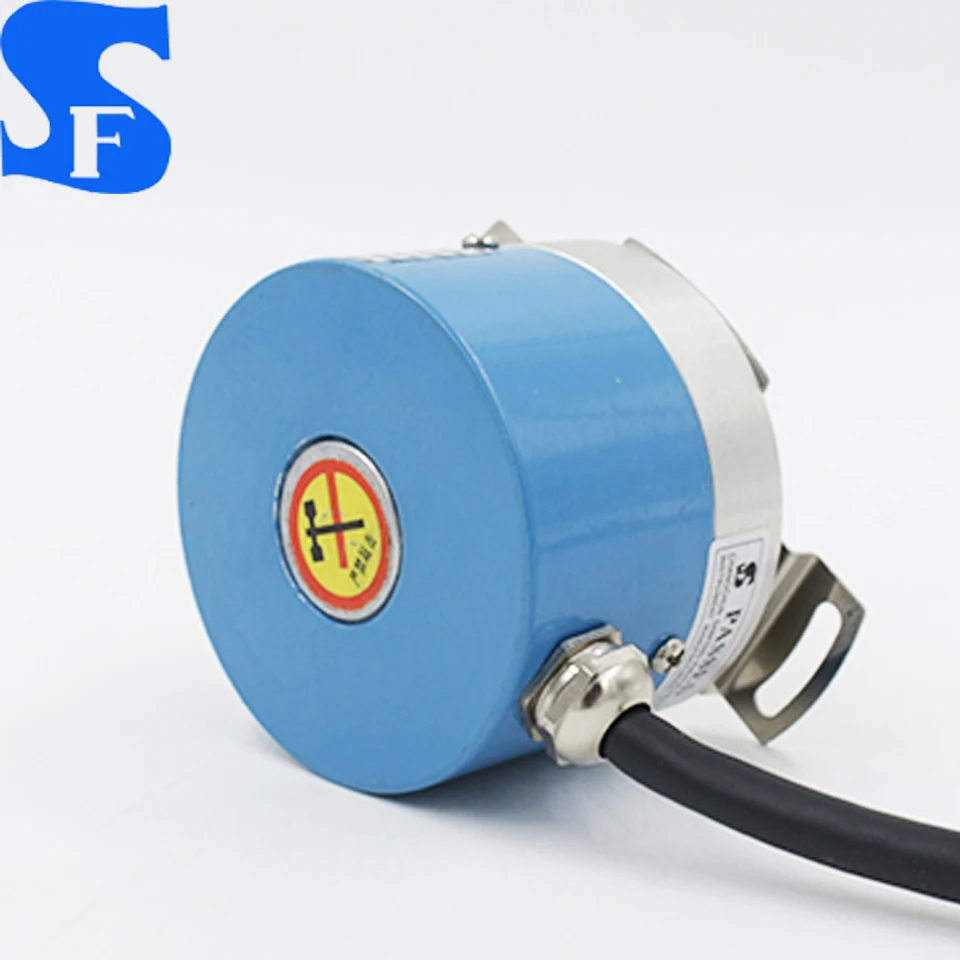

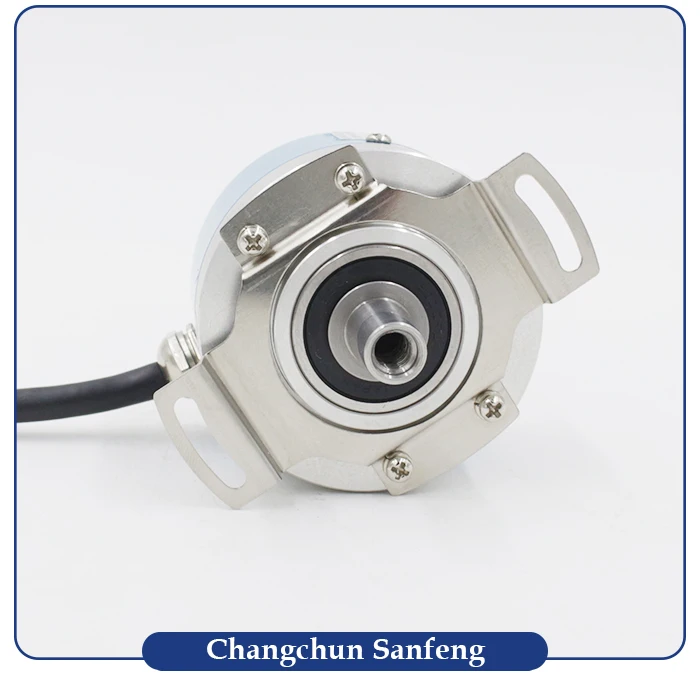

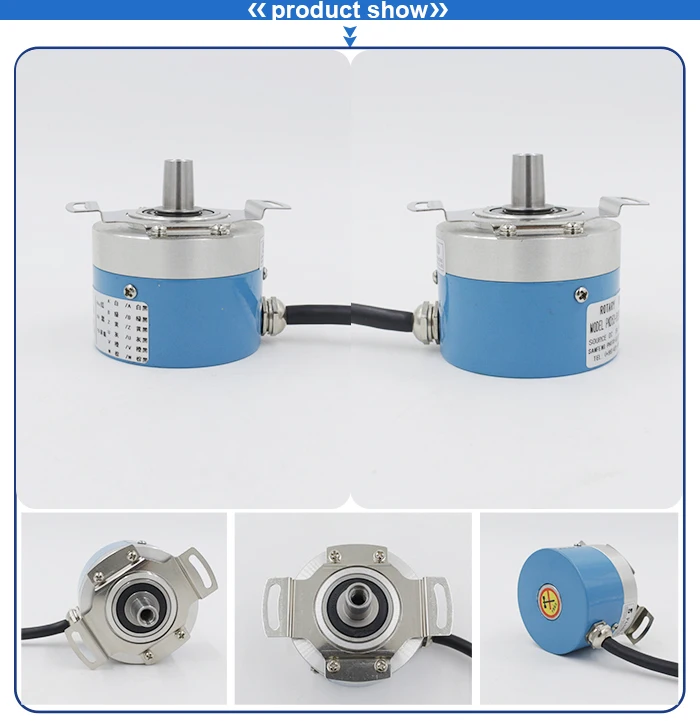

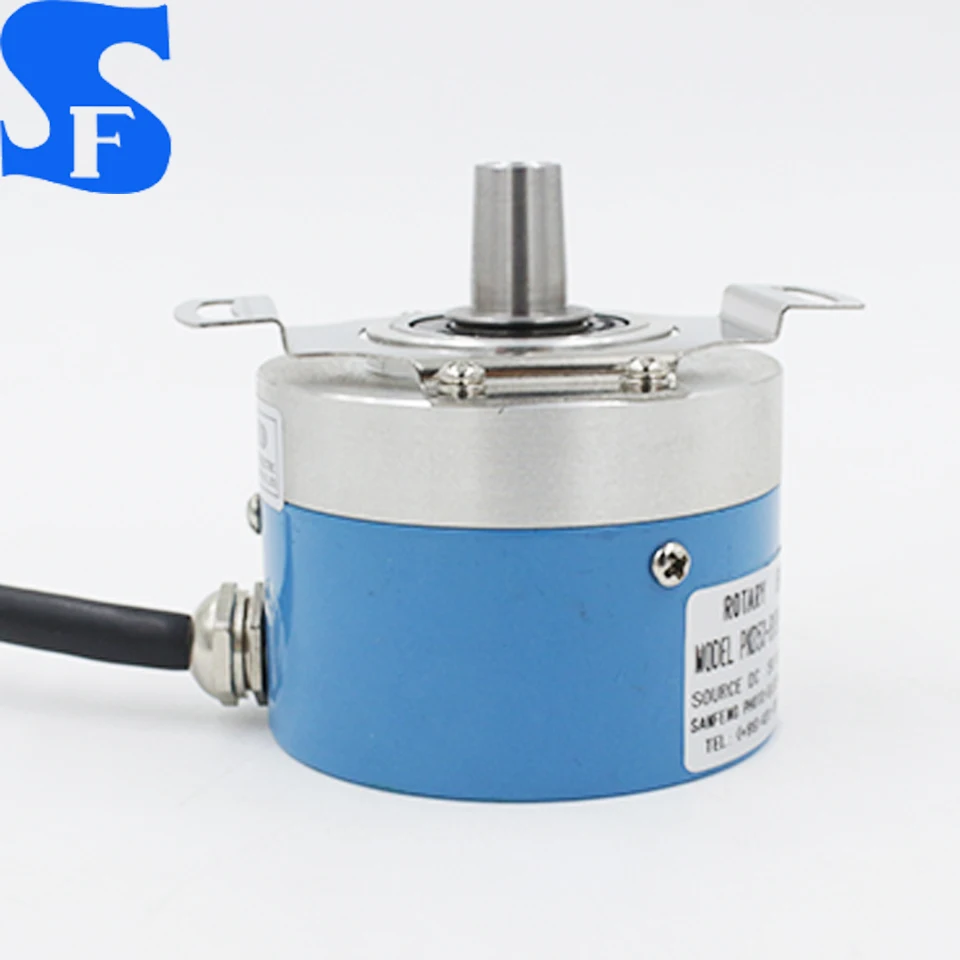

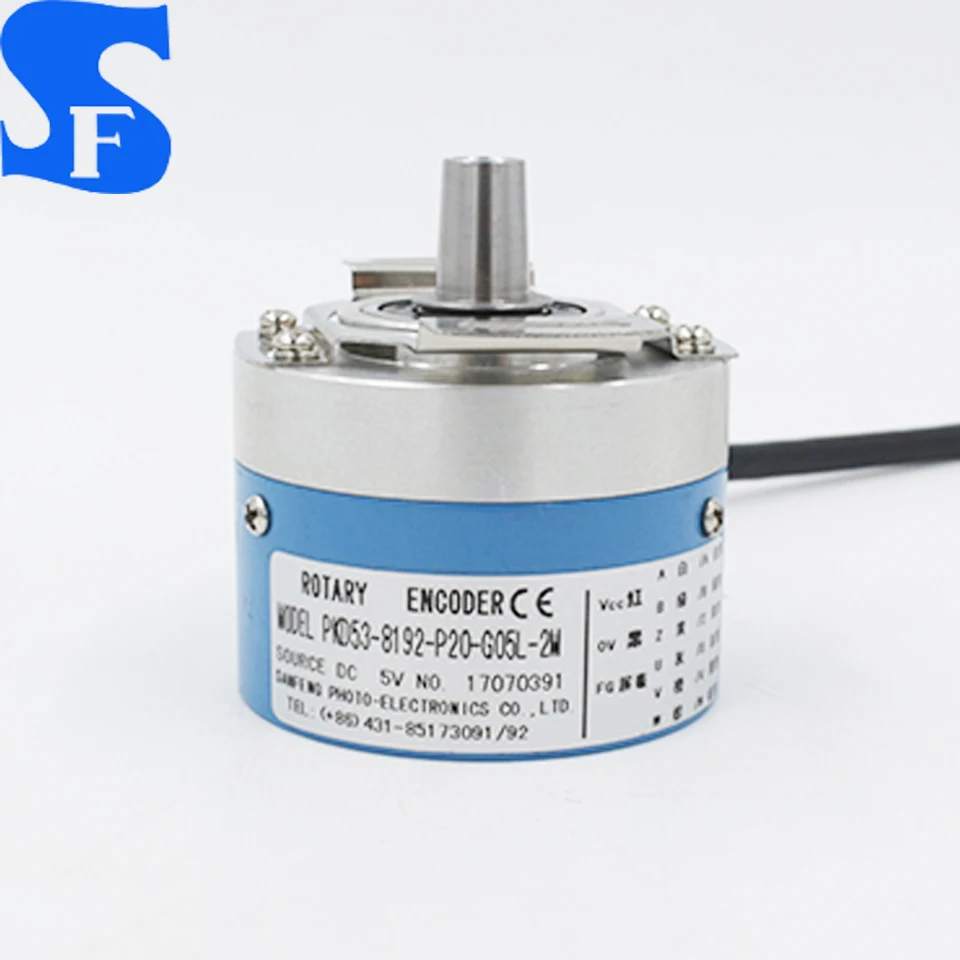

analog sensor gear servo motor encoder with CE certification

Resolution

10~8192P/R

Supply Voltage

DC5V±0.5V

V_H Output Voltage

5V

V_L Output Voltage

≤0.3V

Current Consumption

≤50mA

Output Phase

12 Line Output

Frequency Response

100kHz

Rise / Fall Time

≤1μS

Starting Torque

2*10^-3N*m(+25℃)

Starting Loading

Radial

80N

Axial

20N

Rotating Inertia

2*10^-6Kg*m²

Max Rotating Speed

10000r/min

Vibration Resistance

50m/s²(10-200Hz)(3 Times in xyz Direction)

Shock Resistance

980m/s²(3 Times in xyz Direction)

Protection

IP54

Operating Temperature

-20℃~+120℃

Storage Temperature

-30℃~+100℃

Operating Humidity

30~85%RH

Weight(no cable)

0.2Kg

Accessories

Elastic Connector

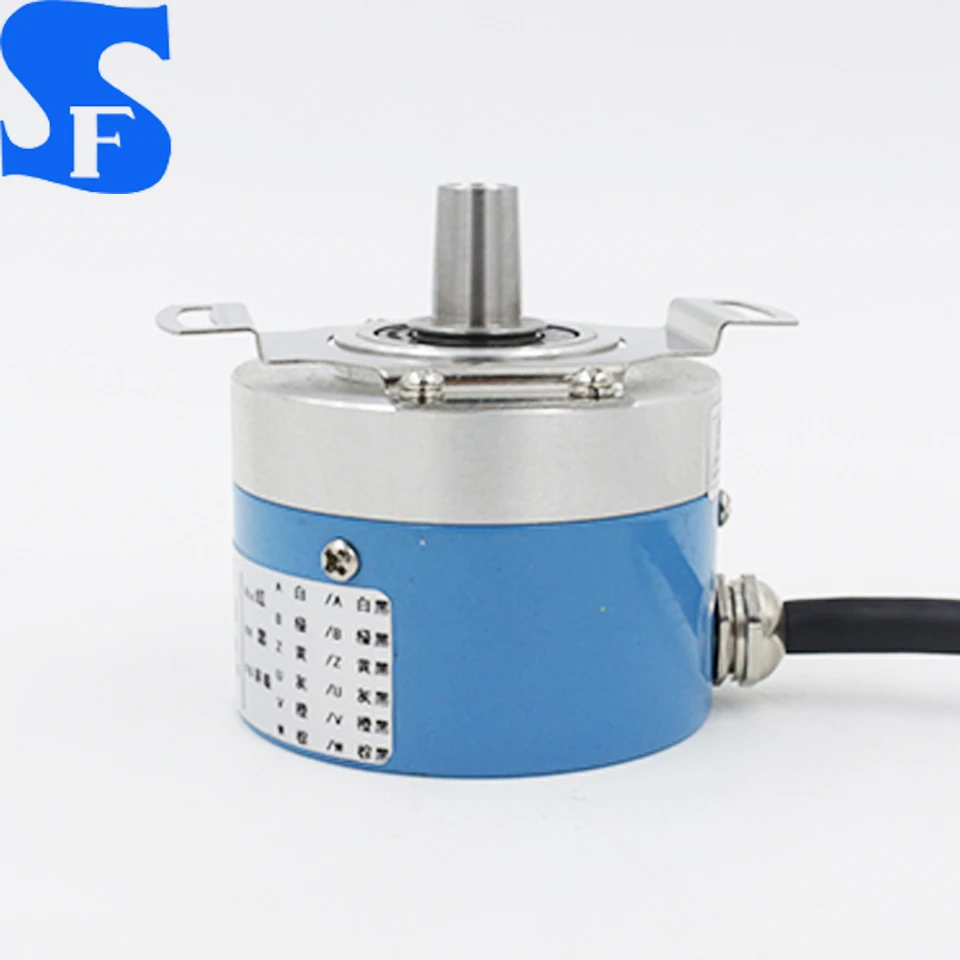

Cable Color

Red

White

Green

Yellow

Brown

Grey

Orange

Shield

Signal

5V

A

B

Z

U

V

W

FG

Cable Color

Black

Black

/White

Black

/Green

Black

/Yellow

Black

/Brown

Black

/Grey

Black

/Orange

Signal

0V

A(_)

B(_)

Z(_)

U(_)

V(_)

W(_)

Are you a trading company or a manufacturer?

We are a manufacturer of 20 years experience.

Do you accept OEM brand?

Accept large OEM brand customers, or a large number of customers.

Does your product have a factory inspection?

Every product we send is strictly factory inspection.

How long will you ship the goods?

Our delivery time ranges from 3 days to 3 weeks.

Can you provide free samples?

Regular products provide samples according to the original price. Customized products are provided at cost price.

What kind of packing do you send?

We use high-quality corrugated paper packing box, internal environmental protection buffer material.

What is our loading port?

Dalian port, or apply for other ports.

How long is your quality guarantee period?

The guarantee period for our products is one year.
