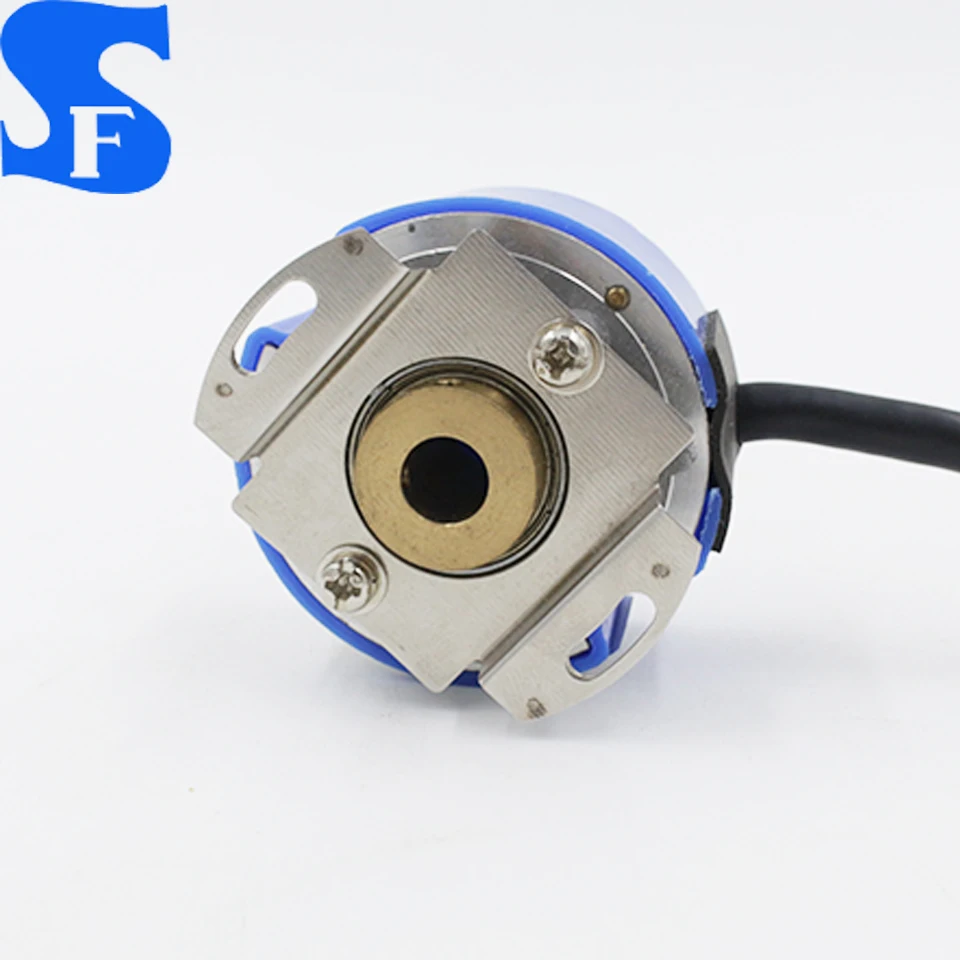

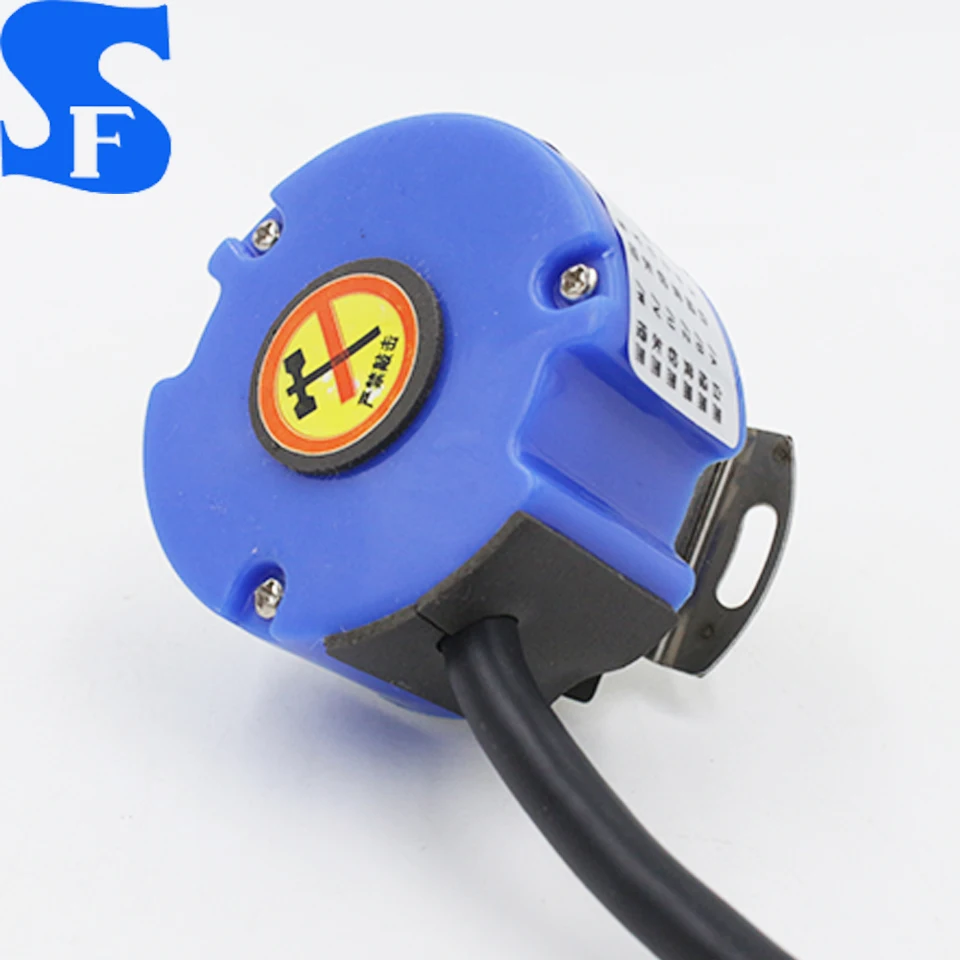

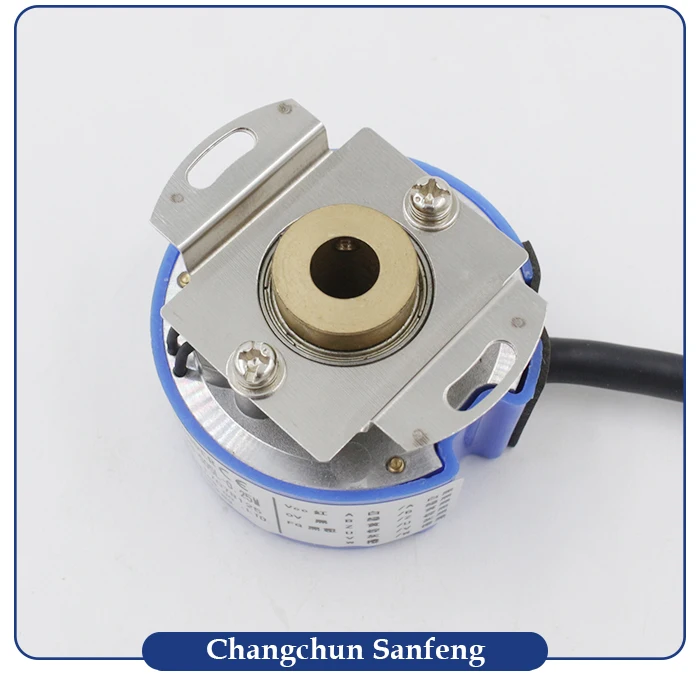

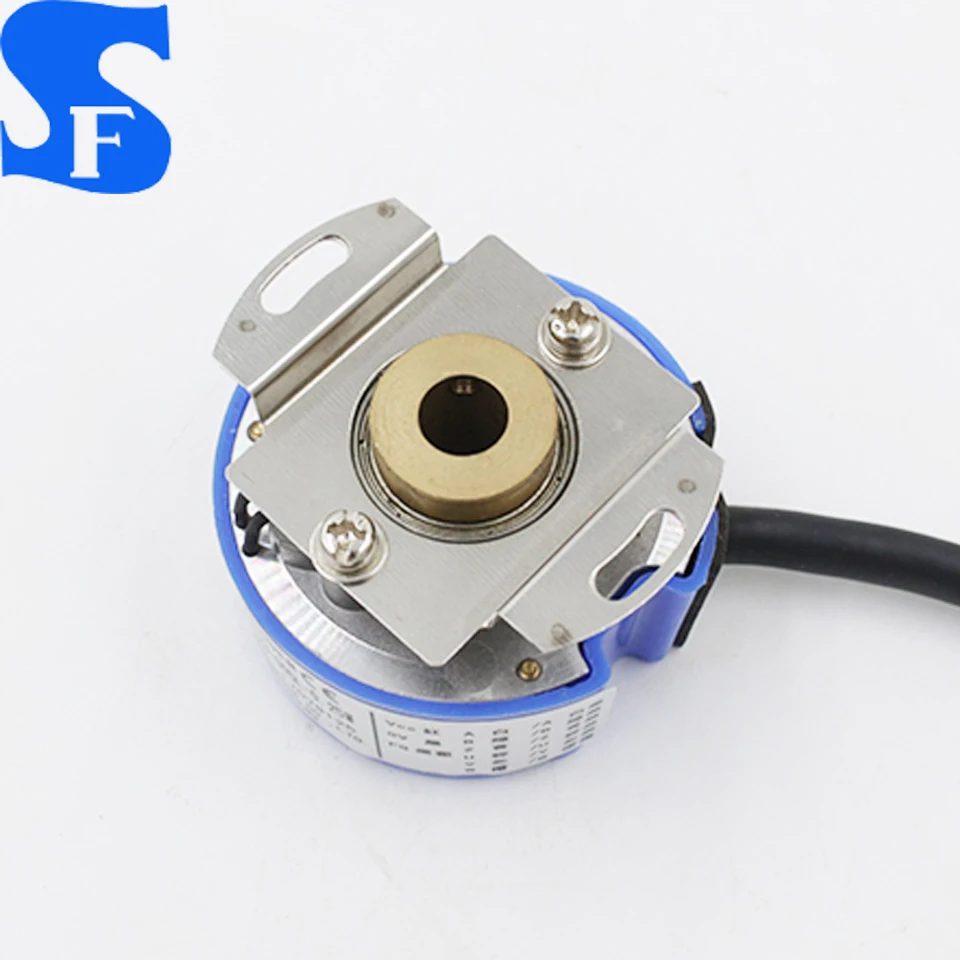

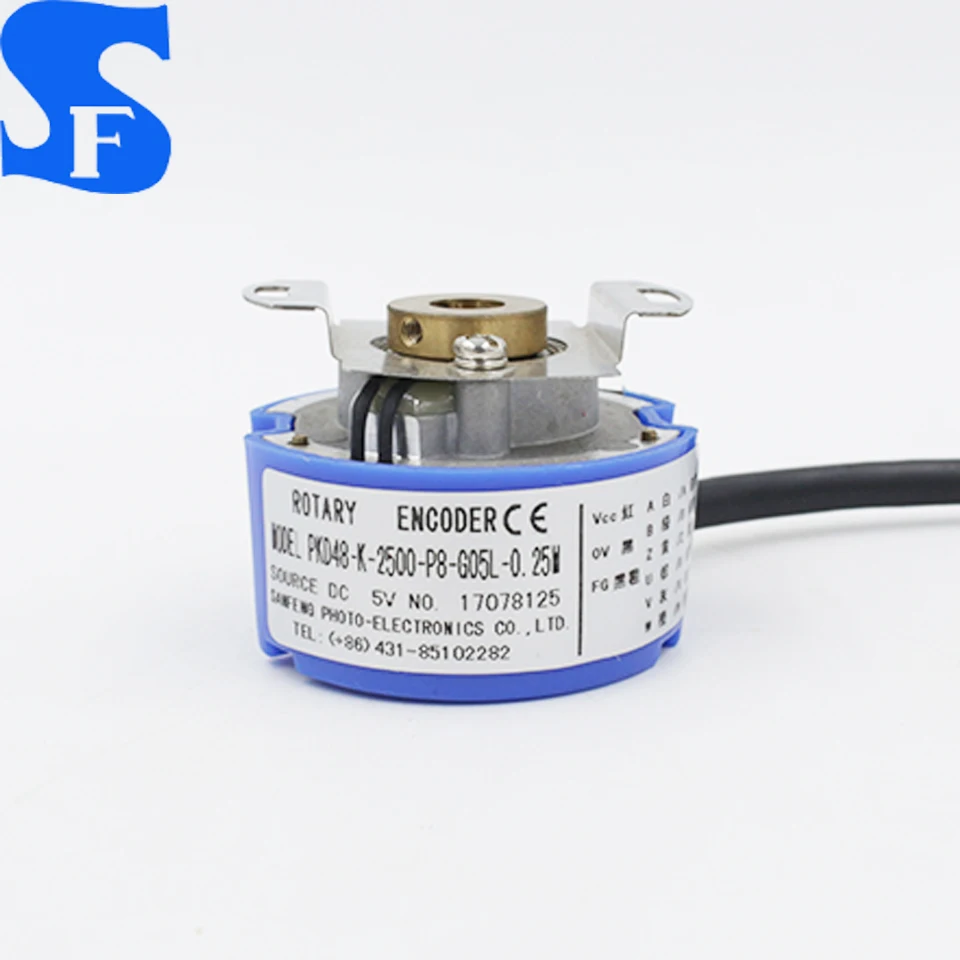

tamagawa type 9mm taper hollow shaft rotary encoder for servo nomtor and elevator PKD48 K9 2500 P8 G05L
- Category: >>>
- Supplier: CHANGCHUN SANFENG OPTICAL ENCODER CO. LTD
Share on (60742538838):
Product Overview
Description
tamagawa type 9mm taper hollow shaft rotary encoder for servo nomtor and elevator PKD48-K9-2500-P8-G05L
Resolution | 100~5000P/R | |||
Supply Voltage | DC5V±25% | |||
VH Output Voltage | ≥2.5V | |||
VL Output Voltage | ≤0.5V | |||
Current Consumption | ≤250mA | |||
Output Phase | A.B.Z.U.V.W | |||
Frequency Response | 200kHz Max | |||
Rise / Fall Time | ≤1μS | |||
Starting Torque | 5*10-3N*m(+25℃) | |||
Starting Loading | Radial | 10N | Axial | 10N |
Rotating Inertia | 1*10-5Kg*m2 | |||
Max Rotating Speed | 5000r/min | |||
Vibration Resistance | 49m/s2(10-200Hz)(3 Times in xyz Direction) | |||
Shock Resistance | 980m/s2(3 Times in xyz Direction) | |||
Protection | IP50 | |||
Operating Temperature | -10℃~+70℃ | |||
Storage Temperature | -20℃~+80℃ | |||
Operating Humidity | 30~85%RH | |||
Weight(no cable) | 0.3Kg | |||
Accessories | Elastic Mounting Plate | |||

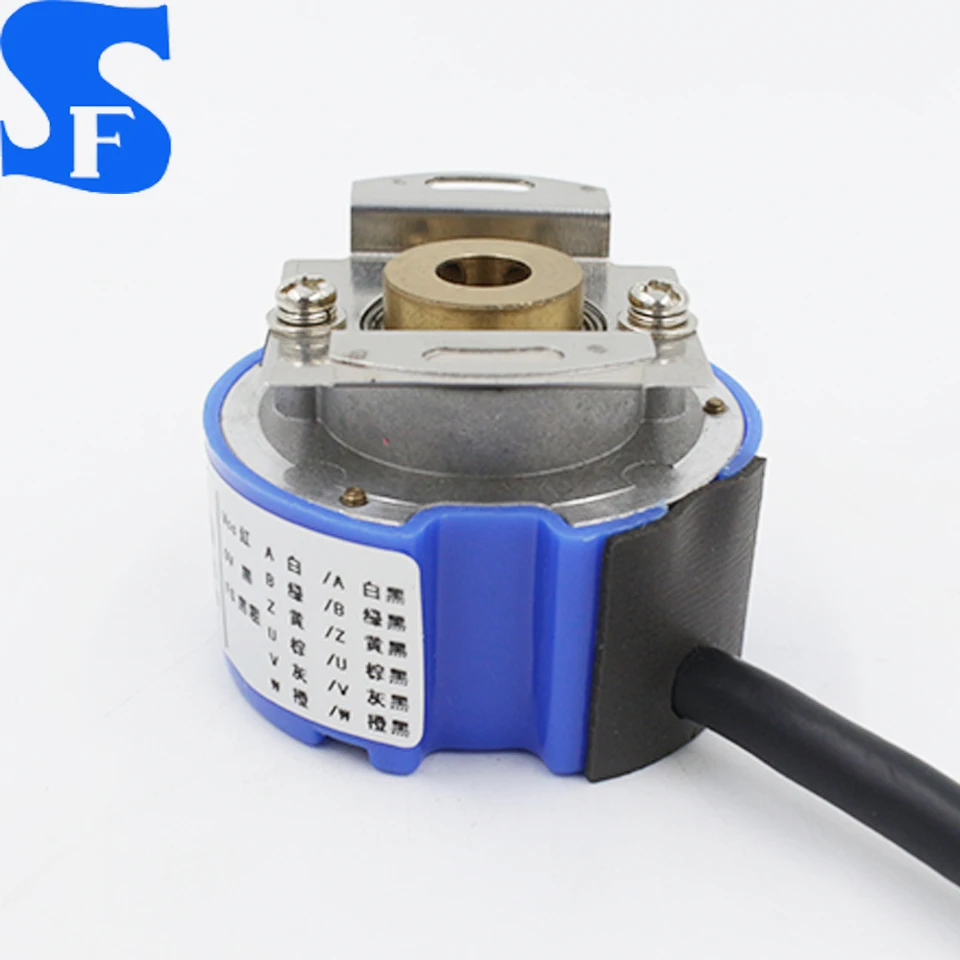

Cable Color | Red | Green | Grey | Yellow | Brown | Cyan | Orange | Shield |
Signal | 5V | A | B | Z | U | V | W | FG |
Cable Color | Black | White /Green | White /Grey | White /Yellow | White /Brown | White /Cyan | White /Orange |
|
Signal | 0V | A(_) | B(_) | Z(_) | U(_) | V(_) | W(_) |
If you have any question,feel free to contact me.
Are you a trading company or a manufacturer? |
We are a manufacturer of 20 years experience. |
Do you accept OEM brand? |
Accept large OEM brand customers, or a large number of customers. |
Does your product have a factory inspection? |
Every product we send is strictly factory inspection. |
How long will you ship the goods? |
Our delivery time ranges from 3 days to 3 weeks. |
Can you provide free samples? |
Regular products provide samples according to the original price. Customized products are provided at cost price. |
What kind of packing do you send? |
We use high-quality corrugated paper packing box, internal environmental protection buffer material. |
What is our loading port? |
Dalian port, or apply for other ports. |
How long is your quality guarantee period? |
The guarantee period for our products is one year. |
