This type characters:1.wide belt sanding machine

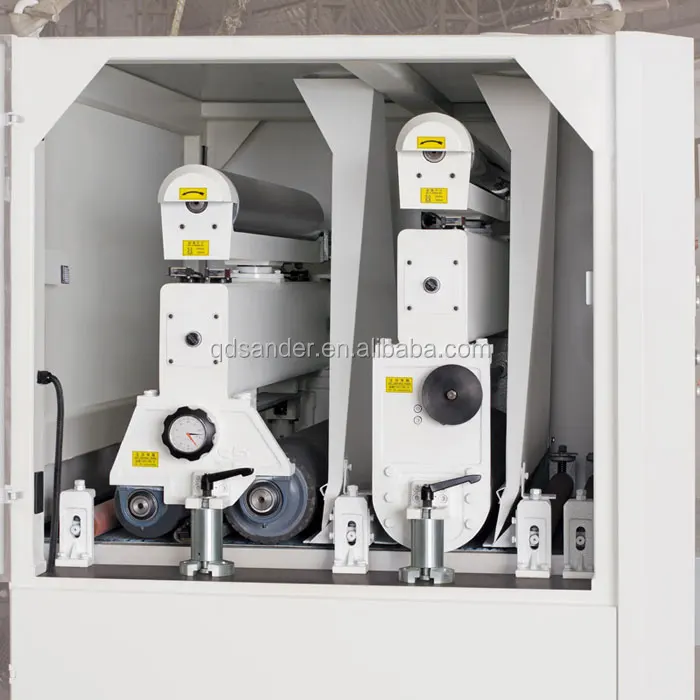

2.has two heads,with sanding pad
3.sanding and polishing

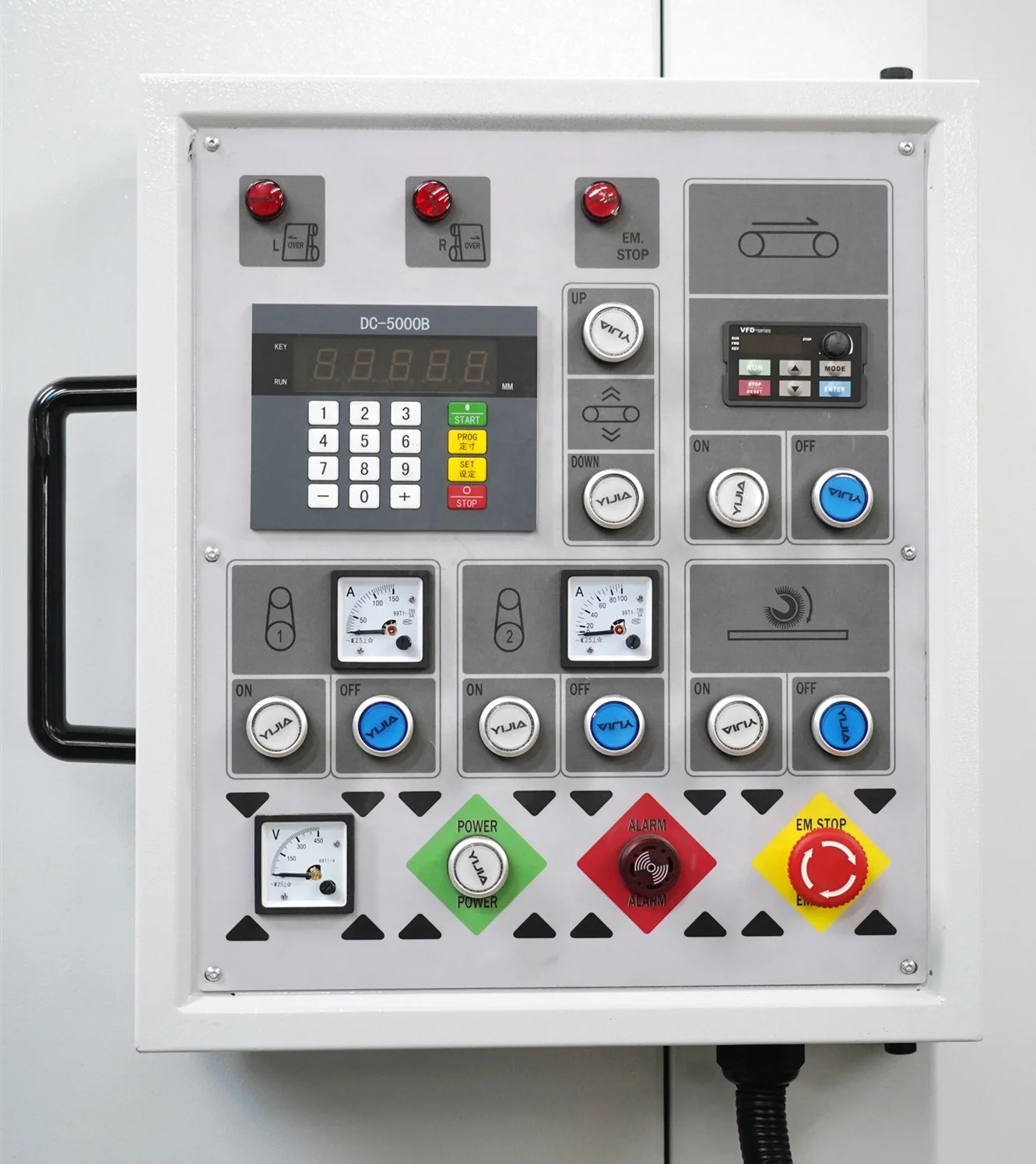

-Front microcomputer control panel,easy operation,high accuracy.
-Block siding and beams using precision castings,small deformation,well shock-absorbing effect.
-Steel roller go up and down,partial sanding easy to adjust,the fixed thickness thick roller with thicker adhesive layer to improve the accuracy of sanding.
-Has the fault displaying function,maintenance more convenient, If problems happen,the device is powered down.
-If belt deviation and lack of pressure, the machine will stop working automatically and conweyor bed shut down automatically to ensure safety, the work piece will not be destroyed.
Show details
Technical Parameters
There are two types of structures, customized according to customer requirements.
Model
NTR-RP1300
NTR-R1300
Working width
40-1300mm
40-1300mm
Working thickness
2.5-110mm
2.5-110mm
Working length
≥640mm
≥470mm
No.1#sanding belt speed
19m/s
19m/s
No.2#sanding belt speed
18m/s
18m/s
Feeding speed
6-30m/min
6-30m/min
Size of sanding belt(W*P)
1330*2200mm
1330*2200mm
Total motor power
63.92 kw
63.92 kw
Main motor power(two motors)
37kw,22kw
37kw,22kw
Working air pressure
0.55Mpa
0.55Mpa
Consumption of comperessed air
0.1m³/min
0.1m³/min
Volume of sucked air
9500m³/h
9000m³/h
Speed of sucked air
25-30 m/s
25-30 m/s
Overall dimension(L*W*H)
2260*2050*2250mm
2260*2050*2250mm
Net weight
3700kg
3500kg
Factory Video Display
Company Introduction
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.
With more than 30 years of experience in woodworking and metalworking, Sefe sanding machines are well-known brands in the Chinese market, including wide belt sanding machine, paint sanding machine, water sanding machine, double-sided sanding Machine,planer sanding machine, heavy-duty inclined sanding machine and sanding machine production line.
Workshop details display
Machine Assembly Workshop
Rigorous Skilled Workers
Packing&Shipping
Stretch Film or Wooden Packing
Exhibition Show
Certifications
Related Products
Why Choose Us
1. We will come standard with the wearing parts.
2. We accept the 30% TT deposit, machine will be completed within 15 to 20 days delivery.
3. We have specialized technical staff tooverseas service.
4. Our warranty period is one year, if you have any questions, please communicate with us promptly.
FAQ
Q1:Why is our price more expensive than our peers? Because we do ishigh-end products, accessories are high, the cost determines the price.
Q2:What is the Max working width of machine? We recommend using standard sizes(630/700/1000/1300mm), but all our machines can be customized.
Q3:How long is the shelf life of the product? What to do if something goes wrong? Our machines are one year shelf life, if problems arise we will allow technical staff to communicate, if necessary, will be on-site service.
Q4:How to cooperate with us? At present, we already have distributors from many countries. Once we cooperate, we will establish a single trade relationship and work together to safeguard our interests.
