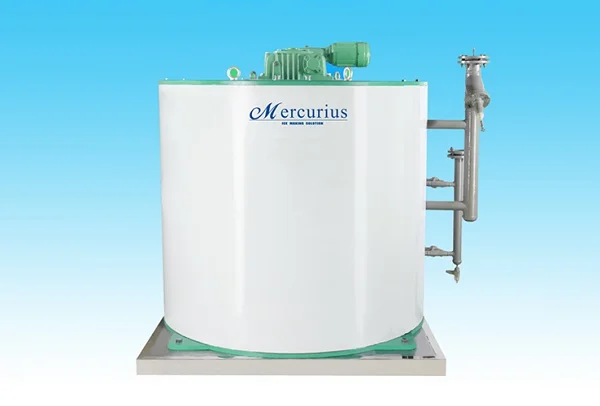

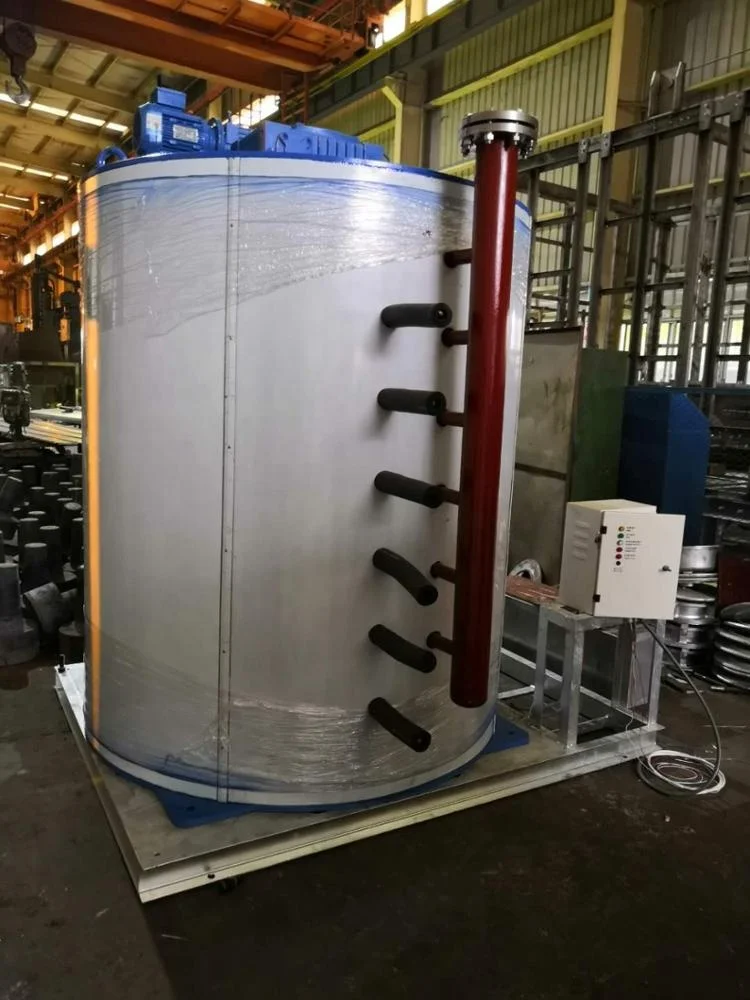

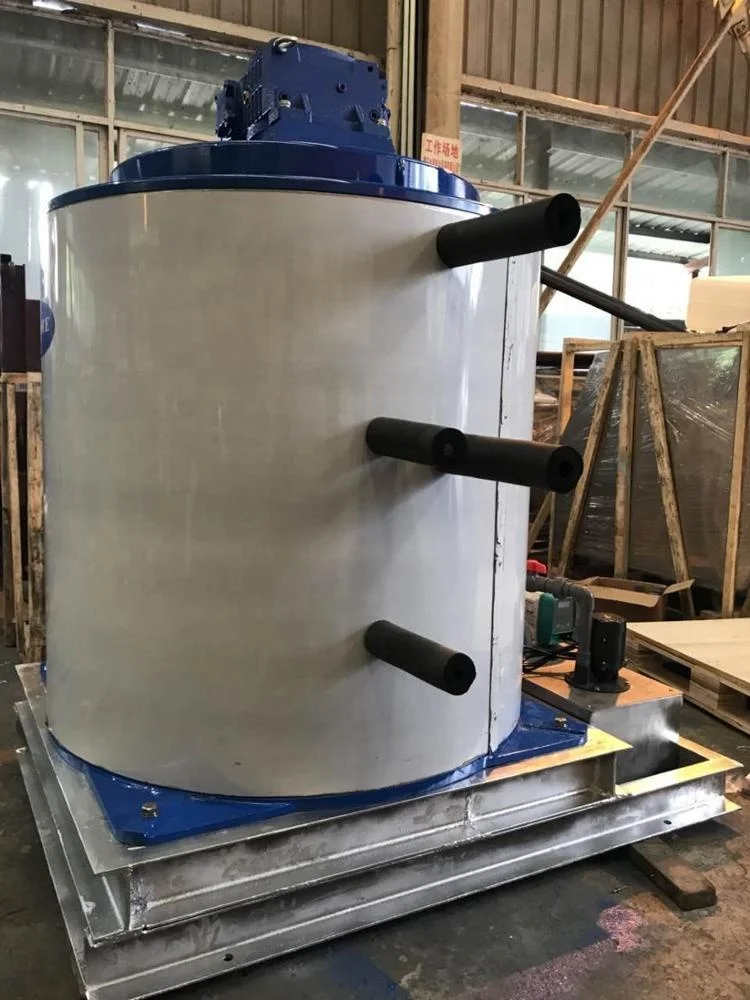

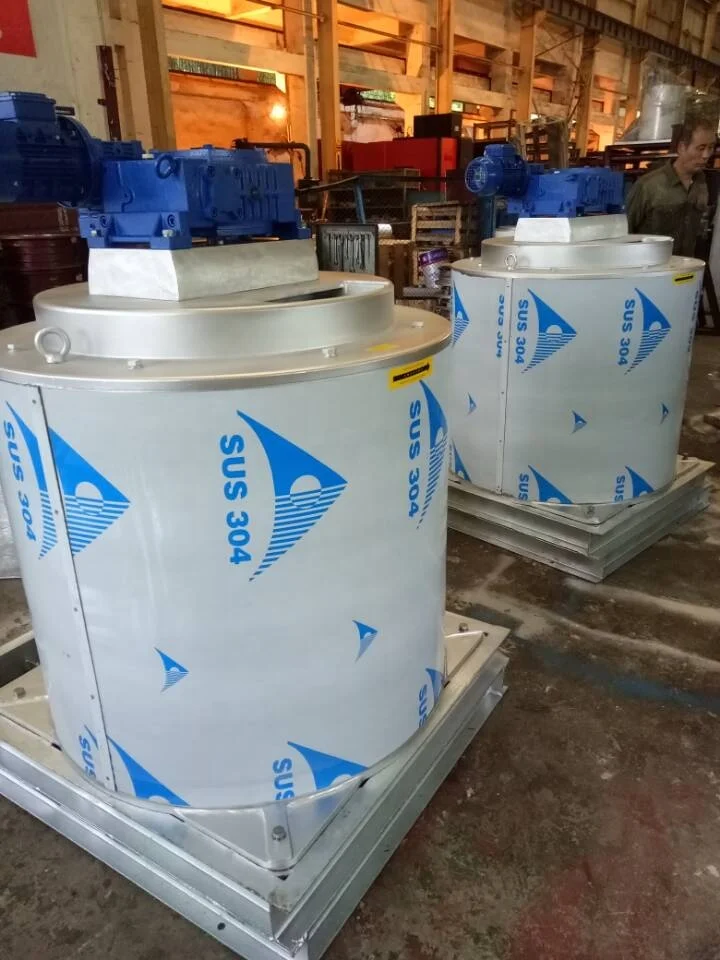

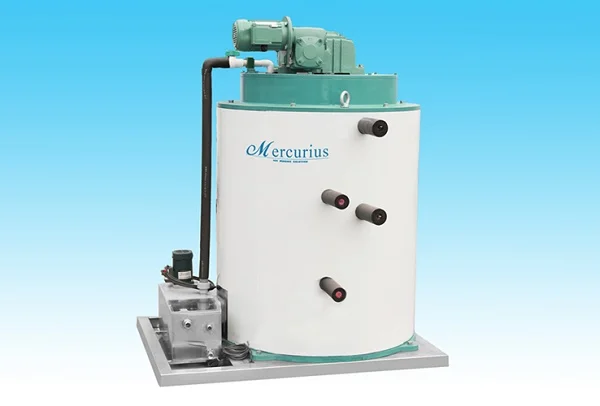

10Ton flake ice machine evaporator for fishery
- Category: >>>
- Supplier: Chongqing Mercurius Refrigeration Equipment Co. Ltd
Share on (60742598896):
Product Overview
Description
hot sale 10T flake ice machine with evaporators for fishery
| Specification | F030SF-A | F050SF-A | F10SF-A | F15SF-A | F20SF-A | F25SF-A | F30SF-A | F50SF- A | F80SF- A |
| Capacity(T/24h) | 0.3 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | 8 |
Refrigeration power(Kcal/h) | 1548 | 2580 | 5160 | 7740 | 10320 | 13975 | 15480 | 25800 | 41280 |
Reducer input power(KW) | 0.18 | 0.18 | 0.18 | 0.25 | 0.25 | 0.25 | 0.25 | 0.37 | 0.75 |
Pump motor power(W) | 70 | 70 | 70 | 70 | 120 | 120 | 120 | 120 | 180 |
Metering pump power(W) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | - |
| Weight(KG) | 80 | 136 | 168 | 289 | 289 | 289 | 363 | 650 | 687 |
| L*W*H(mm) | 574* 403 *603 | 658* 493 *720 | 658* 493 *880 | 813* 623 *913 | 813* 623 *913 | 813* 623 *913 | 813* 623 *1213 | 1256 *967 *1235 | 1678* 1256 *1493 |
| Specification | F100SF -A | F150SF -A | F200SF -A | F250SF -A | F300SF -A | F350SF -A | F400SF -A | F500SF -A | F600SF -A |
| Capacity(t/24h) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 |
Refrigeration power(Kcal/h) | 51600 | 77400 | 103200 | 129000 | 154800 | 180600 | 206400 | 25800 | 309600 |
Reducer input power(KW) | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 3 | 4 | 4 | 4 |
Pump motor power(W) | 250 | 250 | 550 | 550 | 750 | 750 | 750 | 1100 | 1100 |
Metering pump power(W) | - | - | - | - | - | - | - | - | - |
| Weight(KG) | 1080 | 1460 | 2060 | 2520 | 2860 | 3150 | 3480 | 3880 | 4600 |
| L*W*H(mm) | 1678* 1256 *1643 | 2065* 1600 *2130 | 2065* 1600 *2470 | 2602* 1900 *2476 | 2602* 1900 *2706 | 2602* 1900 *3006 | 3040* 2338 *2690 | 3040* 2338 *2690 | 3040* 2338 *2690 |

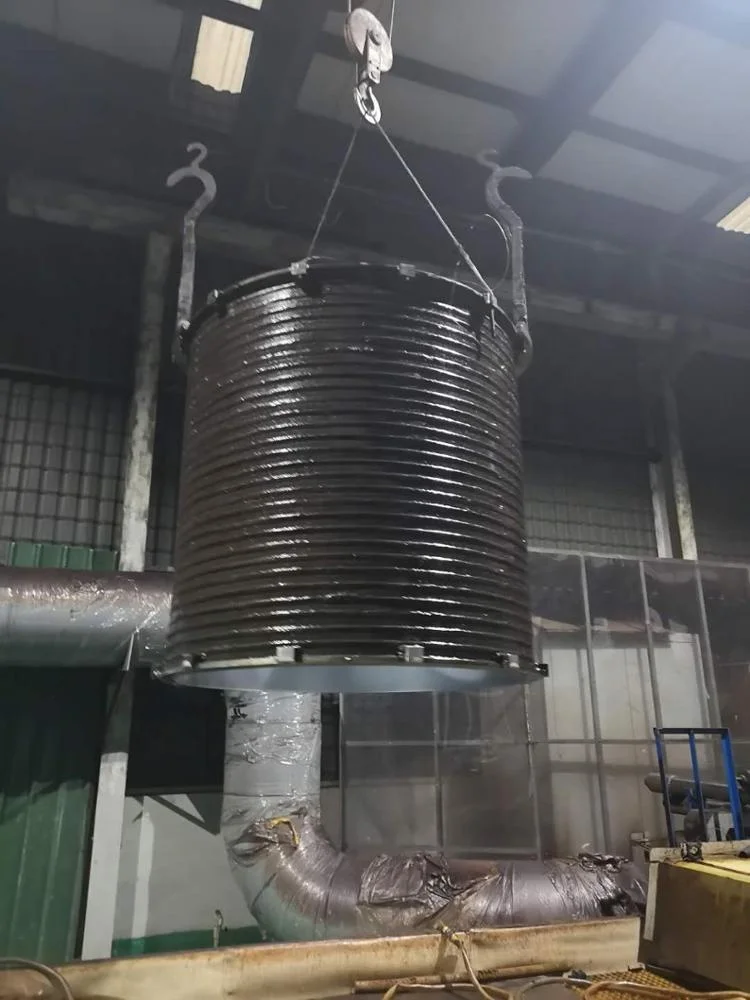

1.The ice flake evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of Aluminum.
2.Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.
3.All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.
4.The flake ice is glittering and translucent, hard and pure
5.Ice making and dropping in high speed
| Model | F100SF-A |
| Capacity(T/24h) | 10 |
| Electrical require | Full electric system complying,With the general international standard |
| Standard condition | Water inlet temp.16°C |
| Ambient temp. 25°C | 25°C |
| Application condition | Ambient temp.5°C~40°C |
| water temp | 0.5°C~35°C |
| Special condition | Ambient temp.-30°C~60°C |
| water temp | 0°C~46°C |
| Ice thickness | 1.5~2.2mm |
| Refrigerant | R717,R22 ,R404A,R507 |
The application domain of our products
Suitable for food processing, marine fishery, hotel freezing, supermarket fresh and slaughter and other related industries

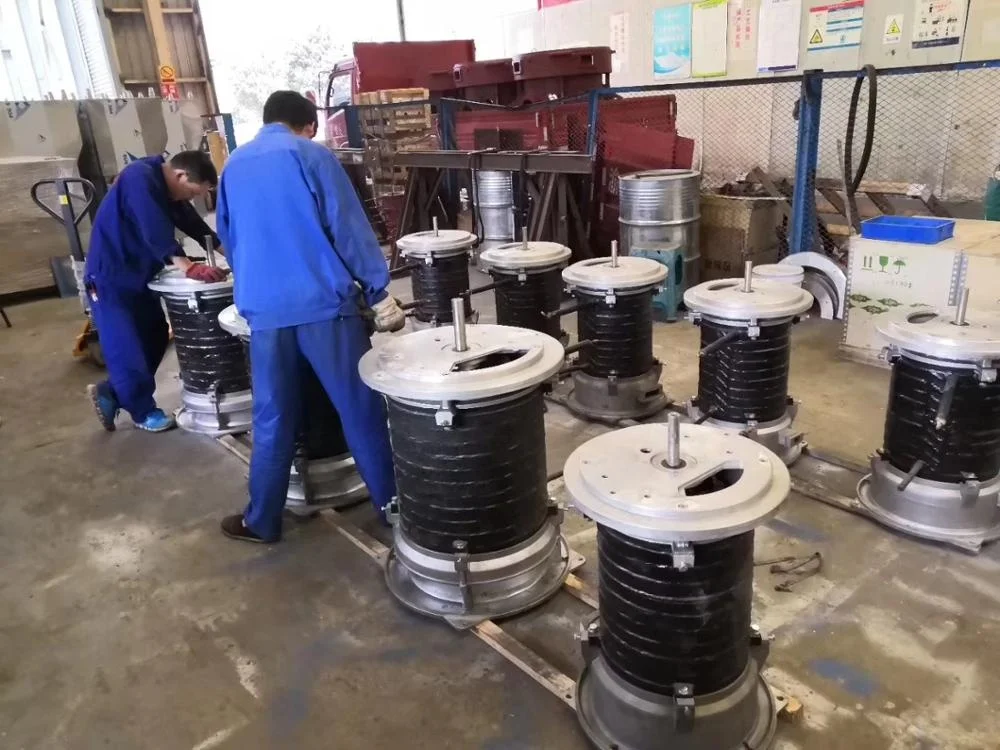

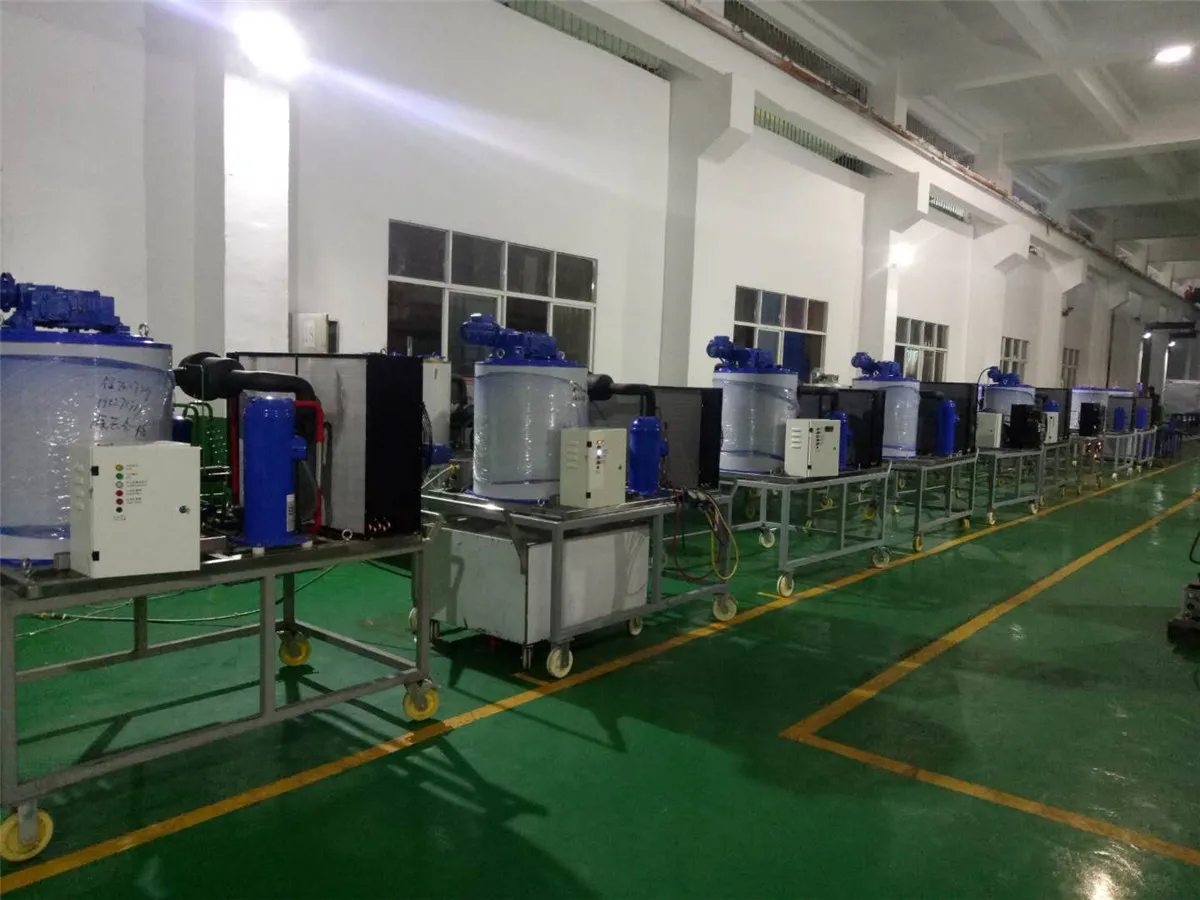

Established in 2010, Chongqing Mercurius Refrigeration Equipment Co., Ltd (“CQMRICE”) is famous in machinery processing industry , especially in research, design, manufacture and sale of evaporator of flake ice machine and flake ice machine,block ice machine and ice delivery systems. CQMRICE has more than 16,000 square meters for the factory production space with complete processes from Blanking, Welding, Annealling, Machining to Chromeplating, Purging, Assembling and test running. By handing of whole manufacturing process, processing quality and delivery time can be well controlled.
Why us?
1. Rich experience

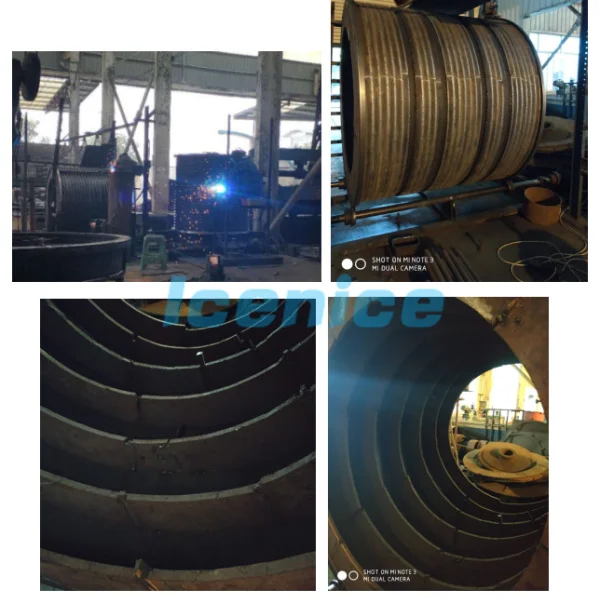

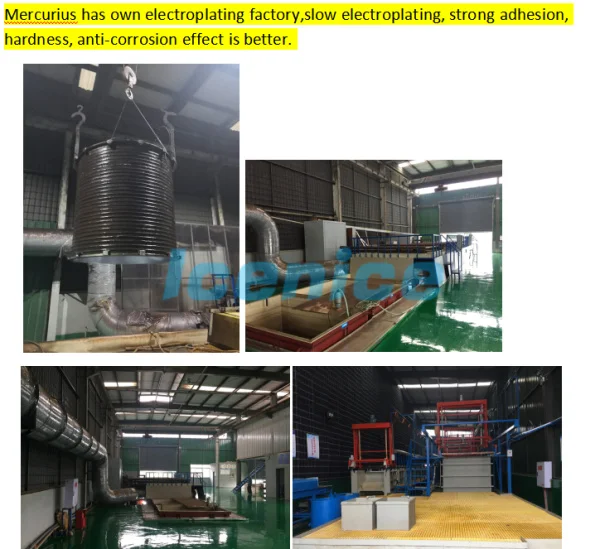

Mercurius has more than 10 years of professional experience. We are real manufacturer for flake ice machine ,we even manufacturing the key part of flake ice machine : evaporator by ourself for all process from blanking, welding, annealling, maching , chrome-plate for ice freezing surface and hot dip zinc for carbon steel frame . Welcome visit our factory.
2. Professional team
Mercurius evaporator and ice system production capacity and quality keep improving.
3. Superior quality
Mercurius is trusted with excellent quality and timely service.
Plywood Case packing:
1.Standard plywood case for packing main ice machine and fittings.
2.Customer only need prepare power and water for running the machine.
3.All required components for install the machine will be provided for free.
4. After machine is shipped to you, our engineer will go to your site to help the commissioning for if you need.
