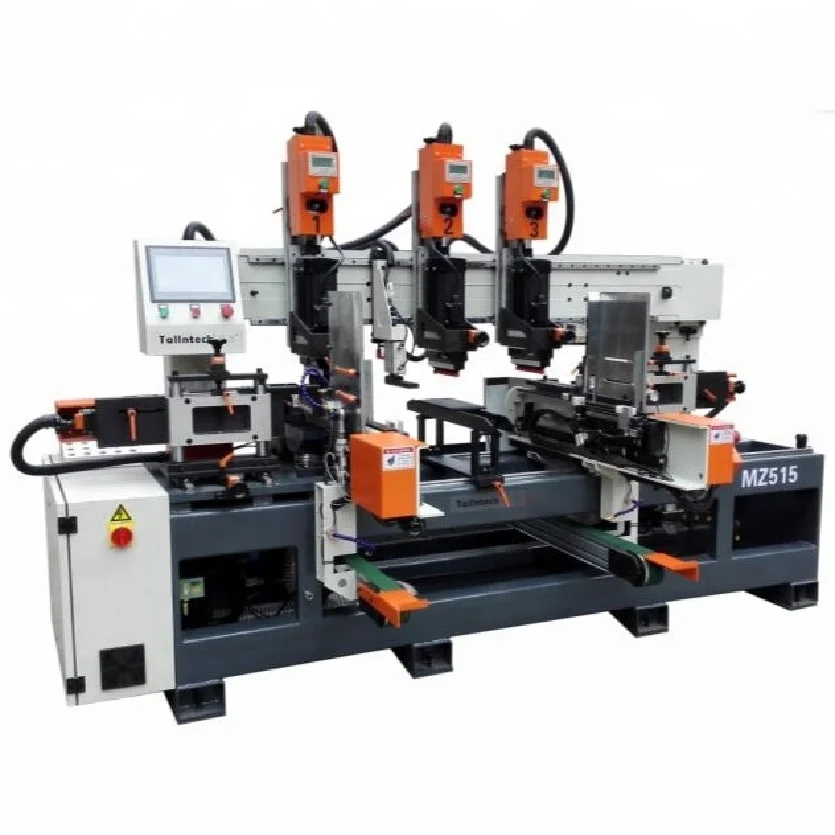

Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 5 rows 3 sides drilling for drawer and small panel
Model
MZ515
Working length
200-1500mm
Working wdith
30-260mm
Working thickness
10-25mm
Working speed
20-25pcs/min
Stock height
400mm
Boring motor power
1.5kw * 5
Spacing of drills
32mm * 7 drills (5 rows )
Feeding mode
Pneumatic
Total power
8kw
Machine weight
2000kg
Machine size
3150*1540*1870mm

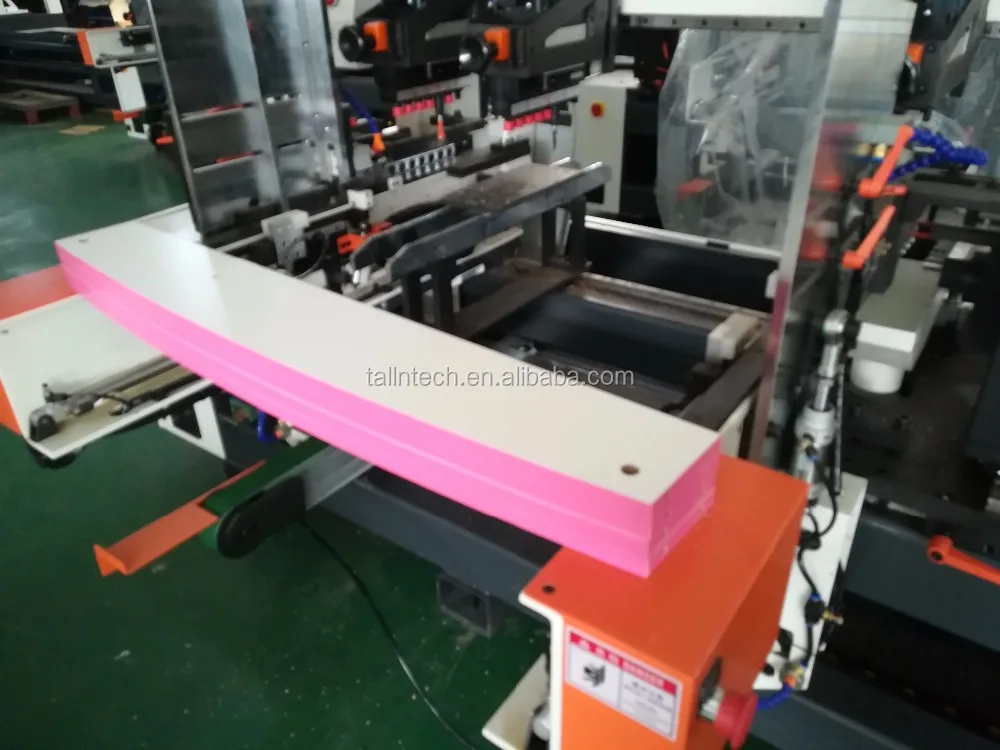

Automatic stock pneumatic feeding mode
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring
machine with 400mm height stock, can load many panels one time to save more time to loading than other one by one feeding mode.
Pneumatic feeding mode can working with short 15mm/30mm width panel.
Digital display meter and air lock
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine
All movable spindles with digital display meter easy to read with high precision.
The air lock for easy to move to adjust working size.
3 Vertical boring spindles
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine
1. More vertical boring spindles is availbale.
2. The middle holder for middle drilling support.
3. Customized boring head is available.
4.Min distance between vertical rows boring is 140mm.
5. Each spindles with 7 drills
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring
machine with turn over structurn and plastic belt protect the panel incase damage.
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring
machine with return belt, then one worker can do loading and unloading, save labour to receive the finished panels.
Detailed Images

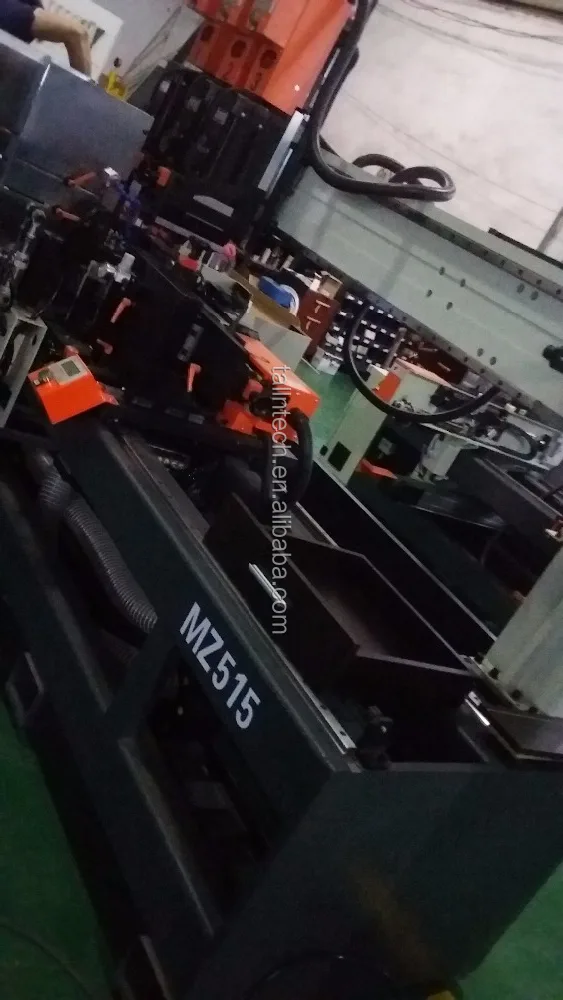

Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 5 rows 3 sides drilling for drawer and small panel

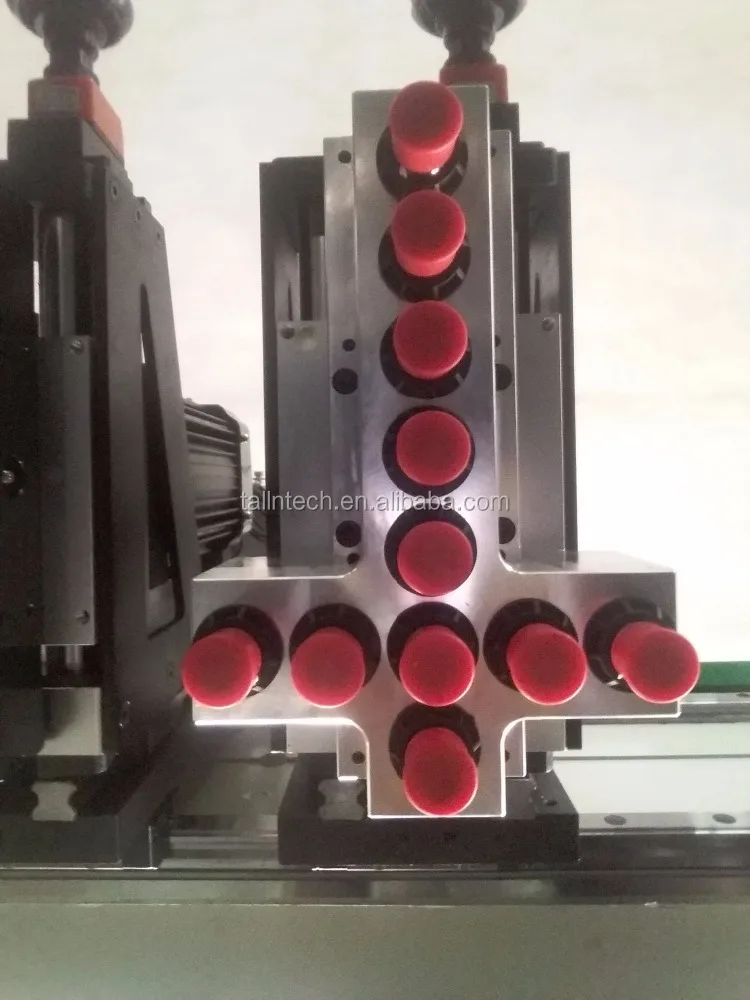

Machine with 3 vertical rows boring spindle , 1 left horizontal row boring spindle and 1 right horizontal boring spindle, each spindle with 7 drills
Special vertical boring spindle can do short 200mm panel.
Related Products
Packing&Shipping
Different package with different loading requirements or customers' requirements. Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 5 rows 3 sides drilling for drawer and small panel
After Sales Service
After service
1. One year warranty on right operation except wearing parts, consumable parts and plastic parts.
2. Offer installation and trainning oversea, buyer need afford supplier's technician tickets and accommodation oversea.
3. Within warranty, all the parts delivery charge offord by buyer.
4. We supply online service from 8am to 5pm every working day.
5. Welcome customer come to our company to do trainning.
