Price:$15,000.00 - $18,000.00

Quantity:


Product Overview

Description


Product Description

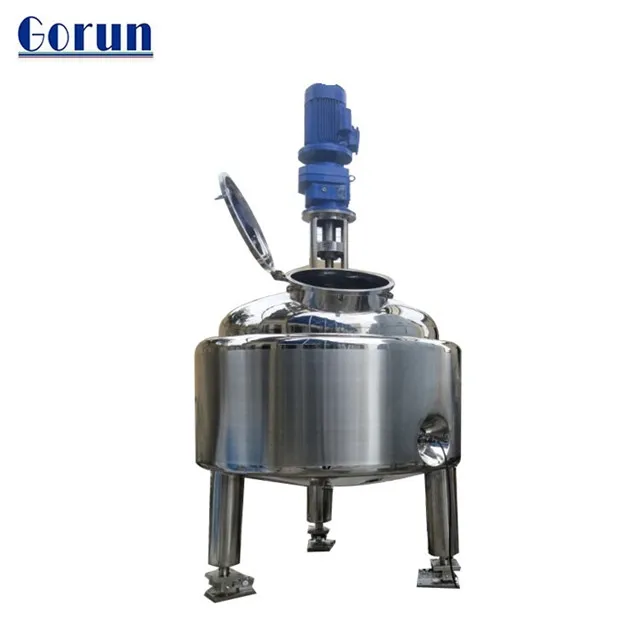

Stainless Steel Heating Jacketed Mixing Tank:

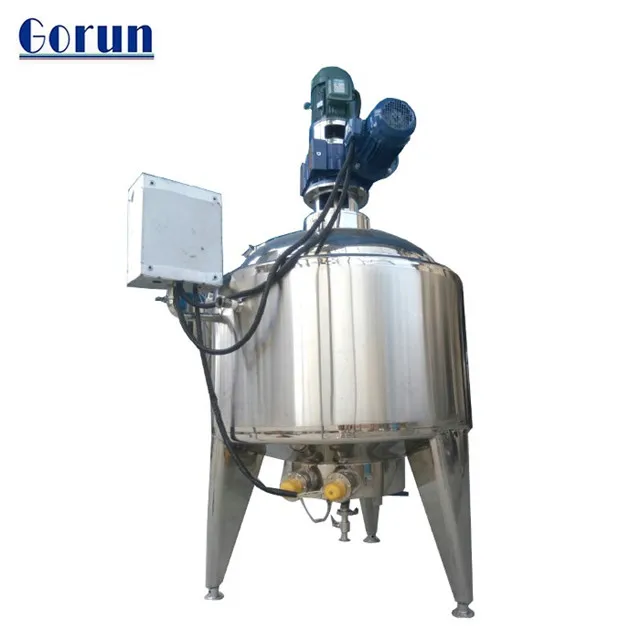

Conduction oil jacketed mixing tank:

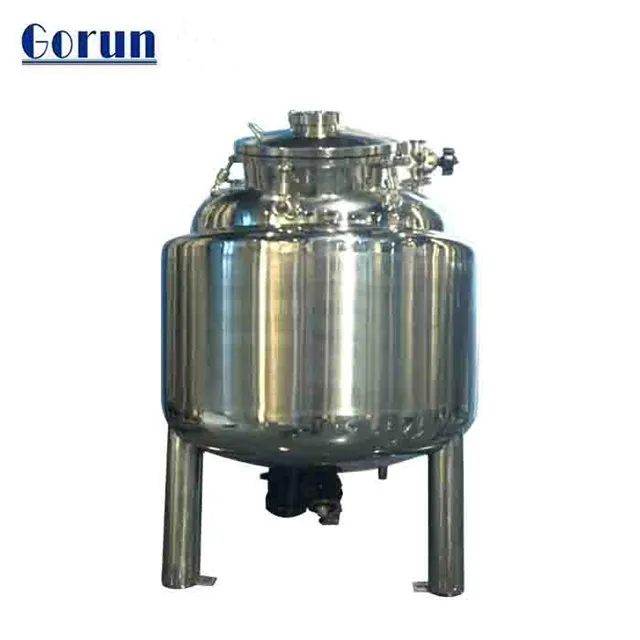

Steam/water jacketed mixing tank:

Gorun Jacketed Mixing Tank can be designed according different clients' demands, heating and cooling function are available for our design.

Standard cooling types are: chiller, cold water etc.

Standard heating types are: steam, hot water, electric etc.

\t
Stainless Steel Mixing Tank
\t
Profile/Type
\t
Three layer
\t
double layer
\t
Single layer
\t
Structure
\t
one layer
\t
inlayer+insulation layer
\t
inlayer+jacket+insulation
\t
Cooling way
\t
no
\t
coiled pipe or not need
\t
water/ coiled pipe/refrigeration unit or not need
\t
Heating way
\t
no
\t
electric/coiled pipe or not need
\t
electric/steam/coiled pipe or not need
\t
Material
\t
SS304/SS316
\t
Volume
\t
50L-20T
\t
Pressure
\t
Vacuum-1Mpa
\t
Mixing type
\t
Paddle type; scrape type; anchor type; frame type; mulser; emulsification head
\t
Accessories
\t
1. manhole; 2. wheels; 3. cleaning ball; 4. liquid level gauge; 5. pressure gauge; 6. temperature gauge; 7.sight glass; 8. platform and ladder; 9. valves; 10. pipes;
\t
Control content(optional)
\t
1. Start and stop of pump; 2. Temperature display and control; 3. Pressure display and control.( See below, get more details)

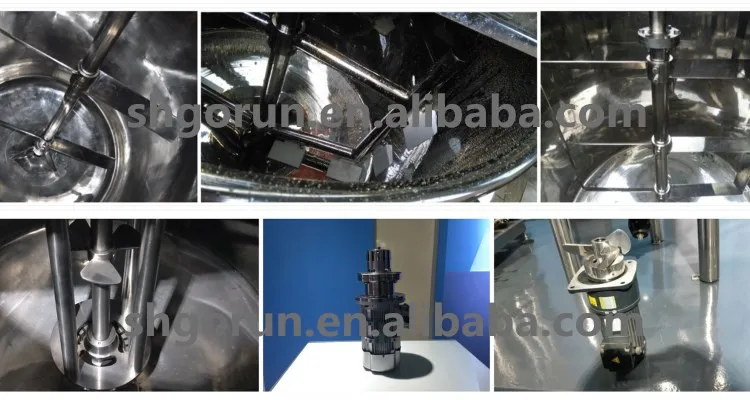

Mixing Type selection:

\t

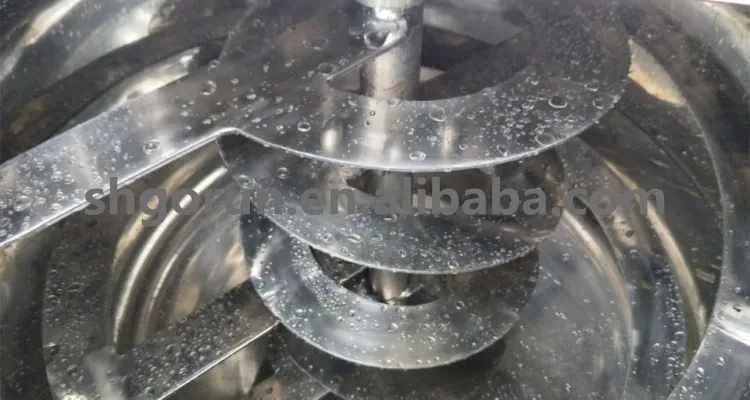

Double ribbon type
\t
Mixing speed: 1-20rpm. This series agitator used for high ceoncentration medium, wuch as: honey, jam etc.
\t
Paddle type agitator
\t
Mixing speed: 60-80rpm. This series agitator used for mixing low viscosity and concentration medium, Such as: milk, beer, juice etc.
\t
Scrape type agitator
\t
Mixing speed: 20-40rpm. This series agitator used for mixing high viscosity medium. Such as: chocolate, honey, mayonnaise etc.
\t
Frame and anchor type agitator
\t
Mixing speed: 10-70rpm. This series agitator used for high viscosity medium. Such as sediment, oral liquid, etc.
\t
Top mulser
\t
Mixing speed: 1200-2800rpm. This series agitator used for high viscosity medium homogenizing emulsification. Such as: suspension, oil, fat etc
\t
Bottom emusifying head
\t
Mixing speed: 1200-2800rpm. This series agitator used for high viscosity medium bottom homogenizing. Such as: suspension, oil, fat etc.
\t
Bottom magnetic agitator
with propeller impeller
\t
Mixing speed: 50-800rpm. This type agitator used for mixing thin viscosity, like eyedrop, injection, CIP liquid etc
Applied Fields:

1. Cosmetics industry:

Cream, shaving cream, sunscreen, lotions, essence, moisturizing cream, hand cream, etc.
2. Daily chemical industry:

Laundry detergent production, shampoo, toothpaste, liquid soap, detergent, etc.
3. Pharmaceutical industry:

Emulsion, ointment, oral syrup, oral liquid, etc.
4. Food industry:

Honey, fruit jam, cheese, ketup, mayonnaise, baby food, chocolate cream, syrup, etc.

Related Products:

Our company

Show room

Shanghai Gorun Machinery Technology Co., Ltd derived from Shanghai Geshi Fluid Equipment Technology Co., Ltd, which is found in1993.

Company has nearly 3000 square meters fully closed filter production workshop which meet GMP requirements

Our Workshop:

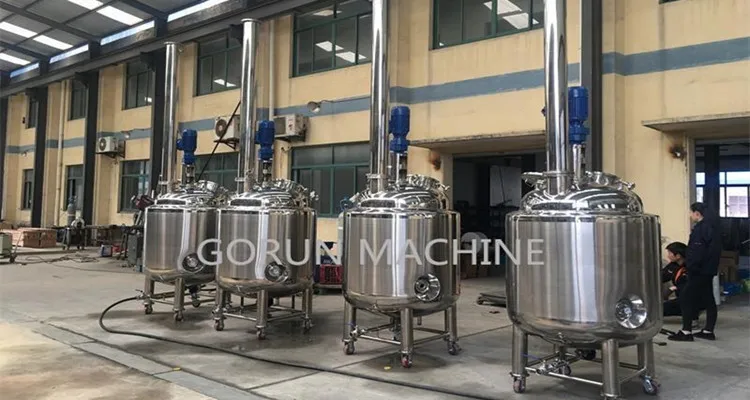

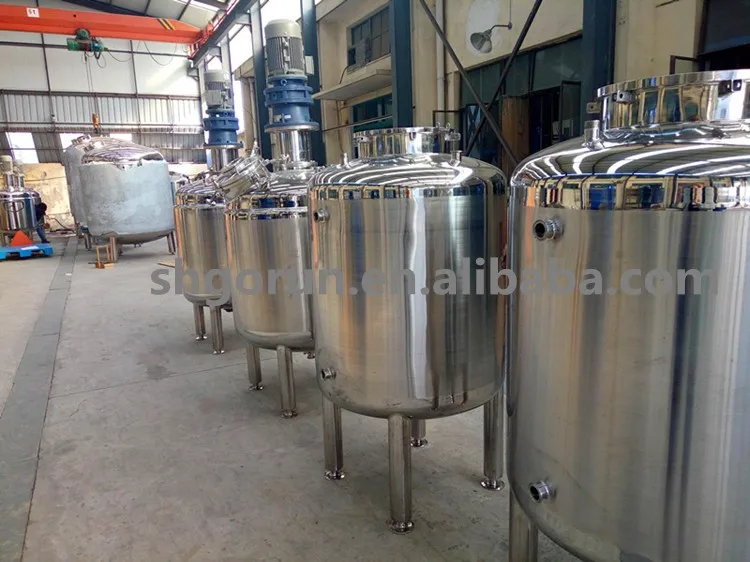

Tank production workshop

Filter cartridge (aseptic production workshop)

Our Exhibition:

Packing&delivery
Packing
50L-1500L volume: plywood or wooden box package.
More than 1500L volume: support package.

Delivery

1. By sea: Container/LCL
2. By air: Flight/Express(UPS,FEDEX ,DHL,TNT, EMS, ARAMEX etc)
3. By road

Our Service

Our mission: Production and provide best quality products to win trust from our customer.

                       Establish win-win relationship with all customers.

To be continued...

See below

Do best products, provide best service.

Related cases

Case 1: Pharmaceutical Factory:

GORUN devote to design and provide single equipment, production line for our clients.
All project design based on spatial layout, production industry and clients' specific requirements for machine production automation.

Case 2: Seasoning Production Factory:

1. We have professional engineers and high-quality sales team who can provide high-efficiency service to you.
2. We will send test, running video and operation manual to you teach you how to use, fix, maintain this machine.
3. Any operation issues when you receive equipment, please send message or take some photos to us. We will deal with it within 24 hours.

FAQ
\t
Q: Are you a manufacturer or a trader?
\t
We're a manufacturer with more than 20 years professional production experience.
\t
Q: Can your factory produce products according to our drawings?
\t
Yes, we can. Most products can be customized, including the Logo on products.
\t
Q: What kind of your packaging ?
\t
Neutral plywood or wooden box packaging or according to customer's requirements.
\t
Q: Can you provide us the design drawing?
\t
Yeah, of course, we will provide you the drawing after you payment or prepaid.
\t
Q: How long is your delivery time?
\t
Normally 10-45days after payment, and we promise we will delivery as soon as we can.
