24 inch transparent flexible 0.2mm super slim thickness pcap touch foil touch film Factory Direct Sale Ir Touch Display Monitor
- Category: >>>
- Supplier: Dongguan Cjtouch Electronic Co. Ltd.
Share on (60742665584):
Product Overview
Description
Product Details

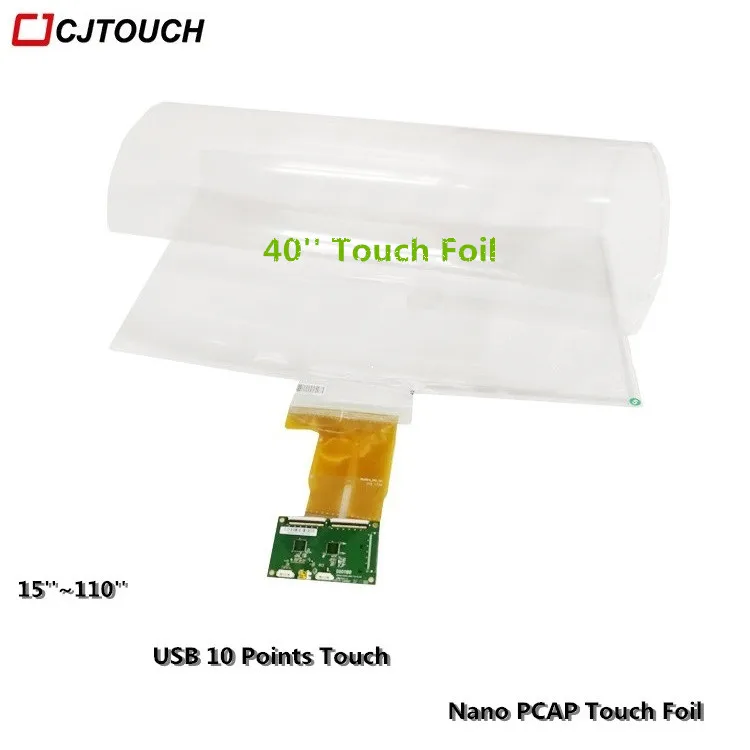

Describtion | 40 inch Capacitive Nano Touch Foil / Touch Film (All 10 Points Touch) | ||||
Technology | Double Bridge Projected Capacitive Technology, Matrix instead of the ITO Layer of Wire Mesh, Special Graphics instead of Traditional Graphics. | ||||
Regular Size Range | 20-120 inch (4:3 / 8:3 / 16:9 / 21:9 Screen Ratio Option) | ||||
Main Characters | Transparent / Frameless / Waterproof / Both 2 sides Touch Workable/ Esay Transpotation /Curved Screen / Screen can be Bent Over | ||||

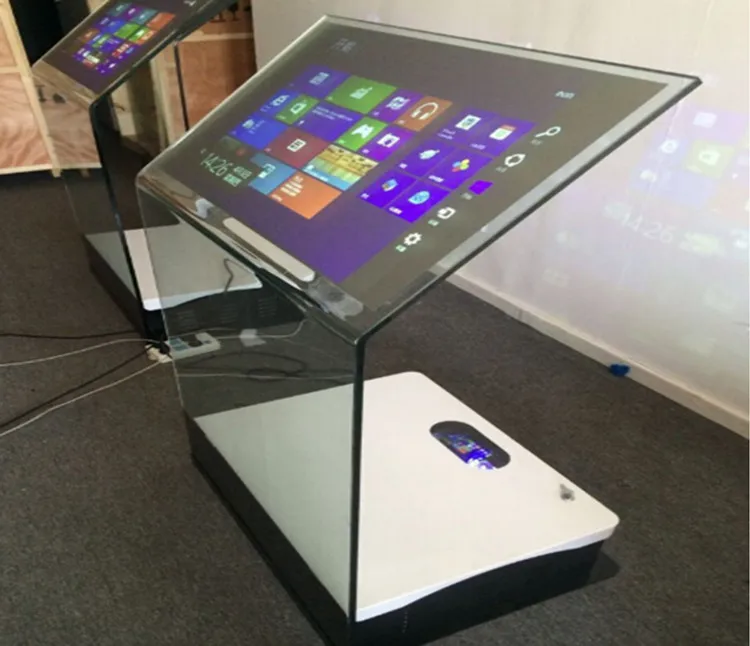

Application | Workable with Projector / LCD / LED | ||||
Installation | Paste to Windos/Yakeli /Wooden/ Glass/ Mirror/ Plastic/ ,LCD/ LED /Acrylic ect (Non-Metal Involved with Removable Imperial or Permanent Paste) | ||||
Touch Points | ≤10 Touch Points | IC Chipset | SIS (Taiwan) | ||

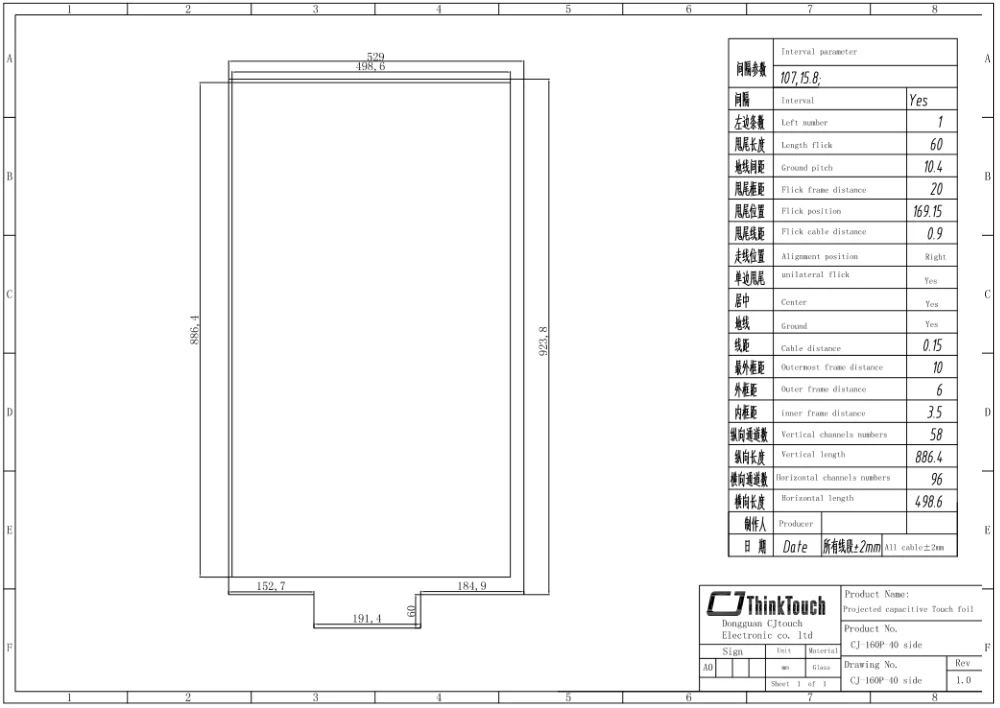

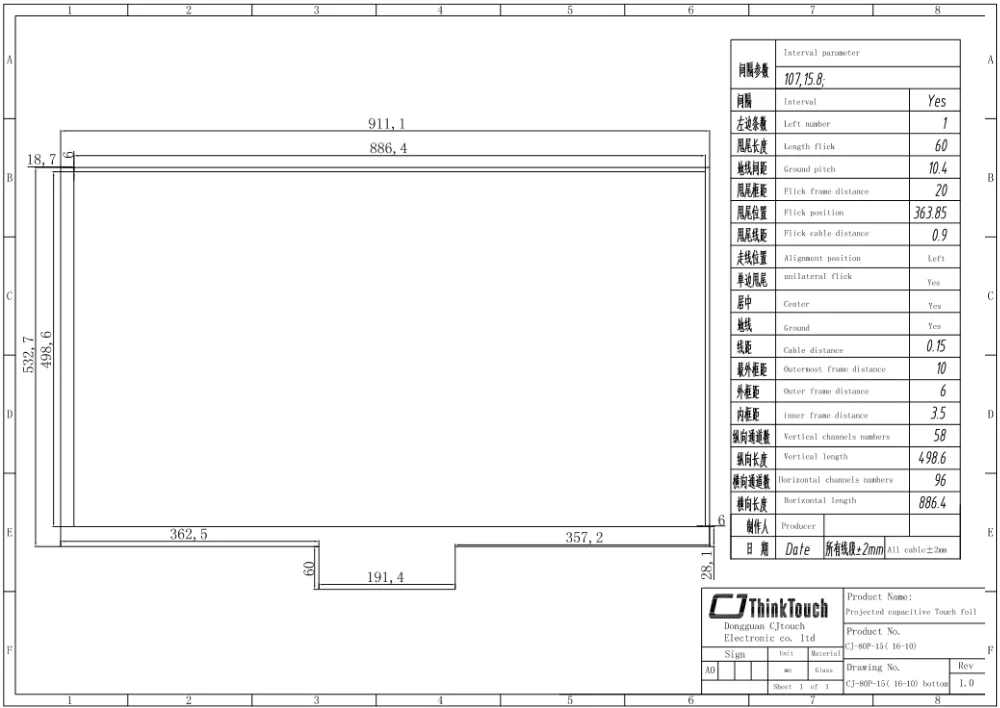

Outline Demension | 909.6*528.1 mm | Active Area | 886.4*498.6 mm | ||
Foil Thickness | 0.2mm | Foil +Glass Thickness | ≤ 8mm (Sensing Distance) | ||
Light Transmission | ≥93% | PCB Wire | MM110 Road | ||
Deviation | ≤2mm (Safe Distance) | Respond Time | ≤3ms | ||
Drive | Free-Drive | Calibration | Inside Calibration System | ||
Scanning Frequency | 60Hz~130Hz | Scan Velocity | 90p/1ms | ||
No. Of Sensor | 4224 | Sensing Distance | ≤8mm | ||
Power | 0.5W-2W | Supply Voltage | 5V USB | ||
Arm Reject | Support | Output Method | USB2.0, USB3.0; Mini B ;I2C | ||
Membrane Thickness | ≤100um | Distance with LCD | 2mm | ||
Humidity | 0%~95% RH No Condensation | Temperature | -20℃~+70℃ | ||
Touch Accurancy | No Drift, the Deviation is about 1~3mm | ||||
Breaking Point | No Breaking Point when Size < 65 inch | ||||
Anti-Glare | Outdoor / Indoor Full Strong Sunlight Workable | ||||
Touch Method | Click and Drag, Amplification, Narrow, Rotation | ||||
Process | Standard HID-USB Device | ||||
OS Support | Windos/Linx/Androd/Ima OS | ||||
Certification | CE/ FCC/RoHS/EMC: EN61000-6-1:2007 EN61000-6-32007+A1:2011 | ||||

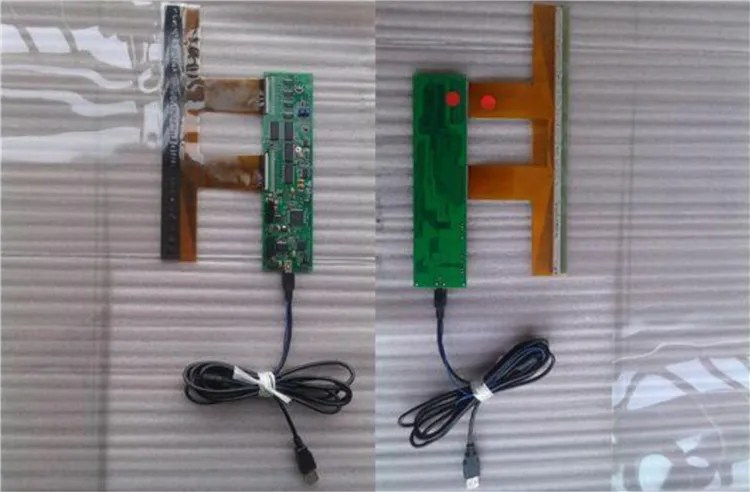

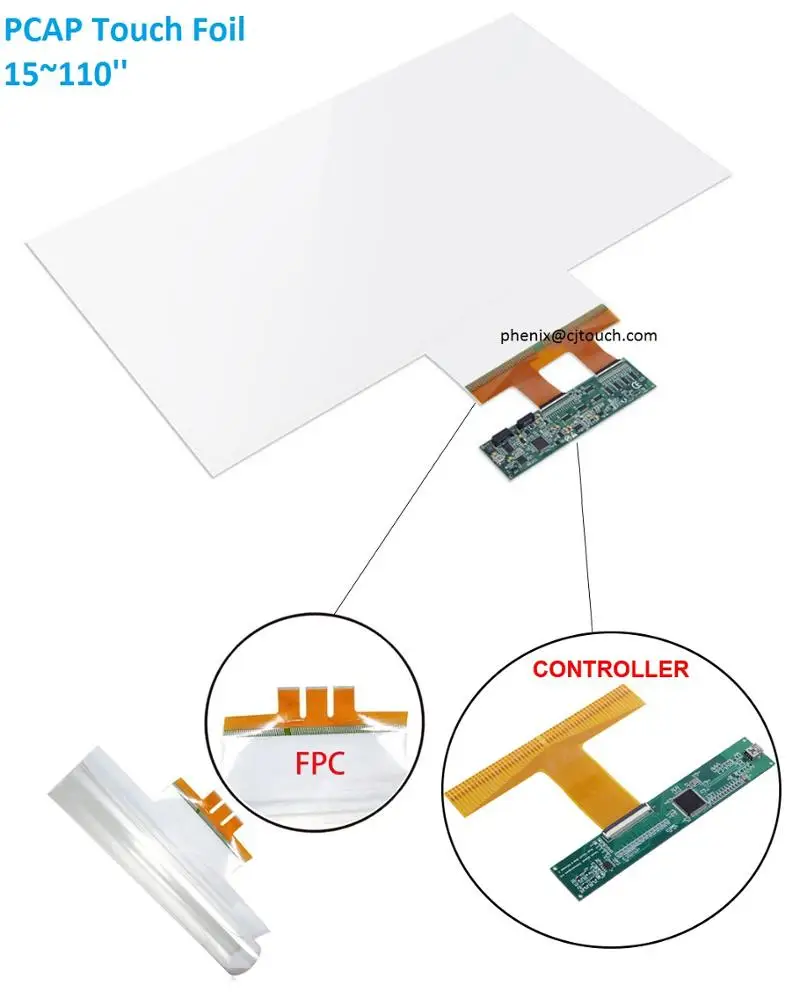

Accessory | Touch Foil + Controller Board + USB Cable | ||||
Related Products
Click Below Pictures to get More Products Details
IP 66 Outdoor Waterproof
800/1000/1500 High Brightness
P-cap Waterproof Monitor
10~65 inch
55'' Large Size IR LCD Monitor
32''43''55''65''75''98''
Cheap SAW Touch Panel
7~32 inch
IP66 Outdoor Waterproof
1/2/4 Points IR Touchscreen
140'' Infrared Touch Frame
10~300 inch
7'' Cheap Resistive Monitor
7~32 inch
8'' SAW Touchscreen Monitor
8~32 inch
Resistive Touch Screen
5~22 inch
E ETI Capacitive Touch Panel
5~65 inch
Touch All in one PC
8~65 inch
E-LO Compatible Monitor
15''17''18.5''19''21.5''
Company & Packing
Dongguan CJTOUCH Electronic Co., Ltd are 10 Years of a Professional OEM Manufacturer and Supplier ;
Main Product : Touch Screen, Touch Foil, LCD/LED Monitor, Touch PC and Accessories etc.
Our Main Factory is located near Shenzhen,China.

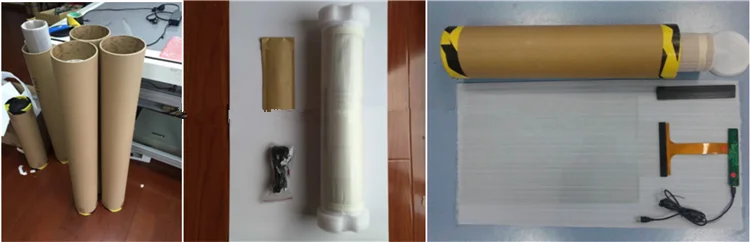

Capacitive Touch Film Touch Foil Packing & Delivery
Packing:
1-2 Pcs Sample Box:56*41*8cm(Size Under 19inch)
1-2 Pcs Sample Box:63*41*8cm(Size 19inch-23.6inch)
10 Pcs Order Box:57*49*36cm(Standard Touch Screen Size 15-19 inch Box)
Contact us for other touch screen box size.
Delivery time:
Standard Dustproof Sample order 1-2 Days,Vandal proof/Anti-Glare type 2-4 Days.
100 Pcs 7 Days, 500 Pcs 20 Days,More than 500 Pcs Order,Contact us for detail delivery time.
