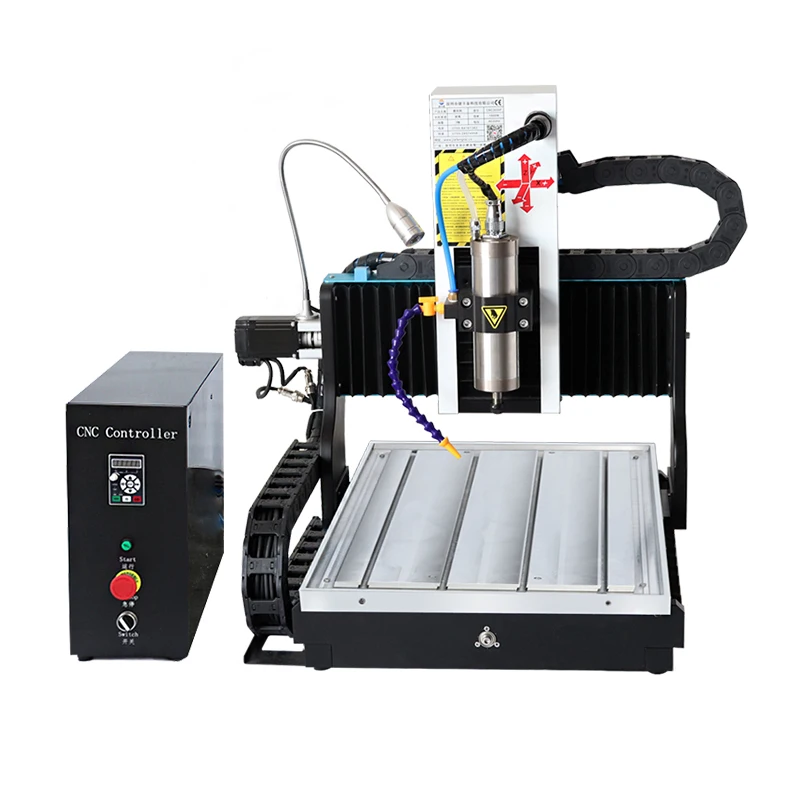

Factory wholesale Mini Milling Engraver Router Cutting Tag Cnc Engraving Machine For Metal
- Category: Metal Engraving Machinery >>>
- Supplier: Shenzhen Jiefengtai Technology Co. Ltd.
Share on (60742680496):
Product Overview
Description
Product Description

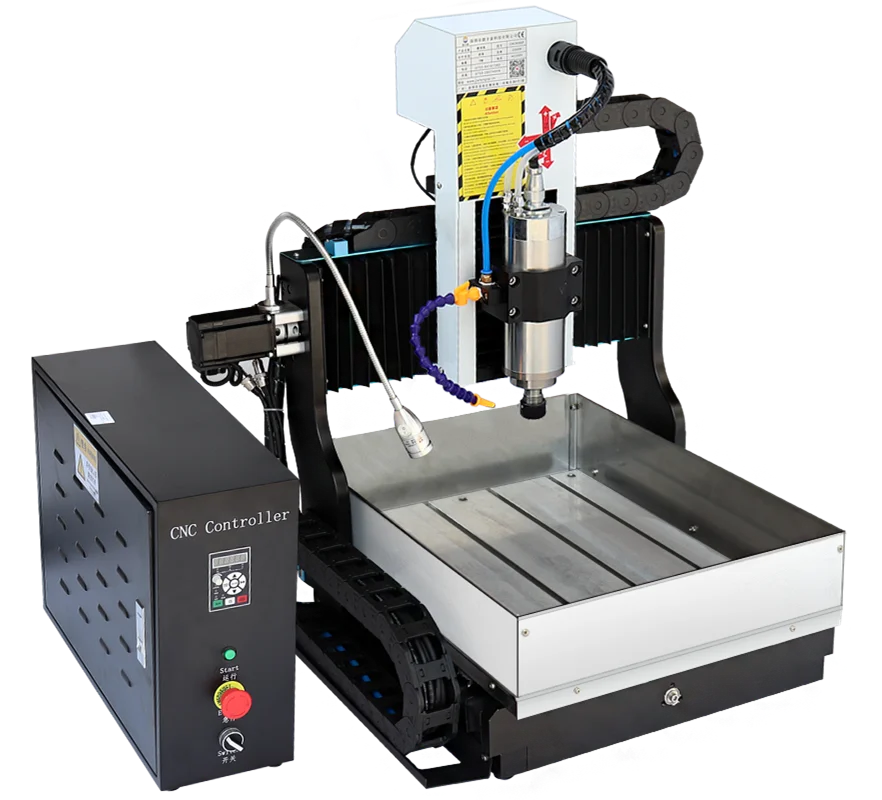

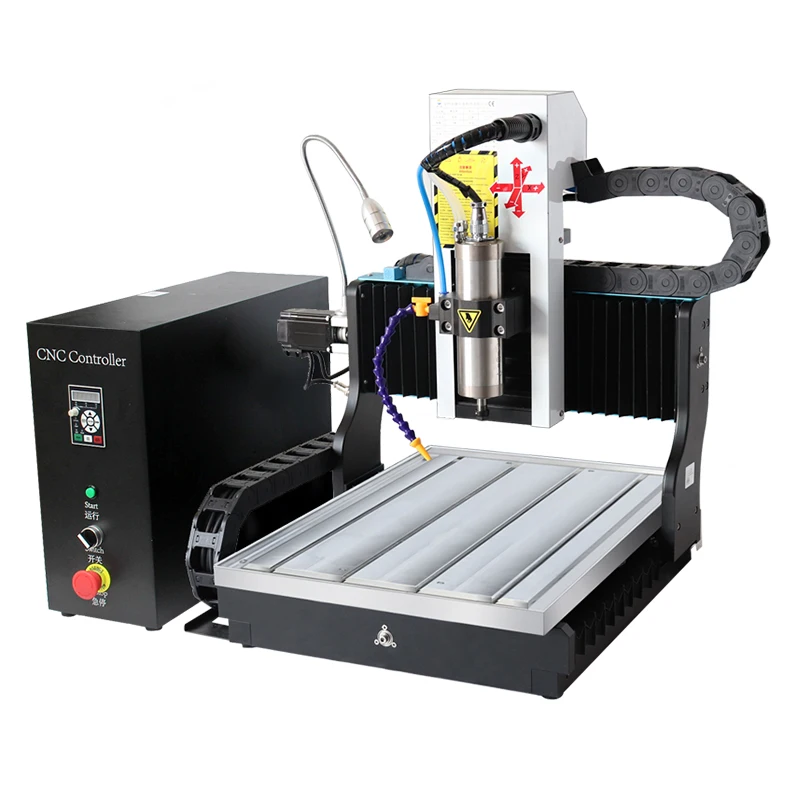

Factory wholesale Mini Milling Engraver Router Cutting Tag Cnc Engraving Machine For Metal
Main Features--multifunction cnc router
♠ Brand water cooled spindle
♠ Cast aluminum T-slot table
♠ Organ Shape Dust Cover
♠ Hybrid Servo Motor
♠ Taiwan TBI linear rail
♠ Cast aluminum T-slot table
♠ Organ Shape Dust Cover
♠ Hybrid Servo Motor
♠ Taiwan TBI linear rail
♠ Independent Leadshine drives
♠ Imported original TBI SFU 1605 ball screws
♠ Lighting lamp
♠ Imported original TBI SFU 1605 ball screws
♠ Lighting lamp
Descriptions | Parameters | ||||||||||
Model | CNC3030F | CNC6040F | CNC6060F | CNC6090F | CNC60130F | CNC80150F | |||||
Working area(cm) | 30*30*12 | 40*60*12 | 60*60*12 | 60*90*12 | 60*130*120 | 80*150*12 | |||||
Table size(cm) | 39*55 | 55*90 | 85*72 | 80*125 | 72*154 | 105*198 | |||||
Packing weight(kgs) | 108 | 147 | 206 | 248 | 235 | 355 | |||||
Packing size | 77*77*75 | 102*73*61 | 100*98*63 | 131*99*59 | 164*100*62 | 210*125*86 | |||||
Motor | 57 hybrid servo motor | 86 hybrid servo motor | |||||||||
Driver | Independent leadshine drivers | ||||||||||
Guide rail | Imported linear guide rail | ||||||||||
Ball screw | Imported ball screw | ||||||||||
Spindle power | 800W/1500W/2200W | ||||||||||
Max working speed | 8000mm/min | ||||||||||
Working accuracy | ±0.015mm | ||||||||||
Repeat precision | ±0.01mm | ||||||||||
Rotate speed | 24000rpm/min | ||||||||||
Voltage | 220/110V | ||||||||||
Software | MACH3/Artcam | ||||||||||
Control system | Mach3/DSP | ||||||||||
Samples Show

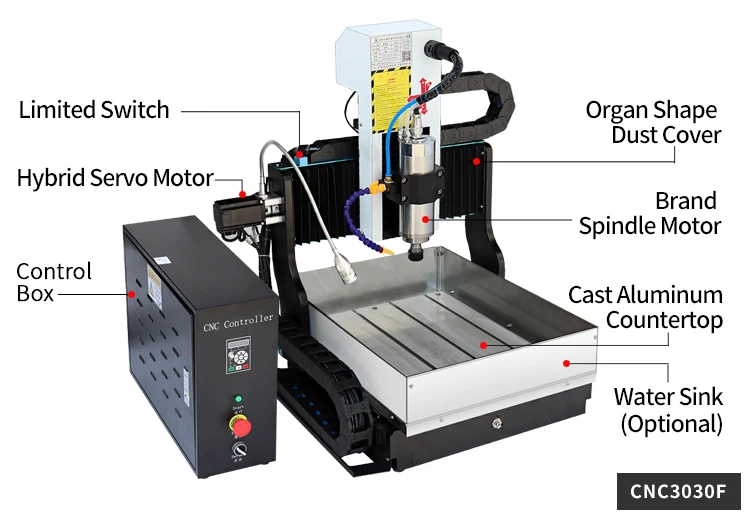

Detailed Images
High quality machine structure
The frame is made of 6060 aluminum alloy, precision processed by imported CNC machine, and anodized. One-piece countertop; 3 axes are dust-proof treatment, effectively improving service life and accuracy
Independent Leadshine drives
Equipped with genuine Leadshine independent drive to ensure the high stability and fast working speed of the machine and effectively improve the accuracy
Hybrid servo motor
High-speed closed-loop hybrid servo motor, anti-lost step, and equipped with independent metal motor seat, effectively improve stablility and accuracy
Imported linear guide rail
Three axes are adopted Taiwan TBI linear guide rail with double sliders, higher stability, and higher accuracy, long-term use does not affact performance
Imported ball screw
All three axes are imported original TBI SFU 1605 genuine ball screw, high quality imported nuts with metal inverter; high efficiency, low frictional resistance
Industrial grade Control box
Industrial grade control box, Mach3(usb port) control system, DSP control system is optional
Brand water cooling spindle
Changsheng brand spindle motor, full power, low noise, high precision, long-term use does not affect performance
Limit switch
The three-axis direction is respectively equipped with a limit switch to avoid over-travel in the machine running, and has the function of returning the bed point of the machine in one-button manner, effectively protecting the machine
Brand frequency converter
Brand frequency converter, frequency control, more stable performance
Brand power supply
The power supply in control box is the designated power supplier for the Olympic Games. It has stable operation, long service life, built-in EMI filter, and strong anti-interference
Support base
Equipped with double imported original bearings and bearings seat, which is precisely fitted to ensure the engraving precision. The Y-axis adopts the supporting base to effectively prevent the deformation of the guide rail.
High flexibility cables
All cables are made of high-flex cables,with high-quality insulation and smooth Teflon wrapped shield. Anti-oxidation makes the cable prolonged in the presence of both torsional and bending stresses
Optional parts

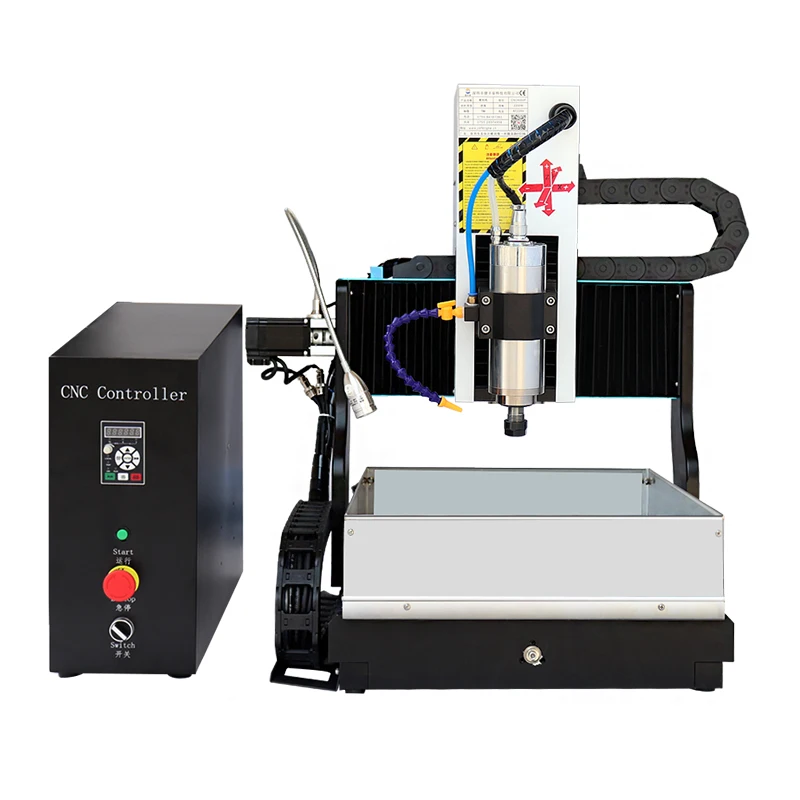

Stainless water sink
For processing metal, high hardness materials,need to be equipped with water sink circulating water to cool the work piece and tool. One set of water tank include table bottom tray, surrounding baffle, nozzle, blue water pipe, water pump

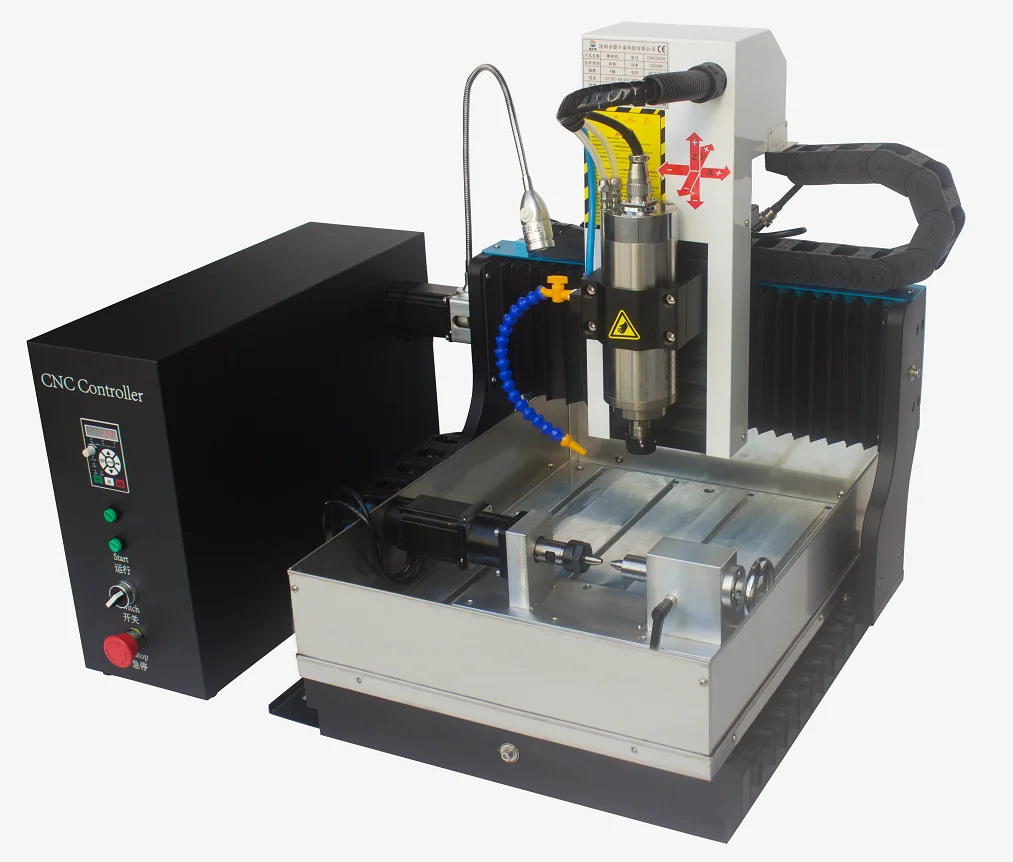

Rotary axis
When engraving cylindric materials, rotary axis is required, 360° rotary engraving.
Our Service
Pre-sale service
1. 24 hours online inquiry and consulting supporting.
2. Providing the most professional advice for choosing the most suitable and economic machines
2. Providing the most professional advice for choosing the most suitable and economic machines
3. Free proofing
After-sales service
1. Providing instructional videos and English user manual for guiding to install and operate the machines
2. Engineers guide to operate the mahcines by remote service
3. 1 years free warranty for machine quality and technical service
2. Engineers guide to operate the mahcines by remote service
3. 1 years free warranty for machine quality and technical service
Related Products
Packing&Shipping
Packing by wooden case
Machines will be packing by high quality non-log wooden case, with foam inside for protectiving. Long distance transportation will not be damaged.
Shipping channel
Shipping via sea or air, depend on clients' requirements
Company Introduction
Shenzhen Jiefengtai Corporation is specializes in research and development, production, sales of various types of CNC engraving machine, laser engraving machine, laser Marking machine, laser welding machine and other CNC series equipment. And also accept various manipulator, non-standard automation equipment customization. We continue to research and develop, to provide quality, cost-effective CNC machine and laser machine, to create value for the majority of customers.
All machines are approved by CE certificate. We have exported our machines to more than 50 countries, Major foreign customers groups are from Korea, Russia, United States, Mexico, India, Pakistan, Japan, Canada, Thailand, Malaysia, Indonesia, Turkey, Poland, Hungary etc
Anyone is interested in our product, welcome to be the partner of us.
Agent and distributor wanted all over the world!
Anyone is interested in our product, welcome to be the partner of us.
Agent and distributor wanted all over the world!
