2023 New Design Shuobao manufacture plating high precision plating process metal electroplating injector filter
- Category: >>>
- Supplier: Dongguan Shuobao Industrial Equipment Co. Ltd.
Share on (60742680957):
Product Overview
Description
Product Description
A: Features
As ABS or Hardware Plating production line request very high precision and high quality on filter equipment. Specially the Acid copper and nickel process, Our newest Filter series SPF is special filter for Acid and nickel process to reach the best filtering result,with Japan motor and make sure no any leakage on chemical. CE/EMC certificate support.
B: Advantage

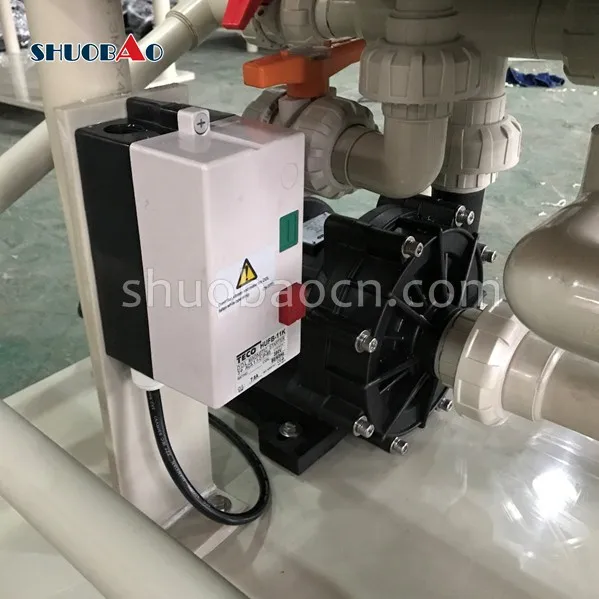

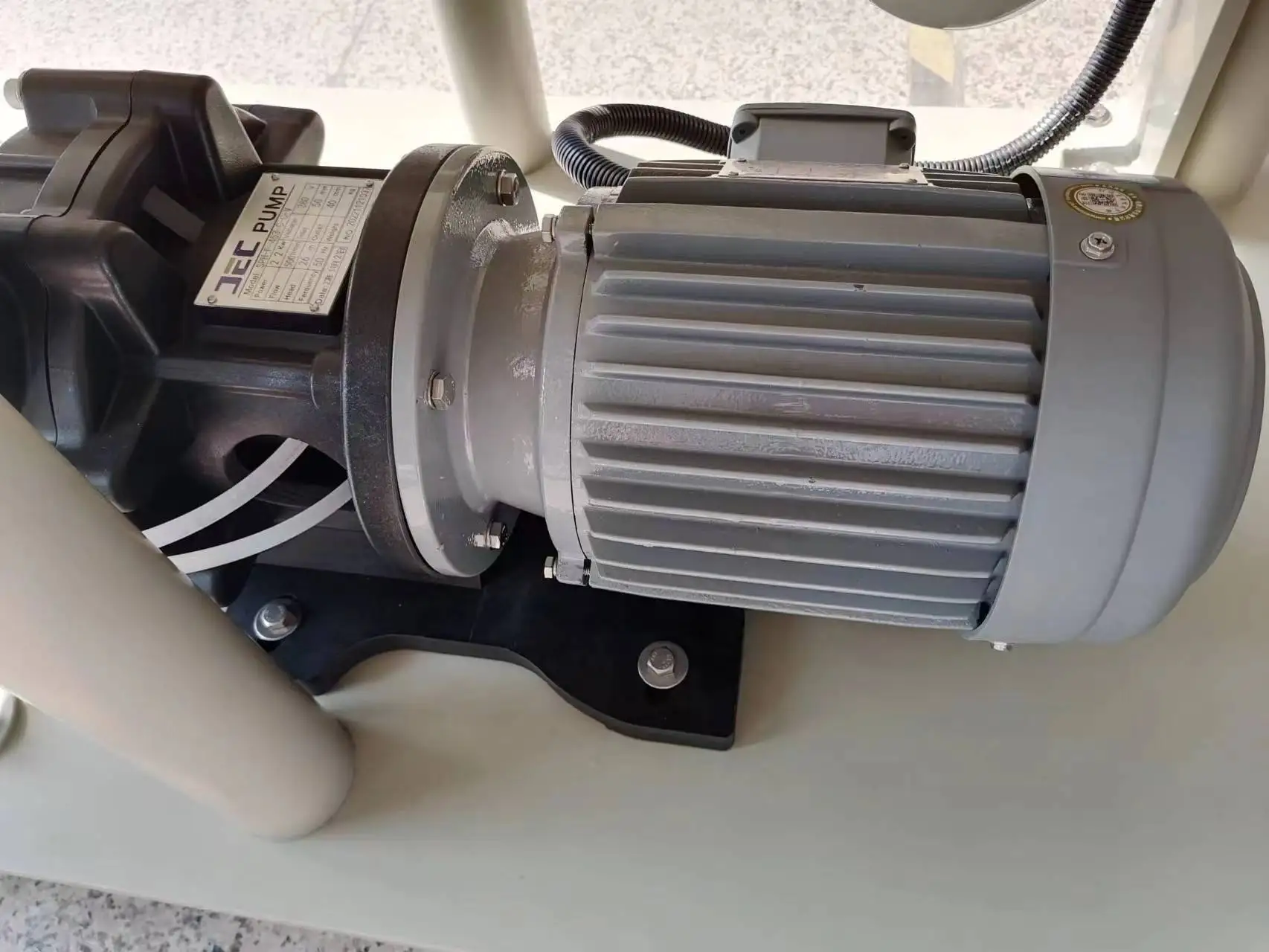

- This SPF series with sph high quality pump with Japan toshiba brand motor! stable and never leakage or idling working.
- The high precision and high quality filtering result, lead to the best plating quality.
- The machine can save the liquid chemicals, assuming that customers need to clean once a month, our filter only need to clean a two month.
- It will never blocked even adding 10kg carbon powder. The flow can still reach 20-30m3/h.
- The whole treatment of carbon powder takes only 1-2 minutes, then the liquid can be recycled without any leakage.
- After exchange the filter cartridge or plates, only need 10-20sec to release the air.
- Using the configuration protection switch or use the buckle switch.
C: Filter Type Details
| Items | Parameters | |||||
| Model | SPF-2008-1 | SPF-2008-2 | SPF-2018-2 | SPF-2018-3 | SPF-2018-5 | |
| Type of Pump | SPH-441 | SPH-452 | SPH-452 | SPH-453 | SPH-565 | |

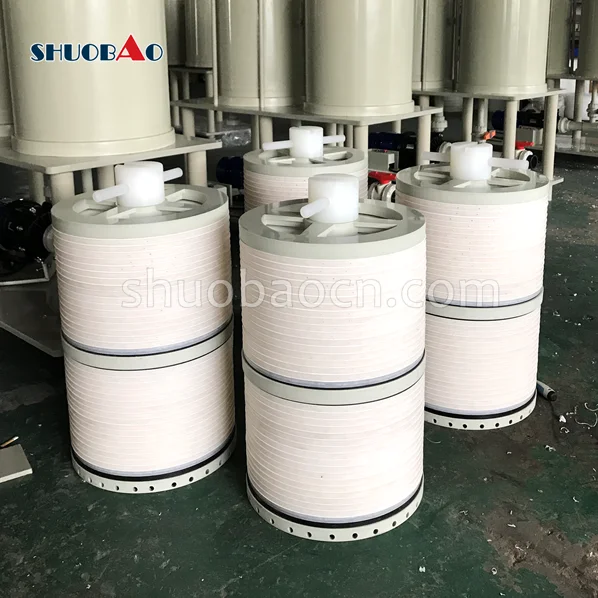

| Filter Media | Filter Disc Paper | 240/73mm | 240/73mm | 370/73mm | 370/73mm | 370/73mm |
| Filter Cartridge | 20" 5MU | 20" 5MU | 20" 5MU | 20" 5MU | 20" 5MU | |
| Power | 1HP, 0.75kw | 2HP, 1.5kw | 2HP, 1.5kw | 3HP, 2.2kw | 5HP, 3.75kw | |
| Filtering Capacity (L/h) | 10,000 | 15,000 | 20,000 | 30,000 | 40,000 | |
| Temperature | 70℃ | 70℃ | 70℃ | 70℃ | 70℃ | |
| Inlet/Outlet (mm) | DN40/DN40 | DN40/DN40 | DN50/DN40 | DN50/DN40 | DN65/DN50 | |
| Dimensions (L*W*H mm) | 950*550*1420 | 950*550*1420 | 1170*600*1420 | 1170*600*1420 | 1170*600*1460 | |

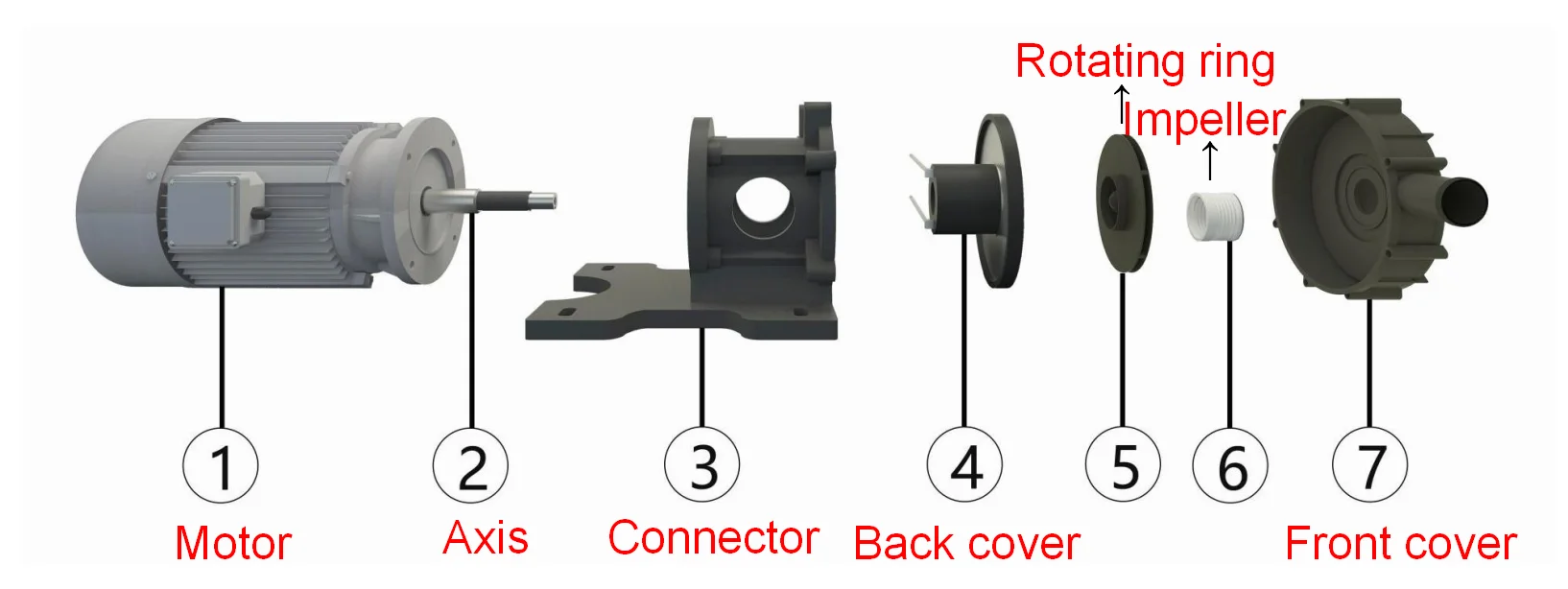

D: Filter Constructional Details
E: Filter Operation Cost
| Details | Old cartridge model | New Model |
| Tank liquid | 30T | 30T |
| Filter time | 26 days /8 hours | 26 days /8 hours |
| Worker clear and installation filter media time | 1pc /40min | 1pc /20min |
| Media clearing chemical waste volume | 1filter /40kg around | 1 filter /8kg around |
| Tank clearing time and chemical cost | 1month clear one time, chemical cost 10kg around | 2month only need clear one time |
| Filtration effect | Effective filtering liquid impurities 80% | Effective filtering liquid impurities 99% |
| Carbon powder test | adding 5KG carbon powder, flow only10ton/hour, sometimes little leakage. | adding 5KG carbon powder, flow reach 25ton/hour, no any leakage. |
F: Filter Applications
G: We can do for factories, resellers,wholesale dealers or agents
1. 100% new and good quality guarantee,with 1year guarantee of the machine;
2. Free design based on your request, non-standard design just more quantities requested ;
3. Free technical support and service ;
4. Choose the best shipping type for you, and good after-sale service...
H: Quality and Raw Materials
1. 100% pre-tested on each item before shippment;
2. Through the QC inspection many times;
3. Strict production operation ;
4. Environmental protection material;
5. Made from A grade PP or PVDF or CPVC material.
Company Information
Introduction:
Shuobao Industrial Equipment Co.,ltd belongs to JEC group,which is a manufacturer specialise in reaserch and develpment, innovation, porduction and marketing in electroplating equipment items.
Our Advantage:
We own our filter and pump's Injection molding equipment and metal cutting machine, automatic lather machine, etc. That's why we can control the quality standard and keep best competitive price for you. All our PUMPS/RECTIFIERS all with CE AND EMC REPORTS.

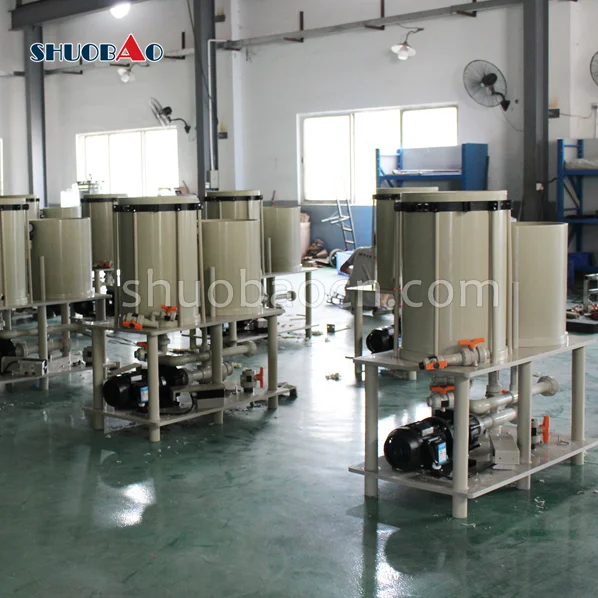

Factory Show:
Our Customers:
Certifications
Filter Series
Packaging & Shipping
1. 7-15 days after your payment.
2. Trandport: DHL, FedEx, UPS, Air shipping, Boat shipping.
3. You may choose our shipping partner or your own partner.
FAQ
Q: Are you a factory or not?
A: 100% sure we are manufacturer which located in Dongguan City.
Q: Are you molding injection the equipment by yourself?
A: Yes, we have filter and pump molding injection equipment to make the mould by ourselves.
In order to give best price to client.
Q: How long is the warranty?
A: One year. Excluding the artificial damage.
Q: How to get the right model quotation regarding to the filter unit and pumps?
A: Only just the flow capacity/tank liter, also the chemical details are enough.
